Trailer tandem slide repair?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by zaroba, Apr 6, 2020.

  1. zaroba

    zaroba Medium Load Member

    Aug 28, 2012
    South East PA
    Old trailer I bought has the tandems nearly impossible to slide when empty. Had to slam the wheels against a curb to get them to move forward and get the pins away from holes then do 15mph across the lot and hit the trailer brakes while turning to get the tandems to slide back before the pins had time to lock. Royal pain in the butt and certainly not good on the tires.

    It simply wont move empty just sitting. The tires will skid when moving forward or bounce when trying to reverse.

    Wondering if theres an easy way to improve it when I'm home next week. If it's even worth it on the 19 year old trailer that I'm planning to replace in a few months, although it might increase it's value.

    Maybe detach the carriage and sand the heck out of everything and hope it goes back together properly or a good lubricant?
  2. HoneyBadger67

    HoneyBadger67 Road Train Member

    Dec 15, 2018
    Champaign, IL
    Use a wire wheel along where it's supposed to slide. It's probably just scaled up. You might make it slippery with a bit of 3-in-1 oil, grease will just attract dirt.
  3. BoxCarKidd

    BoxCarKidd Road Train Member

    Aug 26, 2014
    Pictures of the slides and pins? Do the pins align with the holes?
    Some trailers had teflon slides between the two. Yours maybe gone. Sometimes spraying the slide with a water hose helps and wheel chocks.
    Maybe try dry slide. Oil products collect dirt and end up worse in the long run.
    Be careful sliding on the move. Saw the results of that over the RR tracks. Slider flipped out from under the trailer.
    Rideandrepair Thanks this.
  4. fishonron

    fishonron Light Load Member

    Jul 25, 2017
    North Central Kansas
    I'm sure this is not the approved approach but a squirt of WD or PB in each of the holes on the frame-rail has always worked for me.
    Last edited: Apr 6, 2020
    Rideandrepair Thanks this.
  5. zaroba

    zaroba Medium Load Member

    Aug 28, 2012
    South East PA

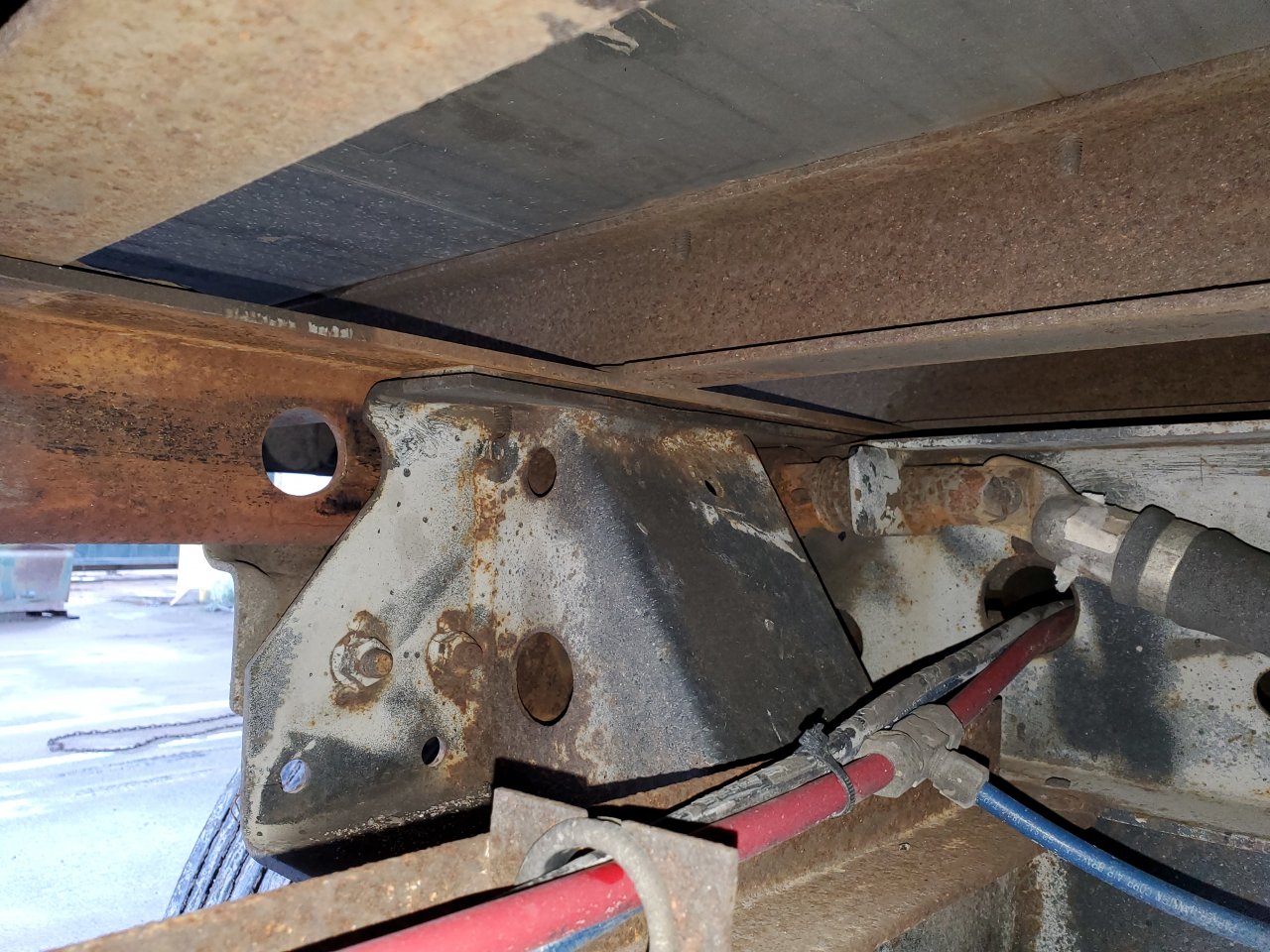

    I do see a plate up there. Maybe it's teflon, can't tell. Pins appear to line up, but I have to tease them with a flathead screwdriver to get them to pop into the holes.

    (Moisture trails in the 2nd pic are from when I tried some wd40 to help slide them)

    20200406_180239.jpg 20200406_180211.jpg
    Rideandrepair Thanks this.
  6. zaroba

    zaroba Medium Load Member

    Aug 28, 2012
    South East PA
    About to pick up a load of cat littler.
    If the weight let's them slide then maybe I'll try sliding them back and forth a few times while parked just to 'buff' it a bit.
    Rideandrepair Thanks this.
  7. jbatmick

    jbatmick Road Train Member

    Dec 1, 2009
    hastings, Fl
    Water. Wet the slides down good, it has worked for me before.
    Rideandrepair and "semi" retired Thank this.
  8. 062

    062 Road Train Member

    Oct 20, 2013
    In the first pic it looks like the pins may be dragging on the rail. I’d spray all the guides and pivots for the pins with wd40 or pb blaster and work them in and out a few times. After a day or so go back and spray them with fluid film. Where you see Teflon plate can be sprayed with fluid film. I slide the wheels all the way back and spray the rail,then all the way forward and spray again. Any place you see the rust being knocked off needs to be sprayed.
    Rideandrepair and BoxCarKidd Thank this.
  9. "semi" retired

    "semi" retired Road Train Member

    Apr 16, 2014
    high plains colorado
    I learned that from the railroad. If it wouldn't slide, they'd soak it with a hose at the shop, and slid like buttah. Only problem, it was a one shot deal, and they'd rust up again. IDK, seems like common sense to me, but soak the rails with a can of "knocker
    loose", or wd, or chain lube, ANYTHING, it's not that tough.
    BoxCarKidd and Rideandrepair Thank this.
  10. Rideandrepair

    Rideandrepair Road Train Member

    Aug 8, 2015
    My old trailer had that problem, worn Teflon plates. A wheel chock, dry lube spray, or Pb blaster, whatever I had. Before loading, sliding it while empty, spraying it good. Otherwise it wouldn’t slide when loaded at all.
    BoxCarKidd Thanks this.
