Truck shuts down when I turn on my lights switch

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Angelt6284, May 17, 2022.

  1. Angelt6284

    Angelt6284 Bobtail Member

    6
    3
    May 17, 2022
    0
    I have a 1995 freightliner fld120 with a DDs60 and no matter if I’m driving or if I’m sitting still the truck will emergency shutdown when I turn on my lights. Barely started happening Monday and I took a week off before that. Both the check engine and emergency shutdown lights cmon on. When I drive all day without the lights on it runs perfectly fine but a minute or so after I turn the lights on it shuts down. I have no clue if this is simple or serious.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. baha

    baha Road Train Member

    4,058
    2,709
    Jul 25, 2013
    ga
    0
    Some one has been making changes in wires behind the dash??

    blairandgretchen Thanks this.
  4. blairandgretchen

    blairandgretchen Road Train Member

    10,471
    48,900
    Dec 9, 2011
    South west Missouri
    0
    My only guess is that your light circuit is somehow tied into/rubbed into a low oil pressure switch or other critical shutdown event.

    If it has a diagnostic switch you can toggle that and read the 'blink codes' - better yet have it plugged in to see what the CEL/SEL codes were.

    It may help you isolate the problem.

    Report back please !

    cke and spsauerland Thank this.
  5. Angelt6284

    Angelt6284 Bobtail Member

    6
    3
    May 17, 2022
    0
    No the truck sat for a week while I was at home.

  6. Angelt6284

    Angelt6284 Bobtail Member

    6
    3
    May 17, 2022
    0
    Where would I take it to get the codes scanned? The dealer? I don’t have a scan tool

    blairandgretchen Thanks this.
  7. ZVar

    ZVar Road Train Member

    10,079
    21,322
    Sep 10, 2010
    Flint, MI
    0
    Dealer sure, but any heavy diesel mechanic should have one that works with an engine that old. Call around and give the symptoms and see id they can diagnose it.

    Sounds like a bad ground somewhere, or a broken wire that is causing feedback when you turn the lights on. Don't expect it to be found right away, but on the same token the mechanic might get lucky too.

  8. Angelt6284

    Angelt6284 Bobtail Member

    6
    3
    May 17, 2022
    0


    Attached Files:

  9. Angelt6284

    Angelt6284 Bobtail Member

    6
    3
    May 17, 2022
    0

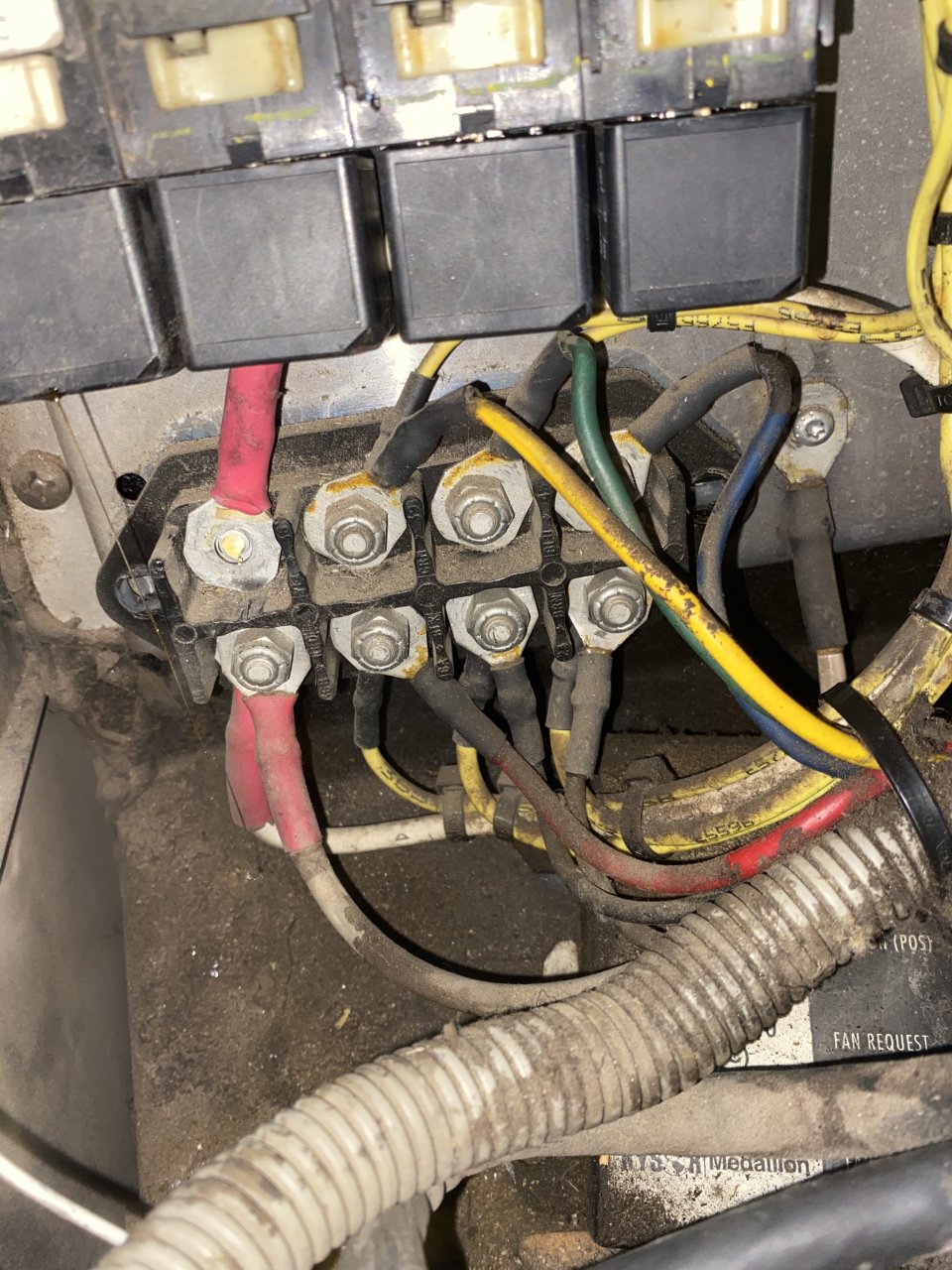

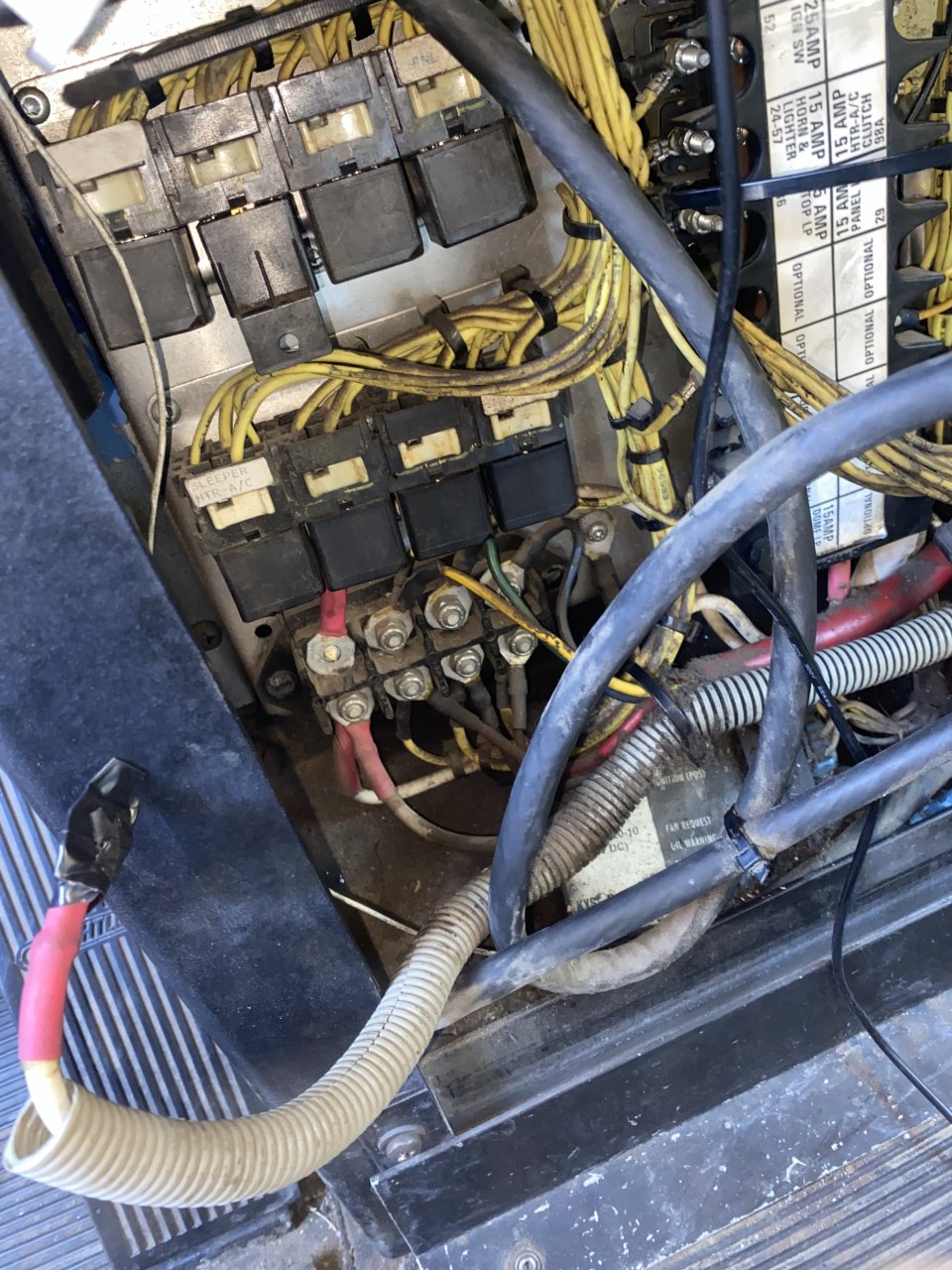

    I got the above pictures looking at the trucks relays and stuff and a bolt was broken securing a line coming from the batteries. Could that be it? And what’s the pats name that holds all those cables together?

    blairandgretchen Thanks this.
  10. blairandgretchen

    blairandgretchen Road Train Member

    10,471
    48,900
    Dec 9, 2011
    South west Missouri
    0
    Go to your FL dealership with the VIN and that picture, I’m guessing you’ll need that whole block, unless those bolts are replaceable from the rear side.

  11. Angelt6284

    Angelt6284 Bobtail Member

    6
    3
    May 17, 2022
    0
    Yea I’m trying to get home this weekend to fix this I’ll see if it’s the problem . Thank you guys.

    blairandgretchen Thanks this.
