Unusual tire wear

Discussion in 'Ask An Owner Operator' started by J.S., Aug 15, 2024.

  1. J.S.

    J.S. Medium Load Member

    451
    202
    Jun 27, 2015
    Texas
    0
    Morning people! I got a 07 Columbia that has a tire wear issue at the drivers side steer. The opposite steer is beautifully warring and so was he drivers at a point. I don’t have centramatics and iv always had a little play in the steering which I chalked to the alignment on the rears. The wesr pattern is a camber type on both sides of the tires. I researched kingpins causing this on one wide and I expect it could possibly cause wear on both like I have. The shape is like so /-\.

    maybe something is causing it to spend time on both sides of the tire. Any suggestions. Thx!

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Iamoverit

    Iamoverit Medium Load Member

    664
    1,667
    Oct 31, 2023
    0
    I'd start with bearing adjustments. Make 100 sure you have the proper preload set then go from there.

  4. SmallPackage

    SmallPackage Road Train Member

    4,792
    14,529
    Dec 20, 2019
    Marion Texas
    0
    Loose bearings as said above and Bad tie rod end on that side could cause that wear also. If loose enough it can cause wheel toe to rock in and out while traveling.

  5. abyliks

    abyliks Road Train Member

    3,392
    7,596
    May 2, 2010
    ludlow MA
    0
    Get a full alignment done easiest way to find out if donating is out of wack

  6. Space Truckin

    Space Truckin Light Load Member

    108
    208
    Mar 8, 2023
    Venus, Mars, and Tampa, FL
    0
    Maybe this is too obvious but I assume you checked the pressure first? That's also classic "under inflated" wear pattern.

    Flat Earth Trucker Thanks this.
  7. Ridgeline

    Ridgeline Road Train Member

    21,289
    105,867
    Dec 18, 2011
    Michigan
    0
    We see cupping from shocks, rear shocks.

  8. J.S.

    J.S. Medium Load Member

    451
    202
    Jun 27, 2015
    Texas
    0
    Couple photos!


    Attached Files:

    FloridaRetired Thanks this.
  9. J.S.

    J.S. Medium Load Member

    451
    202
    Jun 27, 2015
    Texas
    0

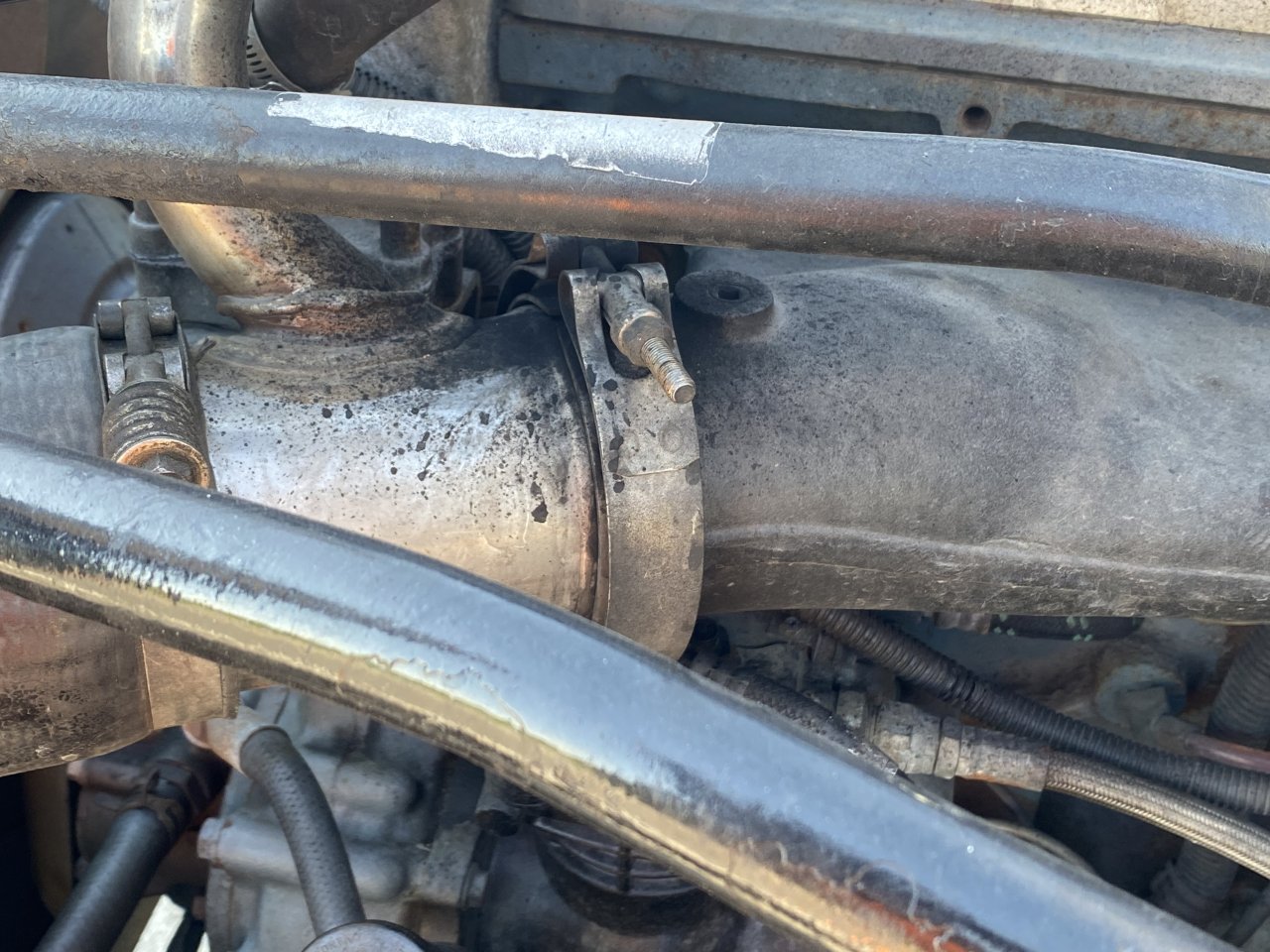

    While I gotcha. Would you say this is JUST a loose clamp? Anybody know what that silver piece is and what is its primary purpose? Thx!


    Attached Files:

  10. SmallPackage

    SmallPackage Road Train Member

    4,792
    14,529
    Dec 20, 2019
    Marion Texas
    0

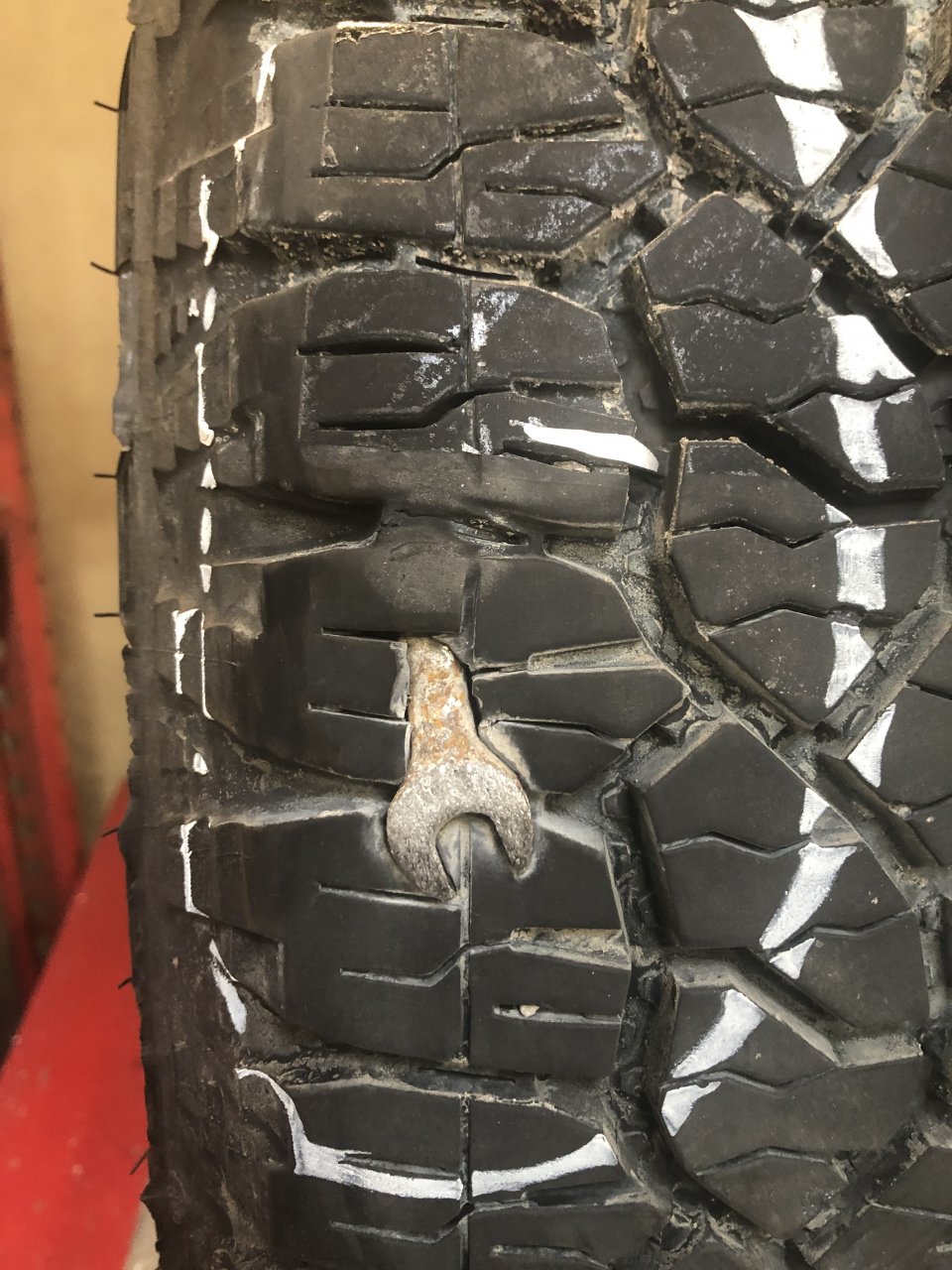

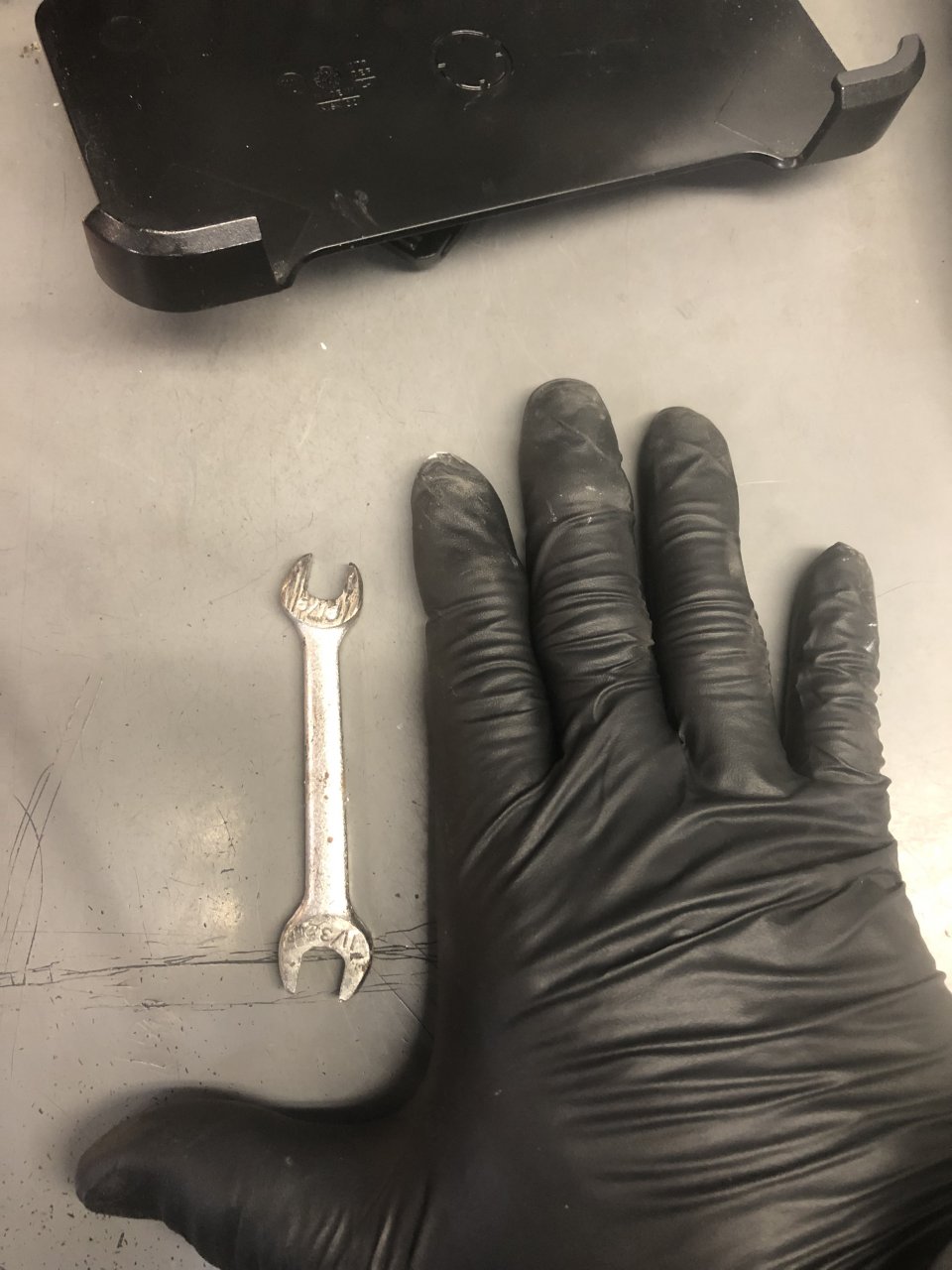

    Looks like there was some foreign material that got molded into either the tread itself or between the last steel ply and tread rubber. With the pressure of driving on it and the tread wearing down it opened up the cavities. This is a manufacturing defect and should be covered under workmanship warranty. Foreign material can be anything from dirt, air, scrap pieces of rubber or cord, and tools. Yes. I have seen whole combination wrenches or screw drivers molded in tires. Lol.

  11. SmallPackage

    SmallPackage Road Train Member

    4,792
    14,529
    Dec 20, 2019
    Marion Texas
    0
