Valve under fifth wheel is leaking air

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Leonard1983, Feb 8, 2025.

  1. Leonard1983

    Leonard1983 Bobtail Member

    6
    0
    Sep 28, 2023
    0
    I have a 2019 T680 Kenworth hooked up to a double bunk log trailer and the valve under the fifth wheel is leaking air out of the plastic plug on the bottom of the valve when the red button in the truck is pushed in. The valve doesn't leak air when the red button is pulled out. Also, air leaks out of the yellow button when it and the red button are pushed in.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. DUNE-T

    DUNE-T Road Train Member

    6,826
    16,353
    May 10, 2015
    Detroit, MI
    0
    Thank you for sharing

  4. kwswan

    kwswan Road Train Member

    1,888
    9,724
    Jul 26, 2009
    mcminnville,tn.
    0
    Sounds like a air chamber on the trailer is leaking and backfeeding through the valve.

    Stay Puft Thanks this.
  5. xsetra

    xsetra Road Train Member

    5,076
    6,906
    Aug 21, 2011
    0
    The valve under fifth wheel, is that the ABS valve?

  6. Leonard1983

    Leonard1983 Bobtail Member

    6
    0
    Sep 28, 2023
    0

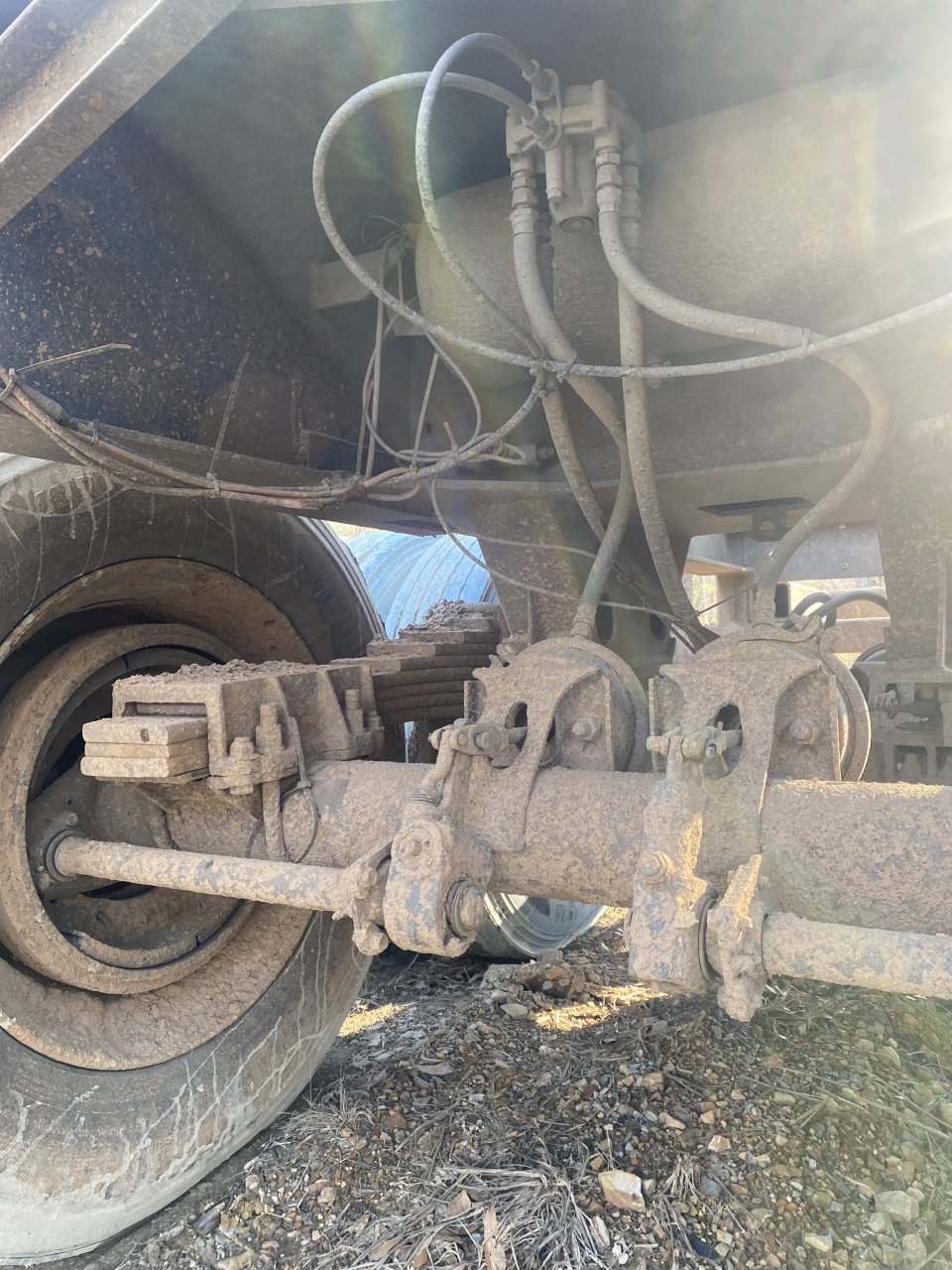

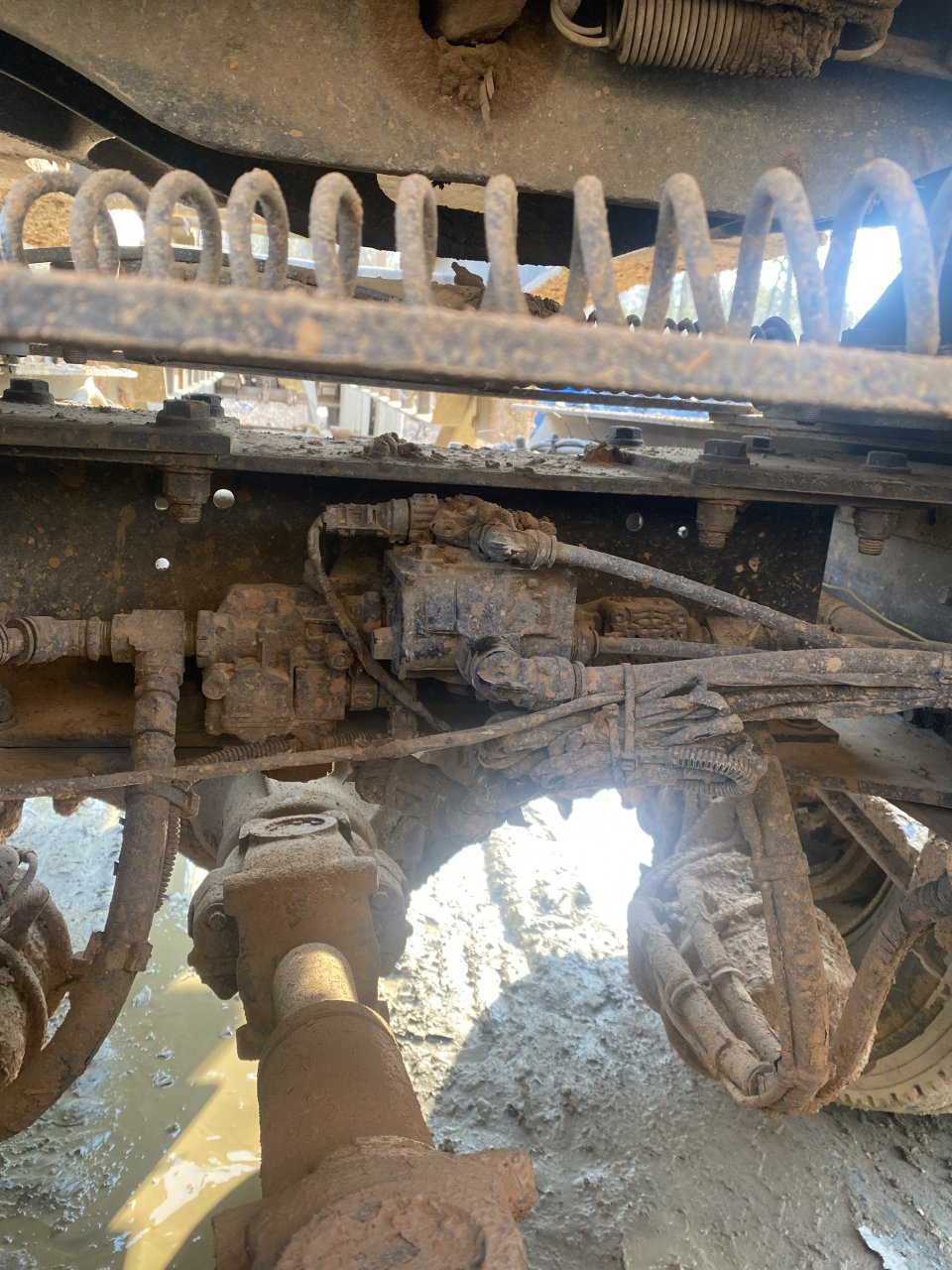

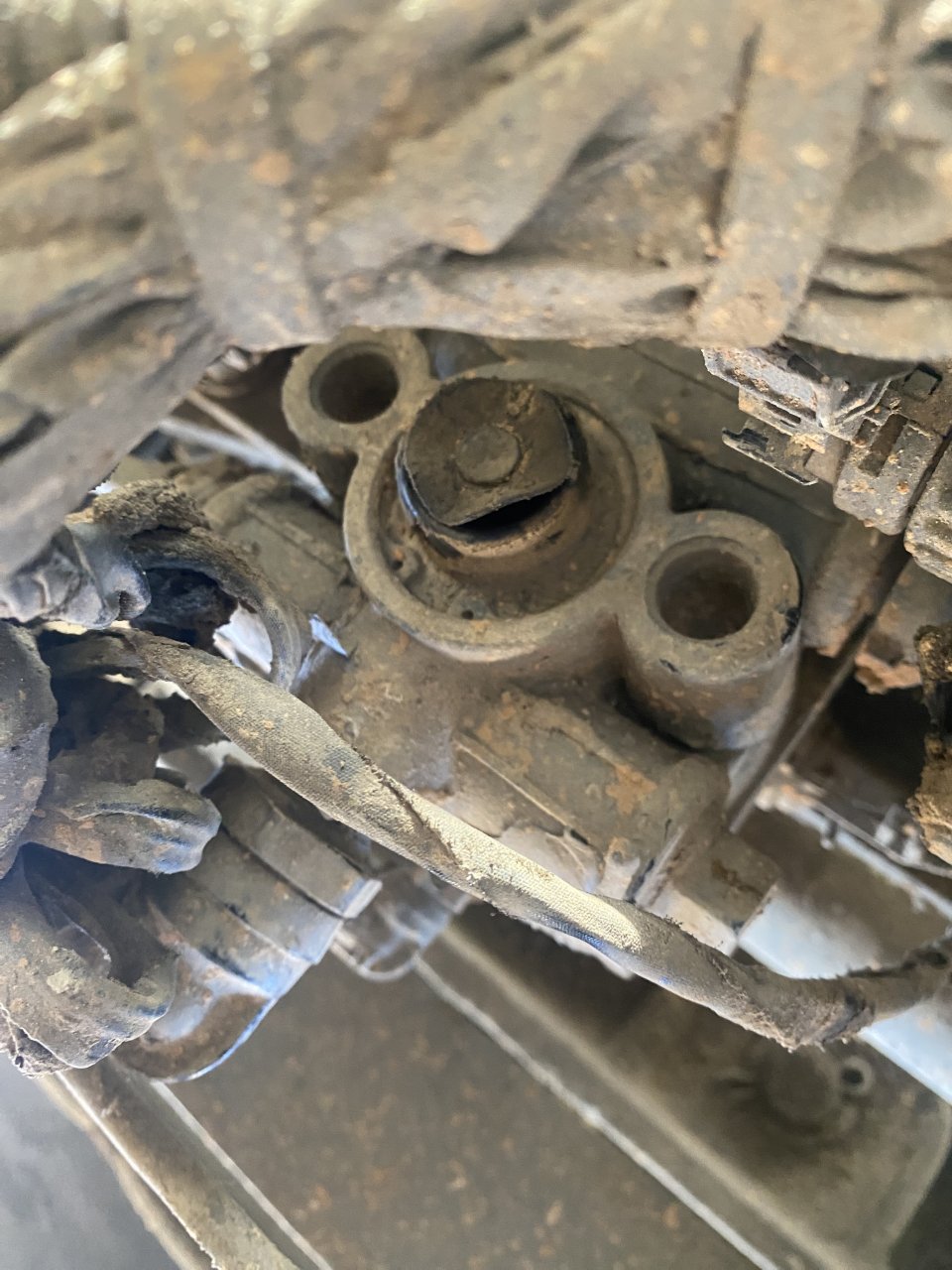

    Here's pictures of the valve under the fifth wheel and the break pods under the trailer. The second picture shows where the air is coming out. I pushed the red button in the truck and pulled the jimmy bar and no air is coming out of the pods. Air comes out of the valve faster when the foot brake is pushed in.


    Attached Files:

  7. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,514
    28,154
    May 2, 2021
    0
    If air isn't leaking with only the yellow button in, @kwswan said, probably a trailer brake chamber.

    With red button in, pull your blue air line and see if air is coming out of the trailer gladhand

    Oxbow and kwswan Thank this.
  8. Leonard1983

    Leonard1983 Bobtail Member

    6
    0
    Sep 28, 2023
    0
  9. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,514
    28,154
    May 2, 2021
    0
    No luck where? You're gonna have to explain

    Oxbow and Bean Jr. Thank this.
  10. KDHCryo

    KDHCryo Medium Load Member

    363
    450
    Sep 14, 2023
    0
    If you can't point, we can't help.

    Sometimes, in trucking, you have to take off the flip flops.

    Iamoverit Thanks this.
  11. Rideandrepair

    Rideandrepair Road Train Member

    17,113
    55,573
    Aug 8, 2015
    0
    I had to change mine once. Only the valve portion, not the part with abs wires running to it. It wasn’t expensive. That’s all I remember.

    Stringb8n Thanks this.
