why do most flatbed trailers have two electrical connectors?

Discussion in 'Flatbed Trucking Forum' started by scoobertdoo, Nov 17, 2022.

Page 1 of 3
  1. Nov 17, 2022 #1
    scoobertdoo

    scoobertdoo Road Train Member

    1,276
    2,227
    Nov 11, 2020
    0

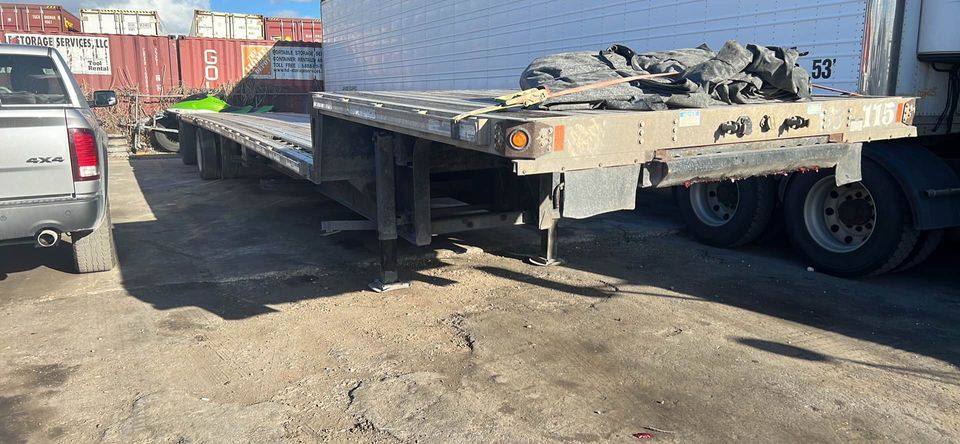

    311756271_6146193058766265_6053366258785383495_n.jpg 312328964_5765430580182289_3453786904828243634_n.jpg 305672946_6095792780478501_1447859540257305688_n.jpg

    What is the second connector for? Do all flatbeds have a dump air function on the axles?

    scoobertdoo, Nov 17, 2022
    scoobertdoo, Nov 17, 2022
    #1 + Quote Reply
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 17, 2022 #2
    skallagrime

    skallagrime Road Train Member

    3,040
    7,555
    Apr 10, 2012
    Indiana
    0
    Not all, and it can be a function of age too. 2nd plug could be for abs if its older, center wire (blue) as abs is relatively new, that used to be what you wired the dump valve on. NOW the 2nd plug is for dumps, extra lights, oversize lights etc

    skallagrime, Nov 17, 2022
    skallagrime, Nov 17, 2022
    #2 + Quote Reply
    CAXPT, tscottme, cke and 1 other person Thank this.
  4. Nov 17, 2022 #3
    scoobertdoo

    scoobertdoo Road Train Member

    1,276
    2,227
    Nov 11, 2020
    0
    this one is a 2006, wouldn't that be abs on blue? So I can assume the second is for lights, or lift? and not necessary unless I need osl lights?


    Attached Files:

    scoobertdoo, Nov 17, 2022
    scoobertdoo, Nov 17, 2022
    #3 + Quote Reply
    cke and blairandgretchen Thank this.
  5. Nov 17, 2022 #4
    D.Tibbitt

    D.Tibbitt Road Train Member

    18,592
    123,763
    Apr 26, 2013
    Gettin' down westbound
    0
    Look under the trailer and see where the wires run. That will tell you what it's for

    D.Tibbitt, Nov 17, 2022
    D.Tibbitt, Nov 17, 2022
    #4 + Quote Reply
    buddyd157, CAXPT, Kyle G. and 2 others Thank this.
  7. Nov 17, 2022 #5
    scoobertdoo

    scoobertdoo Road Train Member

    1,276
    2,227
    Nov 11, 2020
    0
    I am looking at online ads. Not sure I want to start a negotiation by asking questions that an informed person would know. I like to pretend I know what I am talking about when hashing out prices :p

    scoobertdoo, Nov 17, 2022
    scoobertdoo, Nov 17, 2022
    #5 + Quote Reply
    Sirscrapntruckalot, Grumppy, Cat sdp and 5 others Thank this.
  8. Nov 17, 2022 #6
    D.Tibbitt

    D.Tibbitt Road Train Member

    18,592
    123,763
    Apr 26, 2013
    Gettin' down westbound
    0
    Oh ok I thought u were taking those pics in person.. The last flatbed I had, it was for extra lights you can hookup to a oversize load.. Some may be wired for a dump valve to the axles.. Some may have plug from factory but not wired to anything... No harm in asking the seller what the plug is for. It's impossible to know how everybody uses their equpment

    D.Tibbitt, Nov 17, 2022
    D.Tibbitt, Nov 17, 2022
    #6 + Quote Reply
    Sirscrapntruckalot, CAXPT, cke and 1 other person Thank this.
  9. Nov 17, 2022 #7
    scoobertdoo

    scoobertdoo Road Train Member

    1,276
    2,227
    Nov 11, 2020
    0
    How hard is it to add a dump valve on the rear axle? I have a super tight turn coming into my street for my house, and I am not sure I can make it without removing the stop sign

    scoobertdoo, Nov 17, 2022
    scoobertdoo, Nov 17, 2022
    #7 + Quote Reply
    cke Thanks this.
  10. Nov 17, 2022 #8
    bad-luck

    bad-luck Road Train Member

    2,705
    4,691
    Nov 16, 2013
    Baltimore, Maryland
    0
    bad-luck, Nov 17, 2022
    bad-luck, Nov 17, 2022
    #8 + Quote Reply
    Roger McG, Jubal Early Times, CAXPT and 1 other person Thank this.
  11. Nov 17, 2022 #9
    skallagrime

    skallagrime Road Train Member

    3,040
    7,555
    Apr 10, 2012
    Indiana
    0
    This

    No sane person selling a trailer should expect a buyer to know how the trailer for sale is set up, if anything, it shows knowledge that it may be different and that you may have to modify truck or trailer wiring

    skallagrime, Nov 17, 2022
    skallagrime, Nov 17, 2022
    #9 + Quote Reply
    lester, CAXPT, beastr123 and 1 other person Thank this.
  12. Nov 17, 2022 #10
    ZVar

    ZVar Road Train Member

    10,523
    22,614
    Sep 10, 2010
    Flint, MI
    0
    Heck, it could also be nothing. Could be there for future use and not actually wired to anything just yet.

    ZVar, Nov 17, 2022
    ZVar, Nov 17, 2022
    #10 + Quote Reply
    kylefitzy, Jacoooooooo, CAXPT and 1 other person Thank this.
