X Chaining Beams

Discussion in 'Flatbed Trucking Forum' started by BackYardBoogey, Apr 1, 2018.

  1. Espressolane

    Espressolane Road Train Member

    9,039
    37,523
    Nov 21, 2009
    Just south of the north 40
    0
    A cross or X chain is a form of trip.

    Start on the right side of the trailer, attach a chain just slightly behind the fron of the cargo, then go over the top, about 1/3 to 1/2 way across, then go under the cargo, attach chain to the left side of the trailler, just behind the front of the cargo. Place a binder, usually on top, and tighten. Do the same thing with one more chain in a mirror image. When you look at it from the end, the chain or strap will look like an X.

    One important part of this is making sure you have no slack in the chains/straps. The idea is to stop movement before it starts. If the cargo can move, then the system will fail when it get stressed by the cargo.

    You can do this on both the front and back of a load. Just depends on what it is.

    Last edited: Apr 1, 2018
    My Dog, BackYardBoogey and Gunner75 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Zeviander

    Zeviander Road Train Member

    4,888
    36,984
    Jan 23, 2015
    Winnipeg, MB, CA
    0
    Always a good idea to cross-chain anything steel unless shipper says no (such as rolled tube places that spray them in oil, warp them in plastic and say "straps only please!").

    You don't want it joining you in the cab.

    Highway Sailor Thanks this.
  4. stwik

    stwik Road Train Member

    10,160
    150,912
    Oct 8, 2017
    USA USA USA!!!
    0
    I don’t haul steel beams often enough... but I’d try to build a bulkhead in the front and I’d throw two chains across the bulkhead and create an x effectively blocking any forward movement.

    I’ve done it before on a load of pipe. Thought it worked quite well despite taking a little extra time. Was something I was more or less curious to try.

  5. RedRover

    RedRover Road Train Member

    1,751
    2,480
    Sep 10, 2016
    Corsicana, TX
    0
    On steel beams, throw everything you’ve got on it and if there’s room, also build a bulkhead. Then edge protect and strap it as well. Once secured, drive like your first born is in an unsecured car seat on the deck. That means you NEVER let yourself be caught by surprise and drive in such a way that you can roll #### near to a stop at lights and stop signs. If anything is going to bite you, it’s pipes, beams, coils or Swift.

    Gunnerluv Thanks this.
  6. 6rider

    6rider Light Load Member

    105
    67
    Oct 24, 2016
    Ontario
    0
    I don’t know if an x chain is the best in this case preventing the beams sliding forward since there are so many but it definitely wouldn’t hurt. I would rather build a bulkhead touching the beams to be safe. An x chain is nice for something like slabs. Take a chain from 1 end pull half way over the top to the other side. Take another chain hook underneath from the other side pull half way over the top. Tighten both chains with binders where you please. If you haul haul plate or slabs they’ll never shift forward on you like this.

    LoneCowboy Thanks this.
  7. johndeere4020

    johndeere4020 Road Train Member

    8,522
    119,253
    Jan 1, 2010
    Ohio
    0
    I hear about bulkheads all the time but how effective are they in reality? Anyone ever see one stop forward movement in a head on type crash?

    Oxbow Thanks this.
  8. kylefitzy

    kylefitzy Road Train Member

    2,253
    8,055
    Aug 12, 2007
    Kansas city,Mo
    0
    I have seen them stop greasy bar in a hard brake situation. Not much is going to help in a head on collision.

    Oxbow Thanks this.
  9. Zeviander

    Zeviander Road Train Member

    4,888
    36,984
    Jan 23, 2015
    Winnipeg, MB, CA
    0
    I don't think any securement is going to stop anything from moving in a crash situation, just slow it down. Now in a hard stop situation, I can definitely see it being effective.

  10. Peelsession

    Peelsession Light Load Member

    197
    385
    Feb 13, 2016
    Sioux City, IA
    0
    I haul 60 footers quite a bit. I’ll double up on dunnage on the ends to make the load go uphill if it wants to join me in the cab.

    special-k and rank Thank this.
  11. Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    5,360
    6,506
    Jan 20, 2010
    Hesperia, Ca.
    0

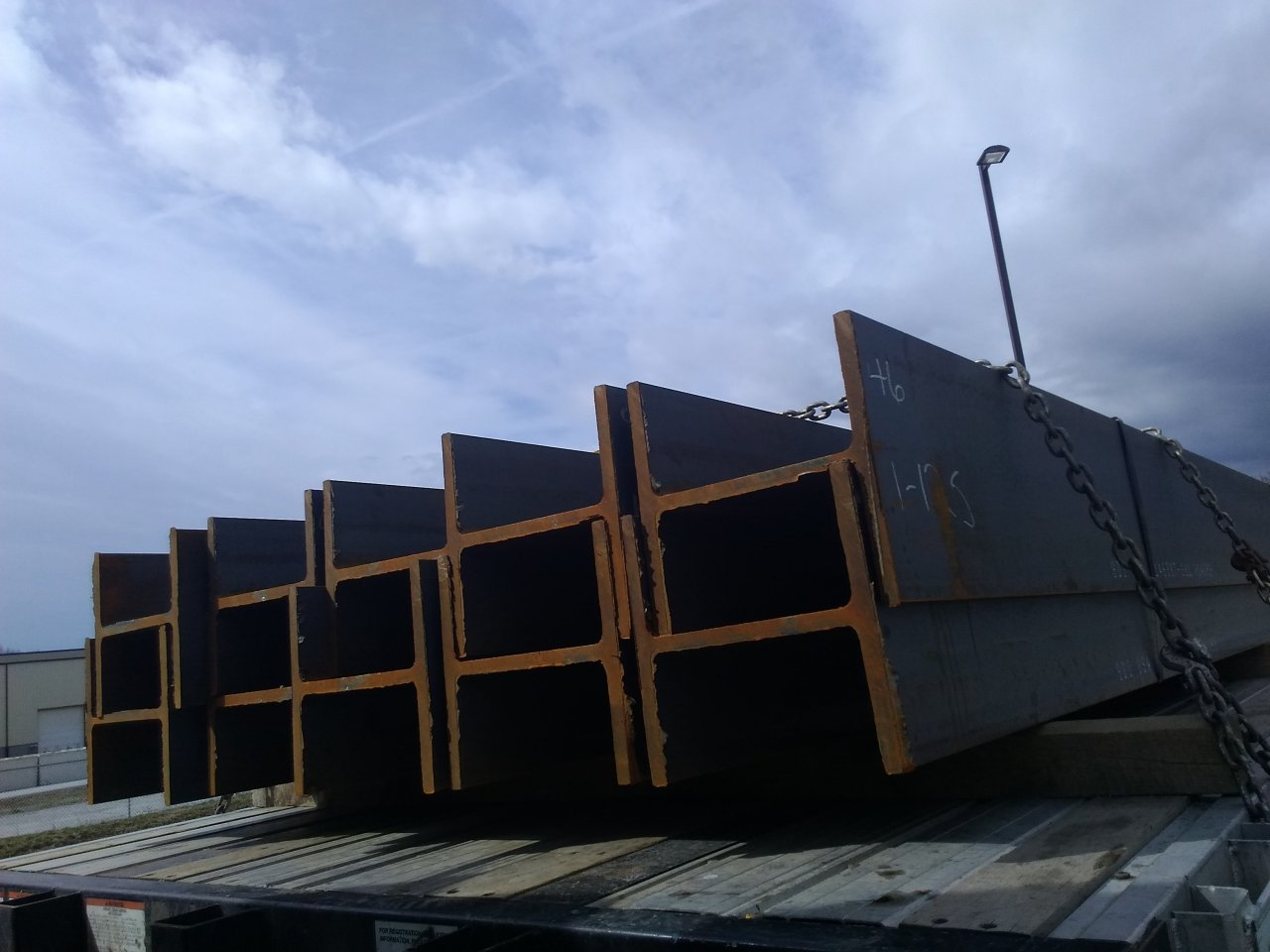

    That load isn’t going anywhere. I wouldn’t bother “X Chaining” . That’s the first time I here that term. If you have a headboard , don’t worry about it. Just keep this in mind, always remember what your hauling, drive for conditions of the load(don’t drive like a mad man)..... if your so worried about it, throw a couple of belly wraps on it.
