You driven Volvo?

Discussion in 'Questions From New Drivers' started by WesternPlains, Jan 31, 2018.

  1. WesternPlains

    WesternPlains Road Train Member

    5,577
    28,014
    Sep 1, 2017
    0
    Ok... got my truck back...
    Can’t find an owners manual to save my life...
    I’m thinking the shorter arm here is the engine brake. Correct?
    The longer arm is wipers and more.
    Mechanic said the turned arrow will put it in parked regen. I don’t know what the others do.
    It has a D11 engine. 2013...can’t even find a model number?


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. WesternPlains

    WesternPlains Road Train Member

    5,577
    28,014
    Sep 1, 2017
    0
    2C332A41-FE3B-4F66-B97D-3951BCA67D6F.jpeg Here’s the shifter. Three buttons. At top of shifter. Lever under shifter. And at back top of housing.

  4. Brickwall

    Brickwall Light Load Member

    292
    375
    Jan 30, 2018
    0
    The turned arrow is a "return key" or enter button when you're going through the computer for diagnostics or whatever. The shorter lever is engine brake yes. I was never able to find a use for the buttons on the end of it.

    To start a parked regen you have to go through the computer, find ATS STATUS, and hit request regen.

    WesternPlains Thanks this.
  5. Brickwall

    Brickwall Light Load Member

    292
    375
    Jan 30, 2018
    0
    The button at the back switches the shift pattern between power and economy. If you're hauling dry freight just leave it in E. Power rarely helps you out. The button on top of the shifter just allows you to move the shifter from neutral to forward, you can't drive like that, but makes climbing into the sleeper easier. And button on the front allows you to shift positions. I don't see a second lever?

    WesternPlains Thanks this.
  6. Peelsession

    Peelsession Light Load Member

    197
    385
    Feb 13, 2016
    Sioux City, IA
    0
    Don’t forget to set trailer brakes and turn off cruise before your regen. That’s how mine works. 2013 630.

    WesternPlains Thanks this.
  7. Brickwall

    Brickwall Light Load Member

    292
    375
    Jan 30, 2018
    0
    Yeah that's baloney about the shifting. That's a company setting.

    No way was I going to stop on elk that night, I got over it and slept in Laramie. Glad I did too, Sherman had been taken care of, and elk was closed all day when I woke up.

    WesternPlains Thanks this.
  8. Brickwall

    Brickwall Light Load Member

    292
    375
    Jan 30, 2018
    0
    Brakes yeah, mine never bothered me about the cruise.

    WesternPlains Thanks this.
  9. WesternPlains

    WesternPlains Road Train Member

    5,577
    28,014
    Sep 1, 2017
    0

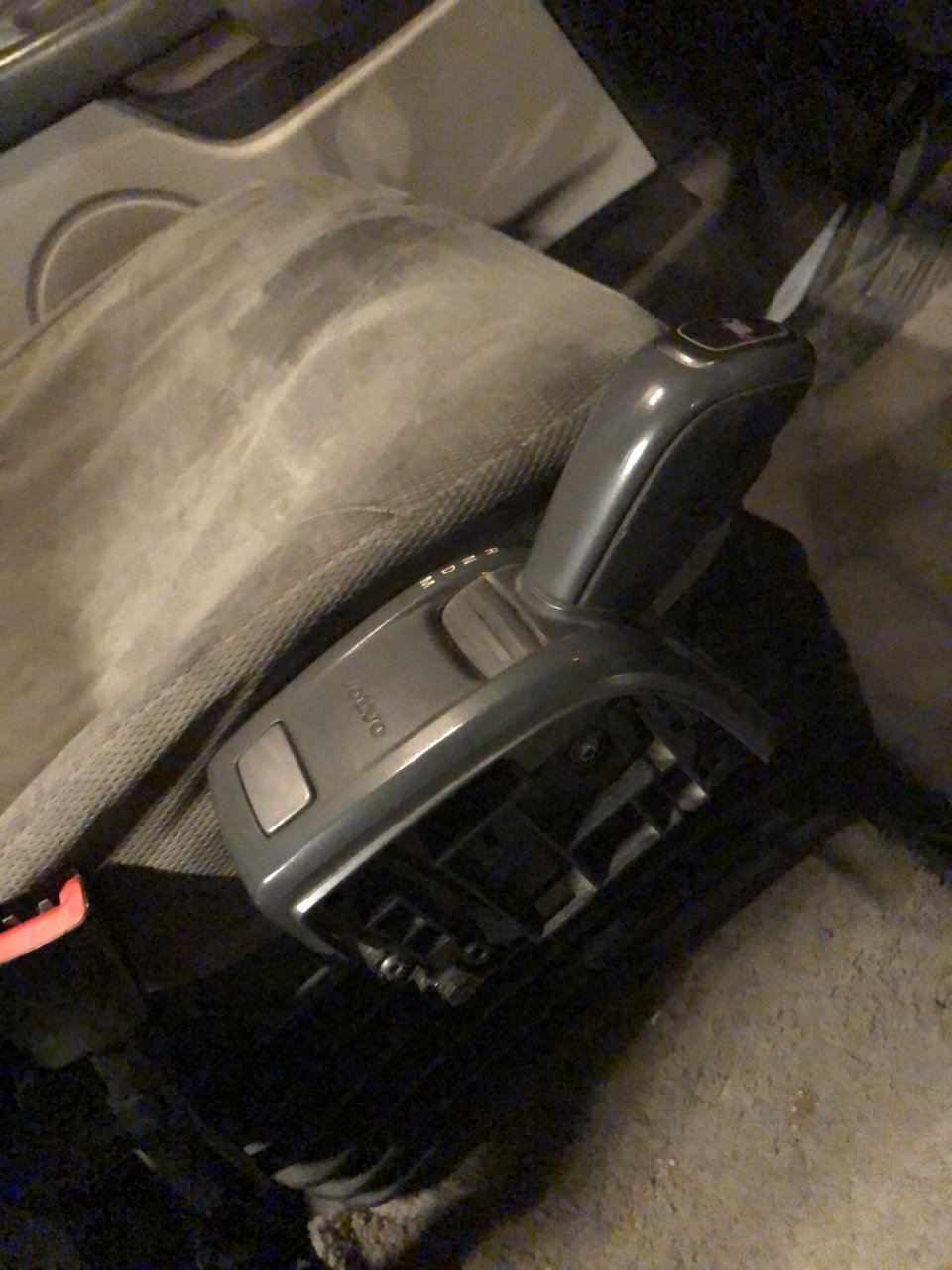

    Here’s the lever under shift knob.


    Attached Files:

  10. WesternPlains

    WesternPlains Road Train Member

    5,577
    28,014
    Sep 1, 2017
    0
    8BE5F8BF-9F85-4091-8B61-A19B1F89740E.jpeg Just found these two. On the side, toward the seat. Has a plus on one. And minus on other.

  11. Brickwall

    Brickwall Light Load Member

    292
    375
    Jan 30, 2018
    0
    That just looks like the button to shift from R N D M.
    The plus and minus are what was said earlier, upshift/downshift

    WesternPlains Thanks this.
