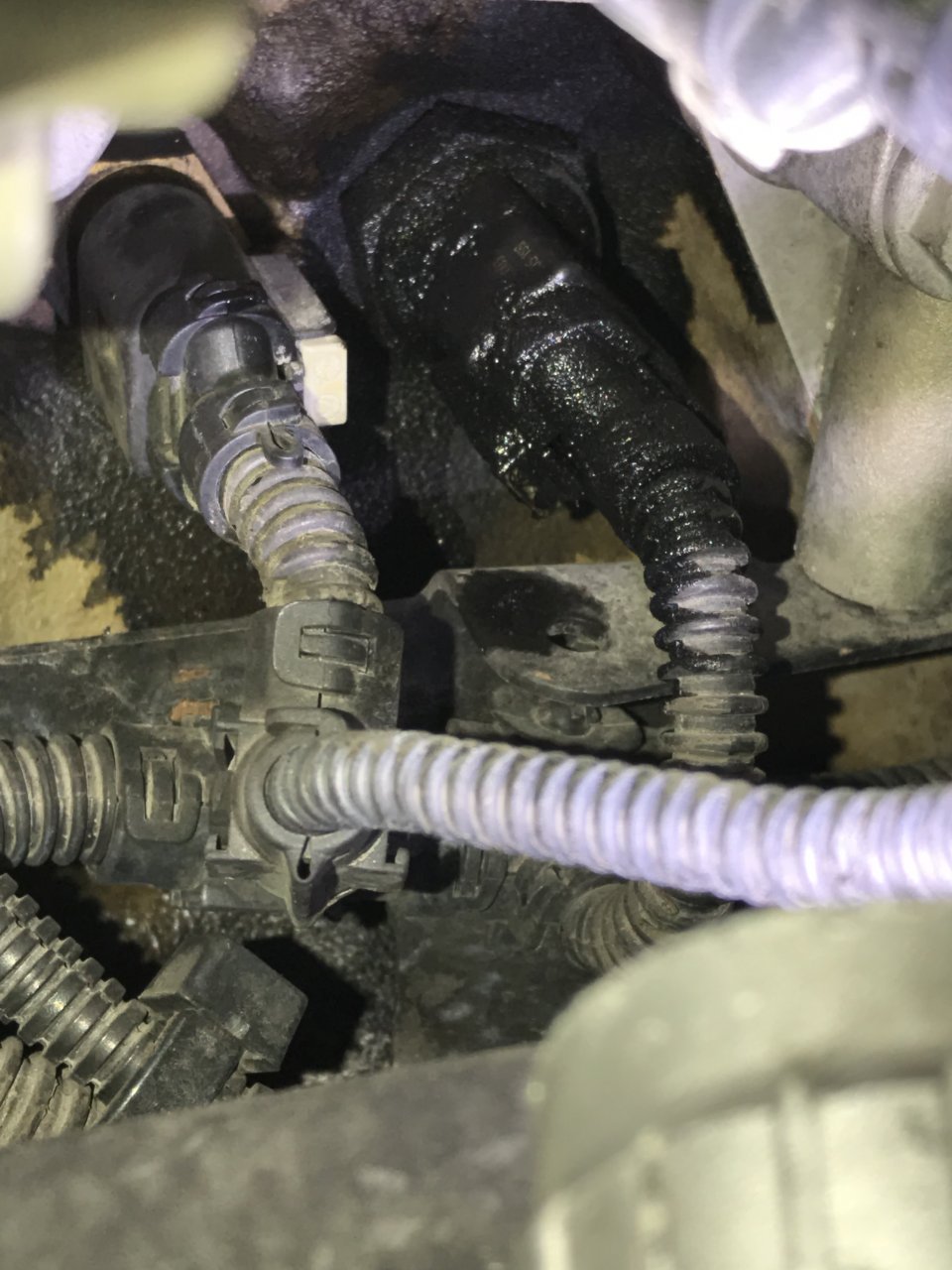

DD15 oil pressure sensor leaking? Removal and Replacement Advice
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by PE_T, Jan 4, 2019.
Page 1 of 2
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
You won’t lose more than a quart.
PE_T Thanks this. -
Nothing special just unscrew it don’t loose the crush washer that goes in front of the sensor.
Dave_in_AZ and PE_T Thank this. -
When they start leaking, are they still good to be reused if retightened? Do they leak because they are loose, or broken and needing replacement? I have a new one already. I noticed it comes with a metal washer. I thought it would use a silicone washer.
-
Usually the sensor itself leaks and has to be replace. The sealing/crush washer shouldn’t be reused, but I would be lying if I said I had never done it and had it reseal.spsauerland and PE_T Thank this.
-
Just replace it as sensor is leaking not the mount
PE_T Thanks this. -
Yup, it was pretty easy and quick. I did end up damaging the sensor clip a bit, but it was still usable. On the bright side, now I know exactly how to remove those tricky clips without damaging them. Freightliner apparently doesn’t sell that sensor clip. They only sell the whole assembly.
Working2party Thanks this. -
So how do you remove that clip?
-
Use a pick to pull up the gray tab. Be careful not to over pull it. It will pull up some 10% of 1 inch. When you’re ready to put it back together, press the gray tab down, and then install it. You should hear a click.Last edited: Dec 18, 2019
-
So if i pull that gray tab it'll slide off?
