Fan always running prostar 2012 maxxforce 13

Discussion in 'International Forum' started by martinmunizh, Sep 18, 2022.

  1. martinmunizh

    martinmunizh Bobtail Member

    Joined:
    Sep 17, 2022
    Messages:
    2
    Thanks Received:
    0
    0
    My fan always running, never stops, this problem starts when I charge the AC system and scan the truck with DLB and shows the next codes SPN 520868 FMI 5, SPN 520822 FMI 5 and SPN 520823, checked the blower fan and seems ok, when I disconnect the fuse F4 M codes disapear.

    martinmunizh, Sep 18, 2022
    #1
  2. InternationalExpert

    InternationalExpert Bobtail Member

    Joined:
    Mar 1, 2022
    Messages:
    10
    Thanks Received:
    5
    0
    Did the problem come back? could be just a bad ground based on 520823

    InternationalExpert, Sep 19, 2022
    #2
  3. Heavyd

    Heavyd Road Train Member

    Joined:
    Feb 4, 2009
    Messages:
    7,829
    Thanks Received:
    6,280
    0
    What fan are you exactly talking about?

    Heavyd, Sep 20, 2022
    #3
    martinmunizh Thanks this.
  4. martinmunizh

    martinmunizh Bobtail Member

    Joined:
    Sep 17, 2022
    Messages:
    2
    Thanks Received:
    0
    0

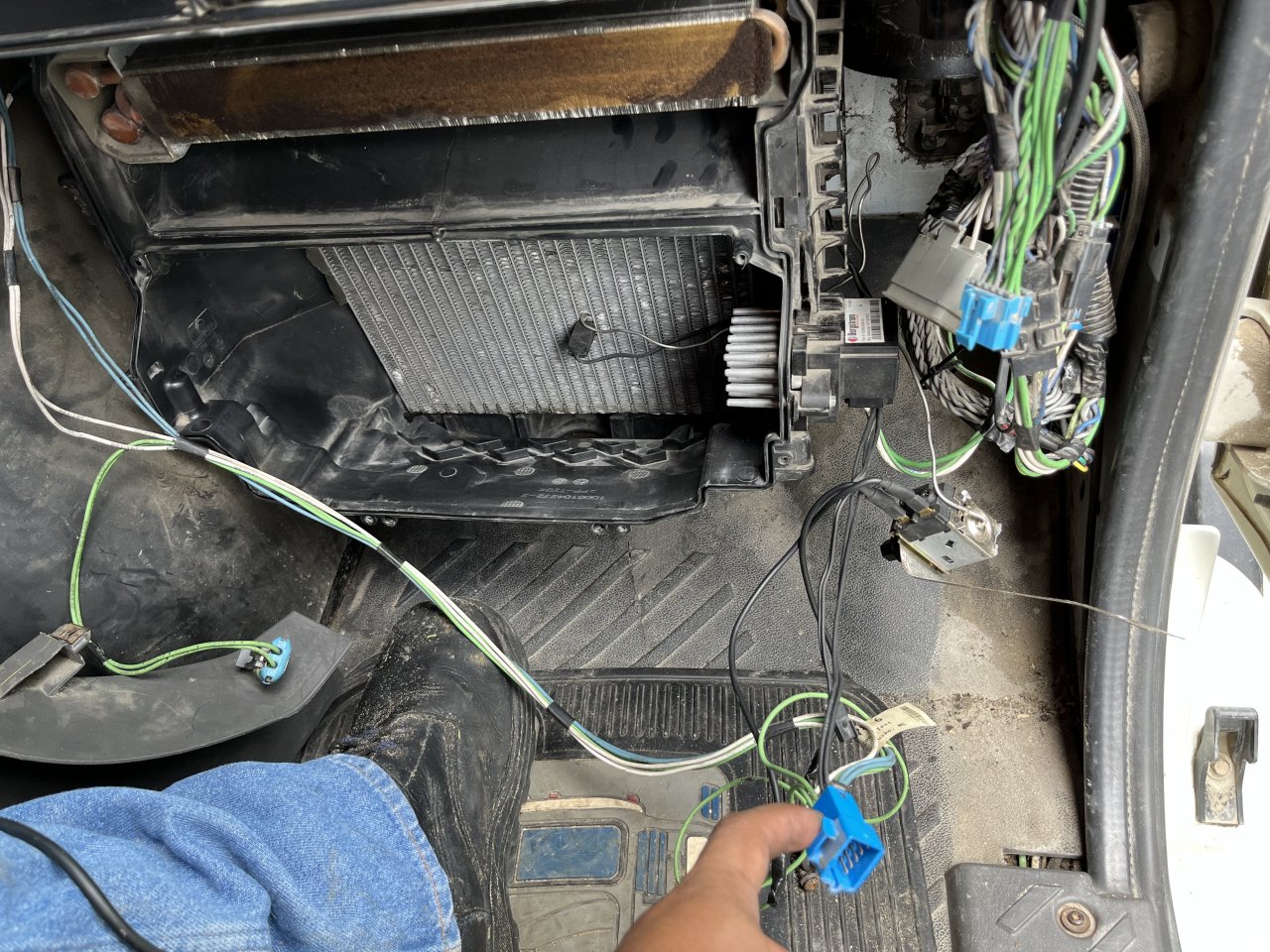

    Guys the codes disappear when I noticed a message in DLB an update, just install it and no codes but the EFC is variable speed and still always on but I realized the shop did an improper AC installation, you can see it in the pic, so the truck right now is with the dealer because thats a poor installation


    Attached Files:

    martinmunizh, Sep 21, 2022
    #4
