No databus communication Cascadia 2016

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Kaptur, Feb 14, 2019.

  1. Kaptur

    Kaptur Bobtail Member

    Joined:
    Feb 14, 2019
    Messages:
    2
    Thanks Received:
    0
    0
    Help please!!!

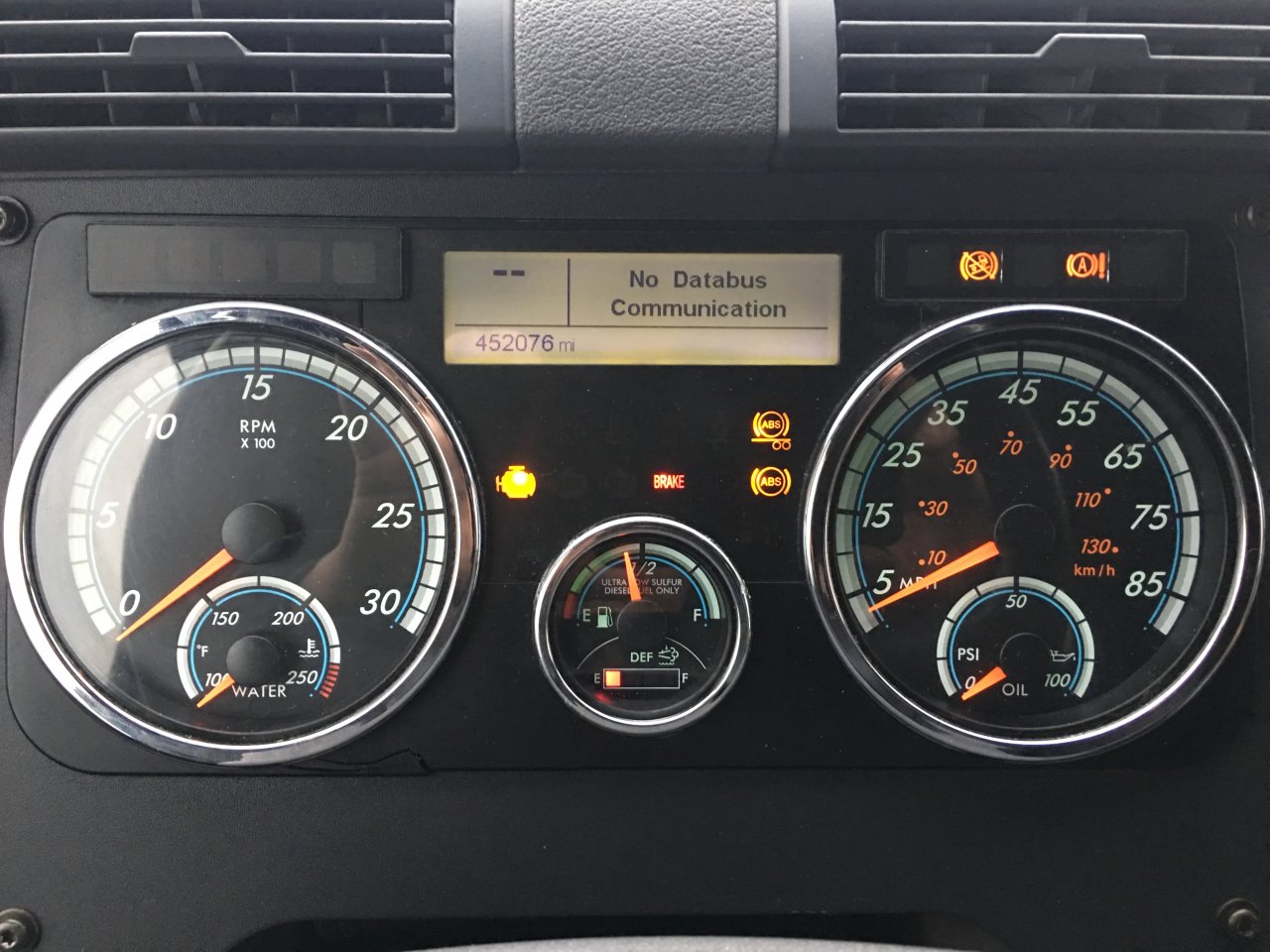

    Attached Files:

  2. Amy0412

    Amy0412 Bobtail Member

    Joined:
    May 20, 2020
    Messages:
    1
    Thanks Received:
    0
    0
    Did you find out how it got fixed? My truck giving me same problem

  3. skellr

    skellr Road Train Member

    Joined:
    Jul 17, 2011
    Messages:
    8,737
    Thanks Received:
    12,184
    Location:
    The Village, Portmeirion
    0
    What year is your truck?

  4. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,020
    Thanks Received:
    156,499
    Location:
    Canuckistan
    0
    Databus communication errors are typically not something the average person can properly troubleshoot.

    Key off, you should see about 60 ohms between the high and low wires. Typically a range of 55 to 65 ohms is acceptable.

    If its just one module (ECM) not communicating, chances are its in that particular leg of the datalink. Could be a broken datalink wire, no power to the module or a broken ground from the module. Could be the module itself failed but its unlikely an ECM has failed. They're pretty bulletproof for the most part.
