Wabash 2011 Dry van SURELOCK arm issue

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by RoadRanger^^, Jan 28, 2024.

  1. Jan 28, 2024 #1
    RoadRanger^^

    RoadRanger^^ Medium Load Member

    306
    115
    Apr 17, 2018
    Columbus, OH
    0

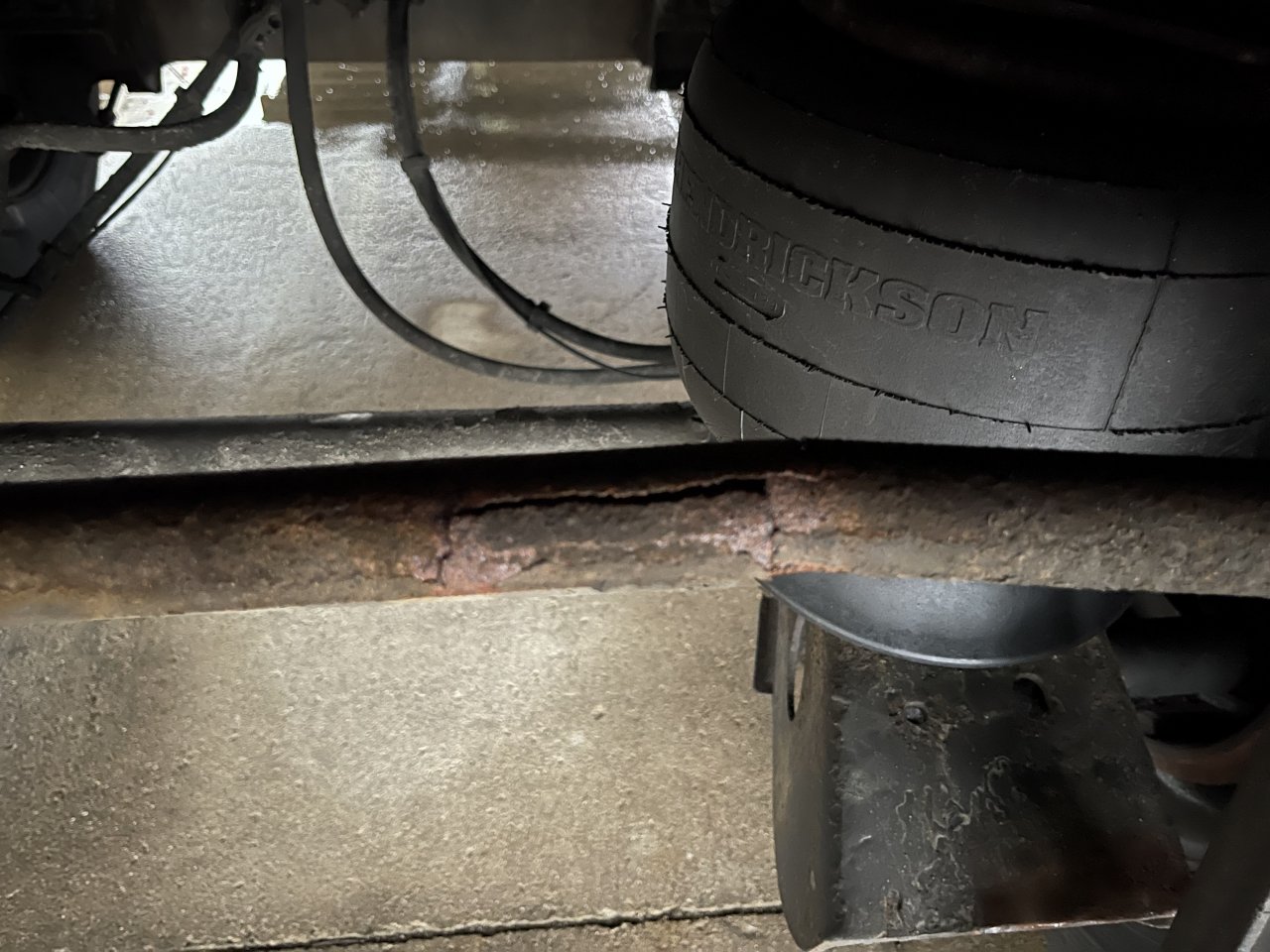

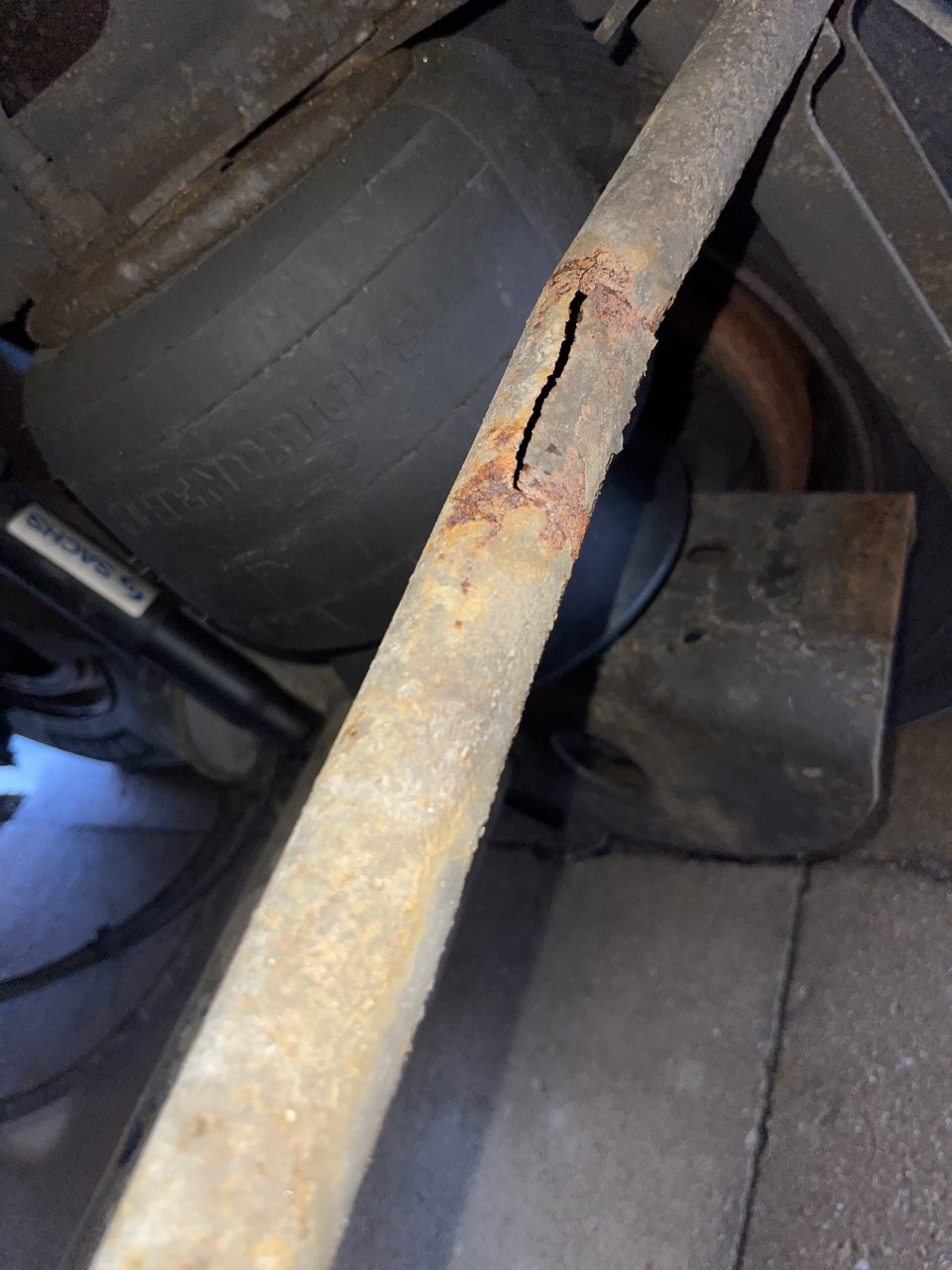

    Hello guys. I have 2011 wabash trailer dry van. Does anyone know how can i remove those Surelock support arm on the back of the trailer ? I don’t know how to call it but the arm or the pipe is broken. here is pic.
    please let me know if someone can help


    Attached Files:

    RoadRanger^^, Jan 28, 2024
    RoadRanger^^, Jan 28, 2024
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jan 29, 2024 #2
    062

    062 Road Train Member

    6,205
    33,434
    Oct 20, 2013
    0
    One side should be two bolts,spring and mounting plate. The other side is the same, but you also have to unbolt the air bag.
    You can cut back to good pipe,then slide a slightly larger pipe over and put a bolt through each side to mend it.

    062, Jan 29, 2024
    062, Jan 29, 2024
    #2
  4. Jan 29, 2024 #3
    RoadRanger^^

    RoadRanger^^ Medium Load Member

    306
    115
    Apr 17, 2018
    Columbus, OH
    0
    Thank you for your response, unfortunately today I lost one of the arm springs it broke on half lol. What i did was i took it off and bought 3/8 quick connect fitting with locking cap.

    RoadRanger^^, Jan 29, 2024
    RoadRanger^^, Jan 29, 2024
    #3
  5. Jan 29, 2024 #4
    062

    062 Road Train Member

    6,205
    33,434
    Oct 20, 2013
    0
    You might be able to find the same assembly at a salvage yard. You’ll need to measure the legs,I think there were two different lengths.

    062, Jan 29, 2024
    062, Jan 29, 2024
    #4
