How to tell when airbags need to be replaced?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Thetrashnoob, May 5, 2021.

  1. jason6541

    jason6541 Road Train Member

    1,521
    2,510
    Mar 5, 2012
    Omaha, NE
    0
    Unhook leveling valve and manually overinflated the bags beyond normal
    Hopefully you can see base of the bags as they uncurl from bottom seat

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. jason6541

    jason6541 Road Train Member

    1,521
    2,510
    Mar 5, 2012
    Omaha, NE
    0
    I wonder if those bags are the correct ones. Maybe they are to short for application. May want to cross reference part # with originals.

  4. lester

    lester Road Train Member

    1,547
    3,419
    Jan 2, 2012
    NW, Iowa
    0
    Set the lift axle down and see if it still looses pressure. That amount in a couple hours isn't bad. Annoying sure.

    There is no leveling valve on the pusher axle, just a pressure regulator. To check you main bags un hook the leveling valve and raise the bags up. That will also over extend you pusher bags so you can check them all

    Don379 Thanks this.
  5. Rideandrepair

    Rideandrepair Road Train Member

    10,066
    25,643
    Aug 8, 2015
    0
    I’ve had air bags leak, always at the base. Accidentally found one in the rain, it was whistling. They may even stop leaking when more air is added, since the leaks on top of the base. Way over inflating them can cause a leak at the base. Hard to find. Have to spray bottom of bag, at base, maybe at different heights. Yours look fairly new. If they’re not leaking, or dry rotted, they’re good.

    Last edited: May 7, 2021
    Don379 and God prefers Diesels Thank this.
  6. Shawn2130

    Shawn2130 Heavy Load Member

    736
    1,432
    Sep 20, 2015
    Ontario
    0

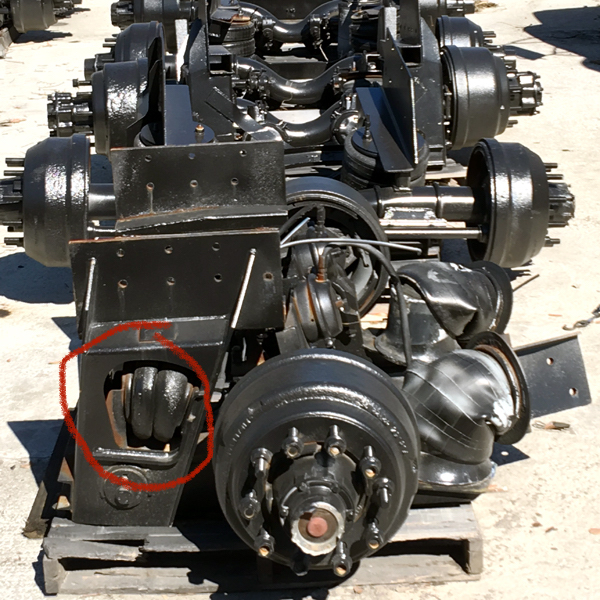

    Red circle is the lift axle air bags.


    Spray these with soapy water.

    Don379 Thanks this.
  7. Thetrashnoob

    Thetrashnoob Light Load Member

    227
    40
    May 30, 2019
    0

  8. Thetrashnoob

    Thetrashnoob Light Load Member

    227
    40
    May 30, 2019
    0
    Ive sprayed those with water, those aren’t leaking and look fairly new as well.

    Shawn2130 Thanks this.
  9. Thetrashnoob

    Thetrashnoob Light Load Member

    227
    40
    May 30, 2019
    0
    The video is with the axle down and you can just hear it bleeding out bed. The pressure loss is annoying but not the end of the world, but I’d prefer to fix it if it’s easy enough. When the axle is down the pressure gauge is only reading 20psi, should I try increasing the pressure any? I don’t think it’ll make a difference as it’s just bleeding air at a extremely fast rate.
