Need help with small cam timing

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by campwells, Jan 13, 2025.

  1. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    19,118
    289,080
    Nov 29, 2011
    West Virginia
    0

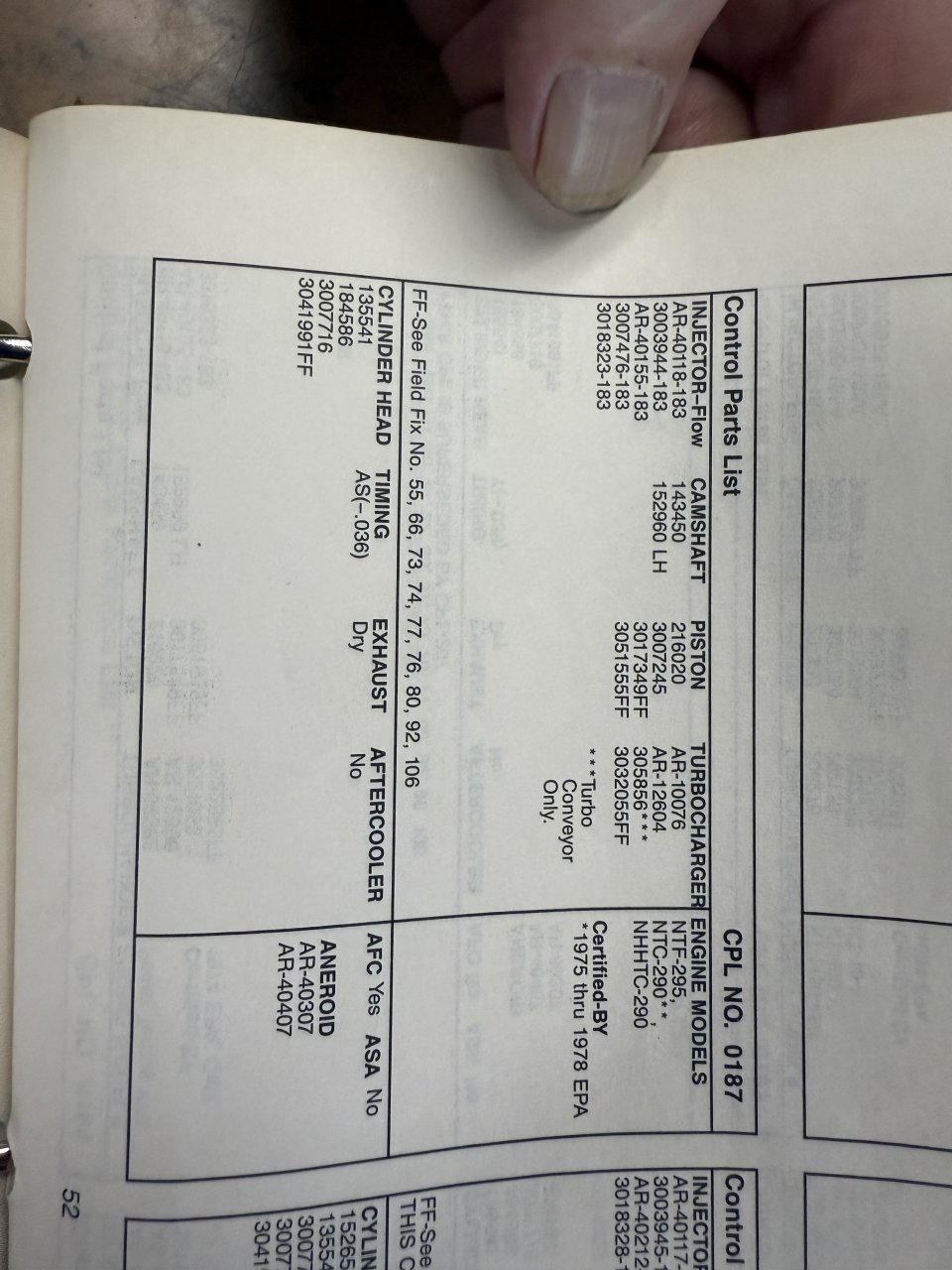

    Here’s the CPL number you mentioned, hopefully be some info to help you….


    campwells Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. campwells

    campwells Bobtail Member

    11
    7
    Jan 13, 2025
    0
    This is exactly what I found. These parts are definitely in this engine. Also got my hands on an old Cummins D.I.M dial card, not that I need it but i got it.


    Attached Files:

  4. campwells

    campwells Bobtail Member

    11
    7
    Jan 13, 2025
    0

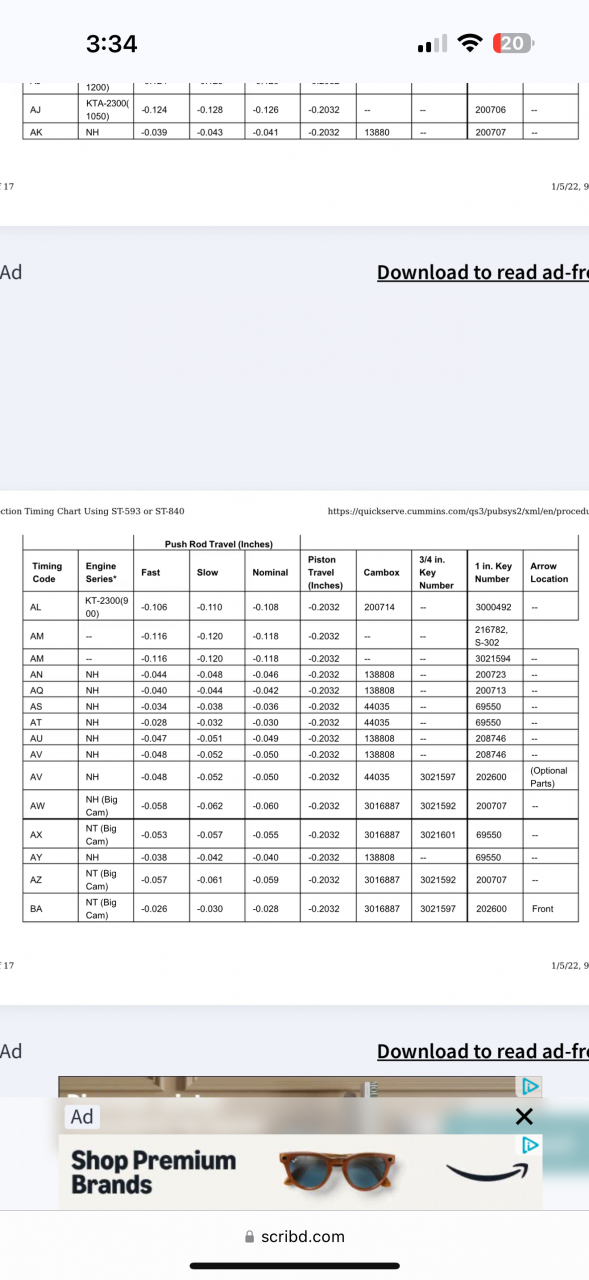

    IMG_0506.png The AS initial timing lines up with what is in our manual. Both that CPL and this timing index show it to be a 1975 at earliest, its in a 1973 so I’m assuming the army just had a stockpile of these rebuilt to their specifications and this old truck was gifted with a rebuilt motor at one point.

  5. campwells

    campwells Bobtail Member

    11
    7
    Jan 13, 2025
    0
    I have a YouTube channel I’m posting all these videos to, if you have some time maybe watch one or two of them and let me know if I’ve missed something critical or screwed something up big time.
    Channel is CampWells

  6. ElmerFudpucker

    ElmerFudpucker Road Train Member

    6,962
    76,089
    May 17, 2024
    0
    It probably came with a NH250 since it was a military truck. Which was later swapped with an NTC290. If the push rods were bent have you checked the valves for damage?

    OLDSKOOLERnWV Thanks this.
  7. campwells

    campwells Bobtail Member

    11
    7
    Jan 13, 2025
    0
    Just visual, none of the bridges look pissed off and it looks like all the valve stems are about equal off the head. Had to machine up a unit to bolt down in the head to hook up my leak down detector, will also double as compression tester and triple as a base for the tool I’m building to check initial height, Not forking out $1200 for some blocks and 2 dial indicators- or even $500 for the china units when I can build a better one. I’ll share some pictures of it when it’s done.

    ElmerFudpucker Thanks this.
