Post flatbed load photos here V2.0

Discussion in 'Flatbed Trucking Forum' started by leftlanetruckin, Feb 18, 2014.

Page 2499 of 2812

booley Road Train Member

Joined:

Feb 16, 2008

Messages:

1,457

Thanks Received:

9,997

0

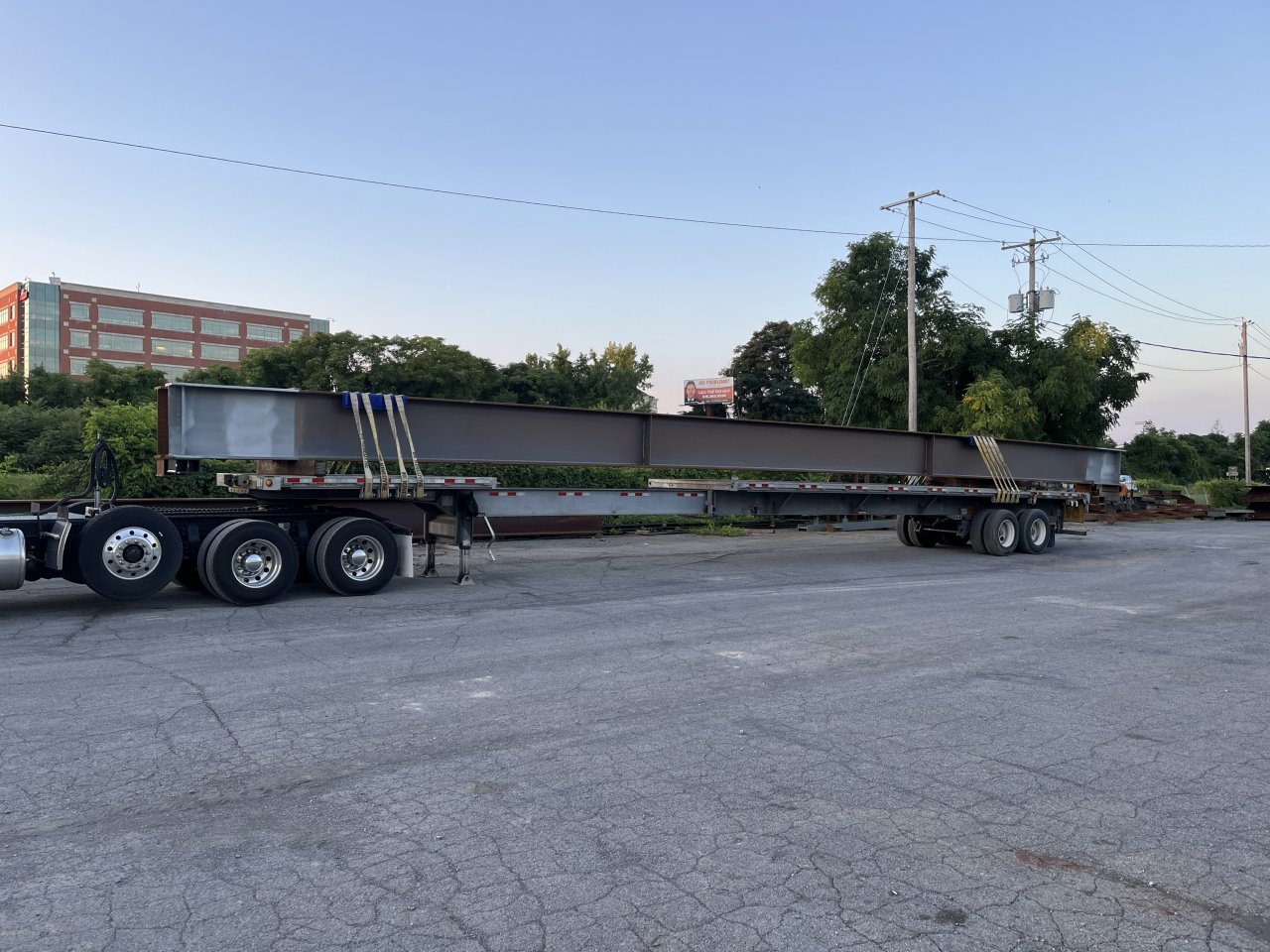

75’ beams

booley, Aug 23, 2024

#24981

Gatordude, Kyle G., 01HFT and 7 others Thank this.
Diesel Dave Last Few of the OUTLAWS

Joined:

Jan 20, 2010

Messages:

9,249

Thanks Received:

29,589

Location:

Hesperia, Ca.

0

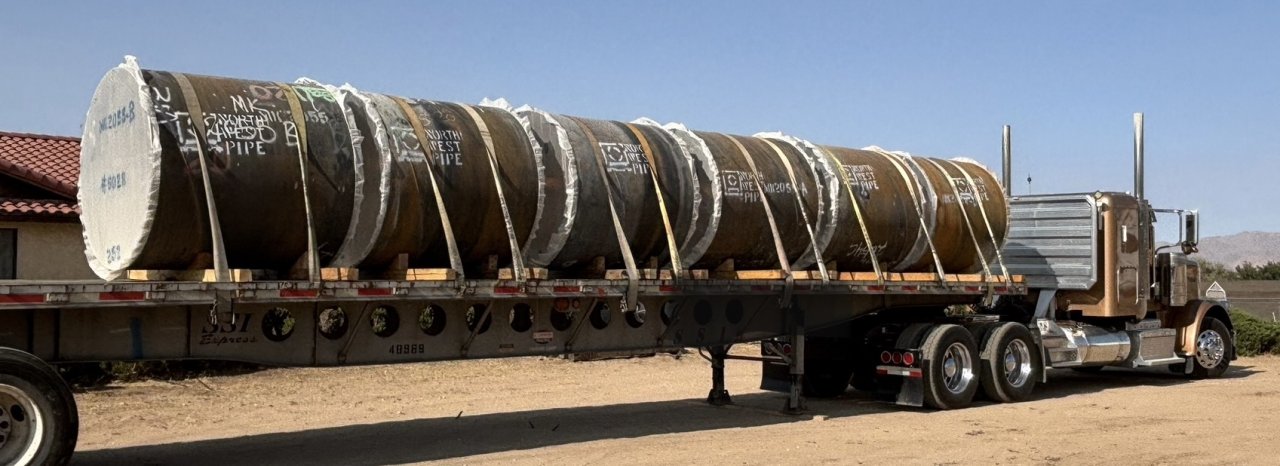

These pieces of steel pipe are about 4’ long, they weight about 1200#’s each. I know the first piece in front need 2 straps, however, what about the ones that follow ? Seen one individual that used 2 in front, single on all in the middle and 2 at the end. I didn’t chance it and had time to spare. So I did 2 on each.

Diesel Dave, Aug 23, 2024

#24982

Ruthless, Gatordude, Kyle G. and 7 others Thank this.
Razororange Road Train Member

Joined:

Dec 20, 2011

Messages:

2,596

Thanks Received:

24,779

Location:

Milwaukee, WI

0

Diesel Dave said: ↑

These pieces of steel pipe are about 4’ long, they weight about 1200#’s each. I know the first piece in front need 2 straps, however, what about the ones that follow ? Seen one individual that used 2 in front, single on all in the middle and 2 at the end. I didn’t chance it and had time to spare. So I did 2 on each.
View attachment 526176
Click to expand...

Need 2 per piece unless they are blocked or braced from forward movement.

If they were 100lbs lighter you could legally only use 1.

Now the real question: is a cop going to be able to tell what each piece weighs on the side of the road?

393.110(b)(2)(i)

393.110 What else do I have to do to determine the minimum number of tiedowns?
(a) When tiedowns are used as part of a cargo securement system, the minimum number of tiedowns required to secure an article or group of articles against movement depends on the length of the article(s) being secured, and the requirements of paragraphs (b) and (c) of this section. These requirements are in addition to the rules under § 393.106.

(b) When an article is not blocked or positioned to prevent movement in the forward direction by a headerboard, bulkhead, other cargo that is positioned to prevent movement, or other appropriate blocking devices, it must be secured by at least:

(1) One tiedown for articles 5 feet (1.52 meters) or less in length, and 1,100 pounds (500 kg) or less in weight;

(2) Two tiedowns if the article is:

(i) 5 feet (1.52 meters) or less in length and more than 1,100 pounds (500 kg) in weight; or

(ii) Longer than 5 feet (1.52 meters) but less than or equal to 10 feet (3.04 meters) in length, irrespective of the weight.

(3) Two tiedowns if the article is longer than 10 feet (3.04 meters), and one additional tiedown for every 10 feet (3.04 meters) of article length, or fraction thereof, beyond the first 10 feet (3.04 meters) of length.

(c) If an individual article is blocked, braced, or immobilized to prevent movement in the forward direction by a headerboard, bulkhead, other articles which are adequately secured or by an appropriate blocking or immobilization method, it must be secured by at least one tiedown for every 3.04 meters (10 feet) of article length, or fraction thereof.

(d) Special rule for special purpose vehicles. The rules in this section do not apply to a vehicle transporting one or more articles of cargo such as, but not limited to, machinery or fabricated structural items (e.g., steel or concrete beams, crane booms, girders, and trusses, etc.) which, because of their design, size, shape, or weight, must be fastened by special methods. However, any article of cargo carried on that vehicle must be securely and adequately fastened to the vehicle.
Click to expand...

Razororange, Aug 23, 2024

#24983

Kyle G., CAXPT, booley and 4 others Thank this.
Winnyf1 Road Train Member

Joined:

Jan 14, 2015

Messages:

4,455

Thanks Received:

9,738

Location:

Evansville, IN

0

Diesel Dave said: ↑

These pieces of steel pipe are about 4’ long, they weight about 1200#’s each. I know the first piece in front need 2 straps, however, what about the ones that follow ? Seen one individual that used 2 in front, single on all in the middle and 2 at the end. I didn’t chance it and had time to spare. So I did 2 on each.
View attachment 526176
Click to expand...

Yep you did it the right way.

Winnyf1, Aug 24, 2024

#24984

cke, Kyle G., Oxbow and 2 others Thank this.
01HFT Light Load Member

Joined:

May 20, 2021

Messages:

293

Thanks Received:

3,395

Location:

Sycamore, IL

0

Nice little double drop in Indiana to end my week. Back pc went to Warsaw, and the rest to the south side of Indianapolis.

01HFT, Aug 24, 2024

#24985

cke, Ruthless, Kyle G. and 7 others Thank this.
Kyle G. Road Train Member

Joined:

Jan 23, 2016

Messages:

3,901

Thanks Received:

20,571

Location:

Eastern Iowa

0

Diesel Dave said: ↑

These pieces of steel pipe are about 4’ long, they weight about 1200#’s each. I know the first piece in front need 2 straps, however, what about the ones that follow ? Seen one individual that used 2 in front, single on all in the middle and 2 at the end. I didn’t chance it and had time to spare. So I did 2 on each.
View attachment 526176
Click to expand...

I would have used 2 straps each like you did, if for no other reason than to make it look good. Only takes an extra couple minutes to make it look good!

Kyle G., Aug 25, 2024

#24986

CAXPT, beastr123, Diesel Dave and 5 others Thank this.
Espressolane Road Train Member

Joined:

Nov 21, 2009

Messages:

18,203

Thanks Received:

113,120

Location:

Just south of the north 40

0

Diesel Dave said: ↑

These pieces of steel pipe are about 4’ long, they weight about 1200#’s each. I know the first piece in front need 2 straps, however, what about the ones that follow ? Seen one individual that used 2 in front, single on all in the middle and 2 at the end. I didn’t chance it and had time to spare. So I did 2 on each.
View attachment 526176
Click to expand...

About the only thing I would have done differently, is to not alternate the straps on each unit. Would have pull one way on a single piece. Alternating on small pieces like that puts a twisting force on them. Still a good job.

Espressolane, Aug 25, 2024

#24987

beastr123, CAXPT, booley and 3 others Thank this.
Ruthless Road Train Member

Joined:

Aug 28, 2010

Messages:

9,093

Thanks Received:

90,183

Location:

The City.

0

Took some stuff up to Weston Vermont today. Real nice home Site fella is building for his kids and grandkids.

Ruthless, Aug 26, 2024

#24988

Deere hunter, 01HFT, cke and 13 others Thank this.
booley Road Train Member

Joined:

Feb 16, 2008

Messages:

1,457

Thanks Received:

9,997

0

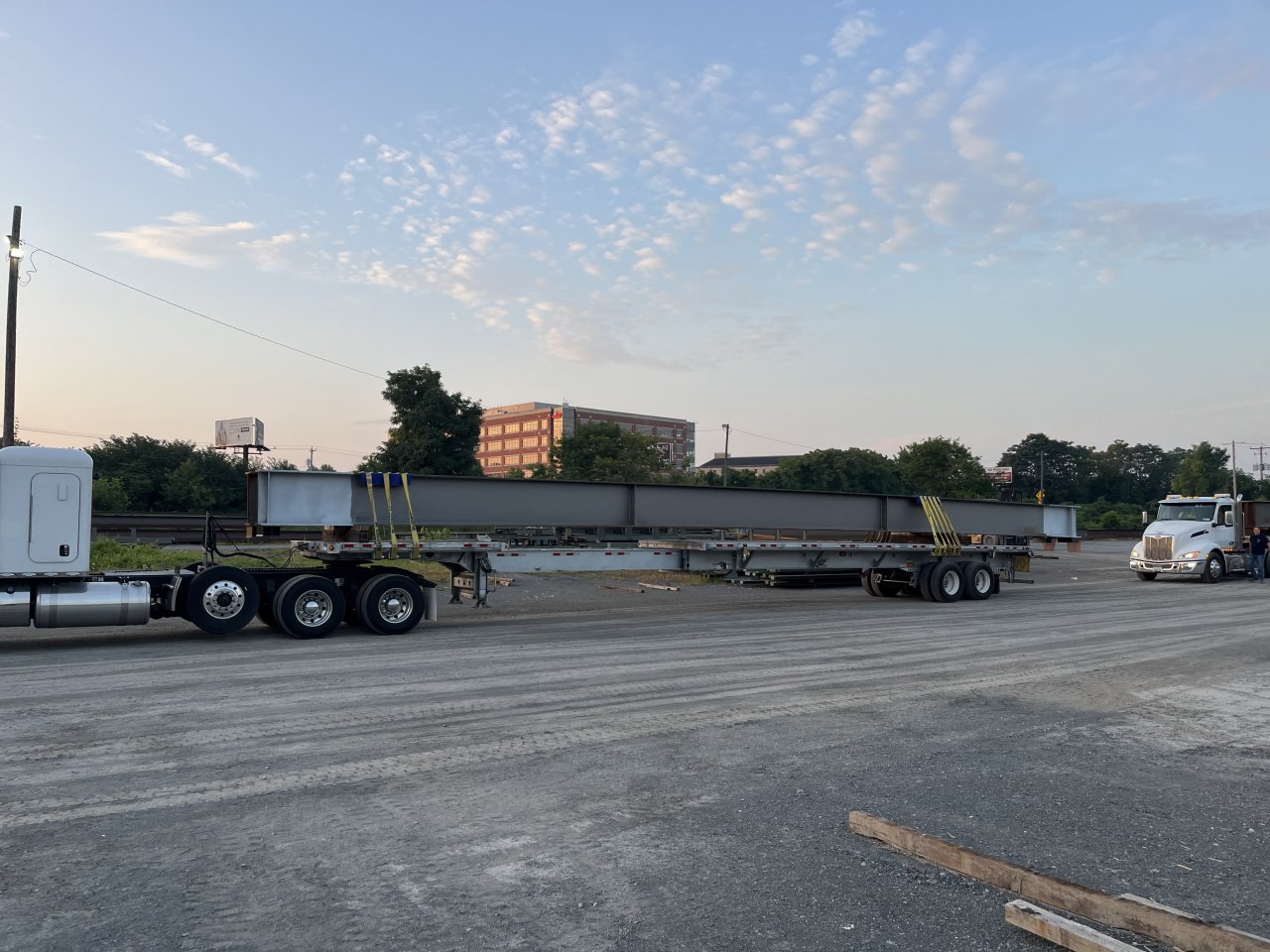

77’ beams

booley, Aug 26, 2024

#24989

Deere hunter, 01HFT, cke and 9 others Thank this.
stwik Road Train Member

Joined:

Oct 8, 2017

Messages:

11,816

Thanks Received:

167,640

Location:

USA USA USA!!!

0

Ruthless said: ↑

View attachment 526472 View attachment 526473

Took some stuff up to Weston Vermont today. Real nice home Site fella is building for his kids and grandkids.
Click to expand...

is he adopting?

stwik, Aug 26, 2024

#24990

cke, booley, Kyle G. and 3 others Thank this.
