REPAIR HELP PLEASE!!!

Discussion in 'Ask An Owner Operator' started by Neverquittrucking228, Oct 14, 2022.

  1. lester

    lester Midwest's #1 Feed Hauler

    Joined:
    Jan 2, 2012
    Messages:
    2,919
    Thanks Received:
    7,879
    Location:
    NW, Iowa
    0
    My thoughts as well. If manifold is cracked just replace the #### thing. Doubt turbo flange is cracked. But maybe it is. Maybe they both just need to be surfaced, ground flat, could be warped

  2. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,144
    Thanks Received:
    158,374
    Location:
    Canuckistan
    0
    How does something get sucked into the engine on the exhaust side?

    Rideandrepair, Ffx95 and lester Thank this.
  3. Ruthless

    Ruthless Road Train Member

    Joined:
    Aug 28, 2010
    Messages:
    8,932
    Thanks Received:
    87,839
    Location:
    The City.
    0

    Well, when you have a crack in the exhaust manifold, it creates a loss of exhaust gas pressure which overheats the turbo and causes the EGT to rise. That significantly impacts the turbo fins and wheel as they overheat and expands them as they spin and cause the internals of the turbo to begin impacting the housing. At some point, the fins will begin to come apart and blow through the intake side.

    I deleted a picture this week that would show the early results of this; this is where I would post it if I had kept it.

    lynchy, Rideandrepair, Siinman and 4 others Thank this.
  4. Neverquittrucking228

    Neverquittrucking228 Light Load Member

    Joined:
    Feb 23, 2021
    Messages:
    108
    Thanks Received:
    52
    0
    Mechanic left a bolt lose on my turbo exhaust which came lose & caused a hairline crack

    Rideandrepair Thanks this.
  5. Neverquittrucking228

    Neverquittrucking228 Light Load Member

    Joined:
    Feb 23, 2021
    Messages:
    108
    Thanks Received:
    52
    0
    Not sure I’m not a mechanic by far

    Rideandrepair Thanks this.
  6. Neverquittrucking228

    Neverquittrucking228 Light Load Member

    Joined:
    Feb 23, 2021
    Messages:
    108
    Thanks Received:
    52
    0
  7. Neverquittrucking228

    Neverquittrucking228 Light Load Member

    Joined:
    Feb 23, 2021
    Messages:
    108
    Thanks Received:
    52
    0

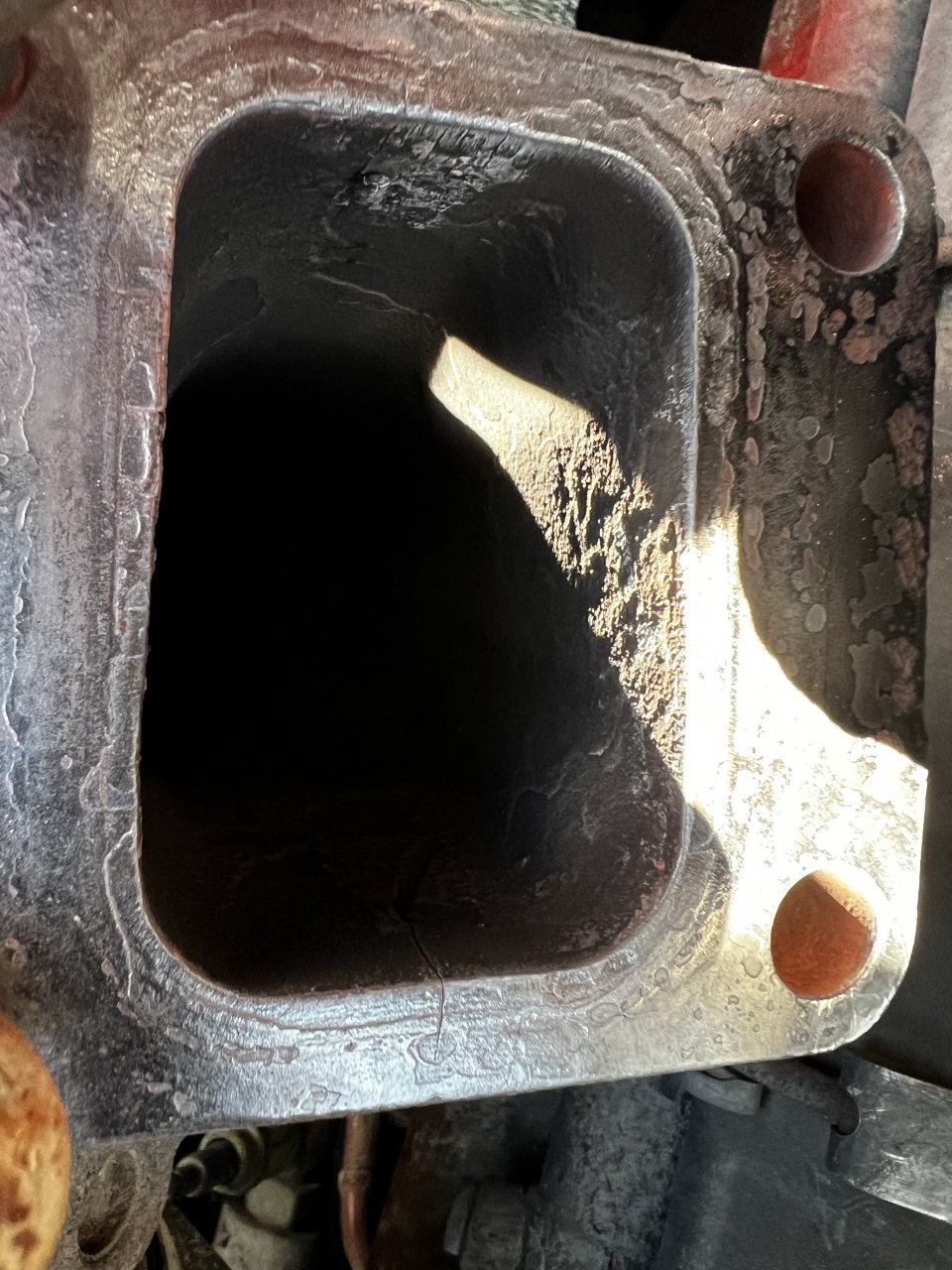

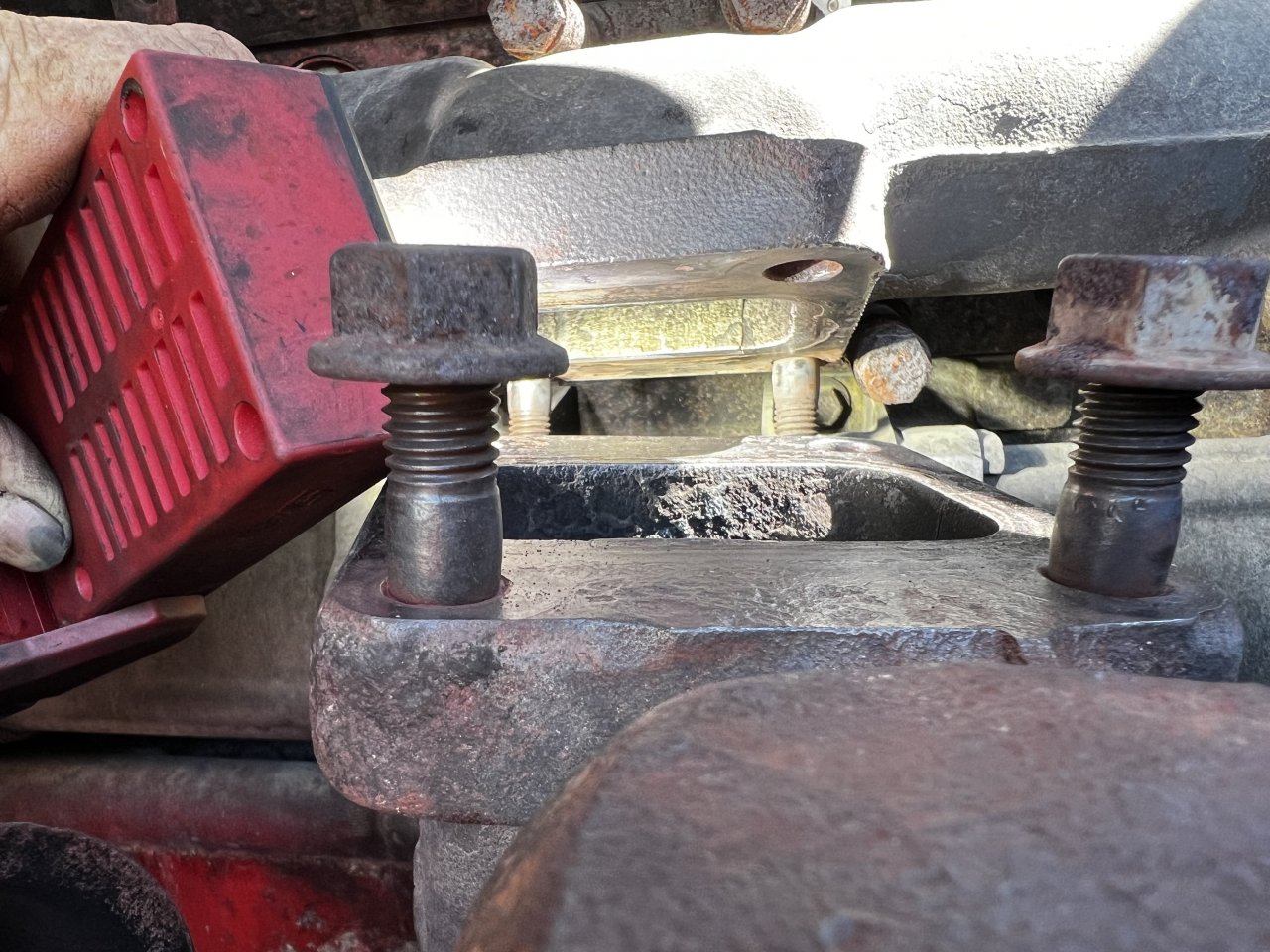

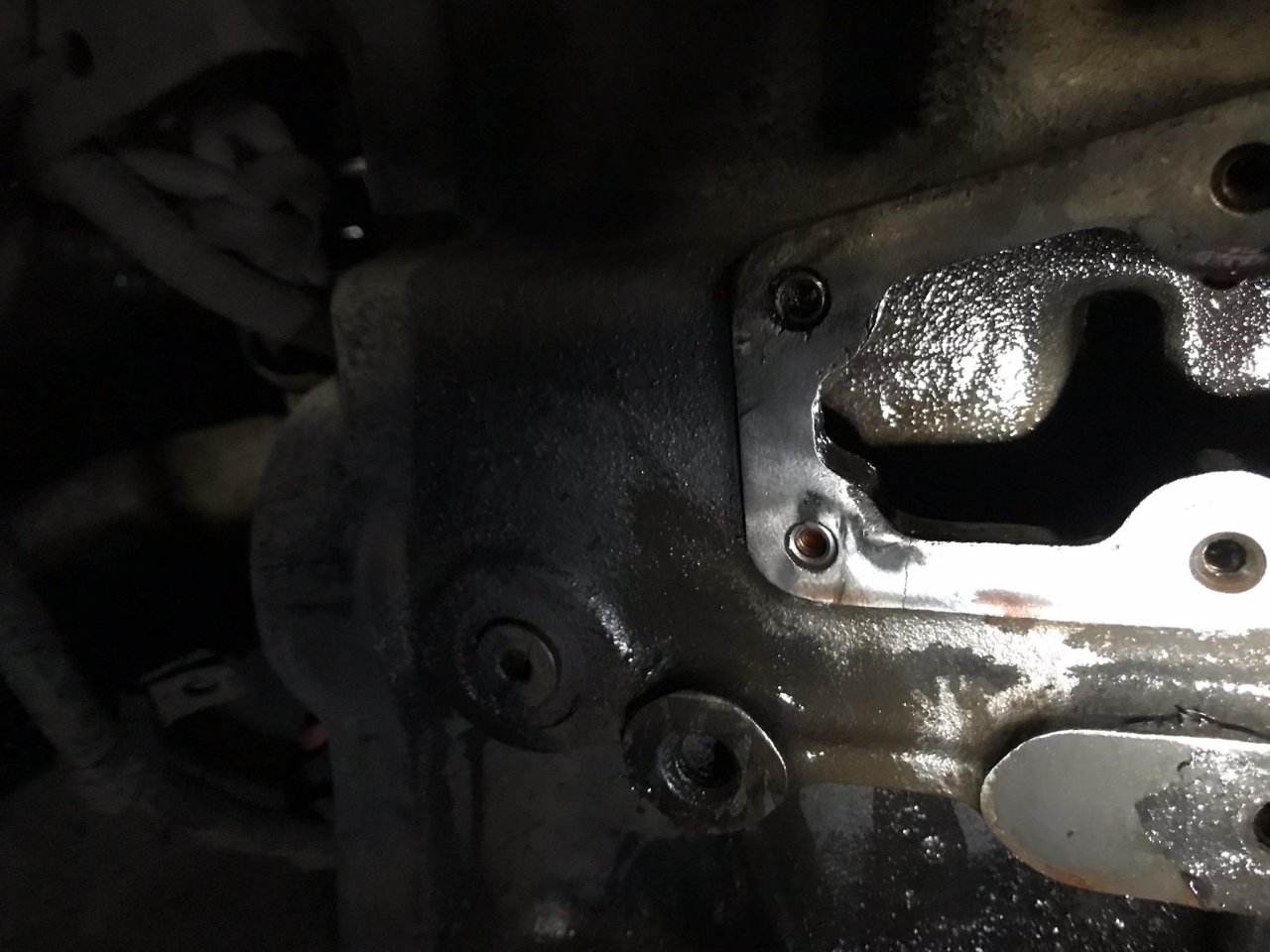

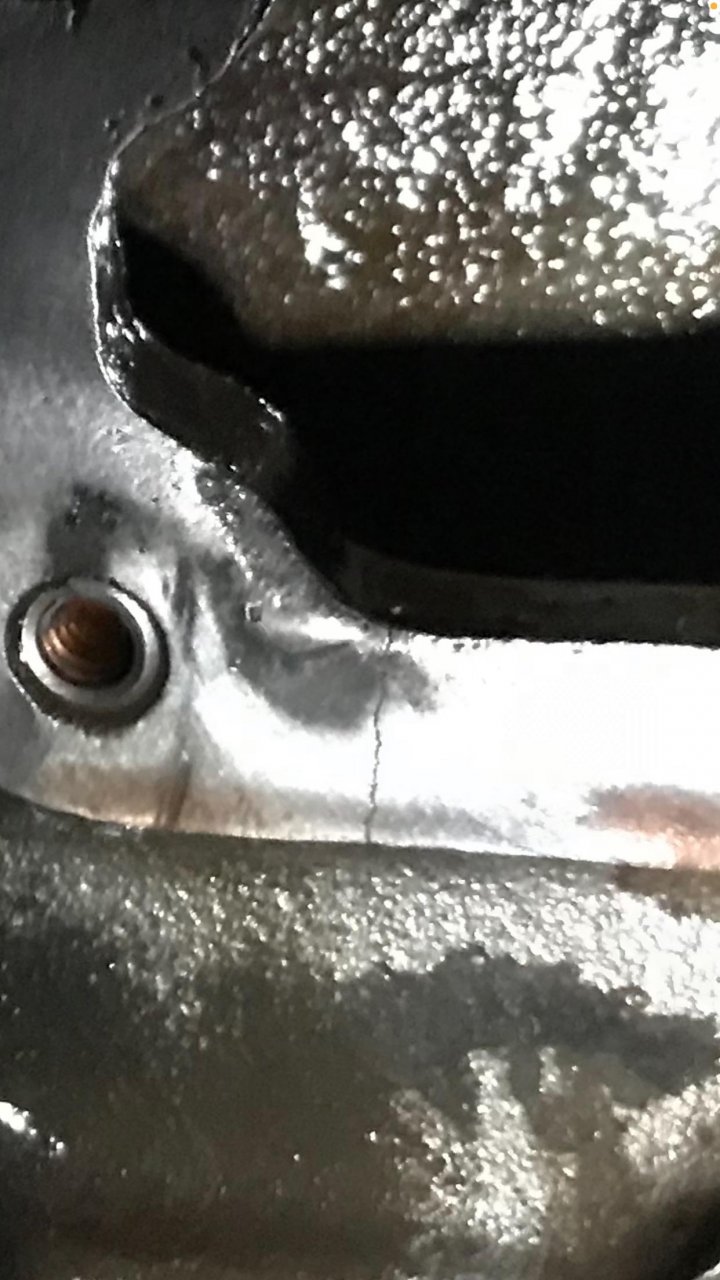

    Here’s the photos of the cracks. Let me know what y’all think

  8. Cattleman84

    Cattleman84 Road Train Member

    Joined:
    Nov 1, 2017
    Messages:
    9,894
    Thanks Received:
    70,470
    Location:
    The Sticks, Idaho
    0
    Have heard the term, but dont know much about it. From what I have heard it would probably be ok for something that doesnt have sudden and/or extreme temperature shifts.

  9. rollin coal

    rollin coal Road Train Member

    Joined:
    Mar 29, 2008
    Messages:
    13,269
    Thanks Received:
    26,726
    Location:
    TN
    0
    You're wasting your time and money welding that. It's junk and belongs in the scrap pile. A good aftermarket manifold costs about $1,750+/- if you've been running since posting this where's your cash going? You could have bought and paid to have 2 or 3 of them put on by now. Even an OEM one if cheaper is not a bad option. Probably a better option for you.

  10. NYStarcar

    NYStarcar Light Load Member

    Joined:
    Oct 6, 2020
    Messages:
    249
    Thanks Received:
    595
    Location:
    In a van down by the river
    0
    Is your ISX a model with a variable geometry turbo? If so I would replace the manifold, the replacement turbos are ridiculously expensive.
