Saved From Scrap

Discussion in 'Kenworth Forum' started by AModelCat, Oct 26, 2015.

  1. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,155
    Thanks Received:
    158,557
    Location:
    Canuckistan
    0

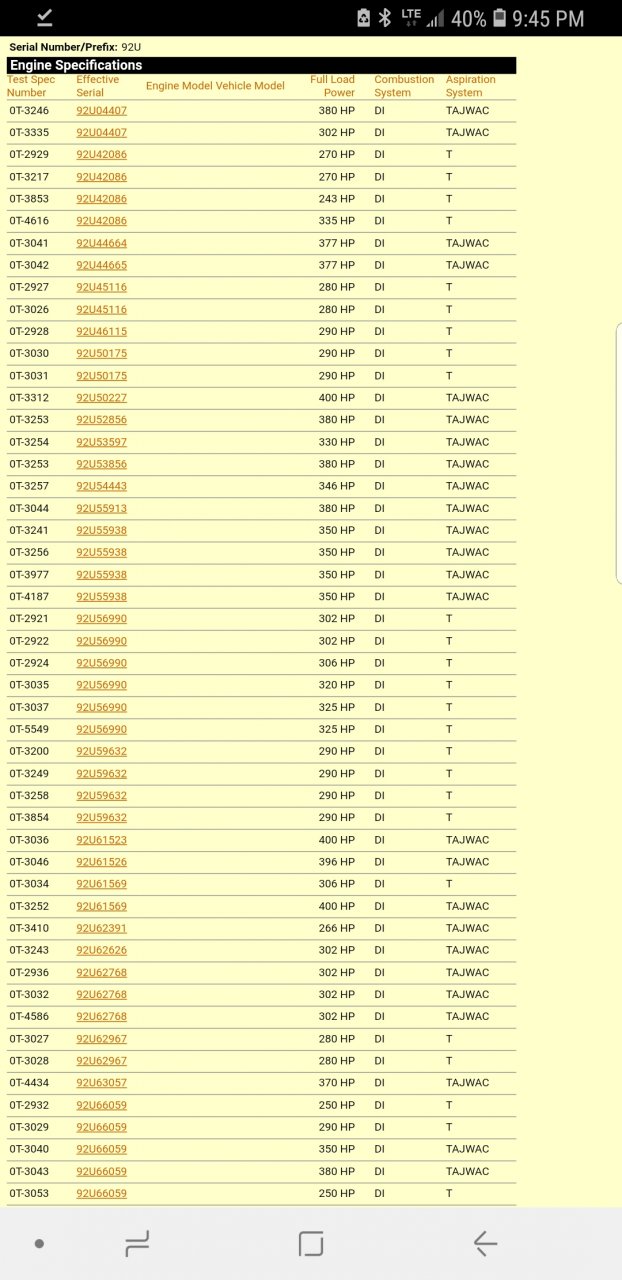

    I was looking at that too. My S/N falls in the earliest listed test specs (302 and 380). My valve cover sticker indicates 375hp. Not sure why its different.

    Oxbow Thanks this.
  2. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,155
    Thanks Received:
    158,557
    Location:
    Canuckistan
    0
    I'd probably have to get the mods to delete this thread if that stuff started moving over here from "that other thread"

    Oxbow, Tug Toy, wore out and 2 others Thank this.
  3. pushbroom

    pushbroom Road Train Member

    Joined:
    Sep 1, 2012
    Messages:
    1,779
    Thanks Received:
    7,312
    0

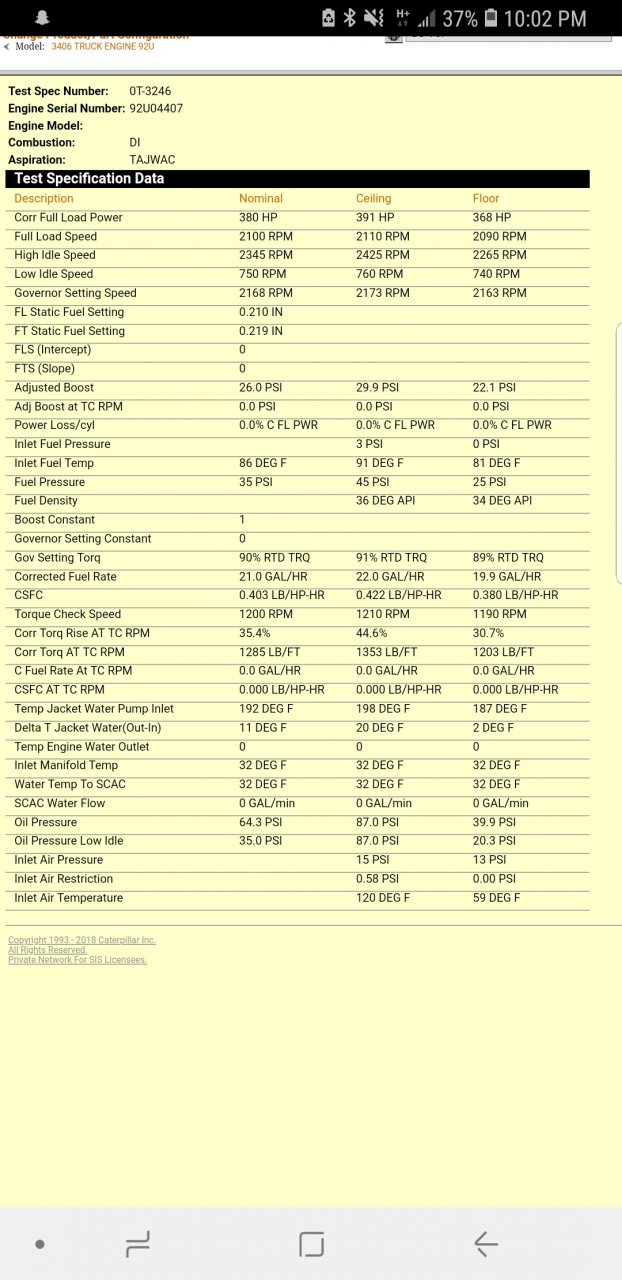

    The expanded test spec for the 380 shows ceiling at 391, floor at 368. Might just label it a rating in the middle. Screenshot_20180825-220249_Chrome.jpg

    Oxbow, spsauerland, Tug Toy and 2 others Thank this.
  4. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,155
    Thanks Received:
    158,557
    Location:
    Canuckistan
    0
    1,3XX ft-lbs. Looks like I can pump another 200 ft-lbs out before I need to worry about the transmission. Hopefully the 1710 series driveline holds up to that.

    Oxbow, Tug Toy and wore out Thank this.
  5. wore out

    wore out Numbered Classic

    Joined:
    Jun 5, 2013
    Messages:
    15,863
    Thanks Received:
    191,838
    Location:
    CHASIN THE DEVIL'S HERD
    0
    That little unit oughta be pretty sporty with close to 400hp a 15 and a single drive axle. Didn't you say 3.70 gears?

    Oxbow, Tug Toy and pushbroom Thank this.
  6. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,155
    Thanks Received:
    158,557
    Location:
    Canuckistan
    0
    I hope so. 3.73 rear in it now. Might be a bit more economical than the factory 5.29's lol.

    Oxbow, Tug Toy and wore out Thank this.
  7. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,155
    Thanks Received:
    158,557
    Location:
    Canuckistan
    0
    So I'm gonna need to run air and wiring down my frame. Any ideas on the best way to tie it all up to the frame nice and neat? Thinking of welding a long stud to the inside of the rail every 12-18" to clamp the bundle to.

    Oxbow Thanks this.
  8. Jazz1

    Jazz1 Road Train Member

    Joined:
    May 7, 2012
    Messages:
    2,373
    Thanks Received:
    4,971
    Location:
    Thunder Bay On
    0
    I used to install all our wiring in vapourproof conduit on our powder trucks. It’s neat and effective.
    Zip tie fasteners.


    Attached Files:

    Last edited: Aug 26, 2018
    Oxbow and AModelCat Thank this.
  9. pushbroom

    pushbroom Road Train Member

    Joined:
    Sep 1, 2012
    Messages:
    1,779
    Thanks Received:
    7,312
    0
    Id go with welding studs and p clamps or zip tie mounts. I like zip ties for easy of servicing. Anytime you need to unbolt a p clamp it seems the rusted up stud breaks.

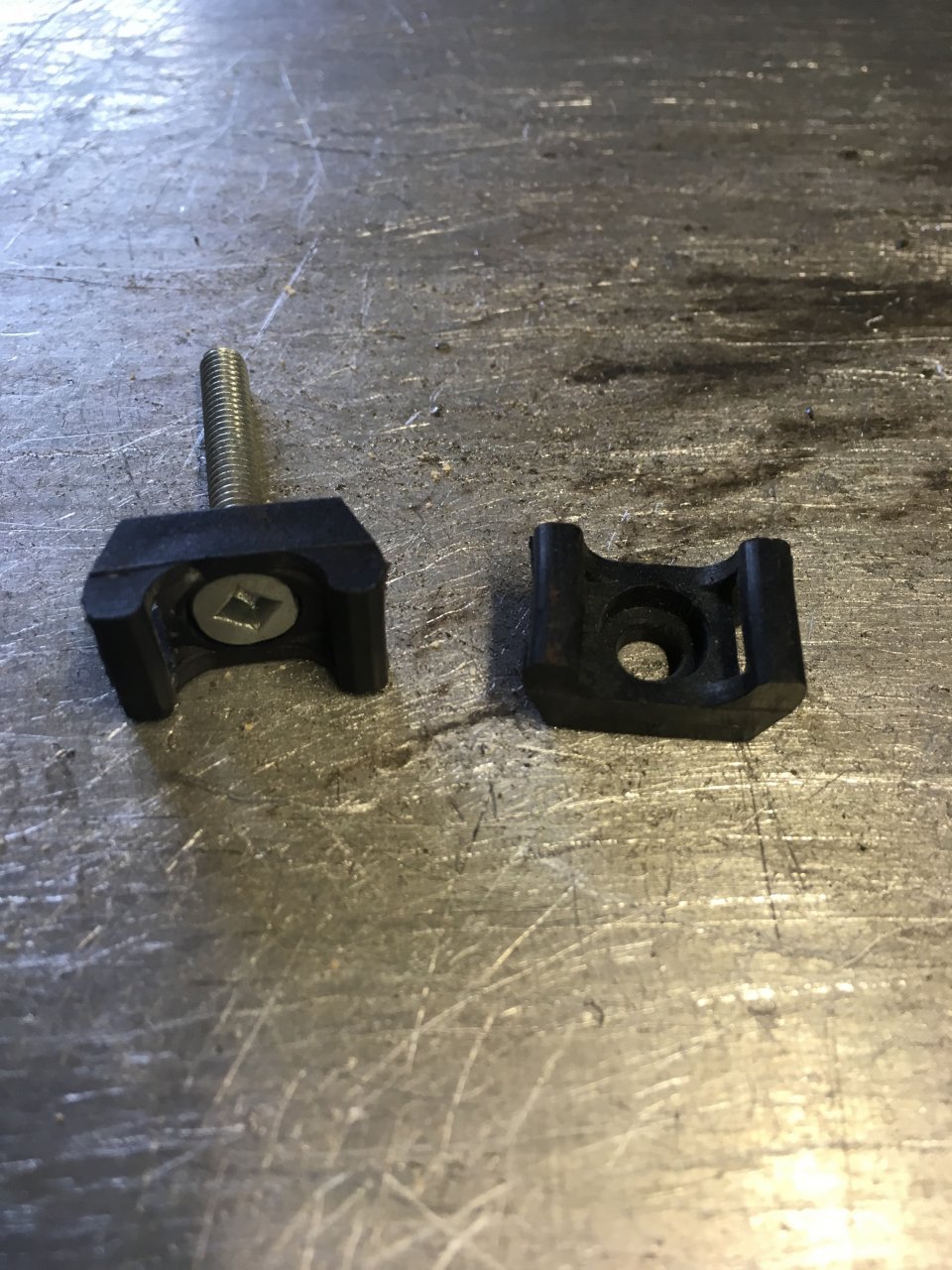

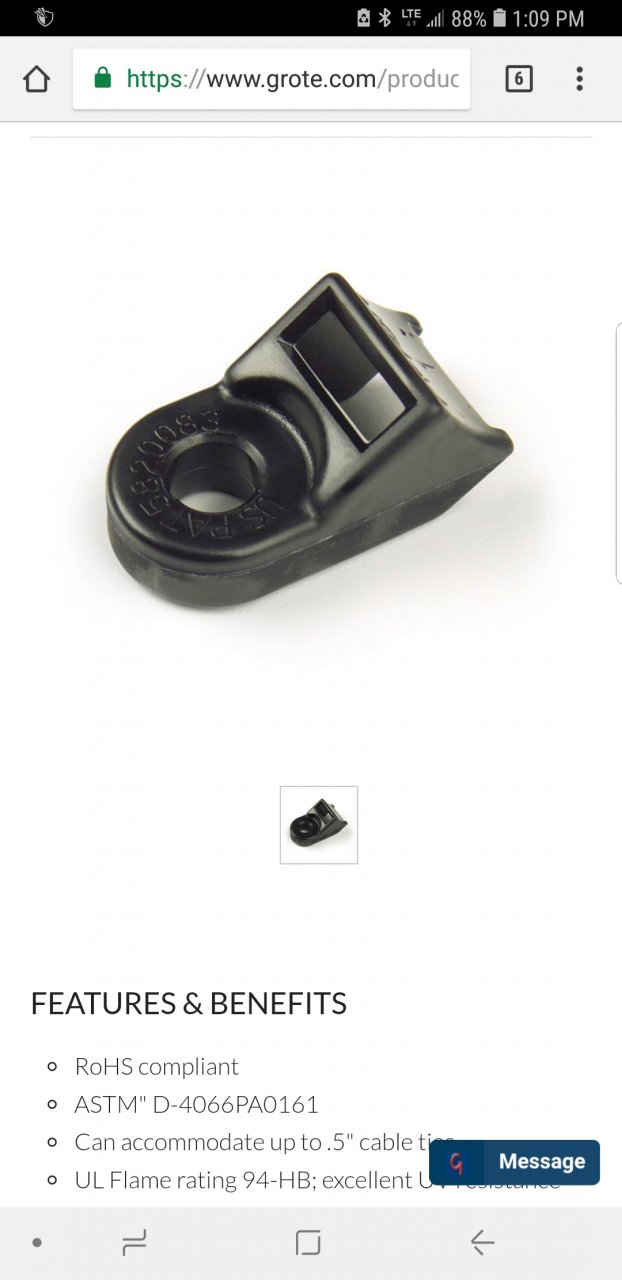

    Grote makes these nice zip tie mounts. They use em at the factory on new trucks.

    Tug Toy, Oxbow, AModelCat and 3 others Thank this.
  10. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,887
    Location:
    West Harrison, In
    0
    Tug Toy, Jazz1, Oxbow and 3 others Thank this.
