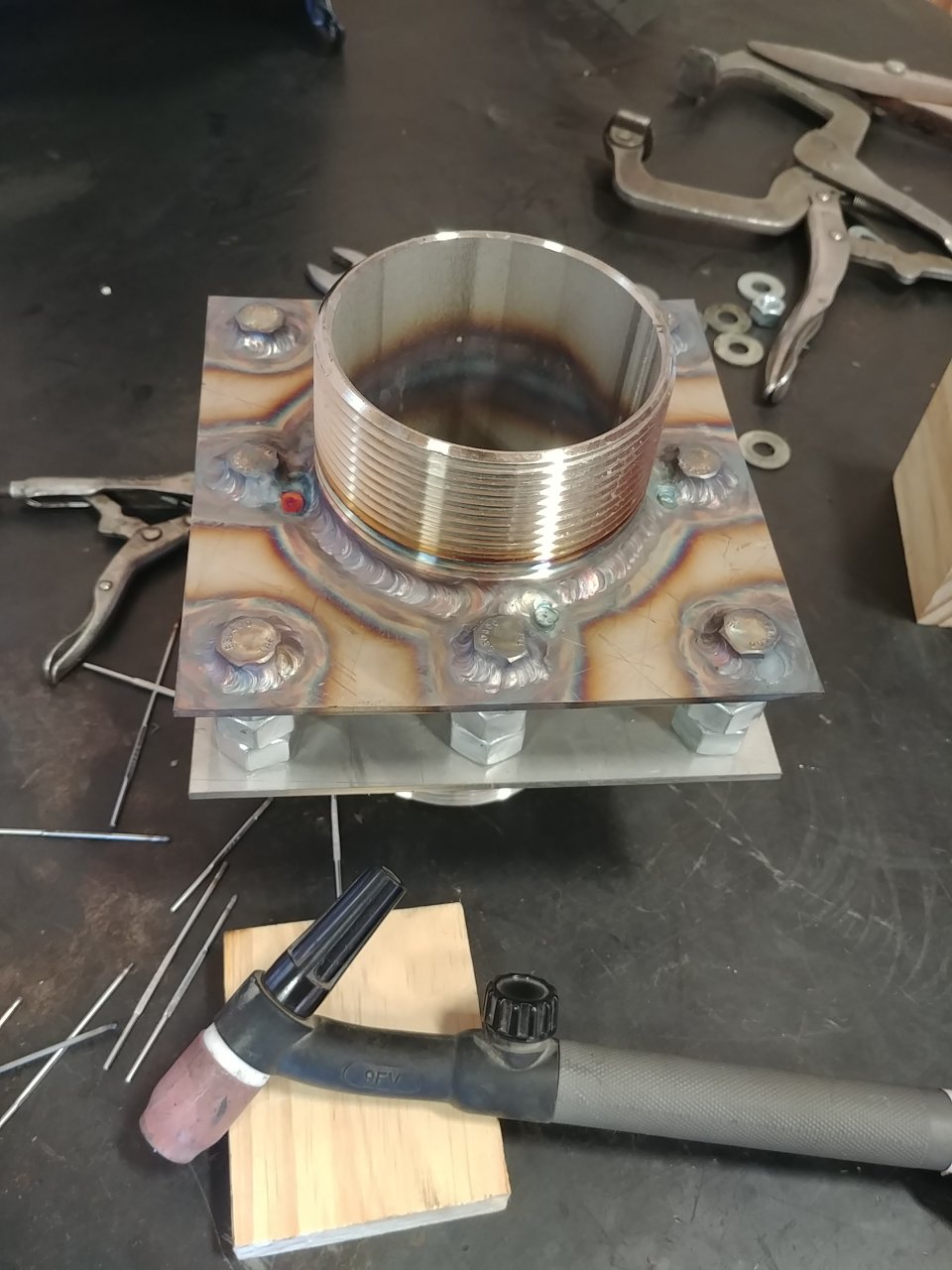

I guess I've got this one. Its a stainless steel bung used to attach a valve to a big poly storage tank. I built 5 or 6 of them IIRC. All tig welded.
The bottom flange is just to stabilize the top flange to minimize warping while I welded it. Once it cools that is removed. Put a gasket on it and slide it through the hole from inside the poly tank, the second flange goes over the pipe and bolts from the outside and is tightened down with nuts to squeeze the gasket firmly between the welded flange and the inside of the tank.
This will go down on my permanent record...
Discussion in 'Questions From New Drivers' started by otterinthewater, Jul 9, 2021.
Page 25 of 45
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-

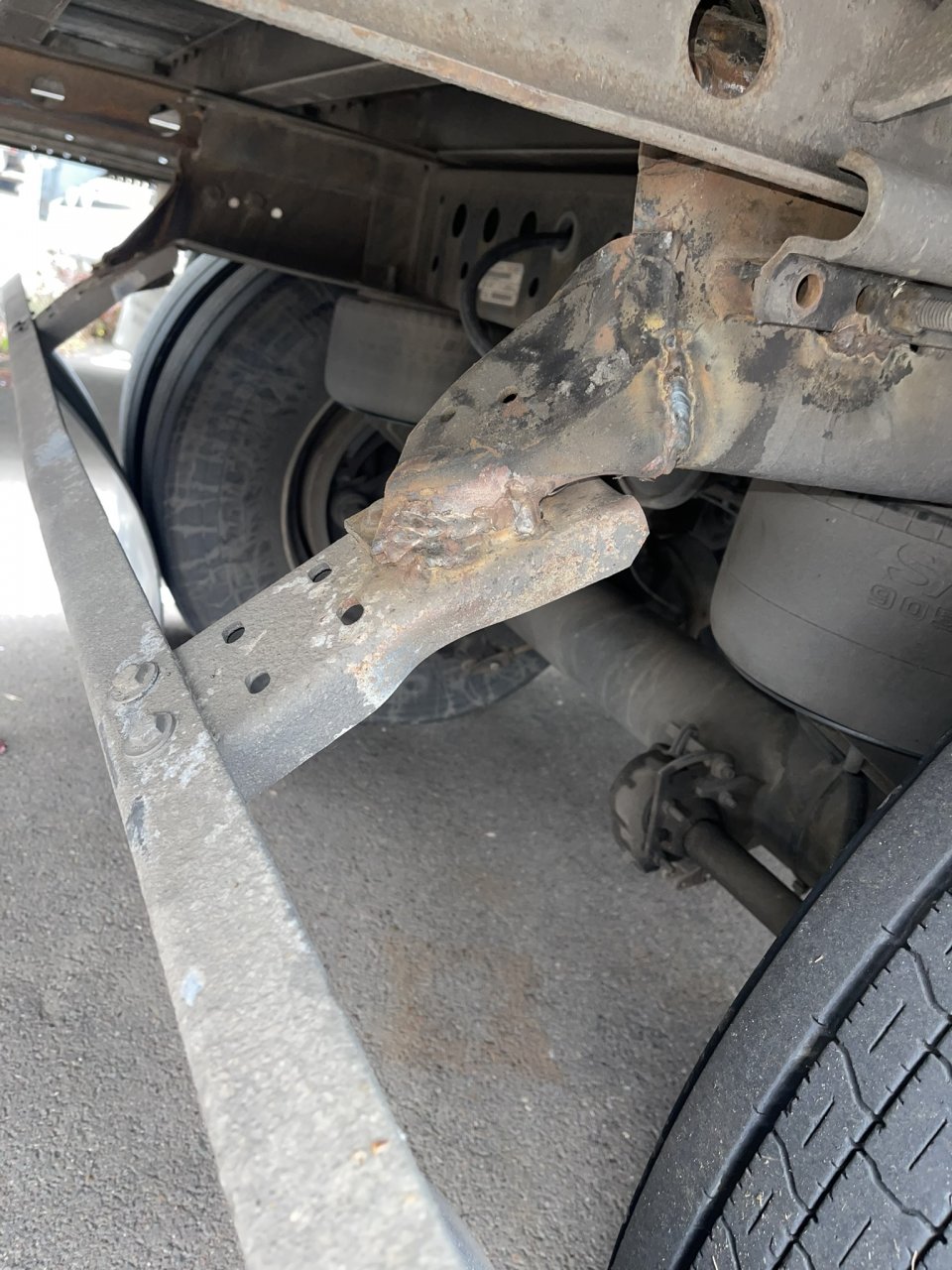

Stackin dimes
Dale thompson, JoeyJunk, LtlAnonymous and 2 others Thank this. -
-
-
I think DOT is playing games with us.
Cattleman84, kemosabi49, Dale thompson and 5 others Thank this. -
-
These are some wire feed welds I did about 6 or 7 years ago. They are more along the lines of "Stackin' Dimes"...
Top 2 are black iron... Last one is stainlessaustinmike, D.Tibbitt, Dale thompson and 2 others Thank this. -
