Wiper motor replacement fld120

I helped a friend fix his Volvo. He had it clocked wrong. I thought mine was tough. Volvo’s are a real PITA. Took Us a couple hrs to get it set right. Almost everything’s easier to fix on a Freightliner. That’s what I like best about mine.



Hopefully one of you can help me. Ever since I replaced the motor something was off and the linkage was rubbing the air intake. I ordered all new everything as all the ball sockets were falling apart. Now I can’t get the darn thing connected properly. It binds up. I’m beyond frustrated as I have been at this for HOURS. My toes are frozen and I’m ready to kill



Can you post a picture.
I feel your pain.
Did you buy the motor and transmission all as one unit. That's easier to install. It's been a couple years since I've done it.
I can pop my hood tomorrow and look.



Well……………..I am embarrassed although while typing my first reply to you it got me thinking and i figured it out. I put the passenger side on wrong. I thought the range was too short and it was. Thats why the motor was binding and why it’s hitting everything. I ran outside in my underwear and grabbed the old one and took measurements. The bolt holes line up and down or sideways. I must have put it on wrong last time, which I don’t remember removing it at all. And I installed new one same way.

Man I am relieved and angry LOL. I battled this for HOURS. Even had the girlfriend out five times to run the knob while I sat and stared aimlessly at the simple set up.

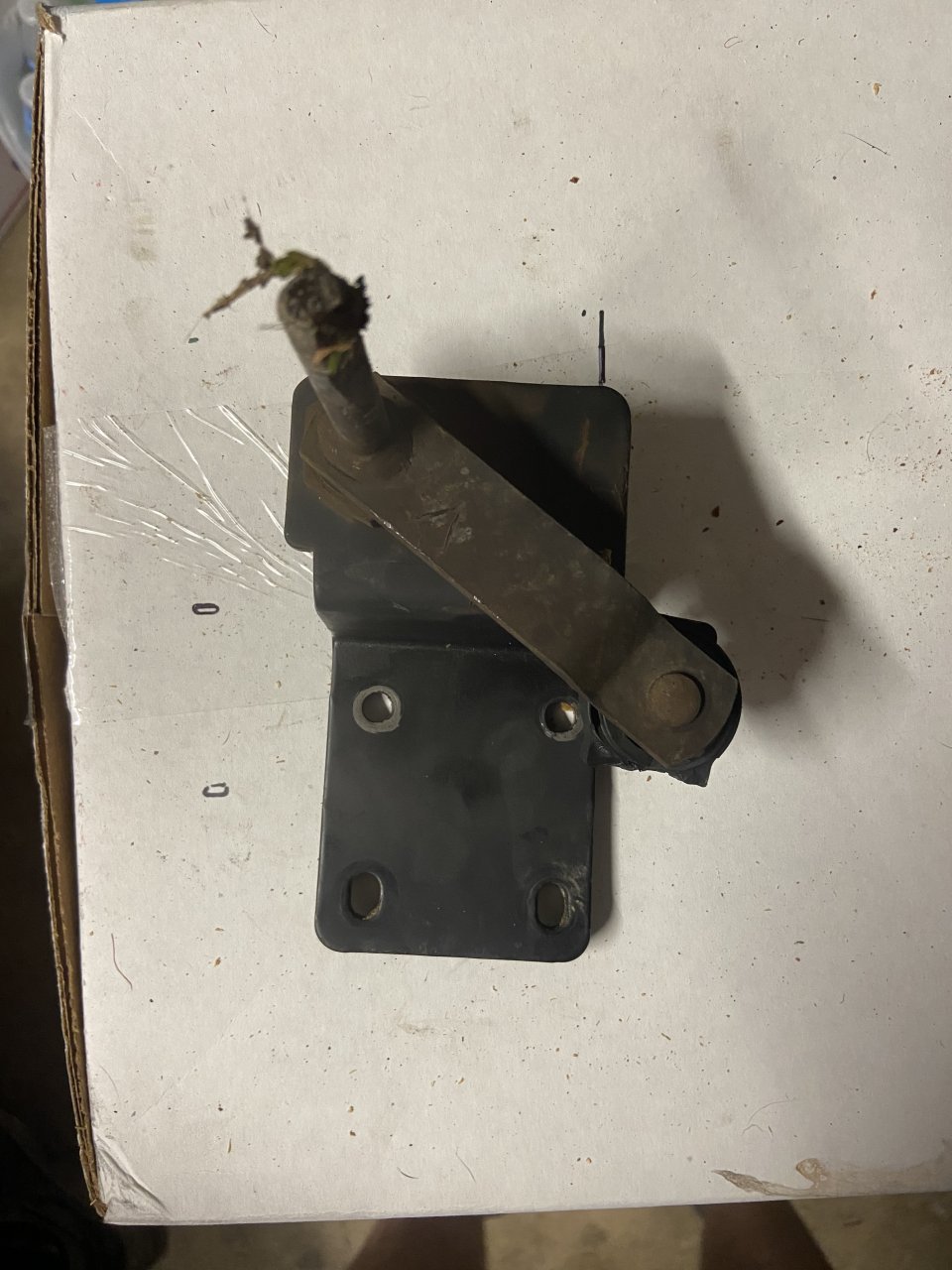

Correct way

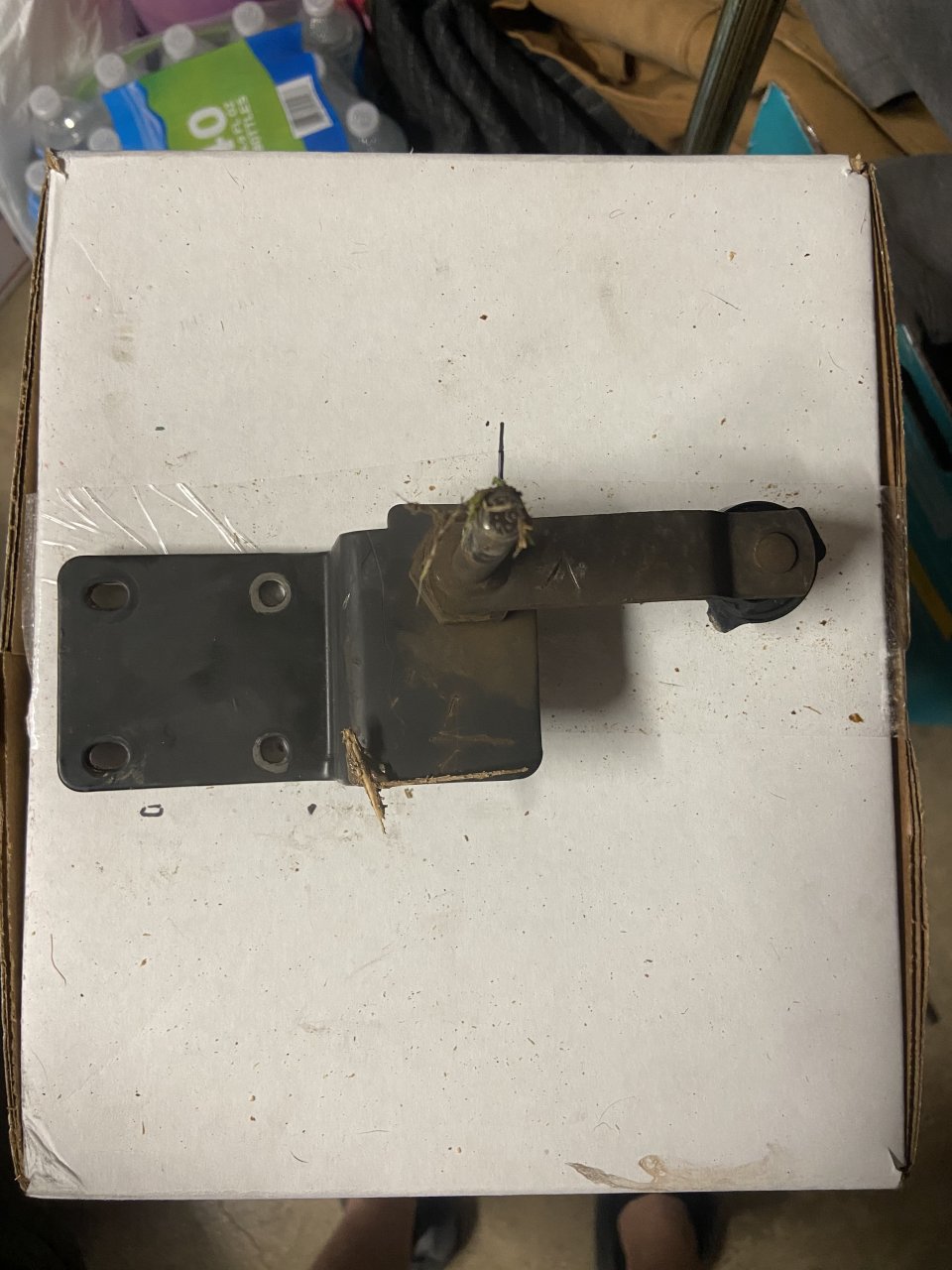

Wrong way



It’s a good thing I’m not rebuilding an engine. Holy crap.



These are the lessons we remember for life. Next time you have to do it in a parking lot in a snow storm, you can do it quicker.
I try to take pictures of everything I need to fix, before I start. They really help in reassembly.
Good to hear you got it fixed.



Got the bracket swapped around and OMG I have nice, smooth fully functioning wipers that clean the entire windshield. I will post part numbers later and attach the pdf with every piece to the system.

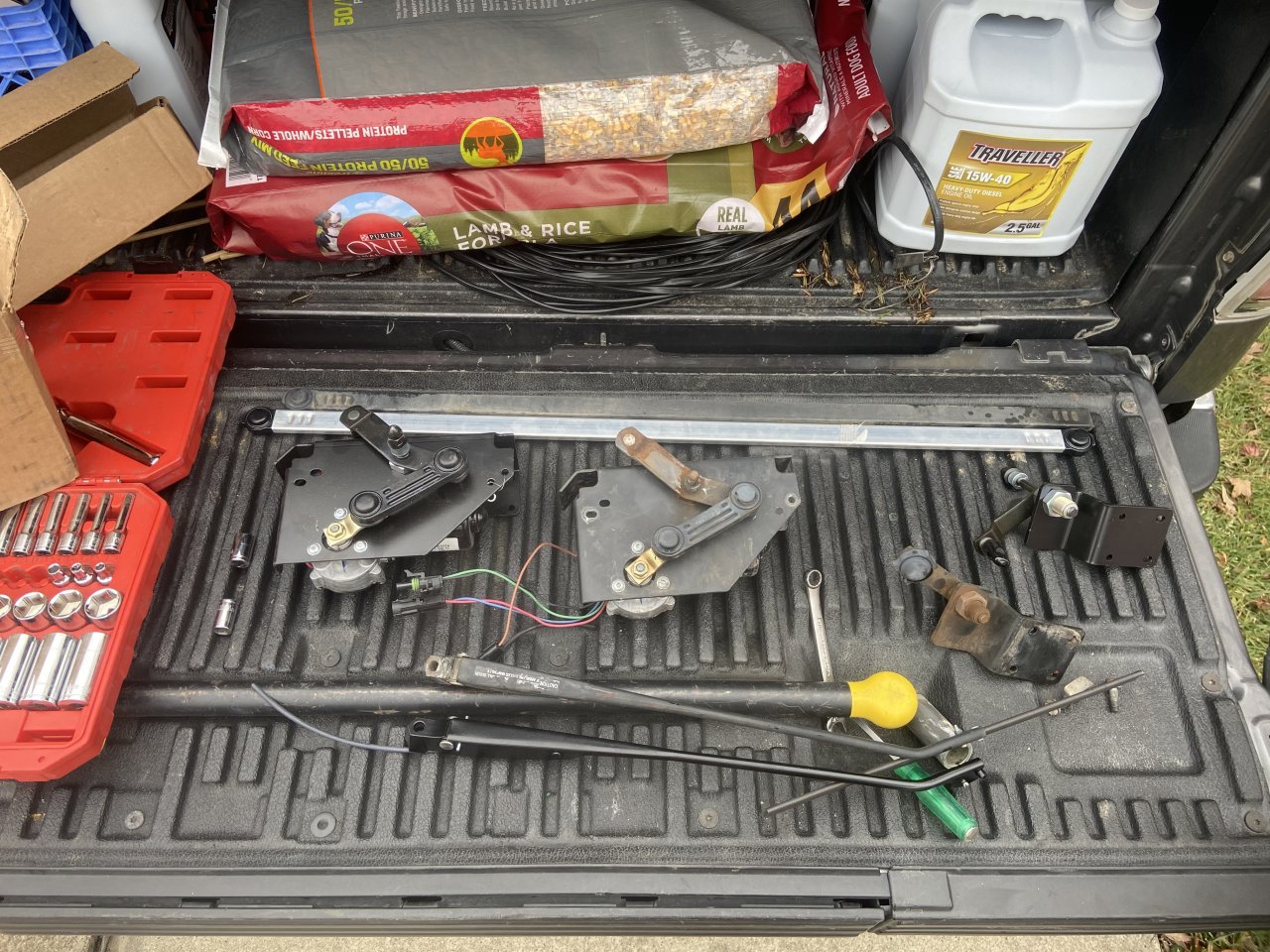

Here is the old and new of everything outside that I replaced.

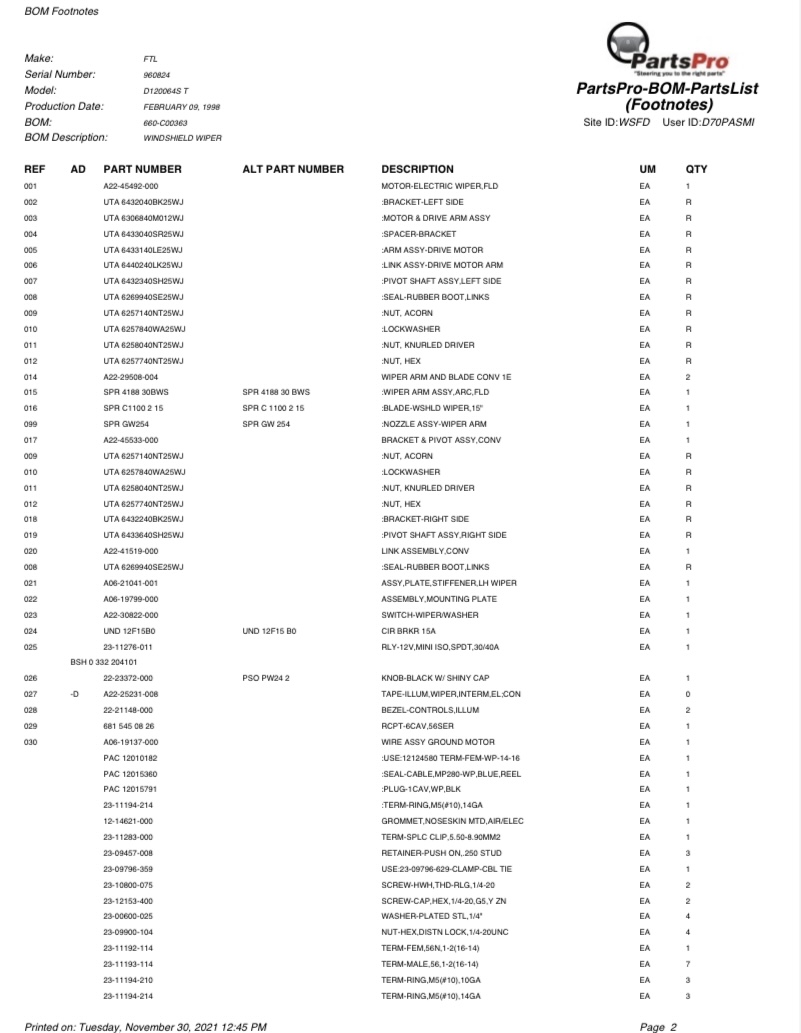

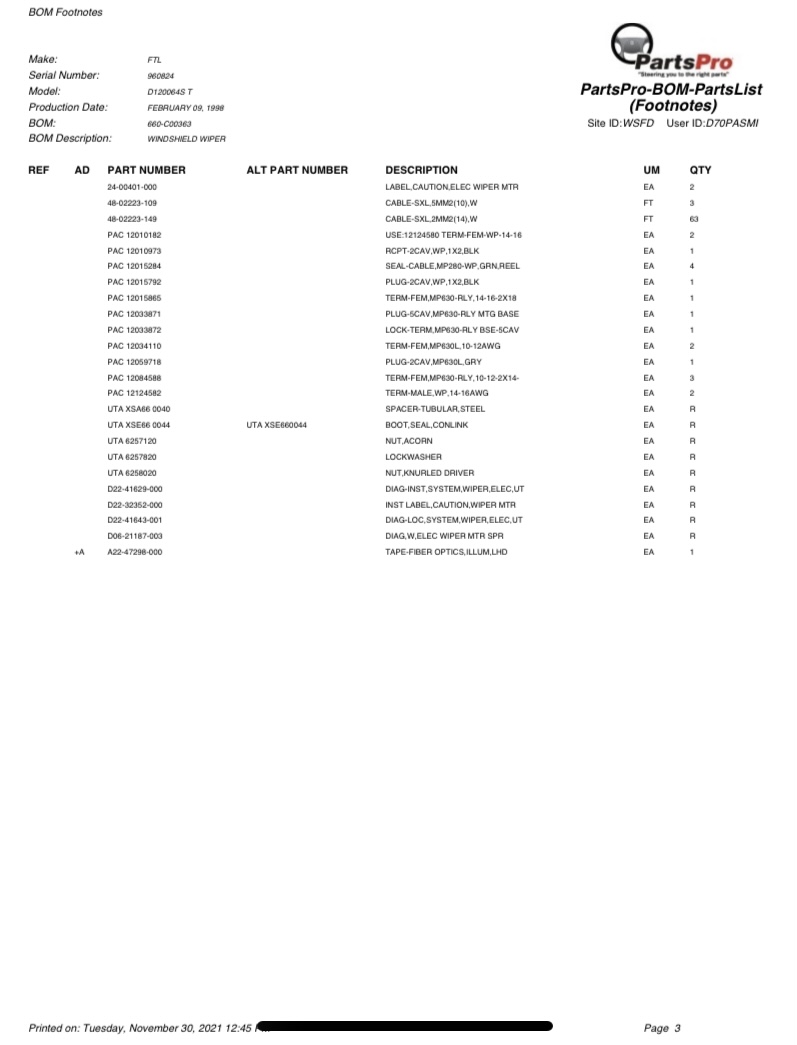

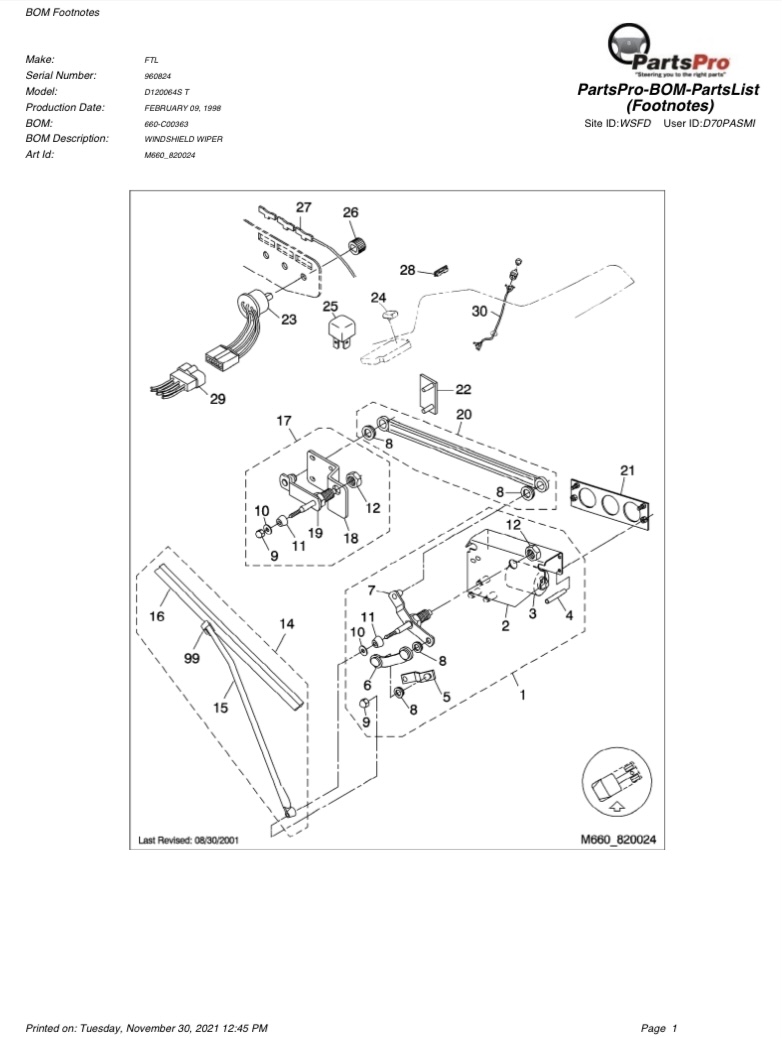

Here is the parts list with diagram.

You will need:
1
20
17
14 (2)
I never thought they would ever work as smooth as they do now. I didn’t realize just how worn out everything was. It’s worth the investment.
