‘93 W900L A/C issues

Discussion in 'Kenworth Forum' started by mile marker 27, Jul 15, 2020.

  1. mile marker 27

    mile marker 27 Light Load Member

    212
    305
    Dec 4, 2019
    0
    Been trying to fix the A/C system on the truck. Compressor, condenser, dryer, blower and the controls in the cab are good. The hoses in the dash must’ve come loose cause there’s very little, to no air coming through the dash vents on the driver side. Most air is blowing out on the floor and the passenger side dash vent. Also the box that contains the the evaporator, heater core, and blower, has some holes rotted through and alot of air is pushing out of it. I’m either gonna have to patch or replace the box. Y’all got any suggestions?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Carlinho

    Carlinho Bobtail Member

    25
    30
    Mar 2, 2018
    Harker Heights, Texas
    0
    They sell a complete aluminum box that comes with everything... seems to be well worth the money. Also on my old t600 the ducts on the dash were made of expandable plastic and were rotten.

    mile marker 27 Thanks this.
  4. mile marker 27

    mile marker 27 Light Load Member

    212
    305
    Dec 4, 2019
    0
    Who’s, “They”?

  5. mile marker 27

    mile marker 27 Light Load Member

    212
    305
    Dec 4, 2019
    0
    Pulled the system down to below 0, to test for any leaks and it held pressure for 10 minutes.

  6. Carlinho

    Carlinho Bobtail Member

    25
    30
    Mar 2, 2018
    Harker Heights, Texas
    0

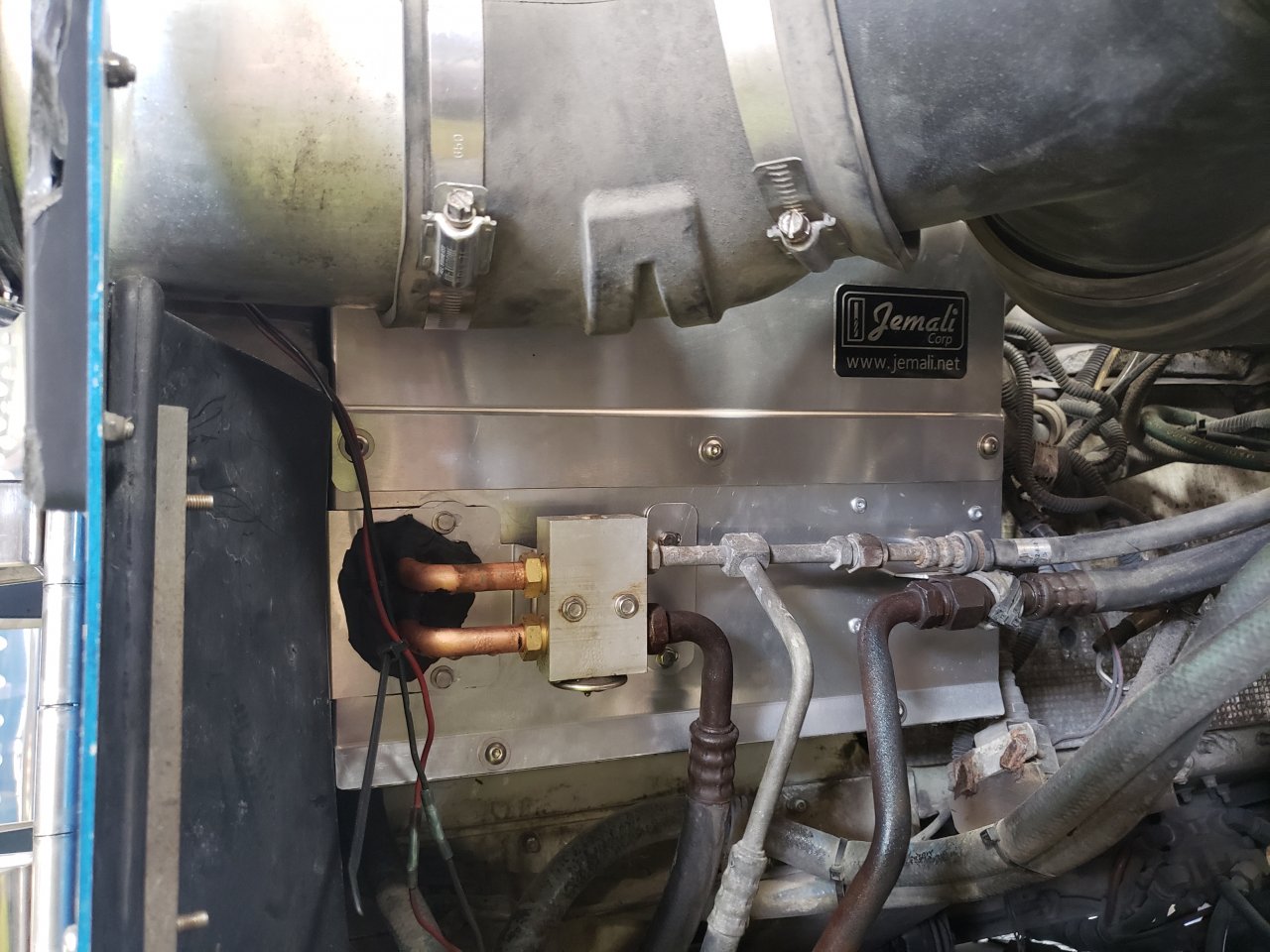

    Jemali metal manufacturing.... about 500 box itself 1k box with components


    Attached Files:

    mile marker 27 Thanks this.
  7. Cummins_444

    Cummins_444 Medium Load Member

    534
    747
    Apr 28, 2008
    Northwest, IN
    0
    Jemali is like 750 for a new box with all new cores. Good quality have been installing them in my trucks no problems yet.

    QUALITYTRUCK and mile marker 27 Thank this.
  8. mile marker 27

    mile marker 27 Light Load Member

    212
    305
    Dec 4, 2019
    0
    How hard are they to install?

  9. Cummins_444

    Cummins_444 Medium Load Member

    534
    747
    Apr 28, 2008
    Northwest, IN
    0
    Not going to lie. I order the boxes and then drop the truck and parts off at Indianapolis kenworth body shop. Then pick it up once done and ac recharged. Body shop is only $85 dollars an hour. Roughly get charged about six hours usually. Plus freon

  10. OFTTrucking

    OFTTrucking Bobtail Member

    11
    1
    Jul 17, 2016
    0
    I just did mine and it took about a half a day. I gained some blower increase after doing it but still think I have a few of the ducts inside pulling apart I will say that the air is alot colder now that the new box is sealed up better than the rusted one.

    mile marker 27 Thanks this.
  11. MM71

    MM71 Medium Load Member

    564
    556
    Jun 28, 2008
    AZ
    0
    I have the Jemali box too. It's not easy to put in, I purchased the loaded one with a new evap, heater core, fan ... it's great to have flow and ICE COLD AC in the heat of Arizona. Replace the duct tubes running through the dash. Make sure the air doors are working. The TRP brand condenser is the best I've used so far.

    Been thinking about taking the condenser off the radiator mount, getting some custom hoses, and putting it on the back of the sleeper with a shroud and electric fans. Its amazing how much heat load on the radiator and cac come from the ac condenser.

    Ruthless Thanks this.
