Looking at his bracket, he could adapt it, by drilling 4 holes closer together, or get a whole new piece of channel, and easily make a new bracket to fit a pad mount Sanden. All the conversion kits I’ve seen use an ear mount compressor. I’ve got one of those adapter brackets, I’ll never use. The new SDH7 compressors w/ fused clutches, that still spin, if compressor locks up, only come in pad mount, not ear mount. That’s why I never used it.
‘93 W900L A/C issues
Discussion in 'Kenworth Forum' started by mile marker 27, Jul 15, 2020.
Page 3 of 4
-
mile marker 27 and spsauerland Thank this.
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
I converted mine to Sanden with an actual Paccar bracket/plumbing conversion kit I bought new off Ebay 4 or 5 yrs ago. Worked slick. Got to the point that all I could seem to find in York were reman. Red Dot or CCI and they were always bad out of balance to start with and never got over 2yrs 250k without a lock up or hammering episode. Bought the Sanden new at Fleetpride for under 300 bucks. Higher BTU and smoother. Not saying the York is bad. Just decided to try new genuine Sanden. There are alot of knock offs out there of both. Just bought a new replacement for 379 from Peterbilt and it was cheap but it is no real Sanden. Holes for pad didn't even line up right....
mile marker 27 and Rideandrepair Thank this. -
-

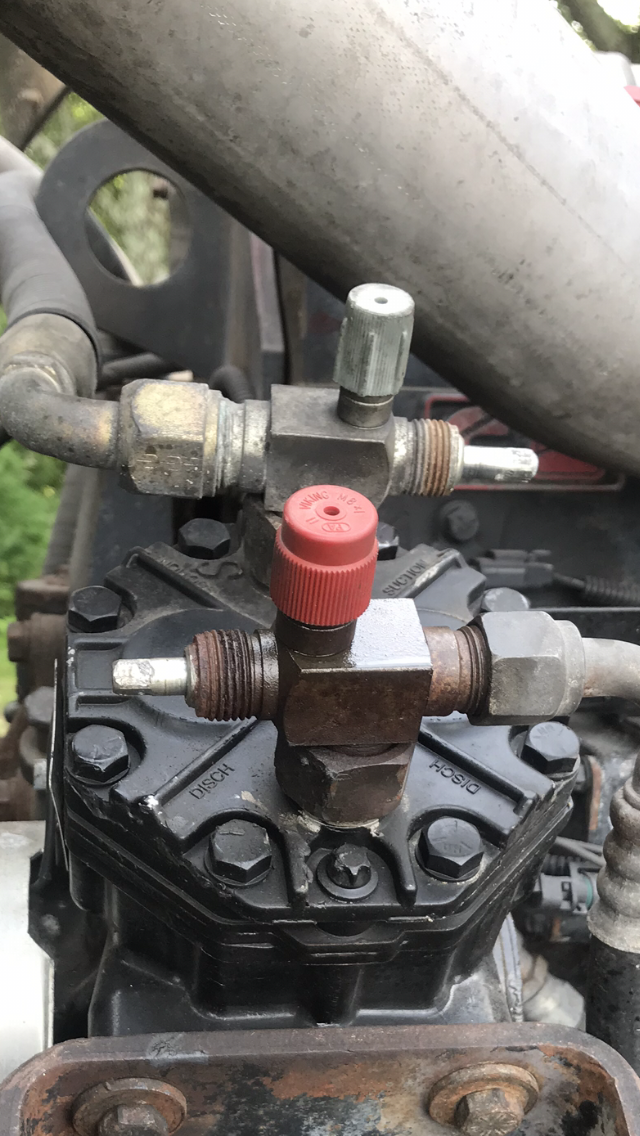

I ordered a new expansion valve, drier and trinary switch. In this pic the valves are screwed all the way out. When adding freon to the system do the valves on top of the compressor need turned, in, out, or in the middle? Where do they need be set after the system is full?
Rideandrepair Thanks this. -
beastr123 Thanks this.
-
Rideandrepair Thanks this.
-
mile marker 27 Thanks this.
-

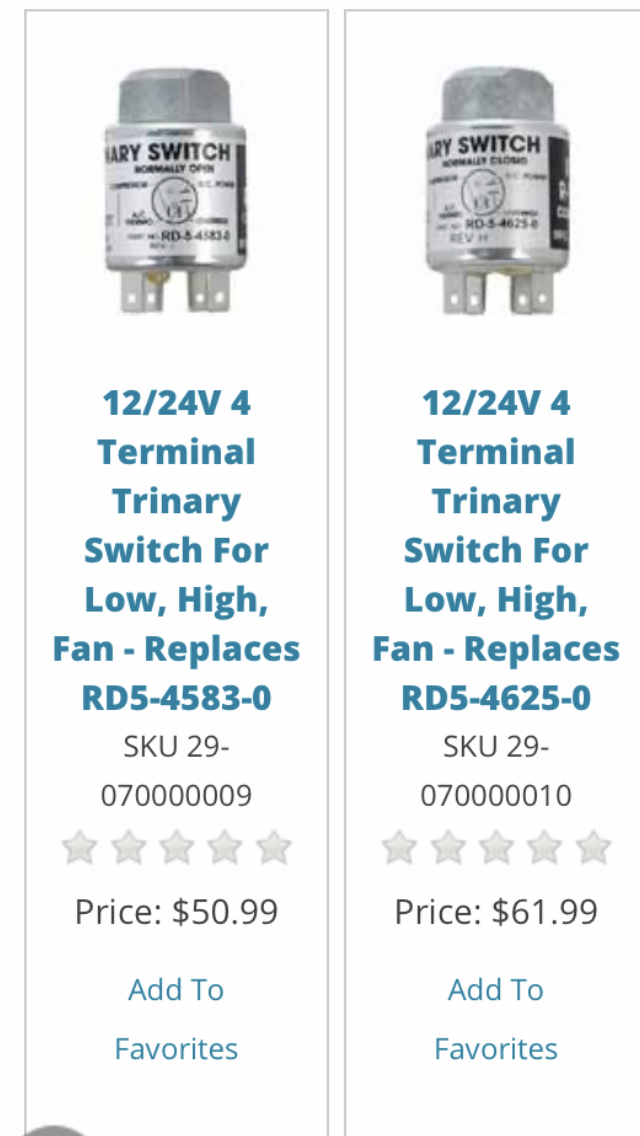

Wanting to replace the trinary switch, that screws into the expansion valve. The labeling has worn off mine and 4 States offers two different ones. The only difference I can see, is that one says, “normally open” and the other says, “normally closed”. Which do I need?
Rideandrepair Thanks this. -
Look at the old switch. See if you can still read it. Should be NC, or NO, stamped on it. Or maybe the RD#, for reference. Otherwise, a Kenworth Dealer can run your vin #, and get you the right one, or at least tell you, the part#, if they’re out of stock.
mile marker 27 Thanks this. -
Almost positive that screwed all the way out is normal operation. Mid ways is for charging and all the way in shuts line off .
Rideandrepair Thanks this.
