'03 387 model

Discussion in 'Peterbilt Forum' started by Patriotleasing, Jan 13, 2020.

  1. Patriotleasing

    Patriotleasing Bobtail Member

    11
    3
    Jan 1, 2017
    0
    Looking for a fuse panel diagram for the one behind the glove box. Any help would be appreciated. Thanks all.

  2. Chris M.

    Chris M. Light Load Member

    70
    38
    May 27, 2010
    0
    Not many fuses there. I’m pretty familiar with em. What’s your issue? Usually what gives me fits is the 3 power wires that go to the top of the computer board in there.

  3. Patriotleasing

    Patriotleasing Bobtail Member

    11
    3
    Jan 1, 2017
    0
    Cab HVAC blower motor quit working. Looking to see if I blew a fuse/relay but have no schematic on fuse panel.

  4. Chris M.

    Chris M. Light Load Member

    70
    38
    May 27, 2010
    0

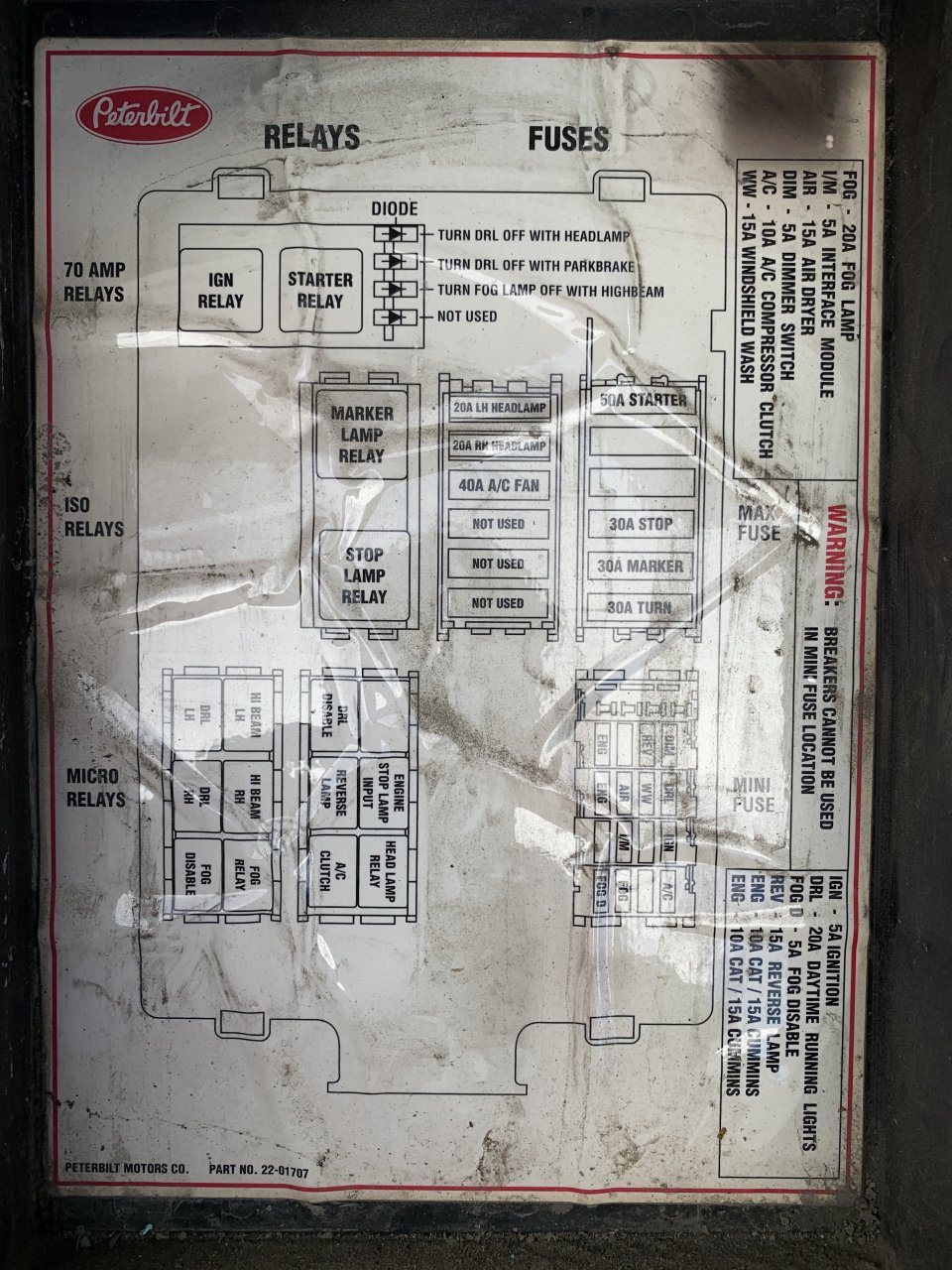

    Ah I follow you. I believe the fuse is in the panel underneath the air cleaner under the hood. I will take a picture for you tomorrow and see I know my diagram is there. Also I had to replace my motor so it might be that also.

  5. Chris M.

    Chris M. Light Load Member

    70
    38
    May 27, 2010
    0
  6. Chris M.

    Chris M. Light Load Member

    70
    38
    May 27, 2010
    0
    Sorry for being late I have been sick and time got away from me.

  7. Patriotleasing

    Patriotleasing Bobtail Member

    11
    3
    Jan 1, 2017
    0
    Yup, 40 amp fuse was good. Next step was the motor itself and that proved to be the culprit. Thanks for your help.
