1985 kenworth w900b project

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Adisiwaya, Apr 9, 2024.

  1. Adisiwaya

    Adisiwaya Light Load Member

    226
    251
    Mar 25, 2017
    0
    Well heck this isnt my first thread about this truck project. It's my baby. I'll admit the issue with putting the big cam in there back fired and i got burned from it depressed and down. Kinda gave up a bit.

    ( Big cam 3 400 )

    Well early 2023 i switched from reefer otr to livestock regional and income went up pretty good enough i could actually find a good engine, buy a new clutch a rebuilt tranny etc etc. This thread will be a pretty rich with pictures.

    I am not a mechanic i don't know what I'm doing i don't claim to know what I'm doing so don't be too mean i can understand things how they operate by taking them apart or watching videos or taking advice from fellow members. I don't have a shop i don't have thousands dollar tools i got my gophers and a good woman that'll help with anything.

    Going to start uploading pictures soon.

    This is my baby. My first truck and my highway wife. 1985 W900B she was stretched to 290" wheelbase or about that. She's rocking a 3406b 7cx (4mg junk yard find 400hp that came out of a ford that came out of something else prior to that) with a 13 speed tranny with a updated 15.5 inch flywheel. She was re skinned at Walworks a few years before i bought it. Still rocking 24.5 studd piloted wheels. Ag100 suspension with no air ride on cab or sleeper....


    So far we installed the engine, reground flywheel, installed new eaton easy pedal, installed 141613 tranny... i put old starter back in. Installed old alternator, ac pump etc brand new bendex fan hub, swapped power steering pump, replaced fuel lines, put new thermostat in.

    I have yet to put grounding straps on but when i installed the batteries i am getting power to everything. You can take power probe to everything and you pick up power. What's going on? Is it from not having grounding straps?


    Last edited: Apr 10, 2024
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 062

    062 Road Train Member

    5,868
    31,812
    Oct 20, 2013
    0
    I’m not following you. What grounding straps?
    Do you have the factory ground cables hooked to the batteries?

    Deere hunter Thanks this.
  4. Adisiwaya

    Adisiwaya Light Load Member

    226
    251
    Mar 25, 2017
    0

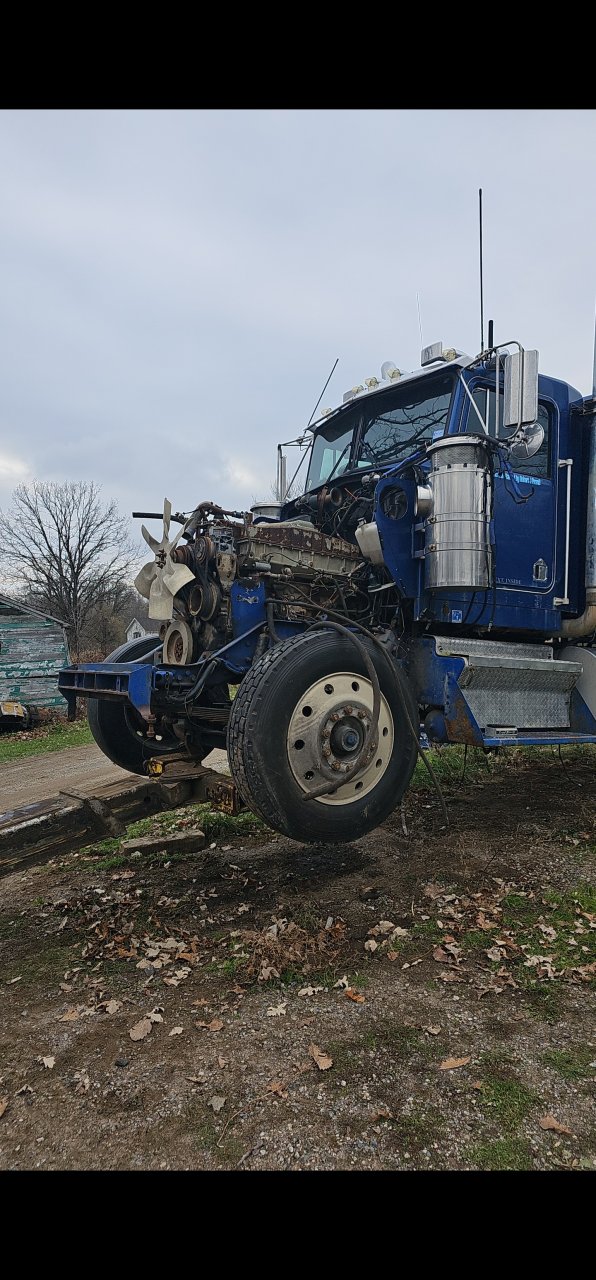

    Pictures of the first time last November Woodies towing came out and gave me a hand. Really good guys. Pulled it over to my house. Pulled the big cam engine out and sat on my driveway heartless couple weeks Screenshot_20240409_211859_Gallery.jpg Screenshot_20240409_211916_Gallery.jpg Screenshot_20240409_211852_Gallery.jpg Screenshot_20240409_211839_Gallery.jpg Screenshot_20240409_211834_Gallery.jpg Screenshot_20240409_211815_Gallery.jpg

    Sons Hero and Deere hunter Thank this.
  5. Adisiwaya

    Adisiwaya Light Load Member

    226
    251
    Mar 25, 2017
    0
    Sorry long day hauling pigs. I meant ground from engine to the frame. Ground from rad to frame etc etc. Im 95% sure i hooked all the wires back up to the starter the right way

    I had all battery cables hooked to terminals

    Last edited: Apr 9, 2024
    Deere hunter Thanks this.
  6. Adisiwaya

    Adisiwaya Light Load Member

    226
    251
    Mar 25, 2017
    0

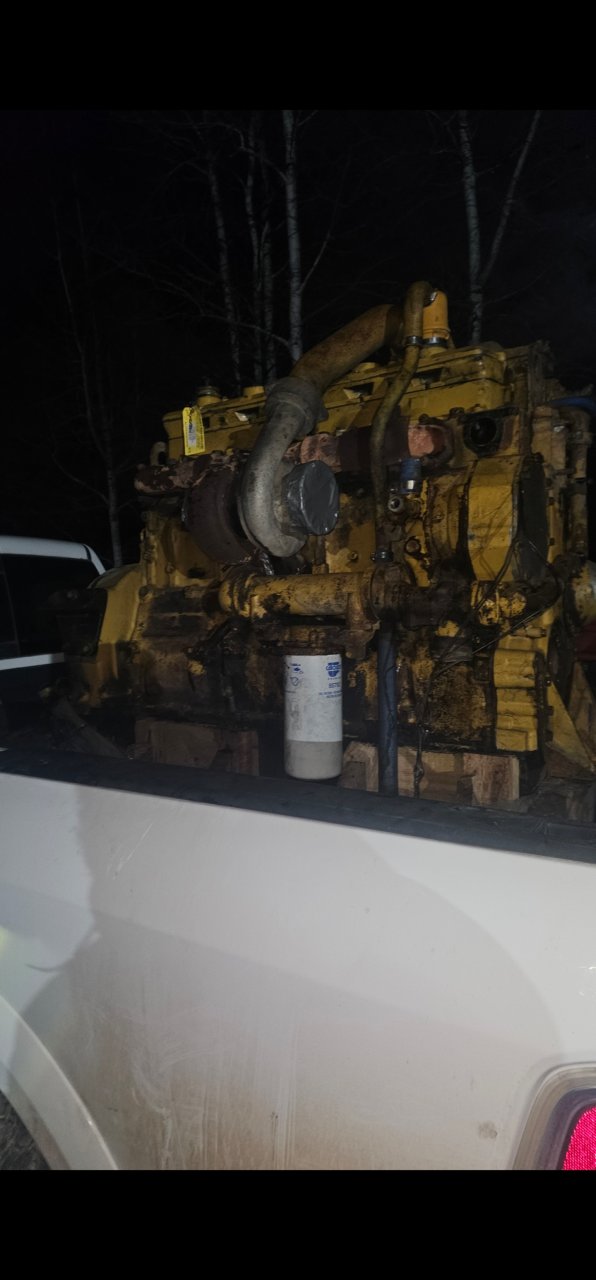

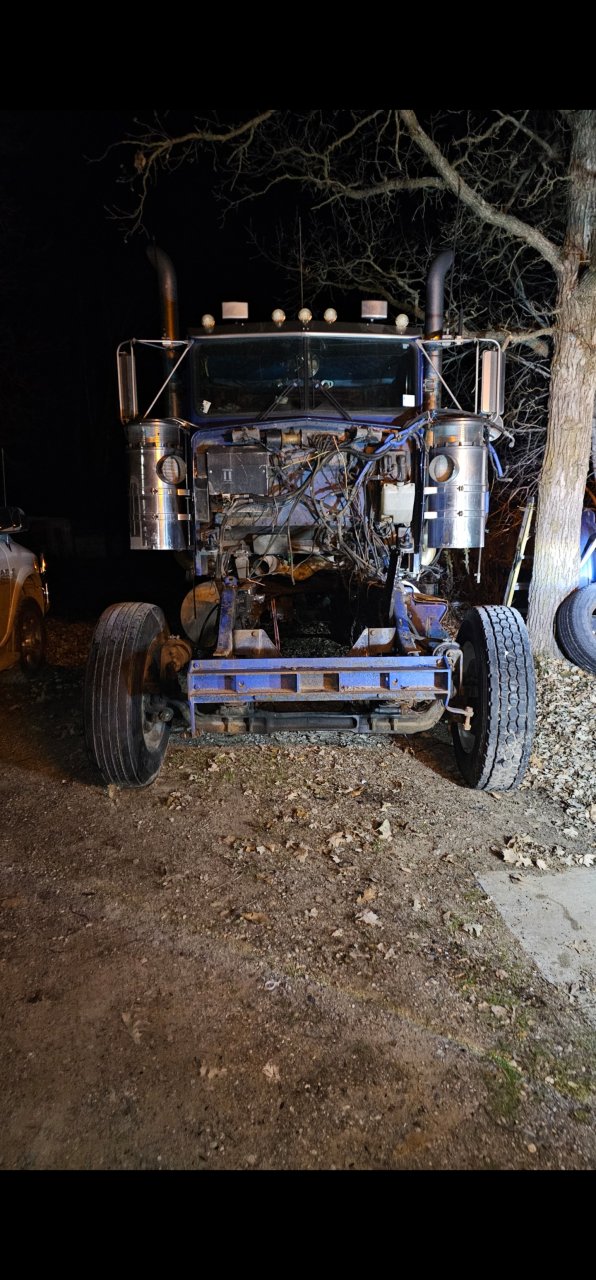

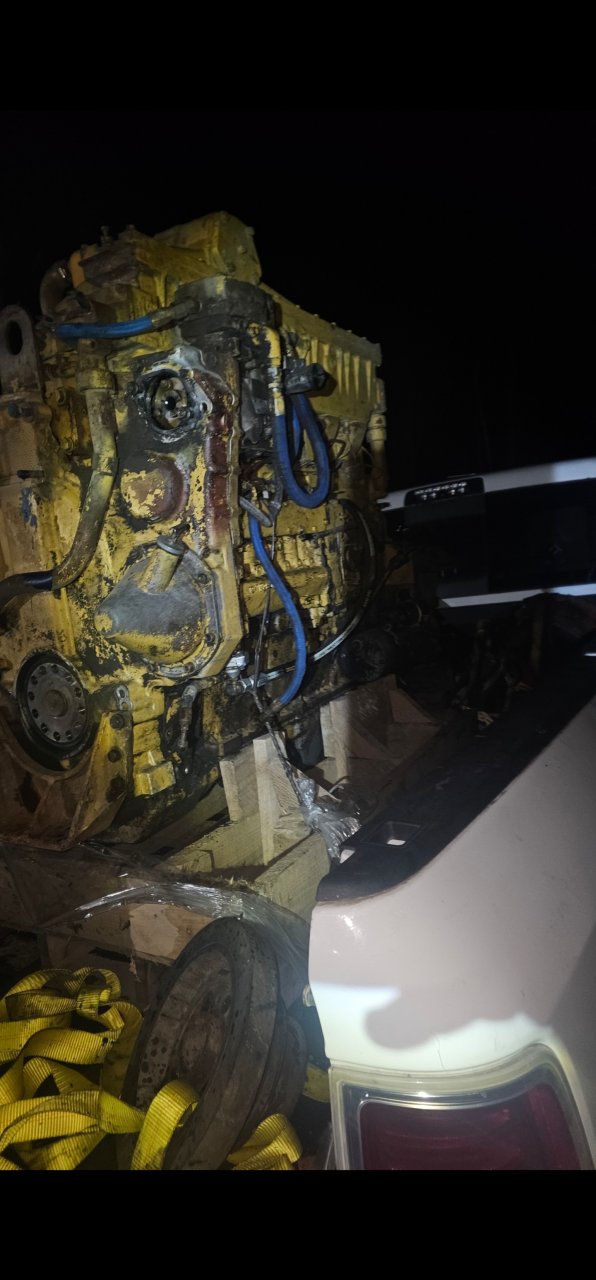

    These are from few weeks later. Thank God for Minnesota mild winter this year. Kiddos cleaned and degreased the engine bay. Lot of oil and grease. Just looks wrong without a hood and engine. Brought the old tranny in for a core and Picked up my 3406b i bought in my ram. Was top heavy ride home. Wife got the flywheel resurfaced. It's the 15.5 inch new style not the ole style hard to find clutches. Got most of the air bags removed and put new ones in with new mounts. Still have the back two to do.


    Screenshot_20240409_211751_Gallery.jpg Screenshot_20240409_211726_Gallery.jpg Screenshot_20240409_211718_Gallery.jpg Screenshot_20240409_211701_Gallery.jpg Screenshot_20240409_211636_Gallery.jpg Screenshot_20240409_211558_Gallery.jpg Screenshot_20240409_211548_Gallery.jpg Screenshot_20240409_211529_Gallery.jpg Screenshot_20240409_211521_Gallery.jpg Screenshot_20240409_211539_Gallery.jpg

  7. Adisiwaya

    Adisiwaya Light Load Member

    226
    251
    Mar 25, 2017
    0

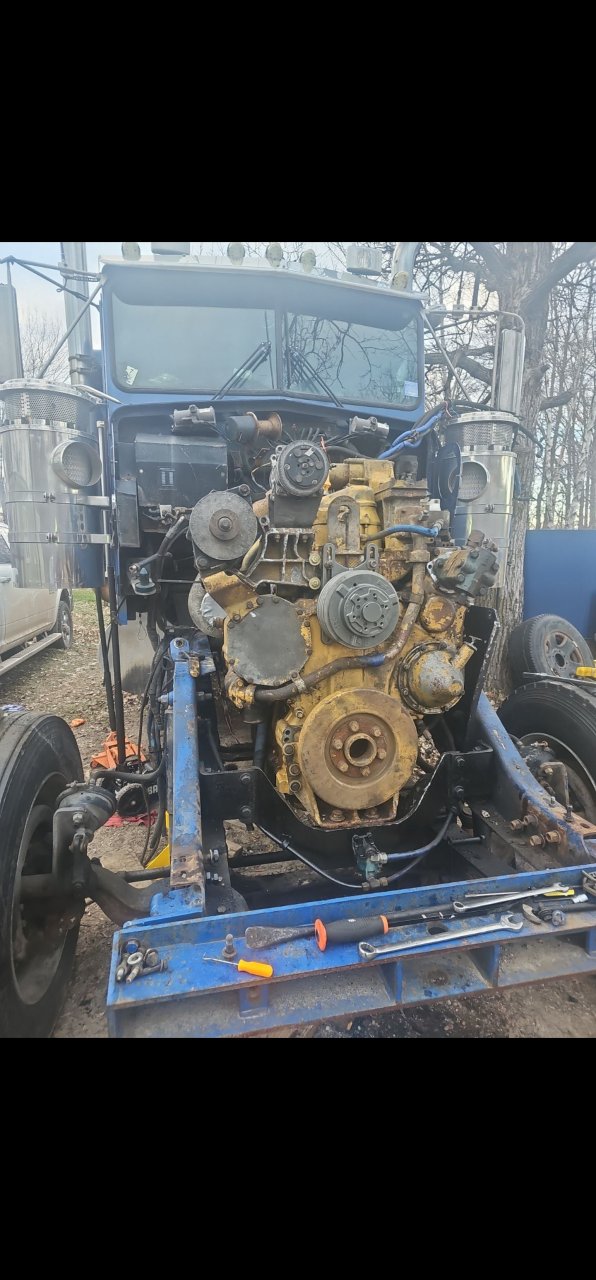

    Another 800$ wrecker visit. Well worth it. Got the engine installed. Wife picked up tranny while i was up north enjoying the northern lights. Spent the money and got a flywheel and clutch jack. They are worth the money. Save your back. I'll continue this tomorrow have to haul sows in the morning.



    Screenshot_20240409_211441_Gallery.jpg Screenshot_20240409_211421_Gallery.jpg Screenshot_20240409_211417_Gallery.jpg Screenshot_20240409_211307_Gallery.jpg Screenshot_20240409_211228_Gallery.jpg Screenshot_20240409_211153_Gallery.jpg Screenshot_20240409_211146_Gallery.jpg Screenshot_20240409_211139_Gallery.jpg Screenshot_20240409_210835_Gallery.jpg Screenshot_20240409_210830_Gallery.jpg

    Magoo1968, RocketScott and 260REM Thank this.
  8. W923

    W923 Road Train Member

    1,028
    3,073
    Feb 28, 2022
    0
    Glad to see you’re making progress…wish I could say the same with the one I’m doing but I guess that’s what happens when you work on other people’s stuff for a living lol

  9. AModelCat

    AModelCat Road Train Member

    27,868
    146,192
    Jul 7, 2015
    Canuckistan
    0
    I gave up on mine a few years ago too. Deciding whether to hold on to it, sell the pieces or just scrap it.

  10. Adisiwaya

    Adisiwaya Light Load Member

    226
    251
    Mar 25, 2017
    0

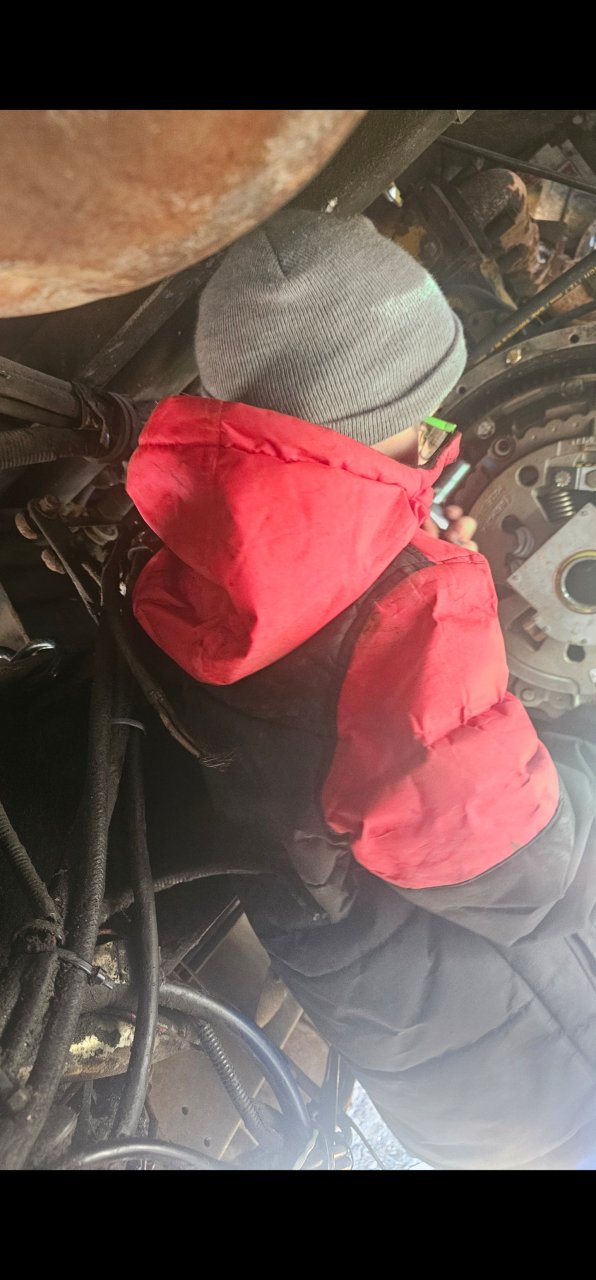

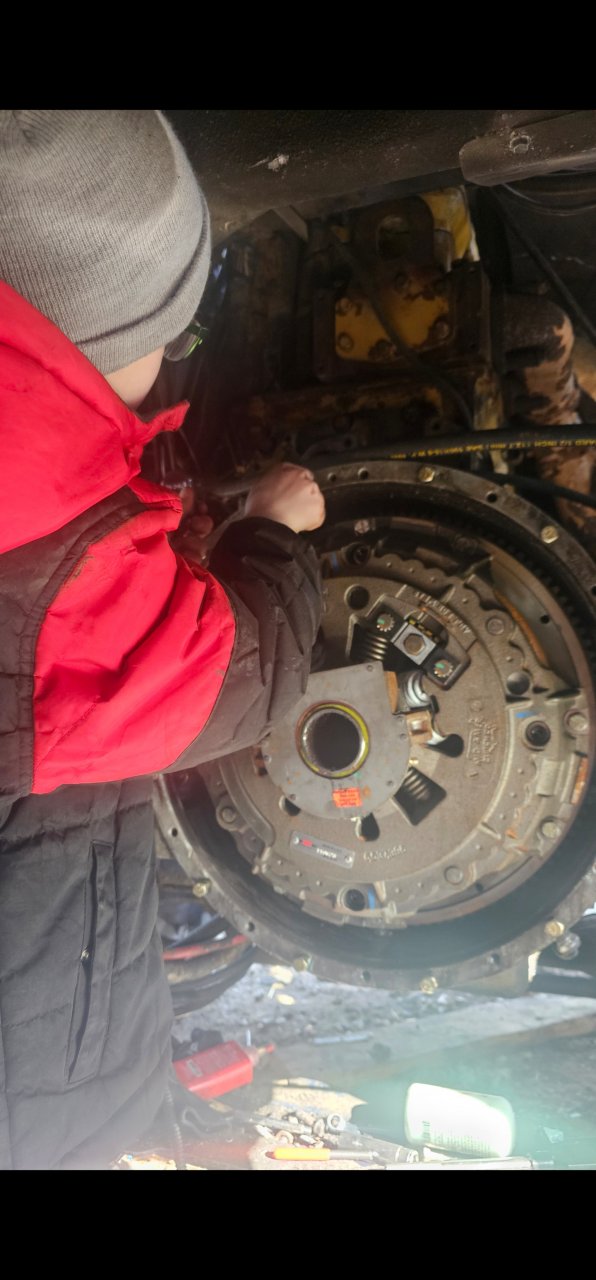

    Took help of my boy a few of my moms kids we got the tranny in. Had to pull it out. Redid the bad helicoils that my idiot self didn't check... someone previously did a bad job on it. I fixed it properly. More tools more parts... went and actually got threaded inserts as ultimately they fudged the hole bad.. taught william how to run a tap and how to install inserts. Hopefully good memories for him. We tightened up the engine mount bolts to. Next stage was to start doing heavy lifting after scraping the engine down to high temp primer and paint and high temp clear coats


    Screenshot_20240409_210508_Gallery.jpg Screenshot_20240409_210451_Gallery.jpg Screenshot_20240409_210442_Gallery.jpg Screenshot_20240409_210436_Gallery.jpg Screenshot_20240409_210548_Gallery.jpg

    260REM, W923, mile marker 27 and 2 others Thank this.
  11. special-k

    special-k Road Train Member

    1,520
    3,250
    Dec 27, 2008
    Southern Ontario Canada
    0
    A friend had a IH that had rubbed a spot through the insulation on one of the positive leads against the frame. It was enough to have measurable power all over the cab and frame.

    W923, Adisiwaya and Rideandrepair Thank this.
