1991 freightliner fld120 Brake light issues

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Csmoke20, Oct 1, 2021.

  1. Csmoke20

    Csmoke20 Bobtail Member

    5
    6
    Oct 1, 2021
    0
    I have a 91 Freightliner fld120 all the lights work except for brake lights. I’ve changed the switches even though i didn’t have any leaks. I’m thinking I’m not getting air to the switch. I changed the switch on top of the manifold and when i push the brake I’m still not getting any brake lights. Has anyone dealt with this horrible design that can maybe point me in the right direction here. I’m lost.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mike250rs

    Mike250rs Heavy Load Member

    881
    7,080
    Sep 24, 2019
    Raleigh, NC
    0
    If you have power coming from the switch, then its further down the line and could be anywhere. Start with connectors first.

    Csmoke20 Thanks this.
  4. j.r.1981

    j.r.1981 Light Load Member

    113
    96
    Aug 22, 2012
    0
    I had similar issues with my 2001, I took it to Freightliner because I didn't have time to mess with it. After they worked their magic, sometimes they would work fine, other times nothing. It ended up being a bad ground near the tail lights.

    Dino soar and Csmoke20 Thank this.
  5. AModelCat

    AModelCat Road Train Member

    29,157
    158,609
    Jul 7, 2015
    Canuckistan
    0
    Check if there's power supply to the switch and then step on the brakes and see if there's power flowing through the switch. If yes to both, keep going down the wire until you find the issue.

  6. BoxCarKidd

    BoxCarKidd Road Train Member

    4,469
    6,504
    Aug 26, 2014
    0
    Goes through the turn signal switch. Check that out. If you have a watcher wiggle to switch handle.
    If that is OK do electrical checks.

    D.Tibbitt, Dino soar and Csmoke20 Thank this.
  7. Csmoke20

    Csmoke20 Bobtail Member

    5
    6
    Oct 1, 2021
    0

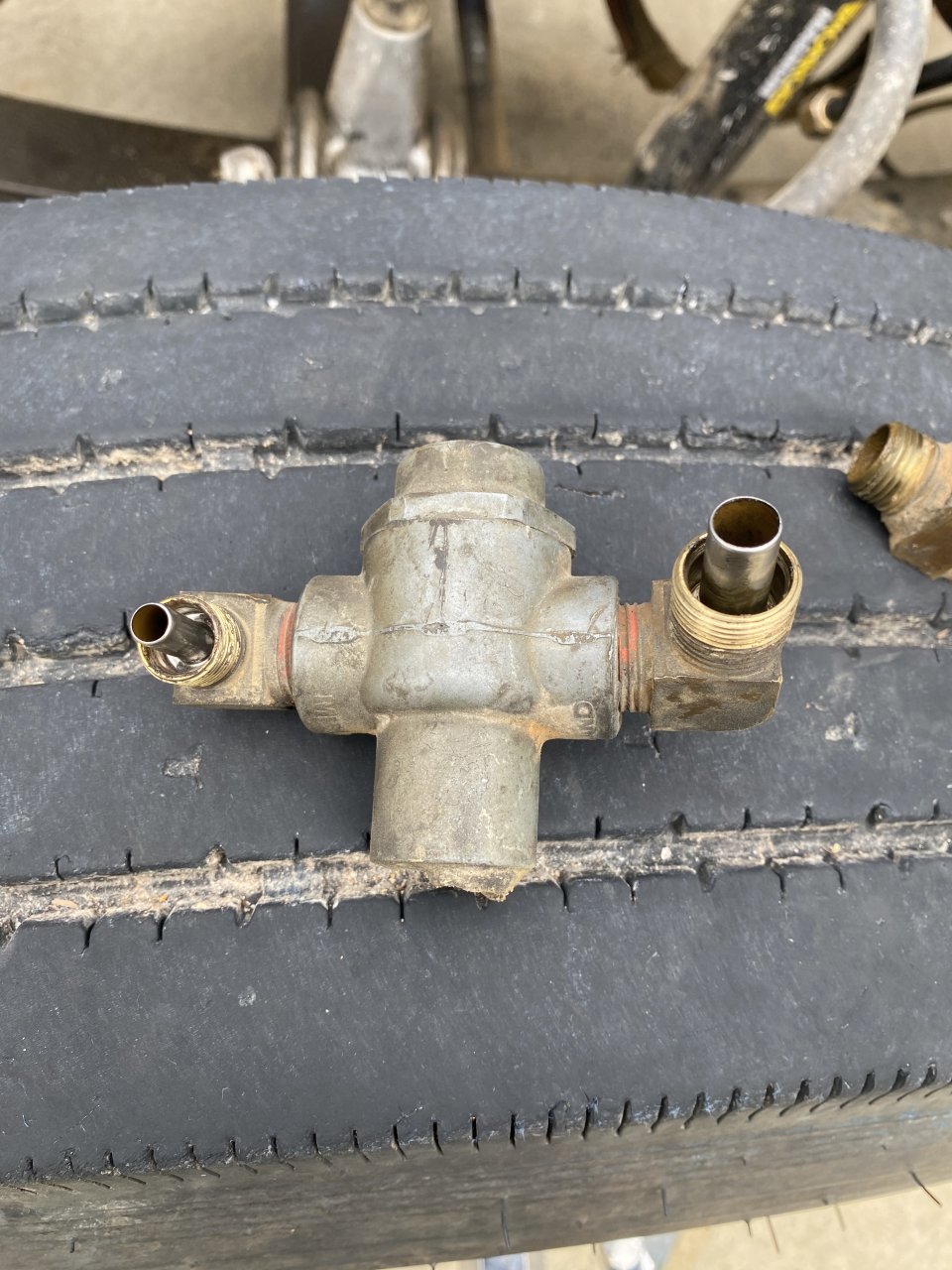

    I figured it out. My goodness. Quite simple really. After messing with them darn stubborn switches under the dash. It was probably this the entire time…. It was full of trash ans air wasn’t getting to the switch. Working fine at the moment. Maybe it’ll last a week or so. Lol. 12886108-361A-40DC-82A1-89D2620970D7.jpeg

    D.Tibbitt, j.r.1981 and BoxCarKidd Thank this.
  8. Csmoke20

    Csmoke20 Bobtail Member

    5
    6
    Oct 1, 2021
    0
    Now. If you same guys know a trick to getting the dash parking brake valve (tractor/trailer valves) out of this rig. It would be greatly appreciated. Lol

    j.r.1981 Thanks this.
  9. jamespmack

    jamespmack Road Train Member

    19,976
    215,615
    Mar 25, 2014
    OH
    0

    Take the top cover off. Remove center defrost vent, remove pannel under it. 5,6 screws.

    Csmoke20 and j.r.1981 Thank this.
  10. j.r.1981

    j.r.1981 Light Load Member

    113
    96
    Aug 22, 2012
    0
    Did yours break, like you try to push in a knob and the the whole thing pushes in lol. I had to replace part of the "frame" behind the dash that holds it all in place. Freightliner can still get the replacement pieces.

    jamespmack Thanks this.
  11. Csmoke20

    Csmoke20 Bobtail Member

    5
    6
    Oct 1, 2021
    0
    Just leaking real bad. It’s still has the originalwhite one in it. There isn’t much room for movement behind the cover. I’m going to attempt what what James replied above. Maybe that’ll help.

    jamespmack Thanks this.
