2001 Peterbilt Stabilizer Bar Fell Off!!!

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Missphd99, Nov 27, 2020.

  1. Missphd99

    Missphd99 Bobtail Member

    2
    0
    Aug 10, 2020
    0

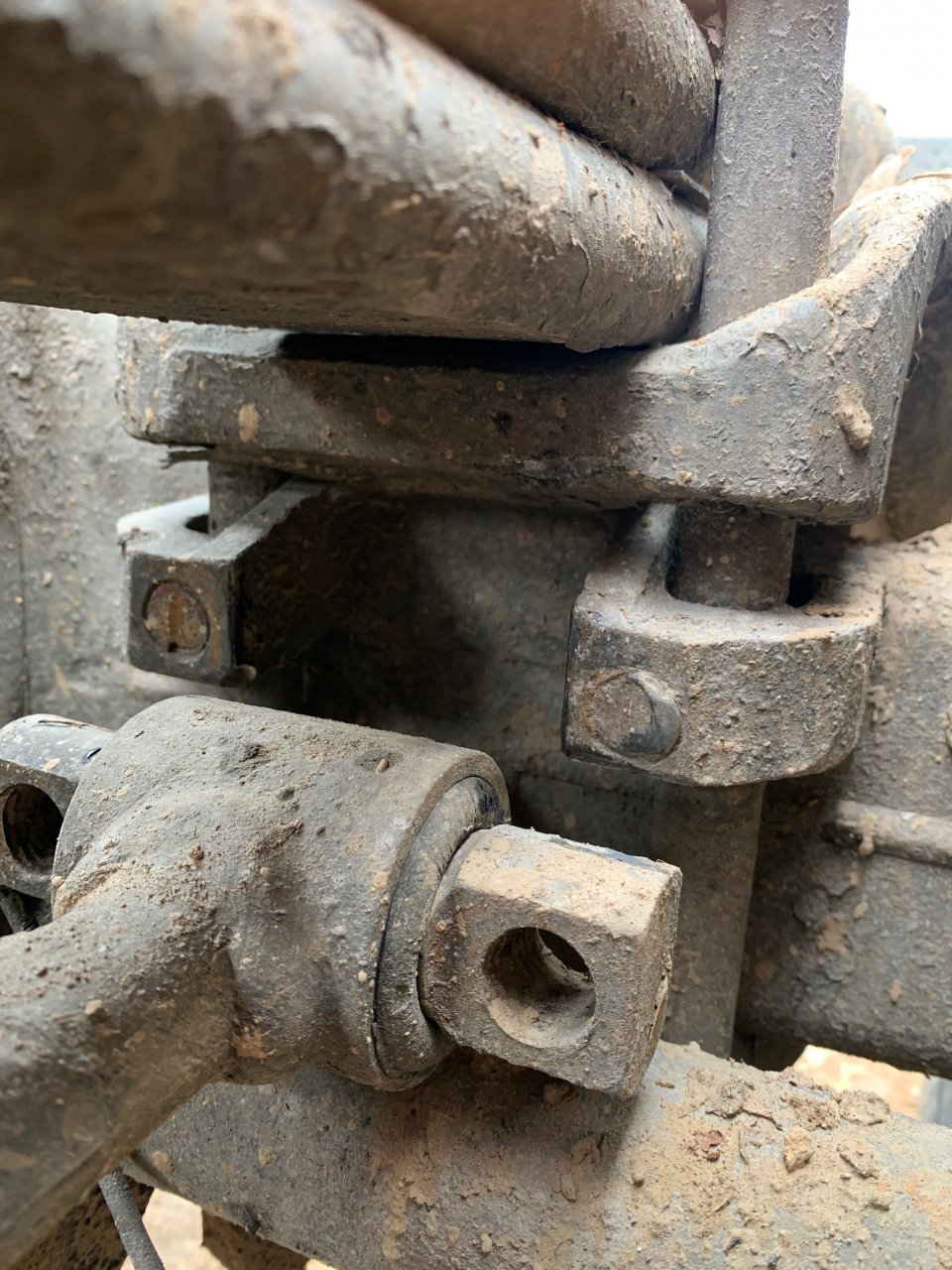

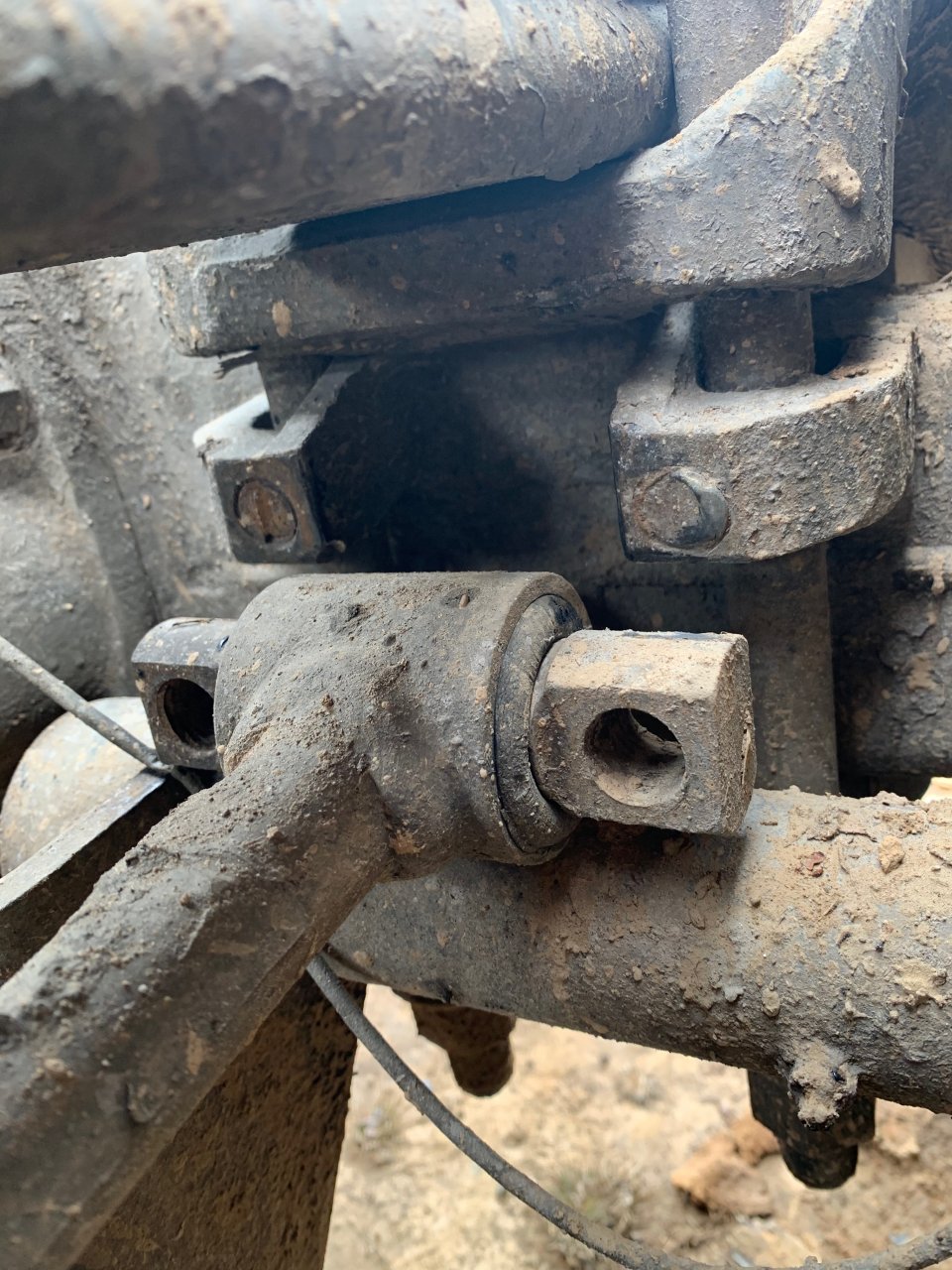

    Need help!!! My husband has a driver that just called us and had a stabilizer bar come off of our 2001 Peterbilt. The bolts have broke off flush and wondering how and if we can fix this. Possible drill those bolts out? I will post pics. Thank u for any help u can give!! E4E7F510-B731-45F1-86BA-E979E4D64778.jpeg E6DAAB23-E255-4A32-838D-E7B6DA7E5699.jpeg E6DAAB23-E255-4A32-838D-E7B6DA7E5699.jpeg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. bad-luck

    bad-luck Road Train Member

    1,482
    1,854
    Nov 16, 2013
    Baltimore, Maryland
    0

    U bolts need to come out, and should be replaced. Basically it needs to come apart, and you need a torch

  4. daf105paccar

    daf105paccar Road Train Member

    6,347
    6,842
    Apr 15, 2012
    0
    I think the bar broke off because he ran with a broken u bolt.

  5. bad-luck

    bad-luck Road Train Member

    1,482
    1,854
    Nov 16, 2013
    Baltimore, Maryland
    0
    Could be, it is a labor intensive repair

    daf105paccar Thanks this.
  6. pushbroom

    pushbroom Road Train Member

    1,699
    6,894
    Sep 1, 2012
    0
    Bar broke off cause the bolts were loose. Drill em out and replace the bolts. No need to remove the u bolts. Make sure the new bolts arent too long that the bolts bottom out on ubolt before they tighten down the bar.

    They suck to drill and should be preformed by a qualified person.

  7. AModelCat

    AModelCat Road Train Member

    19,424
    86,118
    Jul 7, 2015
    Canuckistan
    0
    What about welding a nut on the end of the stud and spinning them out? The heat should help loosen them up too.

    FLHT Thanks this.
  8. SmallPackage

    SmallPackage Road Train Member

    1,963
    5,157
    Dec 20, 2019
    Marion Texas
    0
    Are they bolts or are they studs? The Air Trac from the 70’s and 80’s used 5/8 studs with nuts on the diff end like in the picture and 5/8 bolts with nuts on the spring hanger end. Fine thread too. Makes for great fun busting loose to replace bushings when corroded. They usually twist off like that anyway.

  9. daf105paccar

    daf105paccar Road Train Member

    6,347
    6,842
    Apr 15, 2012
    0
    Pushbroom,isn't the left part off the u bolt missing?
    On the pictures it looks like that.
    Or am i wrong?

    pushbroom Thanks this.
  10. BoxCarKidd

    BoxCarKidd Road Train Member

    3,099
    4,176
    Aug 26, 2014
    0
    Welding is usually my first go to. Would go about a bit differently and it also requires a special skill set.

  11. pushbroom

    pushbroom Road Train Member

    1,699
    6,894
    Sep 1, 2012
    0
    I think its just an optical illusion?

    daf105paccar and BoxCarKidd Thank this.
