2006 peterbilt 379 fuse panel Diagram

Discussion in 'Peterbilt Forum' started by Tony Evans, Feb 1, 2020.

  1. Feb 1, 2020 #1
    Tony Evans

    Tony Evans Bobtail Member

    1
    0
    Feb 1, 2020
    0
    Does anyone know where to find a fuse panel diagram for a 06 379 ?
    Mine is missing from my truck I bought.

    Tony Evans, Feb 1, 2020
    Tony Evans, Feb 1, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Feb 1, 2020 #2
    EtherOrBroke11

    EtherOrBroke11 Bobtail Member

    21
    12
    Jan 17, 2020
    0
    Are your referring to the fuse locations/numbers on the kick panel by the clutch pedal I will take a pic tomorrow when I go to work I have one from an 07 378 should be the same.

    EtherOrBroke11, Feb 1, 2020
    EtherOrBroke11, Feb 1, 2020
    #2
  4. Feb 1, 2020 #3
    SAR

    SAR Road Train Member

    2,756
    36,654
    Nov 26, 2011
    ND
    0

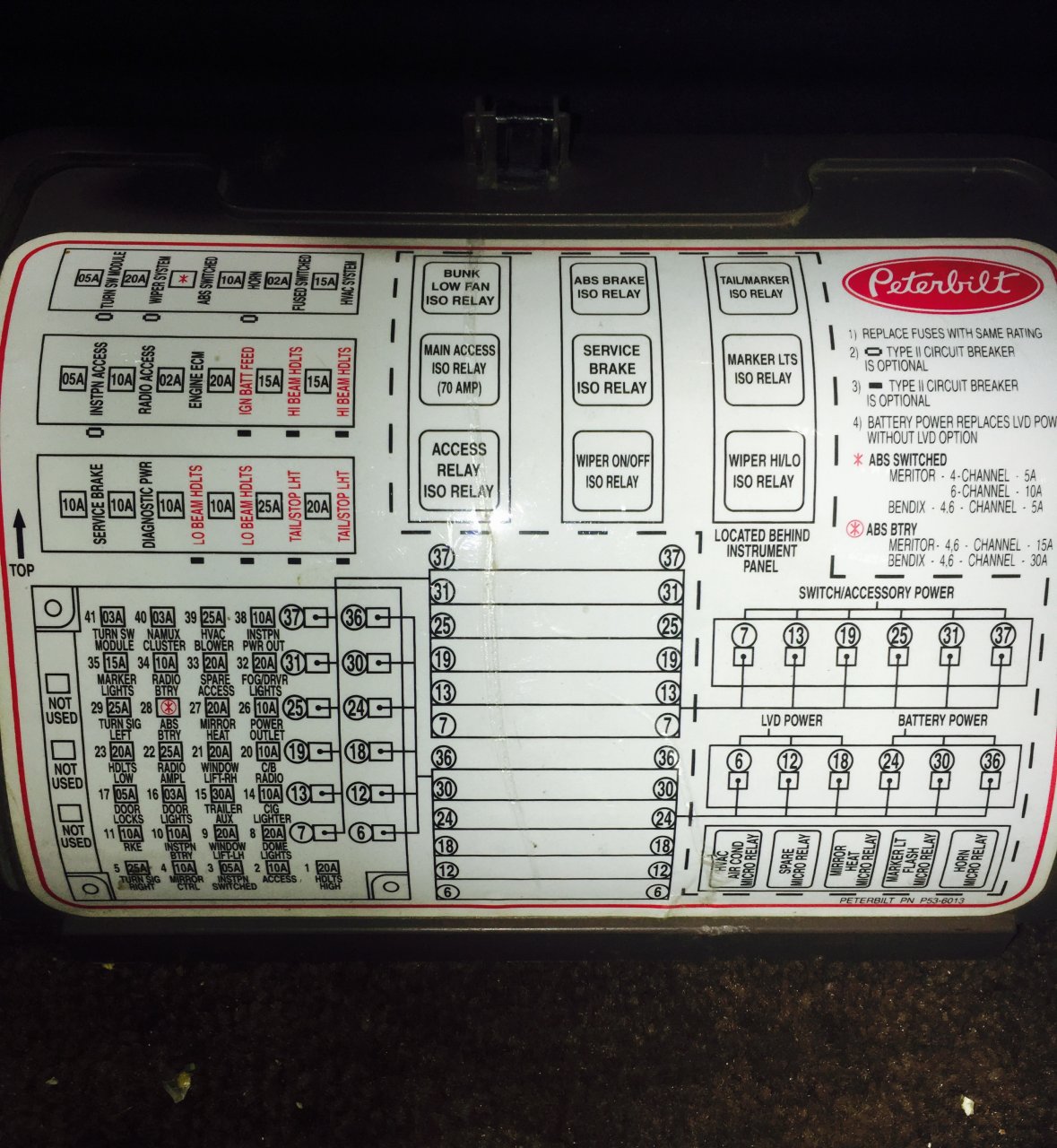

    Here is from my 06 379

    SAR, Feb 1, 2020
    SAR, Feb 1, 2020
    #3
    bigtrucks67, westek12, RocketScott and 1 other person Thank this.
  5. Jun 20, 2021 #4
    westek12

    westek12 Bobtail Member

    1
    0
    Jun 19, 2021
    0
    Dear SAR,

    Sir, I cannot thank you enough for sharing the fuse panel diagram image. You helped me through a very desperate situation by doing so.

    If ever I meet you in person, the beer is on me!

    westek12, Jun 20, 2021
    westek12, Jun 20, 2021
    #4
  7. Apr 29, 2022 #5
    IgnacioMendoza12

    IgnacioMendoza12 Bobtail Member

    1
    0
    Apr 29, 2022
    0
    Which fuse is for the cab lights ?

    IgnacioMendoza12, Apr 29, 2022
    IgnacioMendoza12, Apr 29, 2022
    #5
