2008 VNL780 adding manual fan switch

Discussion in 'Volvo Forum' started by KB3MMX, Apr 16, 2015.

Page 5 of 9
  1. JORDAN670

    JORDAN670 Bobtail Member

    Joined:
    Jan 1, 2017
    Messages:
    6
    Thanks Received:
    3
    0
    What is pin with small pigtail??? Send me pic please, thanks.

    JORDAN670, Jan 1, 2017
    #41
  2. KB3MMX

    KB3MMX Road Train Member

    Joined:
    Dec 29, 2014
    Messages:
    3,069
    Thanks Received:
    2,589
    Location:
    Orrstown, PA
    0

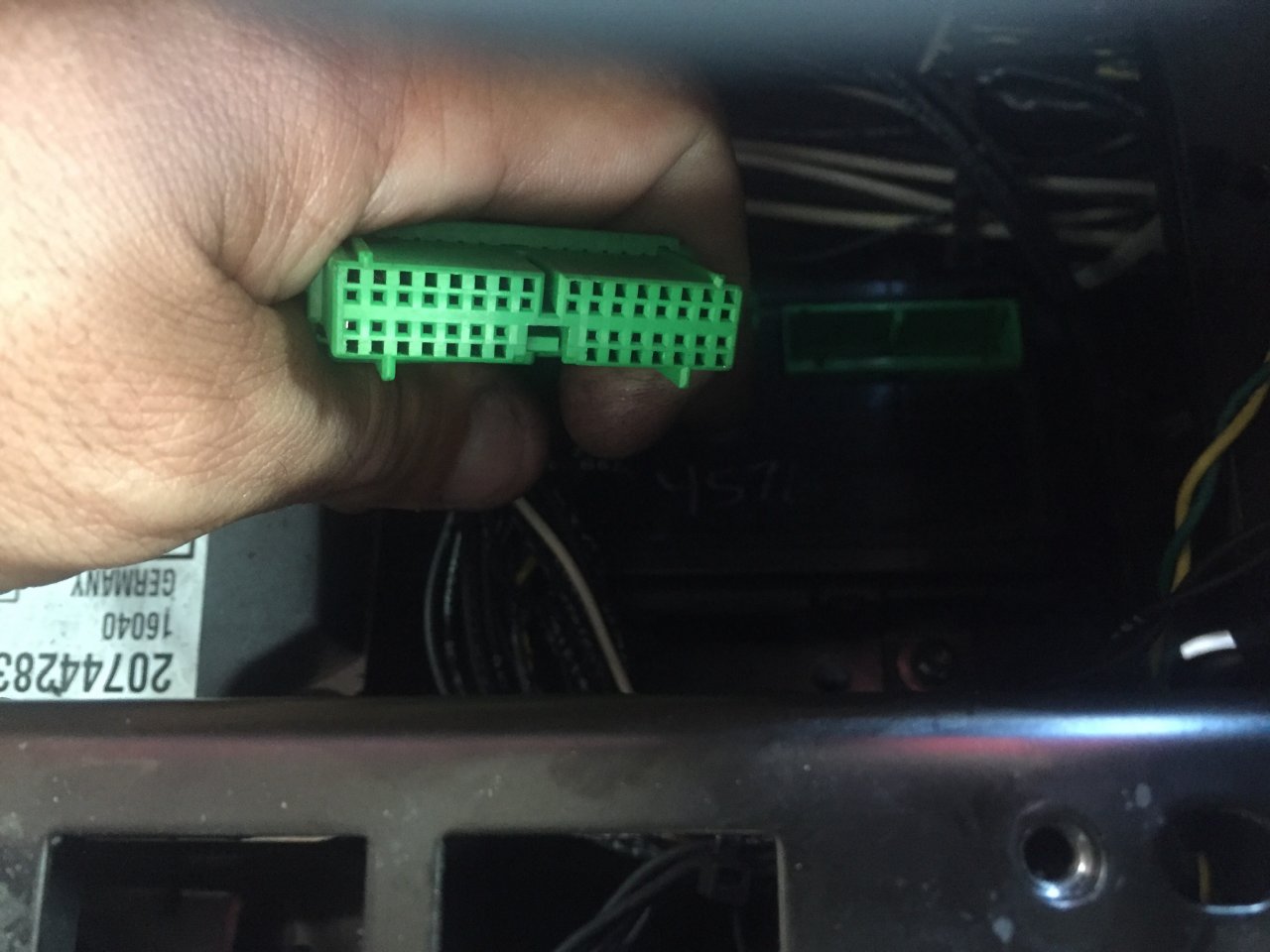

    Sorry i don't have a pic without taking it all apart. However , when you remove the green connector , they are numbered , look for a open hole in #19

    KB3MMX, Jan 1, 2017
    #42
    JORDAN670 Thanks this.
  3. KB3MMX

    KB3MMX Road Train Member

    Joined:
    Dec 29, 2014
    Messages:
    3,069
    Thanks Received:
    2,589
    Location:
    Orrstown, PA
    0
    Oh and you will need to open up the pin lock tab before adding the pin

    KB3MMX, Jan 1, 2017
    #43
    JORDAN670 Thanks this.
  4. KB3MMX

    KB3MMX Road Train Member

    Joined:
    Dec 29, 2014
    Messages:
    3,069
    Thanks Received:
    2,589
    Location:
    Orrstown, PA
    0
    It's the big green connector on right btw

    KB3MMX, Jan 1, 2017
    #44
    JORDAN670 Thanks this.
  5. KB3MMX

    KB3MMX Road Train Member

    Joined:
    Dec 29, 2014
    Messages:
    3,069
    Thanks Received:
    2,589
    Location:
    Orrstown, PA
    0

    KB3MMX, Jan 1, 2017
    #45
    JORDAN670 Thanks this.
  6. JORDAN670

    JORDAN670 Bobtail Member

    Joined:
    Jan 1, 2017
    Messages:
    6
    Thanks Received:
    3
    0
    I don't see numbers in the big green connector.


    Attached Files:

    JORDAN670, Jan 1, 2017
    #46
    KB3MMX Thanks this.
  7. KB3MMX

    KB3MMX Road Train Member

    Joined:
    Dec 29, 2014
    Messages:
    3,069
    Thanks Received:
    2,589
    Location:
    Orrstown, PA
    0
    Look on other side with pin lock strip open

    They're small but visible....tip; it'll be a open slot without a pin

    KB3MMX, Jan 1, 2017
    #47
    khalidjamal123 and JORDAN670 Thank this.
  8. JORDAN670

    JORDAN670 Bobtail Member

    Joined:
    Jan 1, 2017
    Messages:
    6
    Thanks Received:
    3
    0
    Do i have to get this P/N 3948725 in the volvo dealer?

    JORDAN670, Jan 2, 2017
    #48
    KB3MMX Thanks this.
  9. KB3MMX

    KB3MMX Road Train Member

    Joined:
    Dec 29, 2014
    Messages:
    3,069
    Thanks Received:
    2,589
    Location:
    Orrstown, PA
    0
    Yes

    KB3MMX, Mar 22, 2017
    #49
  10. Robervolvo

    Robervolvo Bobtail Member

    Joined:
    May 9, 2017
    Messages:
    11
    Thanks Received:
    2
    0
    Hello everybody, I have a 2009 VNL 780 with D16,VISCOUS FAN CLUTCH.
    I having a problem when i turn my a/c on, the viscous fan looks like not engaging or run faster.
    My a/c gets warm at traffic or idling.
    When i have air flow thru the condensor blow cold.
    New compresor,dryer,pressure switch and still have the same problem.
    Volvo connect the computer and manually activate the clutch and clutch work Ok.
    Its possible i have an open circuit between Hi pressure switch and VCM ? Any help will be appreciated.

    Robervolvo, May 17, 2018
    #50
