This truck is a day cab. It has a ISX with a Eaton Ultrashift. The truck will not shut off with the key. The transmission will not power down. I have checked all the grounds I could find and pulled all the relays. And none effected this problem. Any advise on how to proceed would be greatly appreciated.
2011 Cascadia
Discussion in 'Freightliner Forum' started by ms0115, May 17, 2023.
Page 1 of 2
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
I would think truck is shorting to power on one of the circuits. If you post the last six digits of your VIN we can help narrow it down. The Cummins wiring diagrams over here might be helpful Cummins Wiring Diagrams
-
VIN: SB5629.
Thanks. -
-
SB5629 comes back as not valid serial number. Double check on that and also check on the top flange of left frame rail to the left of engine. VIN is stamped in frame there. Just the last six of VIN is all that is necessary.
-
BS5629
Sorry. -
Your engine is CM2250. Just looking at the ISX CM2250 Cummins wiring diagrams over in mechanics forum I posted before it appears from them power from ignition supplies Pin 3 of the OEM connector at the ECM. However, on that same circuit ignition is supply pin 52 of aftertreatment DEF controller at 53 pin connector. Outlet NOx sensor relay at pin 85 and and a sensor where it supplies 12 volt to pin C and other two pins of sensor go back to pin 58 and 59 of Aftertreatment DEF Controller connector. Appears 3 other parts of circuit could be feed power back to Pin 3 of OEM connector at ECM. That diagram should give you some direction.
-
Ignition circuit appears to be gray wire labelled 439A. Also, at Power_Train PDM Relay 1 pin 86 appears to be supplied power from ignition R1_86 and relay 5 pin 30. R5_30.
QUALITYTRUCK Thanks this. -
Sometimes a picture is worth more than a thousands words here. Here is a diagram of your wiring from BOM 283.

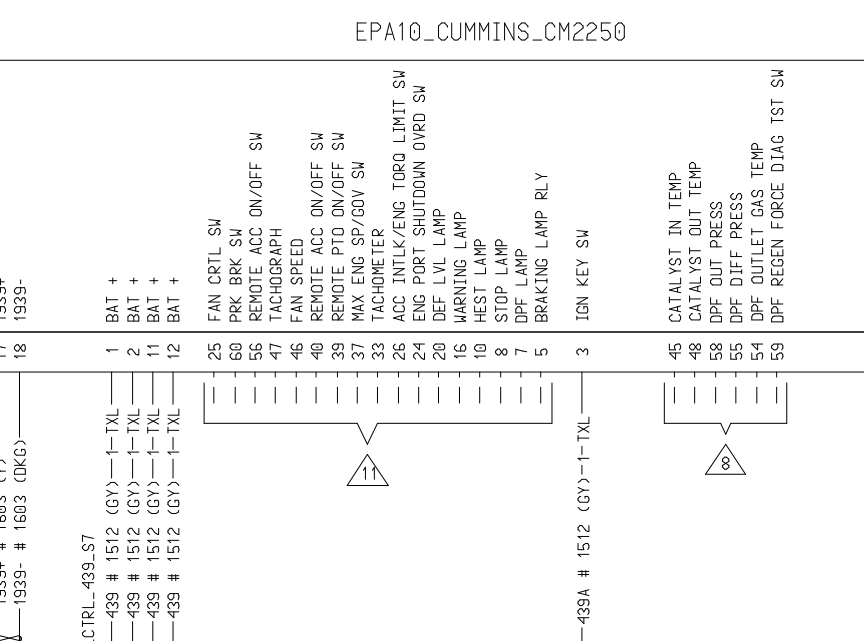

Here is the IGN KEW SW circuit on the CUMMINS ECM (not MCM).
This circuit is spliced and shares to the SAM CAB of the truck--very important to understand and not leave out.
Look right here at this connector, ENG_H_FW_EFW_1A, and make sure water/corrosion hasn't gotten into the connector.
Please report back your findings.SWM_TECH and QUALITYTRUCK Thank this. -
Thanks for all the information. Just getting back started on the project. I am unable to read some of the schematics that were sent. But here is what I have found so far. The ignition circuit grey wire marked 439 A is staying hot. And I have not been able to determine what has been causing this. It is not the ignition switch. Or any stuck relay. I need to locate a better schematic so that I might trace this down. Any help would be appreciated.
