2012 Cascadia randomly shuts off

Discussion in 'Freightliner Forum' started by rcsd2007, Mar 22, 2015.

Page 4 of 6
  1. RocketyMan

    RocketyMan Medium Load Member

    Joined:
    Jun 5, 2015
    Messages:
    554
    Thanks Received:
    337
    0
    On your first picture, that contact solenoid does go bad! I have one sitting on my desk.

    Did you end up replacing the PNDB with a new one yet??

    RocketyMan, Apr 4, 2017
    #31
  2. mhyn

    mhyn Road Train Member

    Joined:
    Dec 29, 2008
    Messages:
    4,255
    Thanks Received:
    4,515
    Location:
    Northridge, CA
    0
    I checked the solenoid and its good . I guess the board is bad or has bad component. I have replaced the PNDB. just took it from another truck and installed on my truck. Temporarily until I will buy new one.

    mhyn, Apr 4, 2017
    #32
  3. RocketyMan

    RocketyMan Medium Load Member

    Joined:
    Jun 5, 2015
    Messages:
    554
    Thanks Received:
    337
    0
    Usually the solenoid part is good--but the contacts I usually question. You'll see this like blackish residue on them. But in your case, I wonder what part in the circuit board went bad. Maybe it kept clicking the solenoid causing your power to cut in and out?

    RocketyMan, Apr 4, 2017
    #33
    mhyn Thanks this.
  4. mhyn

    mhyn Road Train Member

    Joined:
    Dec 29, 2008
    Messages:
    4,255
    Thanks Received:
    4,515
    Location:
    Northridge, CA
    0
    Yes it kept clicking the solenoid causing power to cut in and out. After 20-30 second of doing clicking it stopped and the power gone.

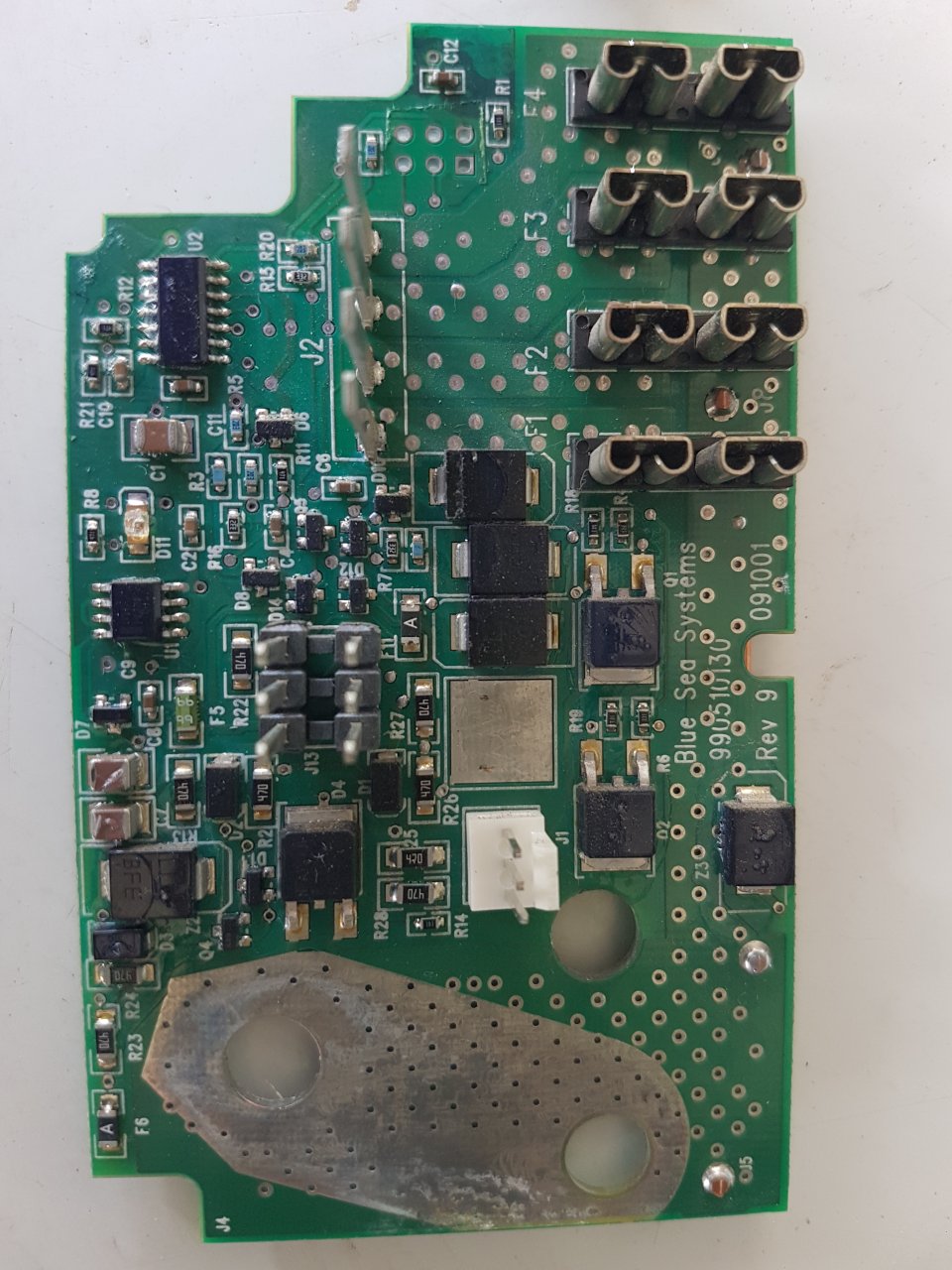

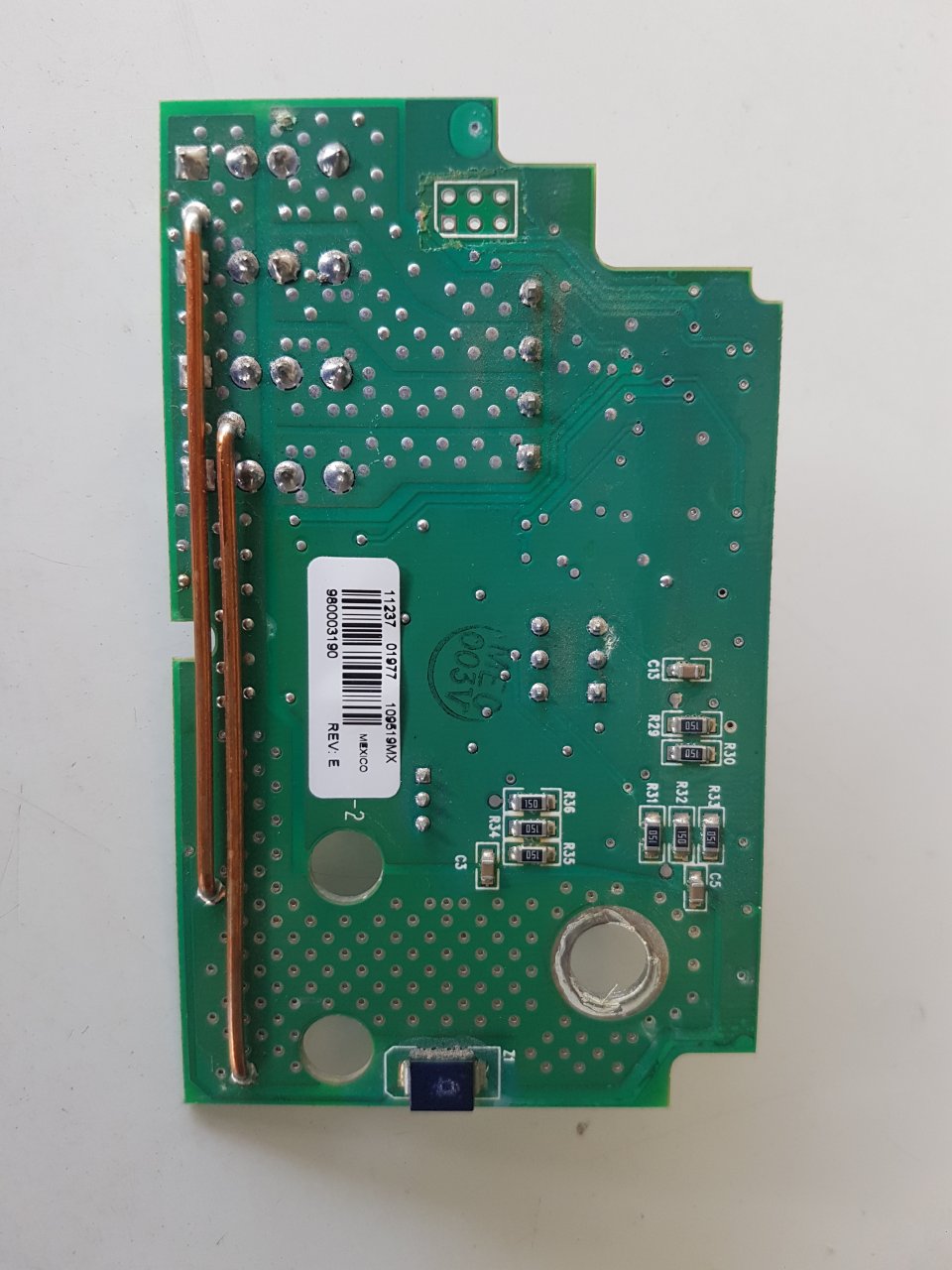

    The circuit board has 2 ICs and I guess one of them is malfunctioning. I am not electronic specialist, hard to say what exact component is failed. I applied 12v to solenoid and it goes back and forward. Opening of this unit gave me knowladge. I am not going to pay $400 to freightliner for my PNDB (A06-75148-011). On ebay I saw A06-75148-001 for $99 and its a same as A06-75148-011. I just need to change the fuses inside... 20170404_094637[1].jpg 20170404_094611[1].jpg

    Last edited: Apr 4, 2017
    mhyn, Apr 4, 2017
    #34
    RocketyMan Thanks this.
  5. RocketyMan

    RocketyMan Medium Load Member

    Joined:
    Jun 5, 2015
    Messages:
    554
    Thanks Received:
    337
    0
    That's a good close up of the board. Hmm...I can't find anything that looks burnt on the PCB.

    RocketyMan, Apr 4, 2017
    #35
  6. Nathaniel Smalls Jr.

    Nathaniel Smalls Jr. Bobtail Member

    Joined:
    May 13, 2017
    Messages:
    6
    Thanks Received:
    2
    0
    Wow !!! This happened to me last night. Is it something you repaired or you took it to the shop

    Nathaniel Smalls Jr., May 13, 2017
    #37
  7. Nathaniel Smalls Jr.

    Nathaniel Smalls Jr. Bobtail Member

    Joined:
    May 13, 2017
    Messages:
    6
    Thanks Received:
    2
    0
    Going to check mine right now !! Thanks!!!

    Nathaniel Smalls Jr., May 13, 2017
    #38
  8. thodges

    thodges Light Load Member

    Joined:
    Jul 13, 2014
    Messages:
    69
    Thanks Received:
    20
    Location:
    daytona beach,florida
    0
    Did you ever find out what was wrong?

    thodges, Aug 6, 2017
    #38
  9. thodges

    thodges Light Load Member

    Joined:
    Jul 13, 2014
    Messages:
    69
    Thanks Received:
    20
    Location:
    daytona beach,florida
    0
    Does anyones chexk engine ligjt come on?
    Mine doesnt,just the mal light...but after a few hrs it will go back to normal and light will go off again...

    But dash says eng001. But once mal light goes off nothing displays anymore

    Any idea why its fiximg its self? If its broke..shouldnt it stay broke?
    I got diag month ago.. No faults...nothing they could do bc everything keeps fixing its self.

    thodges, Aug 6, 2017
    #39
  10. thodges

    thodges Light Load Member

    Joined:
    Jul 13, 2014
    Messages:
    69
    Thanks Received:
    20
    Location:
    daytona beach,florida
    0
    I have copy of diag as well with all the #### that keeps fixing itself.. (i would imagine if they eorked on electrical sustemes...and looked at this diag..even if its fixing itself they should be able to look at the list and say ah...here it is.. You need new ....this.... It rixed its self but that will make this happen
    .

    thodges, Aug 6, 2017
    #40
