2016 Cascadia instrument cluster problems

Discussion in 'Ask An Owner Operator' started by SoCalRed, Jul 19, 2020.

  1. SoCalRed

    SoCalRed Medium Load Member

    Joined:
    Feb 7, 2017
    Messages:
    437
    Thanks Received:
    851
    Location:
    CA
    0
    I have a 2016 Cascadia with dd13. When I turn the ignition switch on the gauges don’t do the sweep, but the truck will start. After 5-30 seconds the instrument cluster will come to life and do the normal sweep. However the time the gauges come to life is getting longer. It started with a few seconds and now is about 30 seconds.
    I don’t think it’s a loose wire as once the gauges are on they stay on until I shut off the truck. Never stopped working when driving and bumps have no effect on it.
    Has anyone had this problem and if so how did you fixed it. I think it could be a relay so I swapped the instrument cluster relay in the fuse box, but that had no effect.
    If someone can post the wiring diagram that will help a lot.

  2. Detroit7

    Detroit7 Bobtail Member

    Joined:
    Jul 1, 2018
    Messages:
    1
    Thanks Received:
    0
    0
    Did you ever get figured out?

  3. SoCalRed

    SoCalRed Medium Load Member

    Joined:
    Feb 7, 2017
    Messages:
    437
    Thanks Received:
    851
    Location:
    CA
    0
    Yes it was one of the relays behind the glove box. $4-$5 at the dealer

    77fib77, Dave_in_AZ and jsnell Thank this.
  4. Artlira25

    Artlira25 Bobtail Member

    Joined:
    Oct 3, 2022
    Messages:
    3
    Thanks Received:
    2
    0
    Hello I’m having same problems can you please tell me what relay fixed the problem

    77fib77 Thanks this.

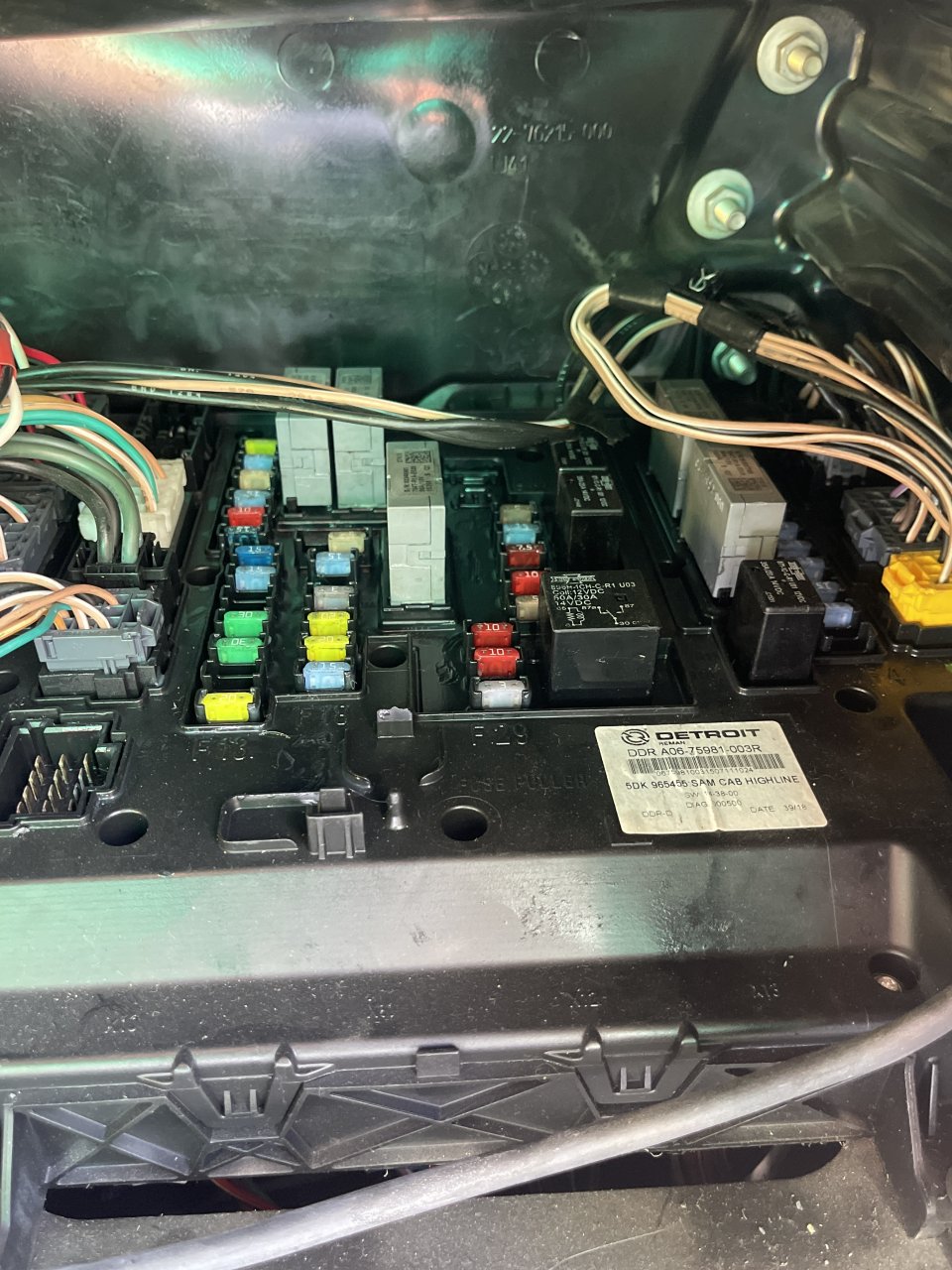

  5. Artlira25

    Artlira25 Bobtail Member

    Joined:
    Oct 3, 2022
    Messages:
    3
    Thanks Received:
    2
    0
  6. SoCalRed

    SoCalRed Medium Load Member

    Joined:
    Feb 7, 2017
    Messages:
    437
    Thanks Received:
    851
    Location:
    CA
    0
    I don’t remember exactly which one was it. One of the smaller relays.
    Get a spare one and with your ignition on replace the relays one at a time and you’ll find the right one.
    If the instrument cluster goes on/off like mine was. With key on or truck running pull the relays one at a time and the one that shuts off the instruments is the one you need to replace. There is also fuse that is connected to that relay. If your instruments are off all the time it could be just the fuse.

    77fib77 and Dave_in_AZ Thank this.
  7. Artlira25

    Artlira25 Bobtail Member

    Joined:
    Oct 3, 2022
    Messages:
    3
    Thanks Received:
    2
    0
    Thanks man just fixed it thank you

    Dave_in_AZ Thanks this.
  8. Keepforgettingmypassword

    Keepforgettingmypassword Heavy Load Member

    Joined:
    Jan 11, 2022
    Messages:
    738
    Thanks Received:
    938
    0
    Which one was it, the fuse or the relay.? Mines not coming on at all and clicking under the hood on the firewall.

  9. Alinatrucking

    Alinatrucking Bobtail Member

    Joined:
    Mar 27, 2024
    Messages:
    8
    Thanks Received:
    1
    0
    Happened to my 2016 Cascadia dd13
    No Voltmeter no turbo numbers no odometer running, just stuck at one number, def is constantly blinking red even tho it is full, engine break light is off,
    Otherwise Truck runs normally…
    I didn’t know there is fuse or relay behind glow box for dashboard

  10. Alinatrucking

    Alinatrucking Bobtail Member

    Joined:
    Mar 27, 2024
    Messages:
    8
    Thanks Received:
    1
    0
    clicking under the hood on the firewall could be discharged batteries, charge your batteries, and then, if it not works, try other things.
    happen to me

    77fib77 Thanks this.
