2016 Peterbilt 579 electrical problems

Discussion in 'Ask An Owner Operator' started by 2004Pete387, Oct 18, 2021.

  1. 2004Pete387

    2004Pete387 Bobtail Member

    25
    17
    Oct 26, 2020
    0
    I'm having so many issues with my 579 paccar mx 13.Always dpf light is on and many codes about electric problems on my eld. Peterbilt dealer couldn't find ANYTHING just reset the codes and 7 hours later dpf light came back on. Any idea what can I do now??

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Long FLD

    Long FLD Road Train Member

    5,556
    18,307
    Mar 4, 2015
    0

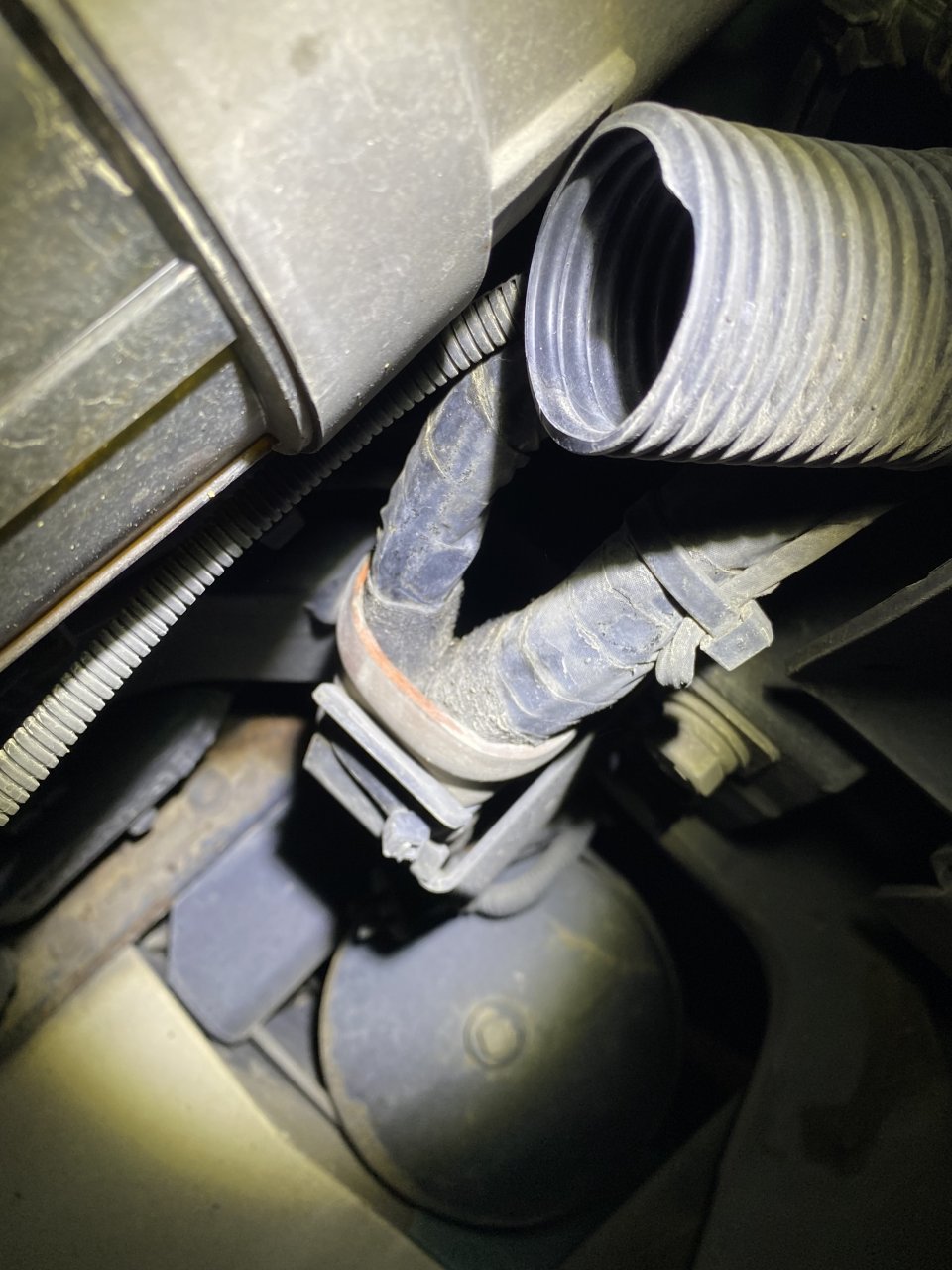

    I’d start here if you’re having random electrical issues. This is where they have everything bundled after it comes off the firewall and goes under the cab. Cut everything loose and start inspecting for any wires that have rubbed through. I chased electrical issues earlier this year and found 7 wires in these bundles had rubbed through.


    D.Tibbitt and 2004Pete387 Thank this.
  4. 2004Pete387

    2004Pete387 Bobtail Member

    25
    17
    Oct 26, 2020
    0

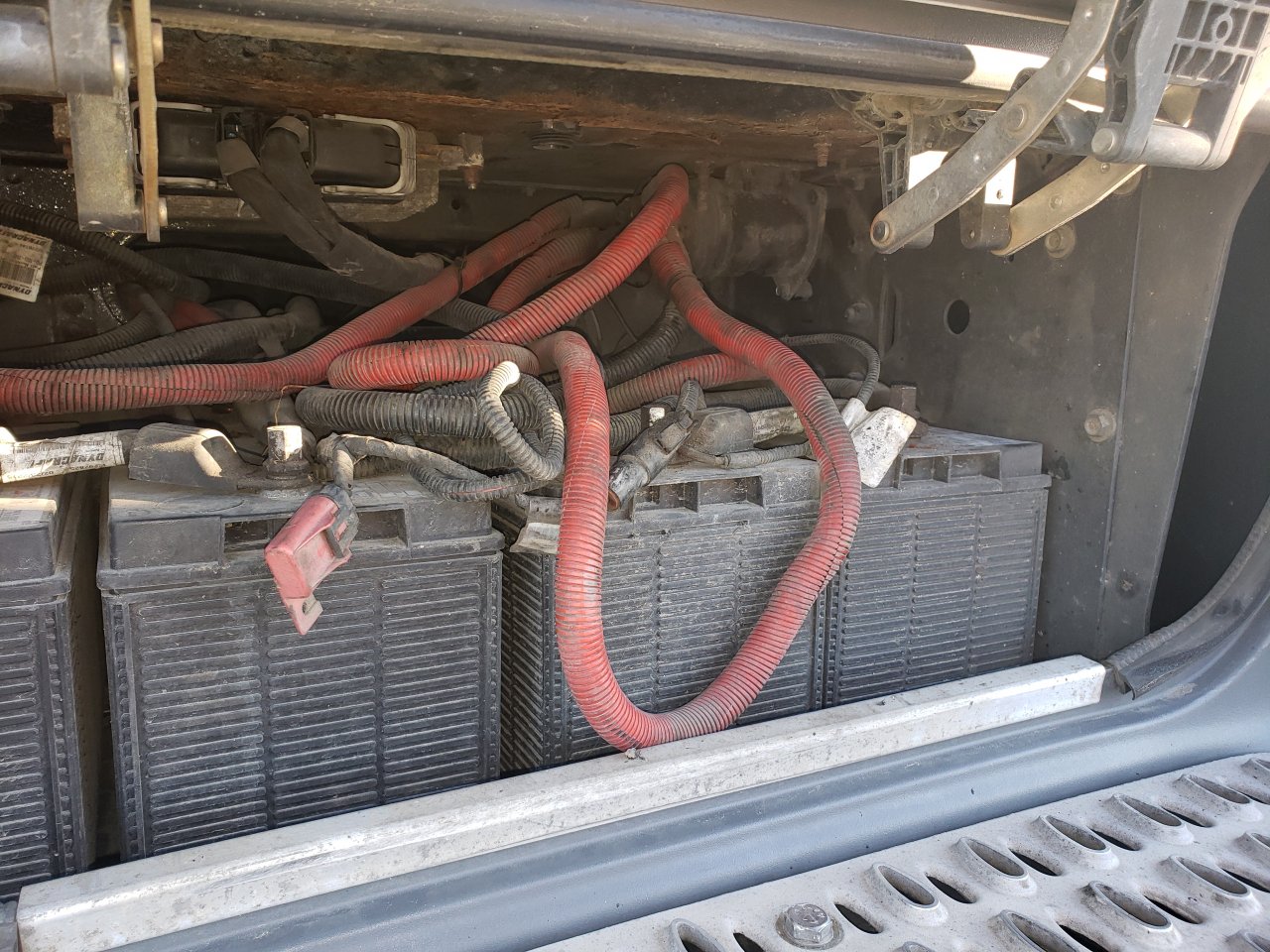

    Do you know what is this part for? It is on my battery box and i cam see there is a lot of corrosion on ir. 20211018_172830.jpg

  5. Long FLD

    Long FLD Road Train Member

    5,556
    18,307
    Mar 4, 2015
    0
    Honestly I’m not sure. But it looks like it couldn’t hurt to pull everything off and clean it up good.

  6. 2004Pete387

    2004Pete387 Bobtail Member

    25
    17
    Oct 26, 2020
    0
    Yeah, that's the next step I'll take. Thanks.

  7. Goodysnap

    Goodysnap Road Train Member

    2,620
    5,982
    Jul 12, 2017
    0
    The large starter looking solenoid in the battery box is an electronic battery disconnect switch. Micro control switch is located either behind the driver seat toward the door or behind the sleeper driver side outside near the frame.

    2004Pete387 Thanks this.
