2018 579 low voltage disconnect

Discussion in 'Peterbilt Forum' started by Edjahman, May 19, 2020.

  1. Edjahman

    Edjahman Medium Load Member

    406
    206
    Apr 2, 2013
    0
    Could someone please tell me where the low voltage disconnect is on my 2018 Peterbilt 579?

    Could someone also please tell me how to disconnect it? I know the implications of doing that and I have the resources to get started again if I ran the batteries down too low.

    Thank you so much for your help, everyone.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 062

    062 Road Train Member

    3,227
    5,883
    Oct 20, 2013
    0
  4. pushbroom

    pushbroom Road Train Member

    1,530
    6,169
    Sep 1, 2012
    0
    Last 6 of s/n

    It can have a cecu controlled disconnect in which case you can turn it off with ESA.
    It could also have a hardwired one that you can manually bypass

    spsauerland, 062 and QUALITYTRUCK Thank this.
  5. Edjahman

    Edjahman Medium Load Member

    406
    206
    Apr 2, 2013
    0
    469663

  6. pushbroom

    pushbroom Road Train Member

    1,530
    6,169
    Sep 1, 2012
    0

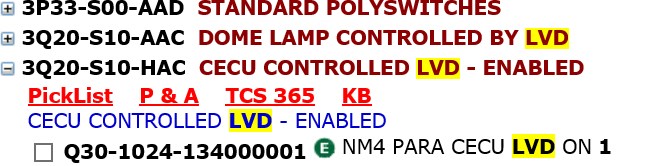

    It has a cecu controlled LVD. Need to swing by the dealer or someone with ESA and they can tun it off.


    spsauerland, 062 and QUALITYTRUCK Thank this.
  7. Edjahman

    Edjahman Medium Load Member

    406
    206
    Apr 2, 2013
    0
    OK thank you!

  8. Edjahman

    Edjahman Medium Load Member

    406
    206
    Apr 2, 2013
    0
    So it has to be programmed out apparently.

    Do you know where the CECU would be located on a 2018 579 by any chance?

    I guess there's no other way to disable it from what you are saying?

    Thank you!

  9. pushbroom

    pushbroom Road Train Member

    1,530
    6,169
    Sep 1, 2012
    0
    No there is no other way. It is a parameter inside the CECU. Cecu is located in the hotel at the lower kick panel between the two seats.

    spsauerland, Edjahman and 062 Thank this.
  10. Edjahman

    Edjahman Medium Load Member

    406
    206
    Apr 2, 2013
    0

    OK thank you
