2018 international LT SCR issues

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by CoolHand244, Mar 13, 2025.

  1. Mar 13, 2025 #1
    CoolHand244

    CoolHand244 Bobtail Member

    8
    0
    Jul 14, 2016
    0
    K, fellers. Got a 2018 international LT with a cummins isx15. Took the DOC, DPF and SCR off for cleaning, all good. Replaced inlet and outlet NOX sensors, Replaced NH3 sensor for good measure. Won't complete a regen or SCR test. Also had international dealership come out and flash the ECM. codes are gone for a short time, then come right back. What am I doing wrong? 20250313_081038.jpg 20250313_083444.jpg

    CoolHand244, Mar 13, 2025
    CoolHand244, Mar 13, 2025
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mar 13, 2025 #2
    AModelCat

    AModelCat Road Train Member

    28,833
    154,085
    Jul 7, 2015
    Canuckistan
    0
    The top fault is the one I would go after first. In my general experience the other three are usually faults that result from the root cause. In this case it could be a power supply issue to whatever module is related to that first fault.

    AModelCat, Mar 13, 2025
    AModelCat, Mar 13, 2025
    #2
    Arctic_fox Thanks this.
  4. Mar 13, 2025 #3
    062

    062 Road Train Member

    6,137
    33,126
    Oct 20, 2013
    0
    Did you have these codes before the work started?
    Do you have a small fuse block under the drivers side floor?
    @Heavyd

    062, Mar 13, 2025
    062, Mar 13, 2025
    #3
  5. Mar 13, 2025 #4
    Heavyd

    Heavyd Road Train Member

    7,748
    6,183
    Feb 4, 2009
    0

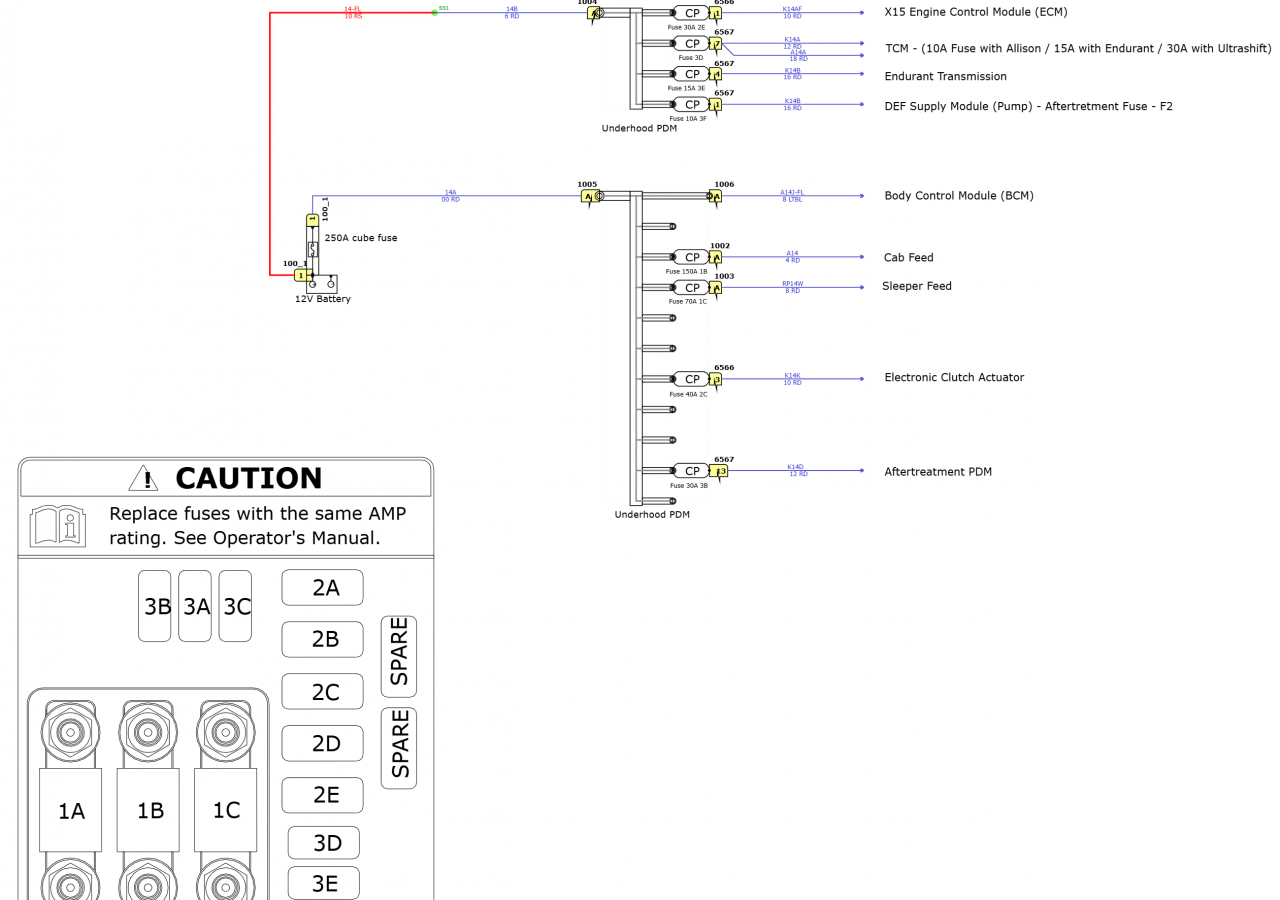

    I have never seen 1117 power loss cause SCR power derate. You must have more codes there? Lets start with that 1117, check 30 amp fuse 2E in the small under the hood fuse panel near the firewall.

    Heavyd, Mar 13, 2025
    Heavyd, Mar 13, 2025
    #4
    blairandgretchen, 062 and BoxCarKidd Thank this.
