3406B coolant temp sensor location

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, Jan 1, 2022.

Page 6 of 9
  1. Jan 8, 2022 #51
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    Coolant temp sending unit kit, from Pete, is posed to be here Mundee. Putting 3 new seals in the drive diff’s today and fresh oil.

    mile marker 27, Jan 8, 2022
    mile marker 27, Jan 8, 2022
    #51
    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jan 8, 2022 #52
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    Got the 3 seals in but the u-joints(bad) which are the full round style had to be cut out. I tried driving the out but even with heat and penetrating oil, they were a bear. Not much left of them to measure so, how should I measure the yolks? I’m certain all of them are the same size.

    mile marker 27, Jan 8, 2022
    mile marker 27, Jan 8, 2022
    #52
    Oxbow Thanks this.
  4. Jan 8, 2022 #53
    Oxbow

    Oxbow Road Train Member

    12,671
    130,705
    Nov 24, 2015
    Idaho
    0
    I would assume they are the standard 1700 series joints, but Pete should be able to let you know based on VIN.

    By the way, Pete must have started to re-use VIN numbers. Your parts guy should ask, but make sure you let them know what year it is when giving your VIN.

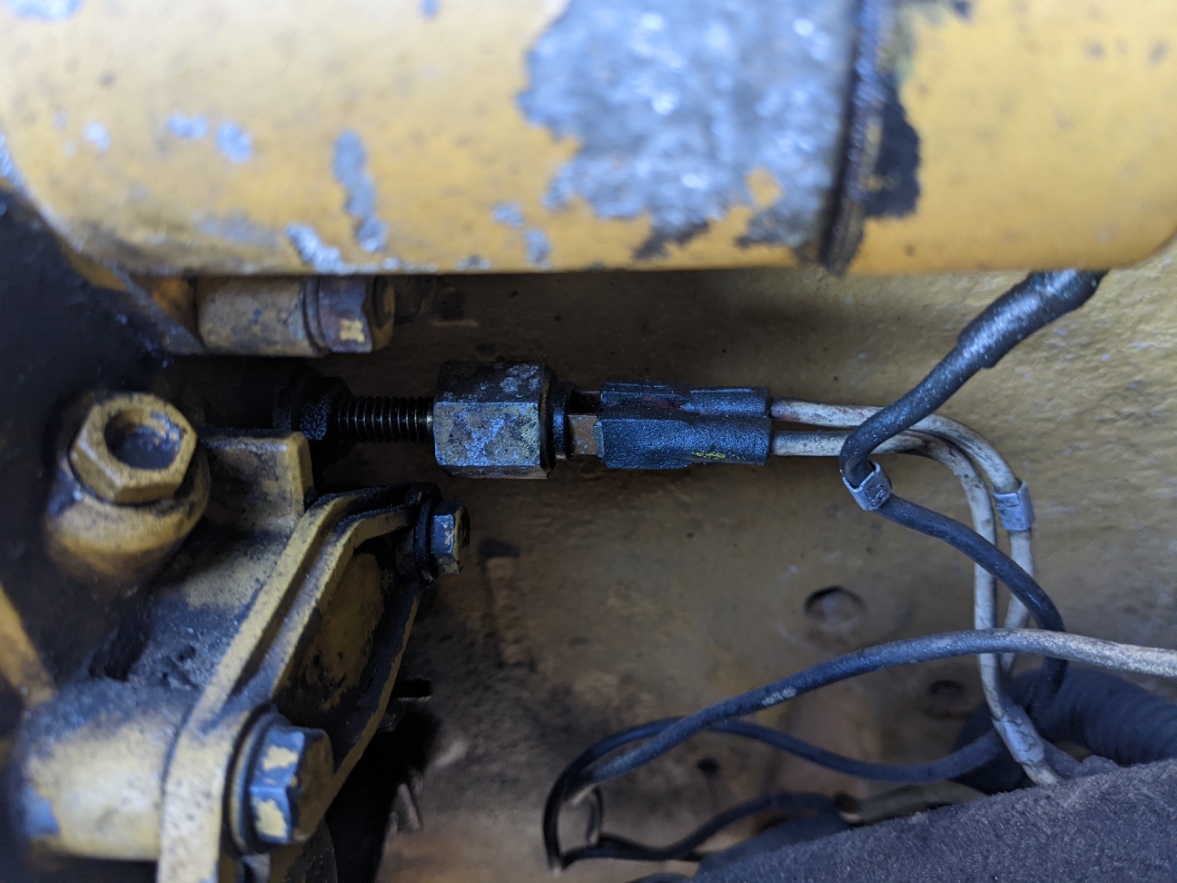

    The box that you mentioned for the Jakes on the back of the pump - it should be a two pronged affair close to the block on the lower back end of the pump. It will be threaded into the pump with a jam nut to tighten it and hold in place. This also is what controls your low idle. I have seen guys add a Jake switch off of a Cummins on to the throttle linkage that looks like a box, but that is not original. The Cat switch isn't that expensive, and if yours has been changed I would recommend changing back to original.

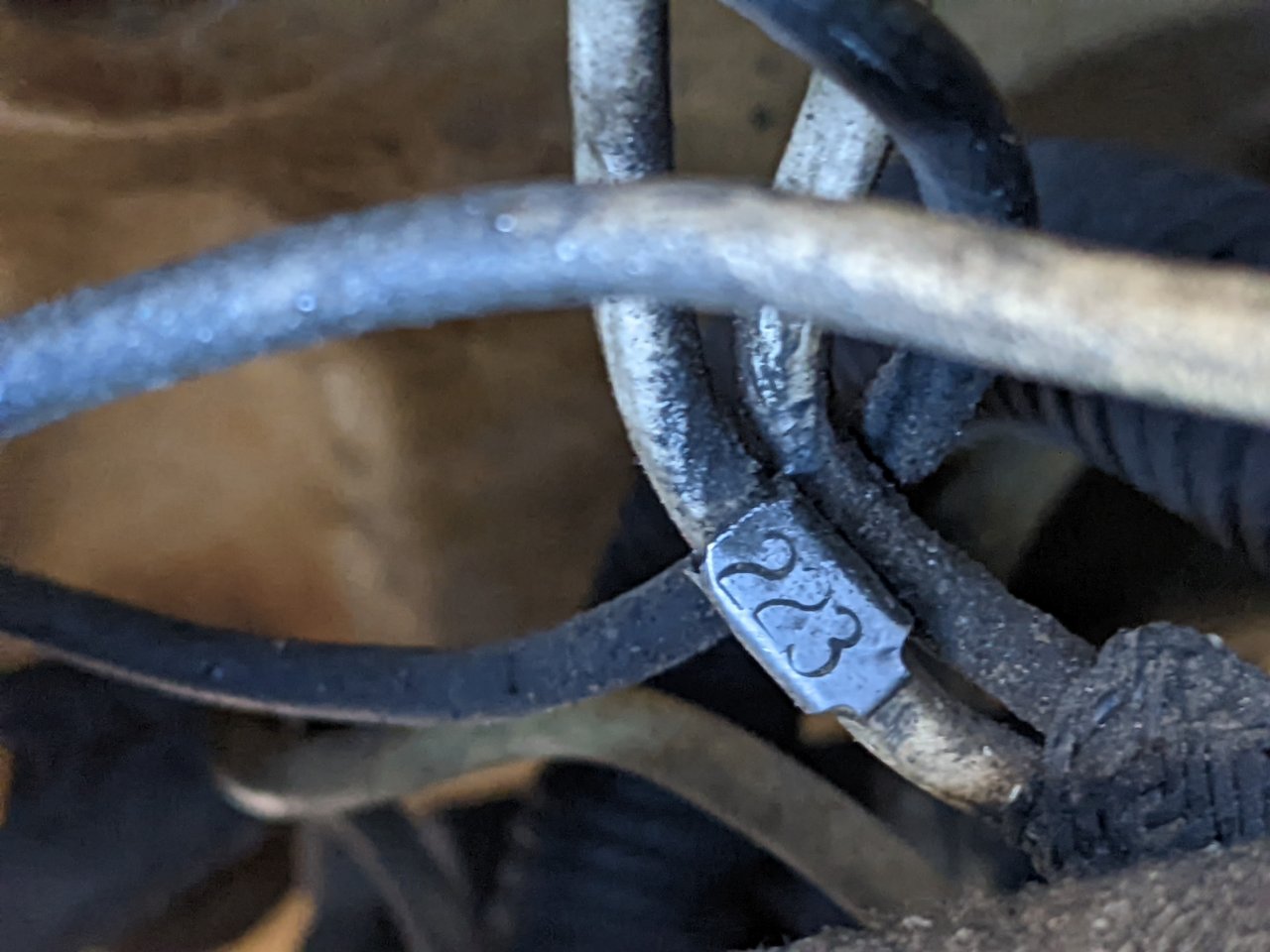

    I can get a picture for you in the morning if you need, and let you know what wire numbers go to that sender/switch.

    With your engine vin # I can help with Cat part numbers if you need.

    Oxbow, Jan 8, 2022
    Oxbow, Jan 8, 2022
    #53
    mile marker 27 Thanks this.
  5. Jan 9, 2022 #54
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    Yes it’s a black rectangular box with two spade terminals. It’s made with a threaded piece that looks like it uses a jam nut and mounts to lower rear of pump. On the old 3406B model that’s blown up in the shop, the switch on it looks like a small round style sending unit, with two spade terminals. I think this B model is older than mine but has no tags on it. Take a pic of yours and I’ll try to get a pic of mine.

    mile marker 27, Jan 9, 2022
    mile marker 27, Jan 9, 2022
    #54
  7. Jan 9, 2022 #55
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0

    mile marker 27, Jan 9, 2022
    mile marker 27, Jan 9, 2022
    #55
  8. Jan 9, 2022 #56
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0

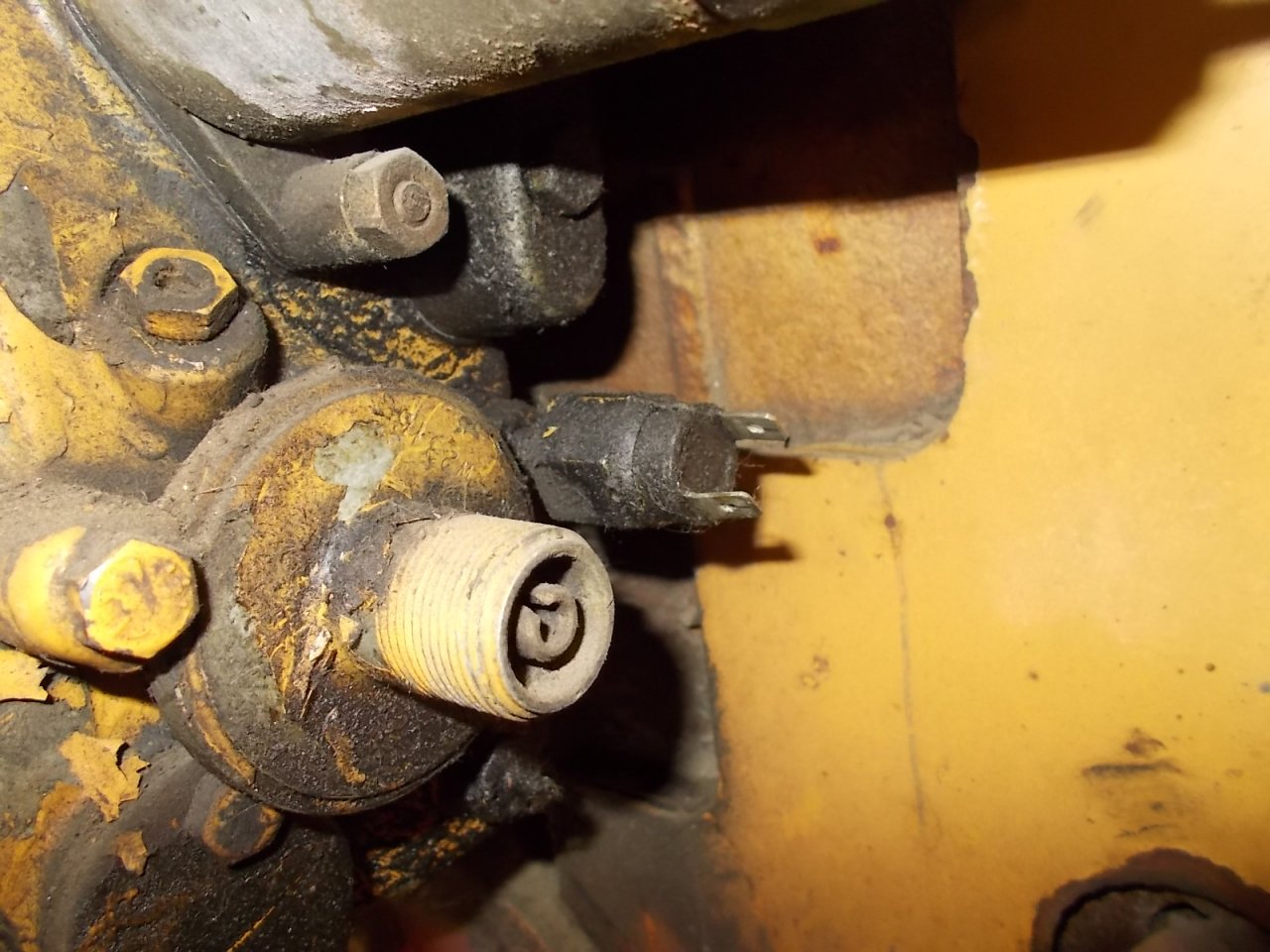

    750385F2-E761-4B50-A575-DDA73D91FC25.jpeg I found a pic that’s like the one on the blown up engine.

    mile marker 27, Jan 9, 2022
    mile marker 27, Jan 9, 2022
    #56
    Oxbow Thanks this.
  9. Jan 9, 2022 #57
    Oxbow

    Oxbow Road Train Member

    12,671
    130,705
    Nov 24, 2015
    Idaho
    0
    Yep, that's it. You have a mechanical tach drive on that one too.

    Oxbow, Jan 9, 2022
    Oxbow, Jan 9, 2022
    #57
  10. Jan 9, 2022 #58
    wore out

    wore out Numbered Classic

    15,628
    188,813
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    They updated that throttle switch to the bigger one. It’s all that’s available now

    wore out, Jan 9, 2022
    wore out, Jan 9, 2022
    #58
    Last Call and Oxbow Thank this.
  11. Jan 9, 2022 #59
    Oxbow

    Oxbow Road Train Member

    12,671
    130,705
    Nov 24, 2015
    Idaho
    0


    Oxbow, Jan 9, 2022
    Oxbow, Jan 9, 2022
    #59
    mile marker 27 Thanks this.
  12. Jan 9, 2022 #60
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    5A15AA0B-9DF2-4F0D-928A-BD9B60759E5D.jpeg Here’s a pic of the one that on the 4MG.

    mile marker 27, Jan 9, 2022
    mile marker 27, Jan 9, 2022
    #60
    wore out and Oxbow Thank this.
