3406B coolant temp sensor location

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, Jan 1, 2022.

Page 8 of 9
  1. Jan 9, 2022 #71
    wore out

    wore out Numbered Classic

    16,442
    200,020
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    Yes you are correct. That fuse also powers the Kysor stuff like oil and water shut down. If one of those wires is grounded out it blows. Also powers the reverse lights so if you replace fuse make sure it doesn’t pop when you put it in retreat

    wore out, Jan 9, 2022
    wore out, Jan 9, 2022
    #71
    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jan 9, 2022 #72
    Last Call

    Last Call Road Train Member

    7,568
    45,902
    Mar 15, 2021
    0
    Yes he should .. I probably put the cart in front of the horse
    I should of worded it more like... be prepared for some sort of issue too with the clutch switch

    Last Call, Jan 9, 2022
    Last Call, Jan 9, 2022
    #72
    mile marker 27, wore out and Oxbow Thank this.
  4. Jan 9, 2022 #73
    Oxbow

    Oxbow Road Train Member

    13,136
    136,278
    Nov 24, 2015
    Idaho
    0
    Well I #### sure didn't remember it, and I won't remember it when I need to, I just spent a half an hour looking at that schematic.

    I like that "put it in retreat" !

    Oxbow, Jan 9, 2022
    Oxbow, Jan 9, 2022
    #73
    Last Call and wore out Thank this.
  5. Jan 15, 2022 #74
    mile marker 27

    mile marker 27 Road Train Member

    1,328
    1,692
    Dec 4, 2019
    0

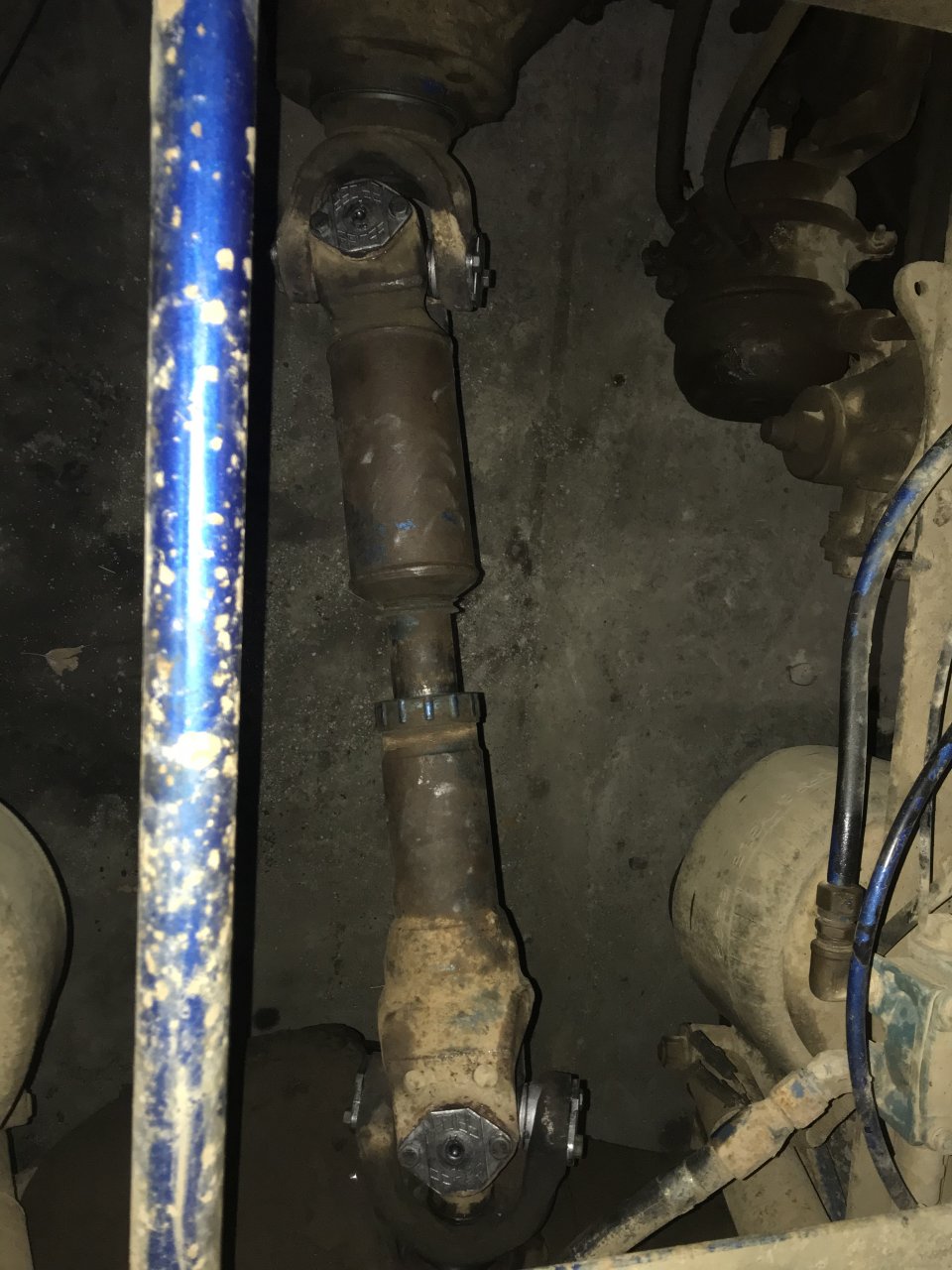

    410AF01D-80F2-454B-A348-2C3296AFBB29.jpeg Back at it. U-joints installed, with no hitches. But I’m back on the coolant sending unit.

    mile marker 27, Jan 15, 2022
    mile marker 27, Jan 15, 2022
    #74
    Oxbow Thanks this.
  7. Jan 15, 2022 #75
    mile marker 27

    mile marker 27 Road Train Member

    1,328
    1,692
    Dec 4, 2019
    0

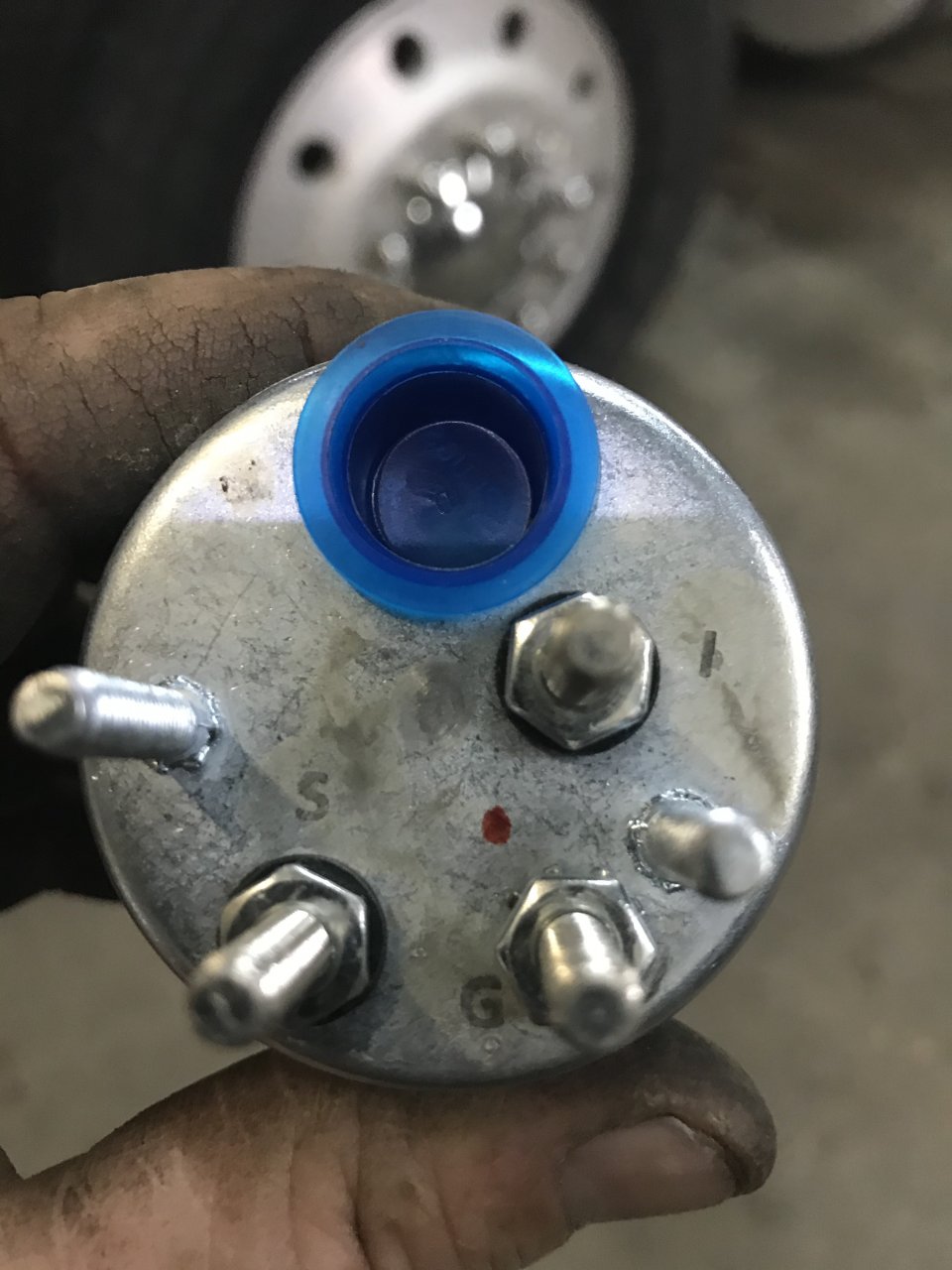

    D3D6F072-C0DA-4B93-9C2E-37AFE35B27E6.jpeg New electric sending unit and new gauge. Sending unit is installed and as recommended I didn’t thread tape the bottom threads. Ok, got the gauge and there’s 3 terminals and the obvious ground terminal, S and I. “S” is sending and “I” is ignition/power?

    mile marker 27, Jan 15, 2022
    mile marker 27, Jan 15, 2022
    #75
    Oxbow Thanks this.
  8. Jan 15, 2022 #76
    Last Call

    Last Call Road Train Member

    7,568
    45,902
    Mar 15, 2021
    0
    You are correct with the gauge terminals

    Last Call, Jan 15, 2022
    Last Call, Jan 15, 2022
    #76
    Oxbow Thanks this.
  9. Jan 23, 2022 #77
    mile marker 27

    mile marker 27 Road Train Member

    1,328
    1,692
    Dec 4, 2019
    0

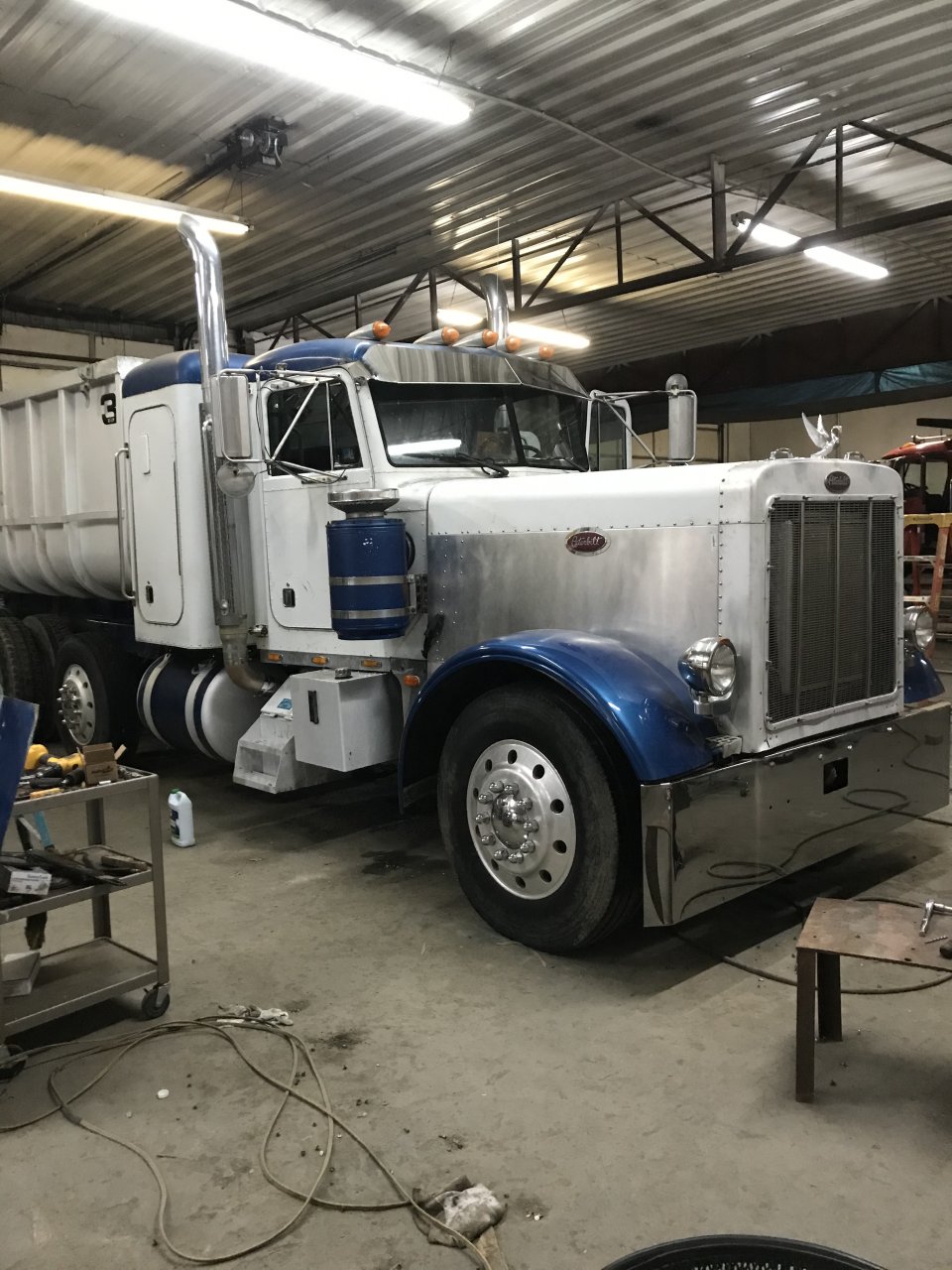

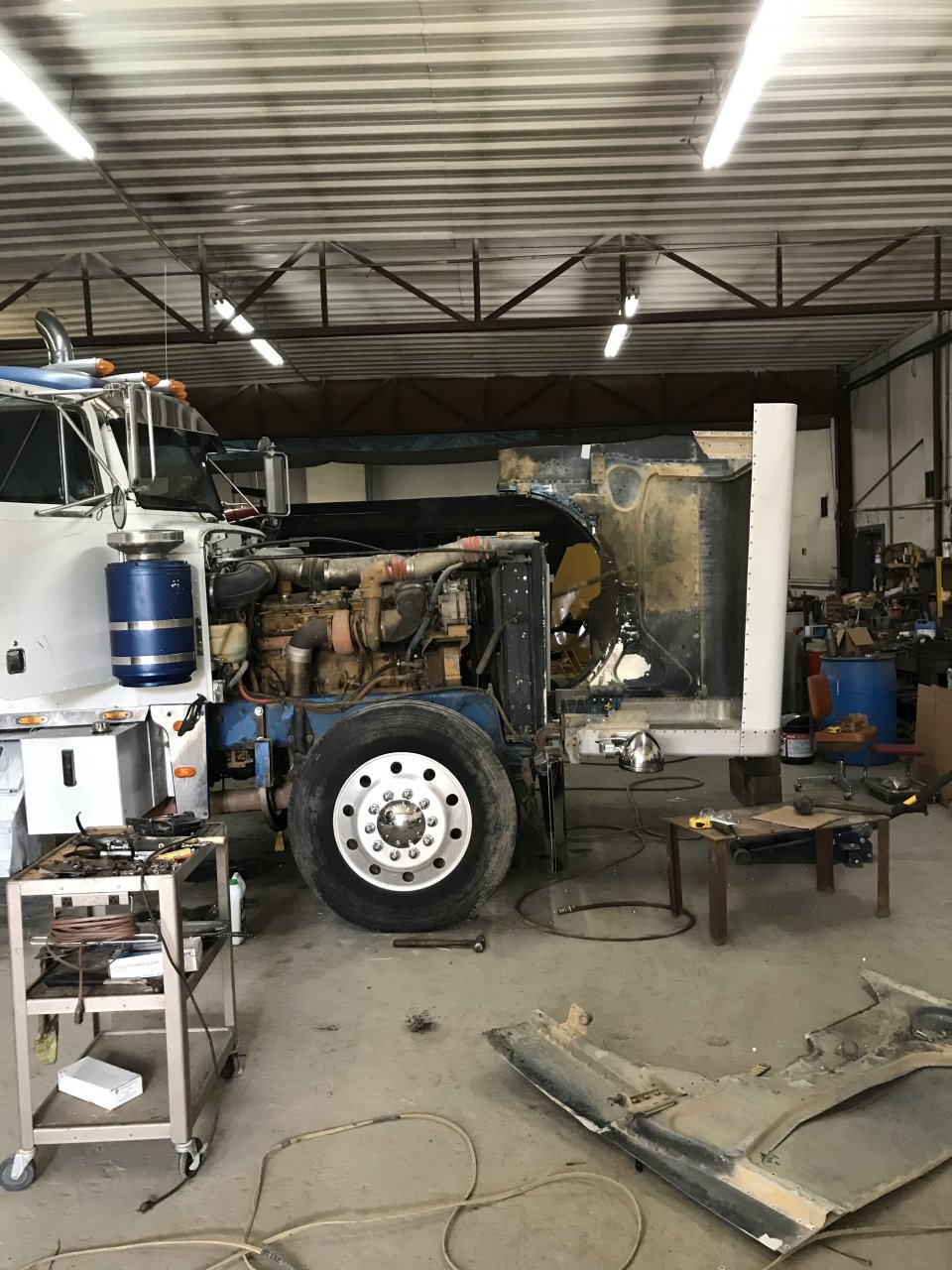

    6B4BF6A2-3C64-477A-9AE7-13F5FCD988E4.jpeg C7B87B9C-5BFB-44C2-AF02-FFD5F4A3A751.jpeg Removed the dented side panel and replaced it with a new one. Prior to, I added a different bumper, RLK visor, different lights and removed the inoperable horns on the roof.

    mile marker 27, Jan 23, 2022
    mile marker 27, Jan 23, 2022
    #77
    Oxbow Thanks this.
  10. Jan 23, 2022 #78
    Oxbow

    Oxbow Road Train Member

    13,136
    136,278
    Nov 24, 2015
    Idaho
    0
    Interesting use of the passenger side box area. Hydraulic tank and boot box with step?

    Oxbow, Jan 23, 2022
    Oxbow, Jan 23, 2022
    #78
  11. Jan 23, 2022 #79
    mile marker 27

    mile marker 27 Road Train Member

    1,328
    1,692
    Dec 4, 2019
    0
    Yes sir, not my idea but it works out great.

    mile marker 27, Jan 23, 2022
    mile marker 27, Jan 23, 2022
    #79
    Oxbow Thanks this.
  12. Mar 10, 2025 #80
    FSC Trucks

    FSC Trucks Bobtail Member

    7
    1
    Mar 10, 2025
    0

    did you figure it out? also where is the alarmstat coolant alarm sensor located on a 3406b engine? dealership told me it is part # kys-1002-07348-36.

    FSC Trucks, Mar 10, 2025
    FSC Trucks, Mar 10, 2025
    #80
