3406b turbo upgrade???

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by 704mover, Mar 8, 2018.

  1. spsauerland

    spsauerland Road Train Member

    3,605
    9,218
    May 31, 2010
    West Harrison, In
    0
    Only other two supply hoses for non brakesaver engine is 159-9584 and 280-8170. Drains are 133-8940 and 116-2680. You have a 90 or 45 degree supply fitting? Take a pic and post it.

    SAR Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 894964f

    894964f Light Load Member

    61
    23
    Sep 2, 2014
    Kansas City
    0

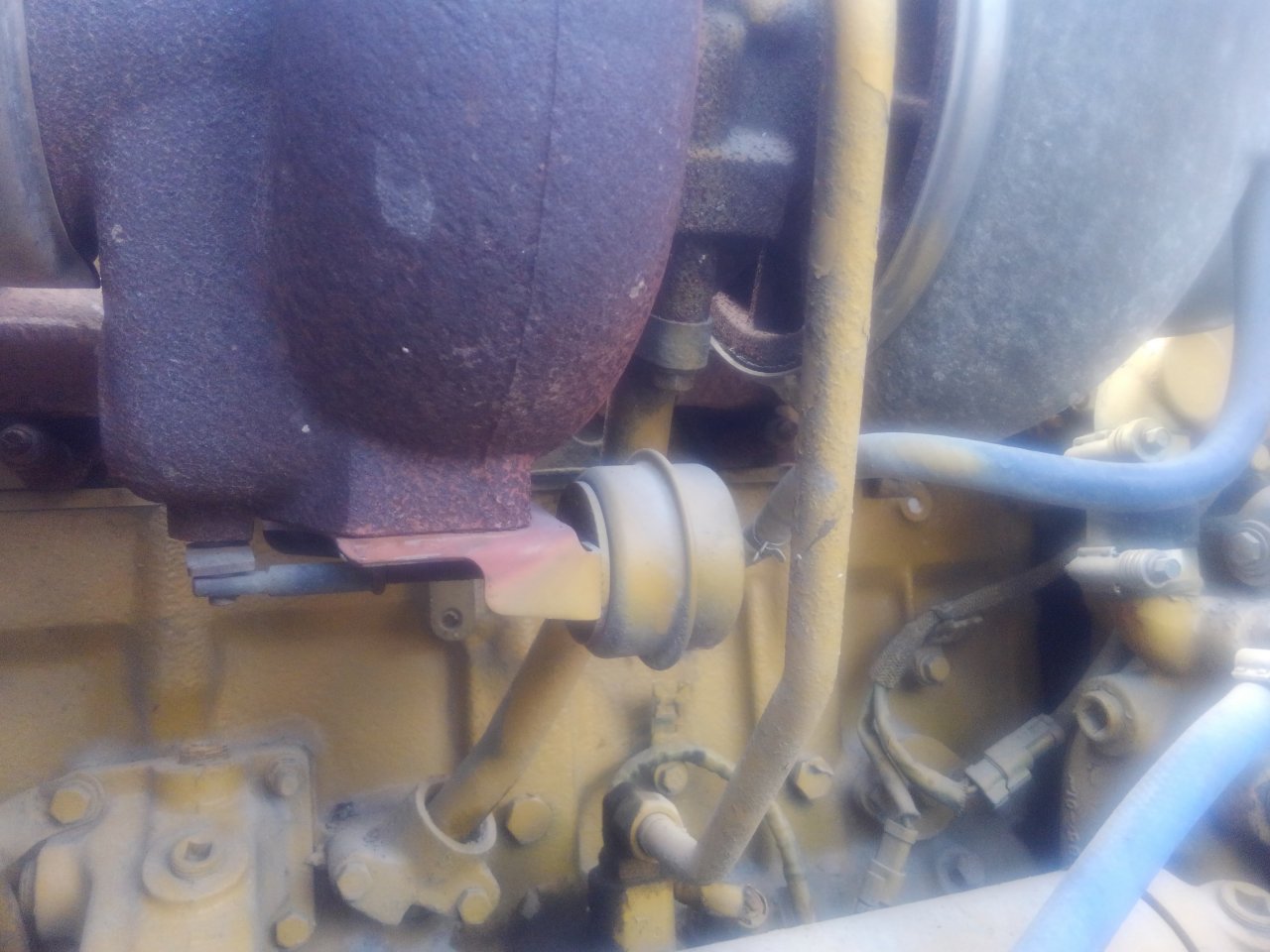

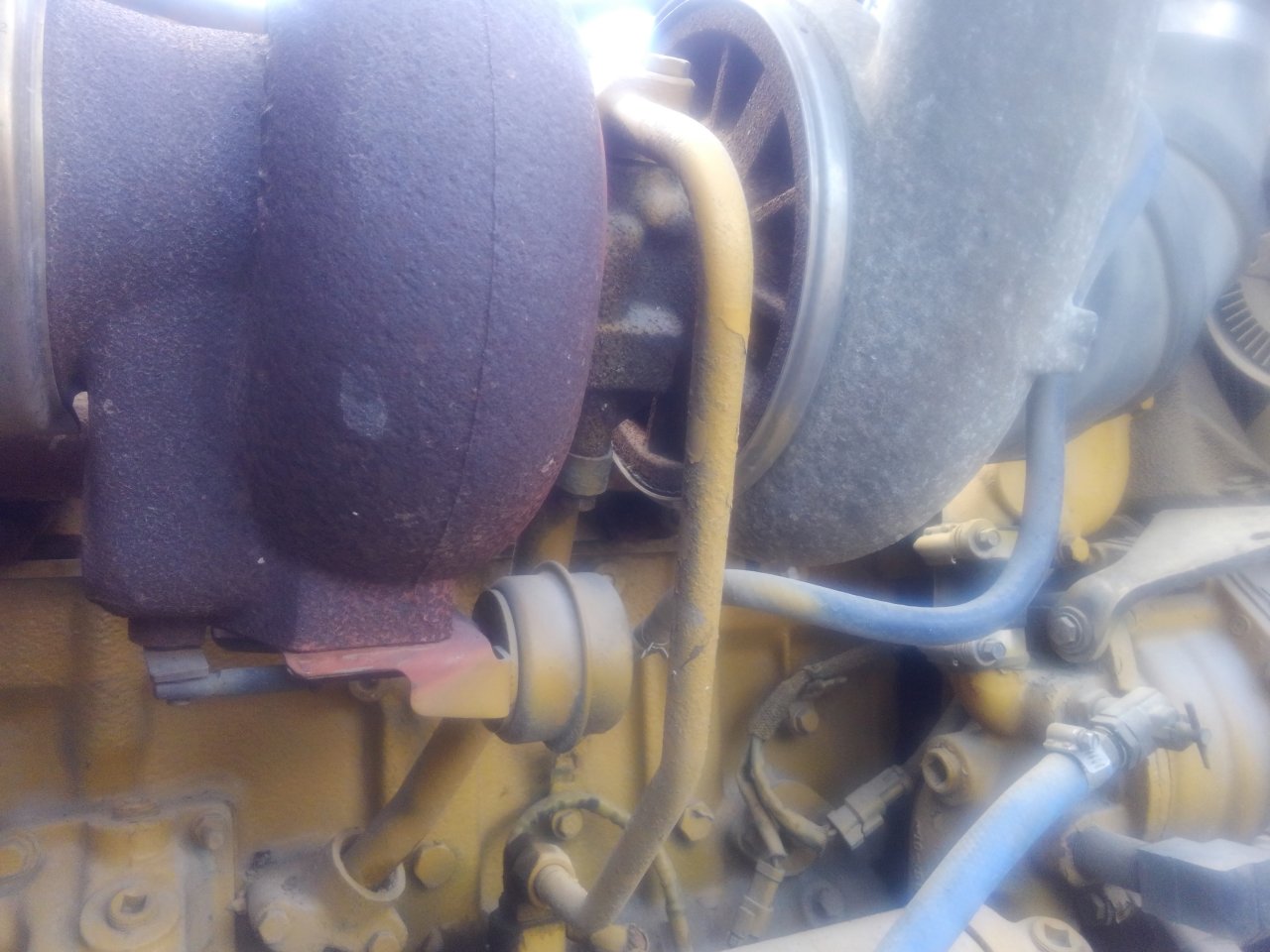

    These pics should show the fittings on the engine.
    1535478634535287064932.jpg 1535478569885915262398.jpg 1535478634535287064932.jpg

    Last edited: Aug 28, 2018
    SAR Thanks this.
  4. 894964f

    894964f Light Load Member

    61
    23
    Sep 2, 2014
    Kansas City
    0
    Here is the last suppy tube I purchased 199-3211, comes up a bit short. IMG_20180828_124441785_HDR.jpg

  5. spsauerland

    spsauerland Road Train Member

    3,605
    9,218
    May 31, 2010
    West Harrison, In
    0
    Some E turbo oil feed comes from backside. Also, looks like you can clock your center section more towards block.

    SAR and Oxbow Thank this.
  6. 894964f

    894964f Light Load Member

    61
    23
    Sep 2, 2014
    Kansas City
    0
    I will try to clock it a bit, not sure it will make up that much...thank you.

    Oxbow Thanks this.
  7. spsauerland

    spsauerland Road Train Member

    3,605
    9,218
    May 31, 2010
    West Harrison, In
    0
    This is how much it is clocked on a 5EK. KIMG1096.JPG KIMG1095.JPG

    SAR and Oxbow Thank this.
  8. 894964f

    894964f Light Load Member

    61
    23
    Sep 2, 2014
    Kansas City
    0
    Thanks, something I noticed is how much smaller that wastegate is than this one. Maybe that is the difference...

    Oxbow Thanks this.
  9. 894964f

    894964f Light Load Member

    61
    23
    Sep 2, 2014
    Kansas City
    0
    Ok, those tubes didn't work even with clocking it. so I went ahead and put the old stock tubes on but had to pull the wastegate pod off. They fit just fine, so will have to modify the mounting later.
    Hopefully this turbo isn't too small, I bobtailed to the barn(rain coming) and can hit 20psi boost quite easily and egts around 600-650 post turbo(about 6"). IMG_20180828_163257513.jpg

    What do you guys think?

    Last edited: Aug 28, 2018
    Reason for edit: clarification
    Oxbow Thanks this.
  10. swaan

    swaan Road Train Member

    2,914
    4,228
    Jul 12, 2009
    BC canada
    0
    Is the pump opened up or still set stock.
    425hp?

    SAR Thanks this.
  11. 894964f

    894964f Light Load Member

    61
    23
    Sep 2, 2014
    Kansas City
    0
    It is a 425. I have never touched the pump so I don't know to be honest...timing was checked to be half hole advance...
