3406b valve set

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by tj379, Jun 4, 2022.

Page 1 of 4
  1. Jun 4, 2022 #1
    tj379

    tj379 Light Load Member

    237
    226
    Nov 10, 2019
    ontario
    0
    hello , i want to dona valve adj on my 3406b , would anyone know what size crows foot i need? or any specific tools that will be required? from what iv researched, intake 15 tho, ex 30 tho, jakes , 30 tho , this id a 7fb motor, does this sound correct? any advice, pointers or torque specs would be greatly appreciated , thanks!

    tj379, Jun 4, 2022
    tj379, Jun 4, 2022
    #1
    Another Canadian driver Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jun 4, 2022 #2
    God prefers Diesels

    God prefers Diesels Road Train Member

    4,198
    22,265
    Jun 26, 2020
    South Texas
    0
    God prefers Diesels, Jun 4, 2022
    God prefers Diesels, Jun 4, 2022
    #2
    Another Canadian driver Thanks this.
  4. Jun 4, 2022 #3
    kranky1

    kranky1 Road Train Member

    2,253
    8,855
    Sep 16, 2015
    Ontario, Canada
    0
    The valve lashes are right. Be careful with the brake. The lashes are different between Jake models and the fastener torques and lash for the PacBrakes are different again. You need to identify the brake and use the appropriate values.

    kranky1, Jun 4, 2022
    kranky1, Jun 4, 2022
    #3
    tj379 and Another Canadian driver Thank this.
  5. Jun 5, 2022 #4
    tj379

    tj379 Light Load Member

    237
    226
    Nov 10, 2019
    ontario
    0

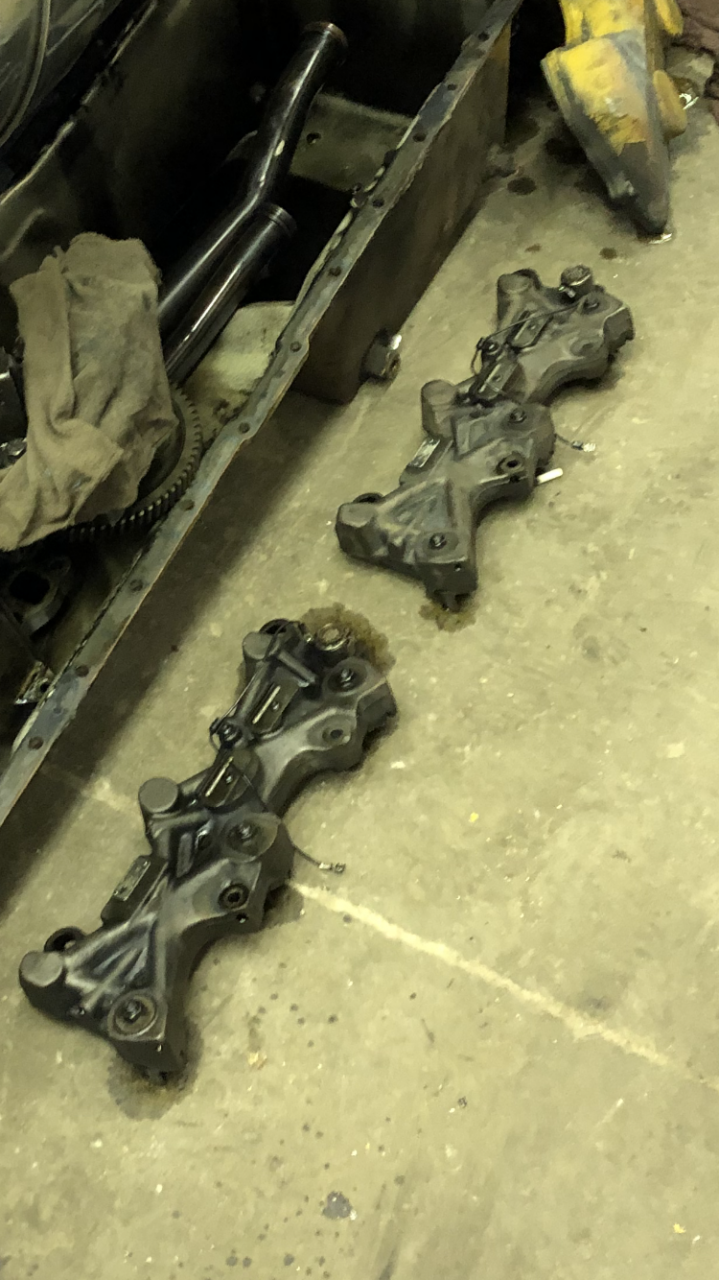

    E2F0AF4B-BBFC-46DD-BACC-CCB3AAF4F400.png ok, these r the brakes, would anuone know by lookin at these what they r?

    tj379, Jun 5, 2022
    tj379, Jun 5, 2022
    #4
  7. Jun 5, 2022 #5
    Goodysnap

    Goodysnap Road Train Member

    3,774
    9,201
    Jul 12, 2017
    0
    Need a closeup of the metal ID tag

    Goodysnap, Jun 5, 2022
    Goodysnap, Jun 5, 2022
    #5
  8. Jun 5, 2022 #6
    tj379

    tj379 Light Load Member

    237
    226
    Nov 10, 2019
    ontario
    0
    ok ill have to peel a cover off again

    tj379, Jun 5, 2022
    tj379, Jun 5, 2022
    #6
  9. Jun 5, 2022 #7
    kranky1

    kranky1 Road Train Member

    2,253
    8,855
    Sep 16, 2015
    Ontario, Canada
    0
    The model# is on the metal tag on the housing.

    kranky1, Jun 5, 2022
    kranky1, Jun 5, 2022
    #7
    tj379 Thanks this.
  10. Jun 5, 2022 #8
    LameMule

    LameMule Road Train Member

    1,148
    7,418
    Jan 19, 2020
    Montana
    0
    Look like pacbrakes but I'm no professional

    LameMule, Jun 5, 2022
    LameMule, Jun 5, 2022
    #8
  11. Jun 5, 2022 #9
    LameMule

    LameMule Road Train Member

    1,148
    7,418
    Jan 19, 2020
    Montana
    0
    Scratch that, I just looked at an old picture of my pacbrakes and they're quite different than the picture you shared.

    LameMule, Jun 5, 2022
    LameMule, Jun 5, 2022
    #9
  12. Jun 5, 2022 #10
    tj379

    tj379 Light Load Member

    237
    226
    Nov 10, 2019
    ontario
    0
    lol ok, i dont find they "hold" the best if that makes a difference

    tj379, Jun 5, 2022
    tj379, Jun 5, 2022
    #10
