53' dry van wheels will move without air?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Kruse Family Farms, May 3, 2023.

  1. Kruse Family Farms

    Kruse Family Farms Light Load Member

    209
    205
    Dec 6, 2022
    0
    Welp I will dig into it this week and let you guys know! Thanks for all the ideas. I always just want to make sure I'm not missing anything and this place is my sounding board these days.

    gentleroger and Rideandrepair Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. bad-luck

    bad-luck Road Train Member

    3,297
    6,061
    Nov 16, 2013
    Baltimore, Maryland
    0
    Here is a picture of the valve on my trailer, my trailer is a 2018 so it may be different from yours. 20230316_174534.jpg

  4. Rideandrepair

    Rideandrepair Road Train Member

    17,335
    56,249
    Aug 8, 2015
    0

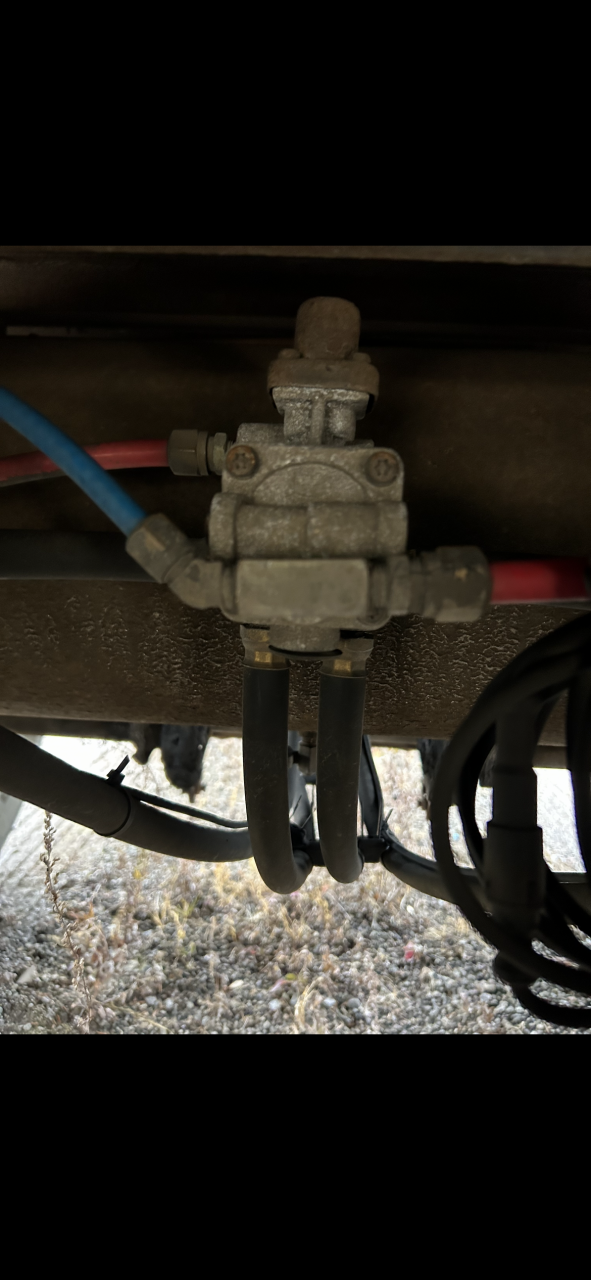

    658B76D4-280A-4582-8A9E-76AC59C98C6D.png Here’s mine. It started leaking around the top hat looking thing. Whole suspension would lose air while sitting. Wouldn’t air up without beating on it. Once replaced, it stays put in the dock.

  5. Kruse Family Farms

    Kruse Family Farms Light Load Member

    209
    205
    Dec 6, 2022
    0
    Thanks a bunch fellas! I will be back to update in a day or two.

  6. ducnut

    ducnut Road Train Member

    2,577
    7,760
    Dec 31, 2010
    SPI
    0
    I just went through this, on two trailers. One was the valve and the other was all the slack adjusters were seized and there was almost no contact of the shoes to drums (just had an annual 3mos ago!).

    Once home, definitely revisit your slack adjusters and manually adjust them, when you’ve got time to look around at everything. If you can still push the trailer, then, you have air trapped in the system. If you have a bunch of air blow back up through your tractor valve on the firewall, when you set only the trailer brakes, it’s definitely the trailer valve.

  7. Kruse Family Farms

    Kruse Family Farms Light Load Member

    209
    205
    Dec 6, 2022
    0
    Oh it is definitely the trailer valve then! If I leave the truck hooked to the trailer and set all the brakes air vents from the fire wall for quite a while!

    ducnut Thanks this.
  8. ducnut

    ducnut Road Train Member

    2,577
    7,760
    Dec 31, 2010
    SPI
    0
    Yep. That’s it. Good deal!!!

    Kruse Family Farms Thanks this.
  9. Kruse Family Farms

    Kruse Family Farms Light Load Member

    209
    205
    Dec 6, 2022
    0
    Well fellas do y'all have any other suggestions? I changed the spring brake control valve on the trailer. But it still does the same thing. It lets out a blast of air which partially engages the brakes and then it slowly lets air off from the red line which will come out of the firewall if the line is connected. Can still make the tires move with some resistance right now.

  10. Kruse Family Farms

    Kruse Family Farms Light Load Member

    209
    205
    Dec 6, 2022
    0
    More updates. After about 10-20 mins the trailer is indeed unmovable. So it works as intended it just is really slow to drain off for some reason. I looked over all the lines for kinks or damage and found nothing. Any ideas would be much appreciated.

    ducnut Thanks this.
  11. ducnut

    ducnut Road Train Member

    2,577
    7,760
    Dec 31, 2010
    SPI
    0
    Only thing I can think of is debris blocking a line. Tanks rust from the inside and the scaling can become dislodged and block lines. Beyond that, I’m not sure.

    Kruse Family Farms Thanks this.
