579 Peterbilt CB coax installation.

Discussion in 'CB Radio Forum' started by 18 wheels hummin, Jun 1, 2022.

  1. 18 wheels hummin

    18 wheels hummin Bobtail Member

    32
    17
    Dec 8, 2014
    0

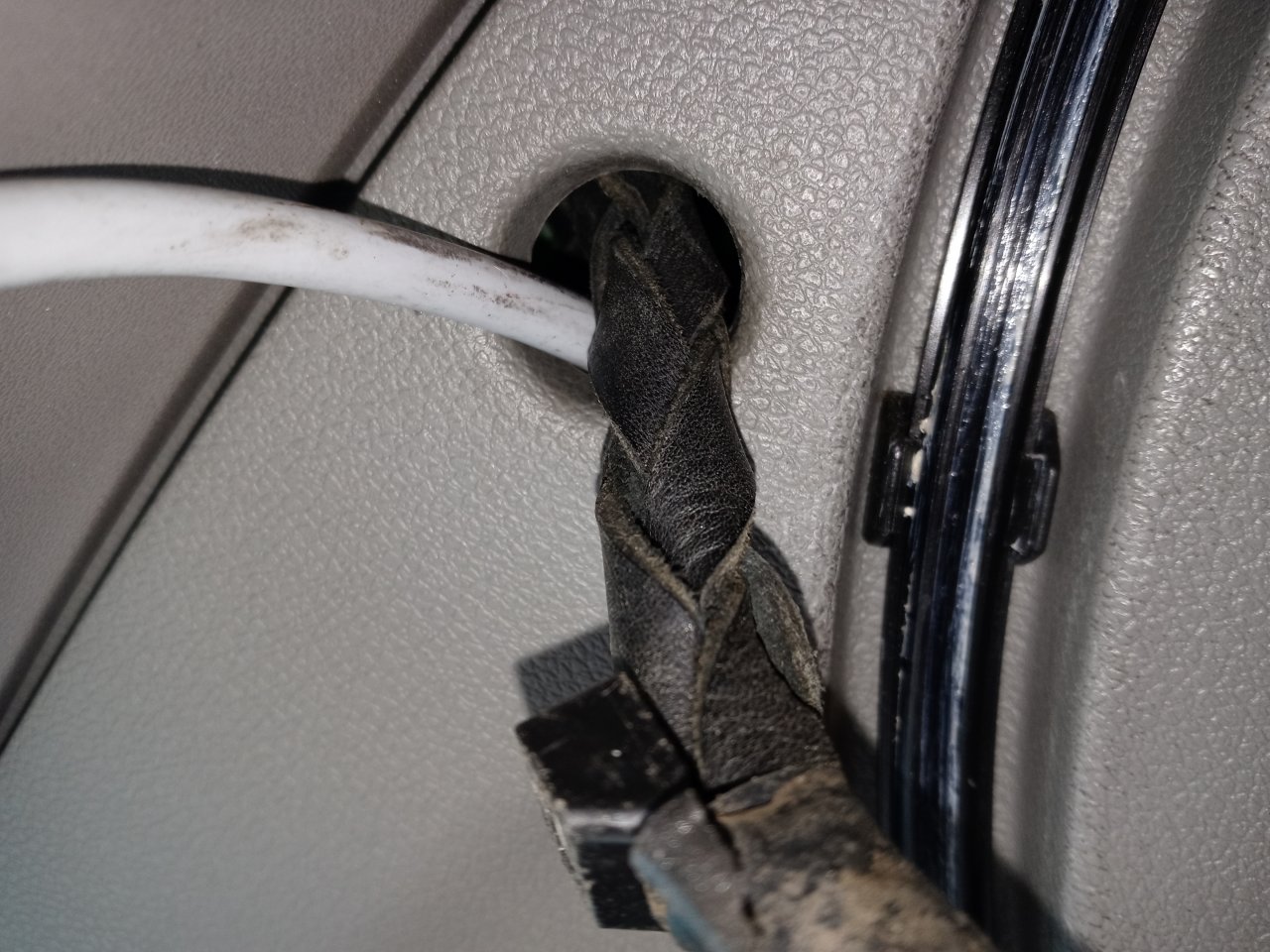

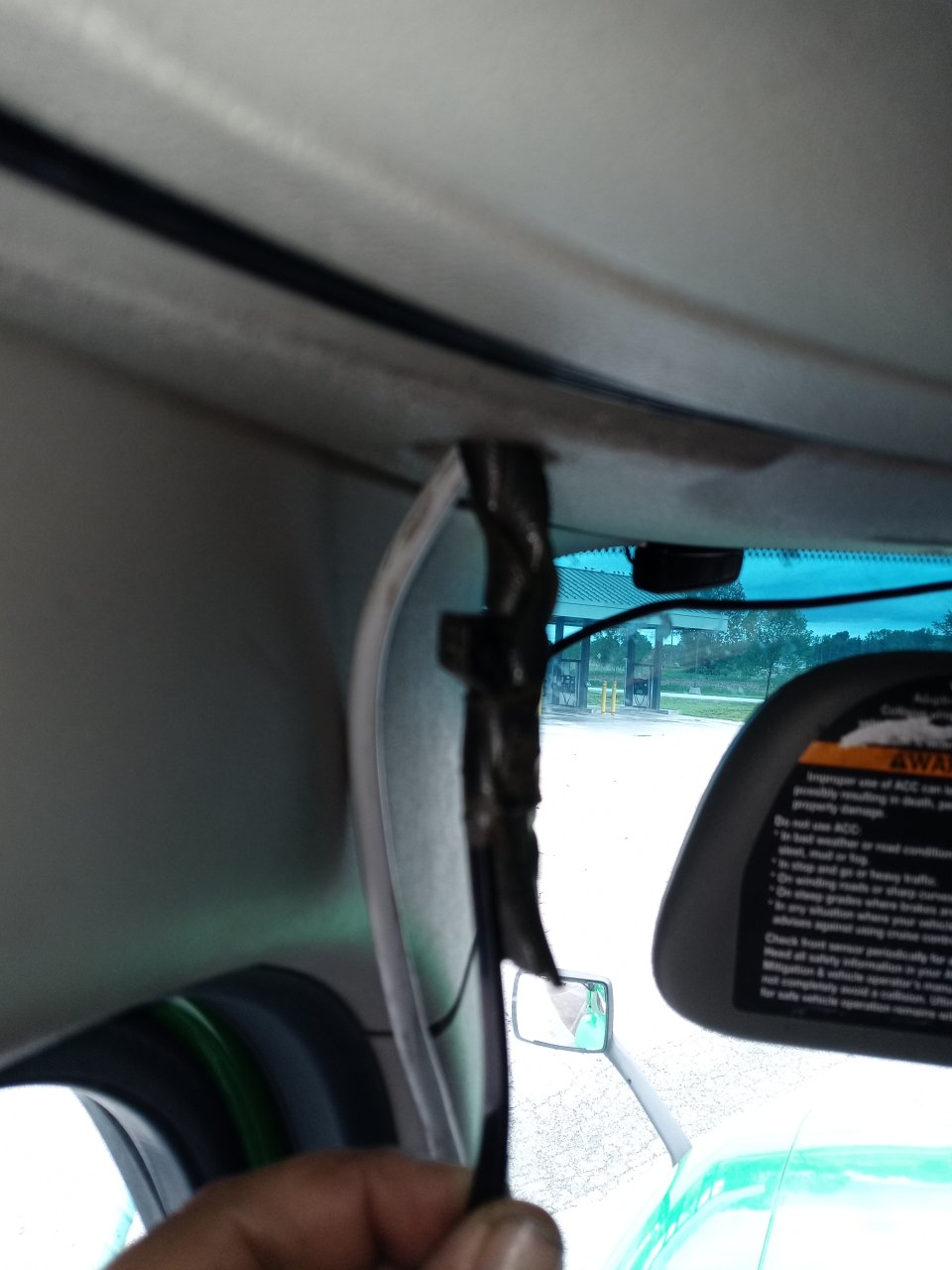

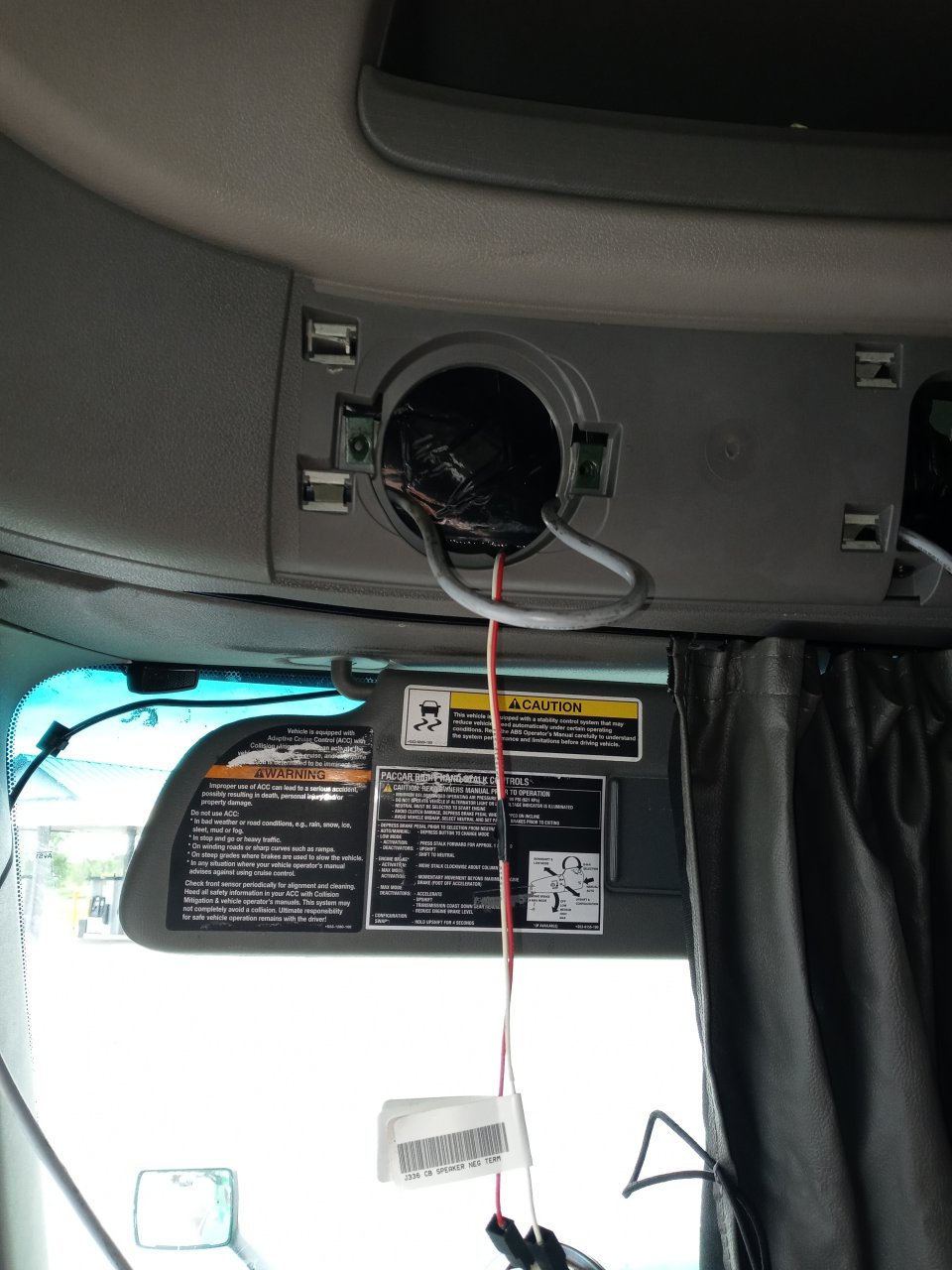

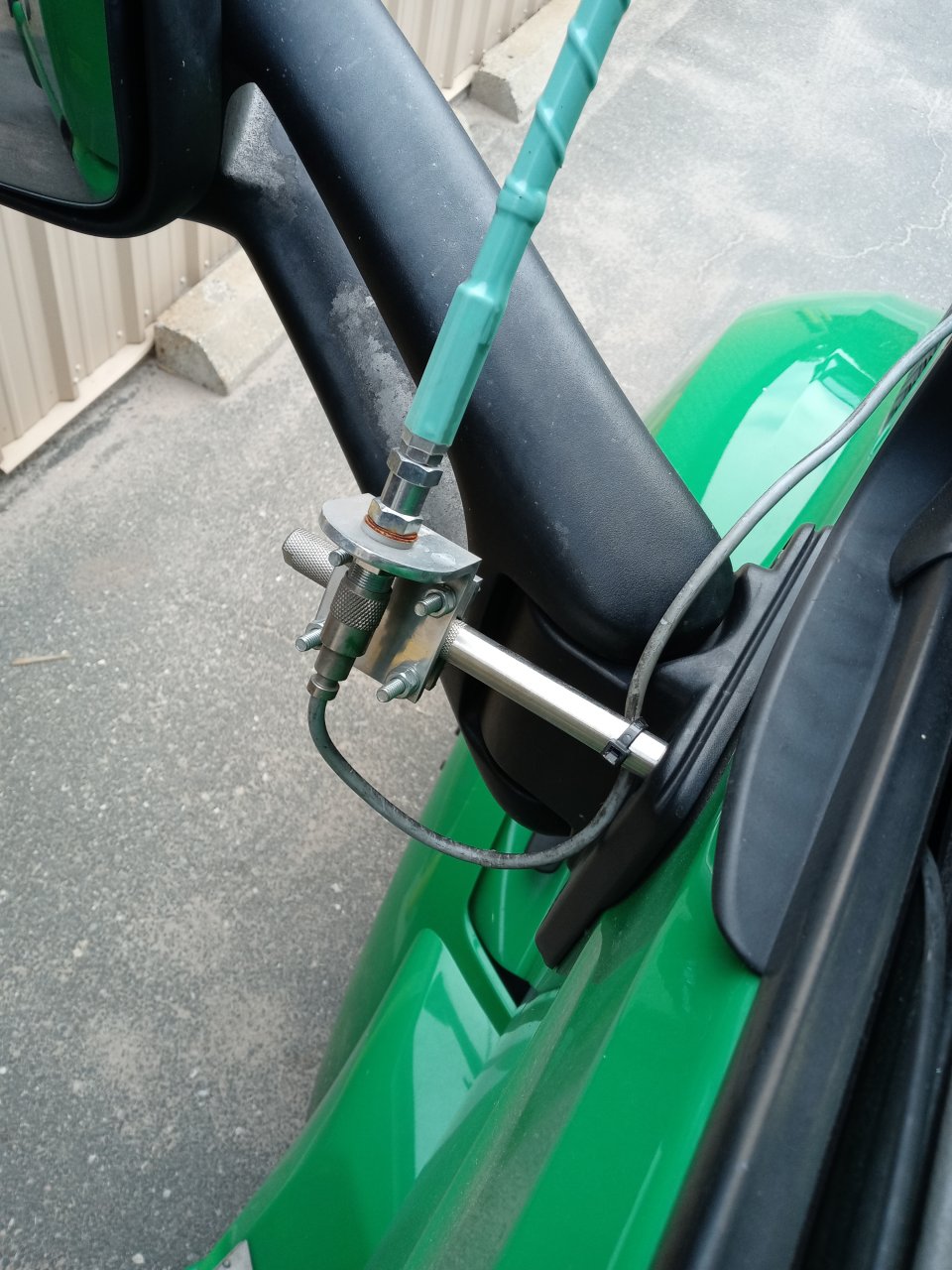

    Its 2019 579. The cb was treble. Changing antennas did not help also comes from the factory with two antennas with the coax splice together at the CV hole it's very crude so I installed a bird perch on a driver mirror installed a skip shooter ran the coax through the door of the b-pillar of the windshield I come around to the visor up to the air horn hole and then fished it over to the cb hole by means of the CB speaker hole. By pushing up air horn pull tail with a zip tie to pull it back down after installation of new coax 20220528_140116.jpg 20220528_140137.jpg 20220528_140158.jpg 20220528_140137.jpg 16540885591915370093975416369423.jpg


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dadetrucking305

    Dadetrucking305 Heavy Load Member

    857
    2,393
    Sep 15, 2011
    Cibolo,Texas
    0
    Leave it as a single antenna.With all the plastic and fiberglass I’m almost certain that you are going to have to RF ground your antenna mount and truck.

  4. Tigerfishinc

    Tigerfishinc Light Load Member

    51
    111
    May 28, 2021
    0
    In mine the coax was already there with factory prewired for a cobra 29 cb. The antenna was mounted on top of the apu condenser.

  5. 18 wheels hummin

    18 wheels hummin Bobtail Member

    32
    17
    Dec 8, 2014
    0
    This 579 pete came pre wired an with 2 antennas it was junk. Couldn't hear not sure if i could talk. Problem with CAL. To high SWR. Treble. Ran better coax with the skip shooter i also have a cobra( parts everywhere) turn down to 2 or 4 watts run a heater about 120 watts i can hear an talk. As with the pete i do pick up noise from power hook up. These so kind of tracker plugged into it. Got figure a clean power to help with reducing the noise.

  6. 18 wheels hummin

    18 wheels hummin Bobtail Member

    32
    17
    Dec 8, 2014
    0
    Think im going to find a clean look way to run a ground to the antenna. Same set up different antenna different truck i was talk eazy 10 miles an far the ones able to talk to me 15 to mile depending on location. But nothing fancy.

  7. Neverready

    Neverready Medium Load Member

    392
    303
    Jul 24, 2014
    Pocomoke City, Md.
    0
    I used fish tape to pull new single coax to existing mount on drivers side. Mount is grounded to cab by braided strap from factory. 4 1/2 ft antenna stays just under 13' 6". Tuned well performed well.
    You would need a SO239 to mini UHF adaptor or get coax made up with proper connector for factory mount. Also sanded to bare metal where braid attached to cab.

    Last edited: Jul 3, 2022
  8. MrBronx

    MrBronx Bobtail Member

    2
    0
    Aug 6, 2022
    0
    To do the professional OEM installation
    1) remove the curtains and rail
    2) remove the lights from the side storage
    3) remove the side storage
    4) remove the cb speaker
    5) remove the center storage
    Now you can see the OEM dual antenna ground wires and mini UHF to PL259
    6) remove plastic cover from antenna box
    7) remove the nuts and pull the antenna box out to disconnect the mini UHF to PL259 dual coax

    or you could remove and pull out the antenna box and coax without removing the side and center storage and hook up your new coax and fish it behind the center storage, careful doing it that way because if the inside bracket for the antenna box falls out you’ll have to remove the storage to get to it.
    It’s an all day job to remove all the storage and put it back in if you’ve done it before. If first time probably several days at least

  9. 18 wheels hummin

    18 wheels hummin Bobtail Member

    32
    17
    Dec 8, 2014
    0
    Exactly tear out a lot of interior hope you don't break plastic clips. install. Put back together is a all day job. Unfortunately my install i did have all the necessary tools or the time. My install after figured it out was able to do it on a 30 min break. Its not bad looking. I did consult few CB shops which they do not do installs with concerns of interior breaking. Now days everything plastic an clips thanks for sharing i hope your reply helps someone.
