89 peterbilt 379 info on gauges

Discussion in 'Trucks [ Eighteen Wheelers ]' started by DCT, Jul 7, 2022.

Page 1 of 2
  1. Jul 7, 2022 #1
    DCT

    DCT Bobtail Member

    7
    19
    Jul 7, 2022
    0

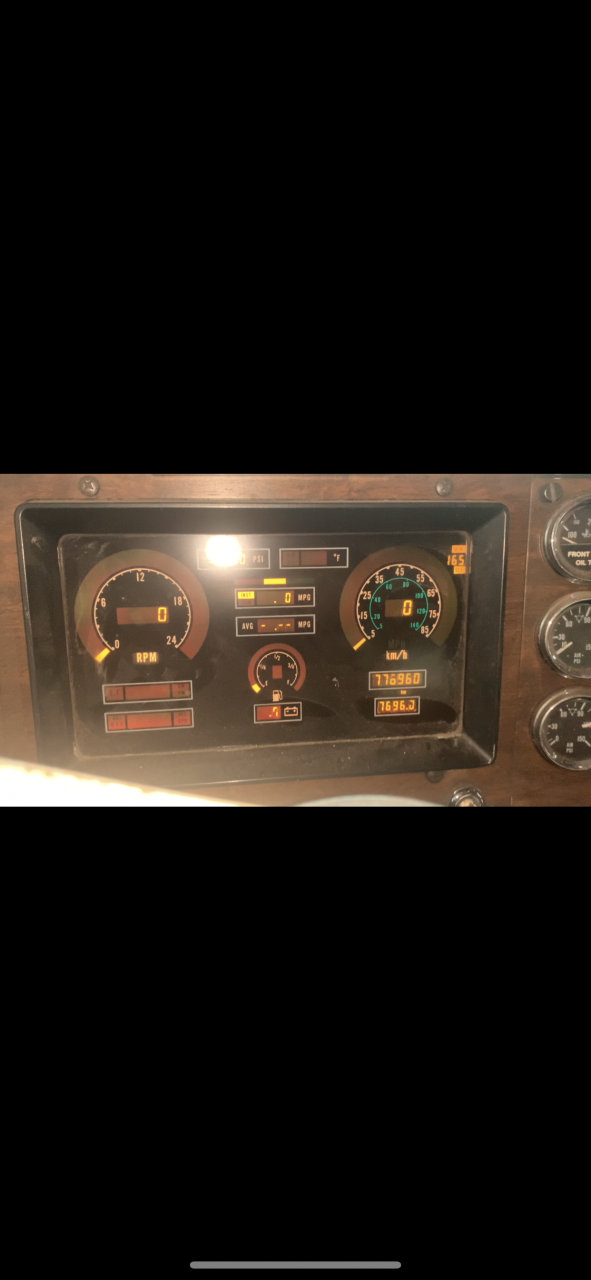

    My Dad custom order the Peterbilt 379 I have now in 1989 and it has electronic gauges that are having issues with not always working I suspect a possible ground problem but can’t find any info on them or even pics of another set, does anyone know anything about them? 1A0E87AC-089D-4F2B-AB6B-04A2F0235D54.png

    Last edited: Jul 7, 2022
    DCT, Jul 7, 2022
    DCT, Jul 7, 2022
    #1
    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jul 7, 2022 #2
    062

    062 Road Train Member

    6,211
    33,443
    Oct 20, 2013
    0
    @Oxbow was it you that had one?

    062, Jul 7, 2022
    062, Jul 7, 2022
    #2
    Oxbow and spsauerland Thank this.
  4. Jul 7, 2022 #3
    Oxbow

    Oxbow Road Train Member

    12,816
    132,665
    Nov 24, 2015
    Idaho
    0
    Good memory!
    @DCT I had an 89 T600 that had one and still have an 89 378 that had one. I switched it out because a few of the functions weren't working. I believe the keypad was the culprit of most of the problems. I got a schematic from Pete that helped a bunch.

    What problems are you having? There is a ground strap going to the back of the housing you might check. The dimmer for night driving that dims the dash when you turn on the marker lights might be something to look at. I still have the one that I took out if worst comes to worse.

    Oxbow, Jul 7, 2022
    Oxbow, Jul 7, 2022
    #3
    spsauerland, 062 and Bean Jr. Thank this.
  5. Jul 8, 2022 #4
    DCT

    DCT Bobtail Member

    7
    19
    Jul 7, 2022
    0
    When you turn the key on all the gauges do there full sweep and zero out but when running the oil pressure is the only one that always works, the fuel gauge, mileage and trip odometer only read occasionally and everything else stays at zero, the keypad works to scroll through functions and the dimmer actually does work. I’m not stuck on having to make it work but trying to keep it as original as possible after my dad was killed in an accident almost 3 yrs ago I bought it from his estate and am trying to get road worthy after it’s sat since 2012.

    DCT, Jul 8, 2022
    DCT, Jul 8, 2022
    #4
    Oxbow Thanks this.
  7. Jul 8, 2022 #5
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,175
    33,882
    May 2, 2021
    0
    Think there's several places you could send the cluster to for repair. Might look online

    Big Road Skateboard, Jul 8, 2022
    Big Road Skateboard, Jul 8, 2022
    #5
    DCT and Oxbow Thank this.
  8. Jul 8, 2022 #6
    spsauerland

    spsauerland Road Train Member

    4,296
    10,887
    May 31, 2010
    West Harrison, In
    0
    This is the Kenworth manual, but I bet they are about the same for digital dash.


    Attached Files:

    spsauerland, Jul 8, 2022
    spsauerland, Jul 8, 2022
    #6
    DCT and Oxbow Thank this.
  9. Jul 8, 2022 #7
    Oxbow

    Oxbow Road Train Member

    12,816
    132,665
    Nov 24, 2015
    Idaho
    0
    Hmm, I didn't have that issue with mine. When acting up does it go blank or go to zero?

    As I recall there is a lock ring that holds the wire harness plug to the back of the display. It may be possible that isn't tight. I believe one might be able to test inputs there with the plug removed. That guide that @spsauerland provided should be very helpful!

    I could send you mine to try if you can't get yours going.

    Oxbow, Jul 8, 2022
    Oxbow, Jul 8, 2022
    #7
    DCT and spsauerland Thank this.
  10. Jul 8, 2022 #8
    DCT

    DCT Bobtail Member

    7
    19
    Jul 7, 2022
    0
    Some gauges go to zero and others just go blank when there acting up, I haven’t tore much into them yet but will now that I have a bit more info and see what I can come up with.

    DCT, Jul 8, 2022
    DCT, Jul 8, 2022
    #8
    Oxbow Thanks this.
  11. Jul 8, 2022 #9
    DCT

    DCT Bobtail Member

    7
    19
    Jul 7, 2022
    0

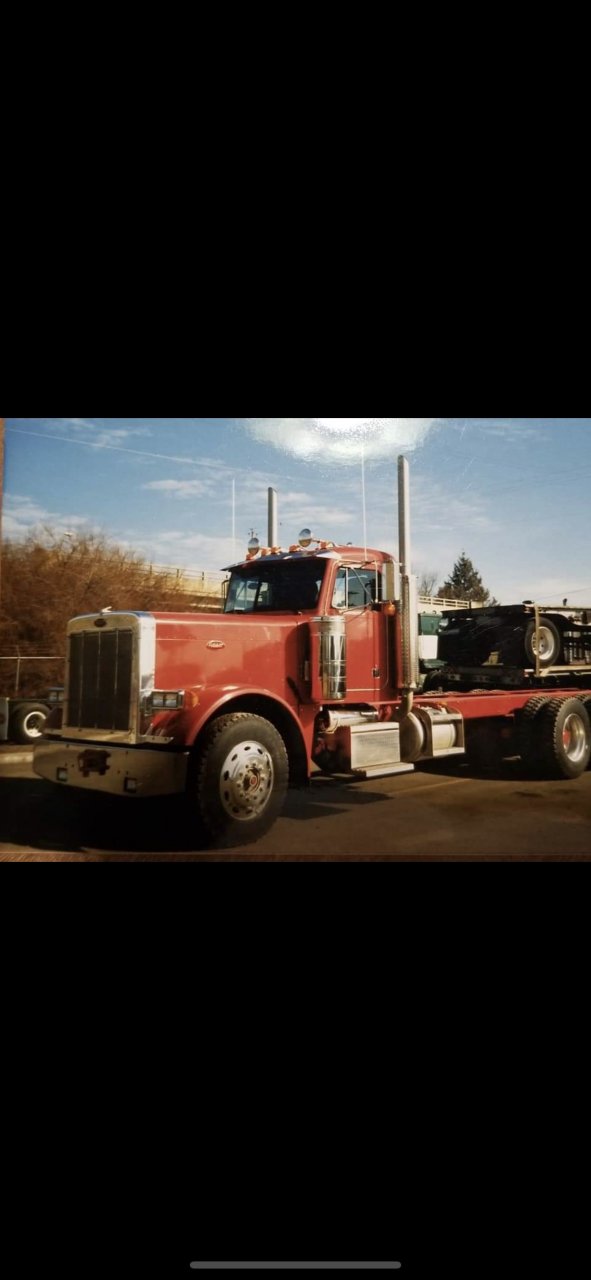

    This is the day my dad brought it home.

    DCT, Jul 8, 2022
    DCT, Jul 8, 2022
    #9
    Crude Truckin', AModelCat, spsauerland and 1 other person Thank this.
  12. Jul 9, 2022 #10
    RocketScott

    RocketScott Medium Load Member

    579
    948
    Apr 10, 2013
    Kentucky
    0
    That’s pretty cool for back in the day

    It’s probably got some lose solder joints and leaky capacitors. I had to resolder the connector inside the tach when I first got my truck

    Have you opened it up to look inside or is it all sealed up?

    RocketScott, Jul 9, 2022
    RocketScott, Jul 9, 2022
    #10
