I used a trailer harness I bought from Grote
Solder and shrink tube.
Junction box I used something similar to what you posted. But I do believe grote or Phillips has sealed junction boxes as well
94 T600 remodeling
Discussion in 'Ask An Owner Operator' started by skallagrime, Jan 21, 2022.
Page 3 of 9
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
I used this wiring and a similar junction box
Attached Files:
RubyEagle, Boondock, Rideandrepair and 1 other person Thank this. -
-
Ty, yeah that's the big junction box i hate at the back cause theres too blood many leads trying to hit some posts, gets crowded there. Guess i could just jump a y off one box to two others at the back
Or i could buy this, looks like a lot more posts in there
Last edited: Jan 31, 2022
Boondock, Rideandrepair and jason6541 Thank this. -

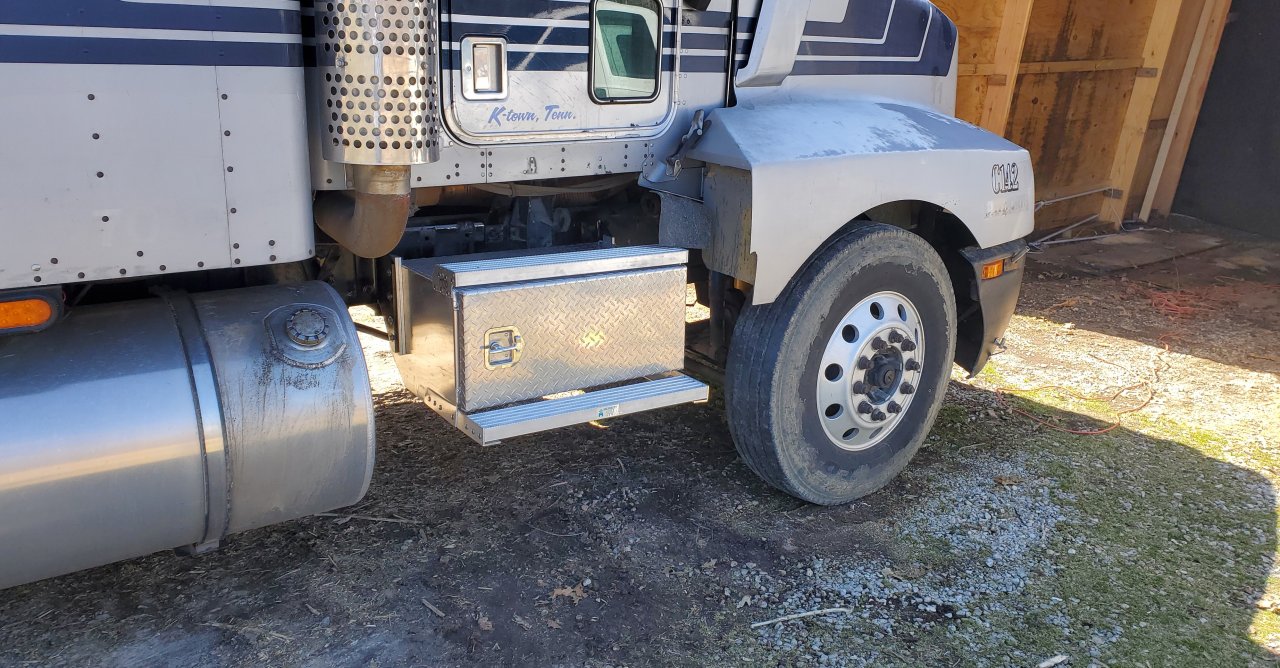

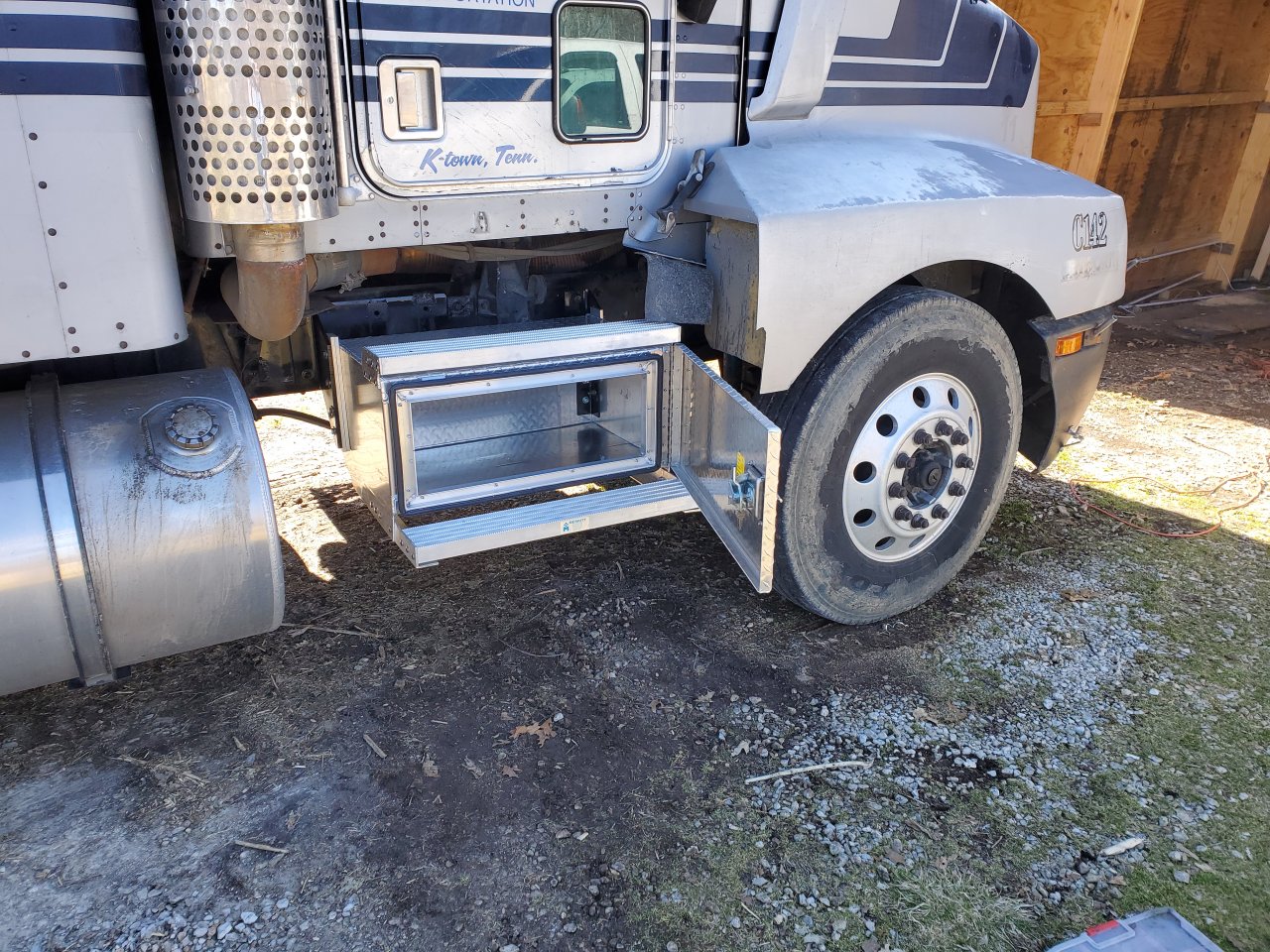

Finally got passenger side box on
RubyEagle, Boondock and Rideandrepair Thank this. -
Guess heres as good as anywhere else for the other bits
I know more about hydraulic fittings than i ever wanted to, kenworth is useless for parts, swapped power steer reservoir to the old freightliner style. Those are pipe thread ends on reservoir.... gah
New power steer pump is clocked 180 degrees from before so big line is on bottom not top.
Turns out rear seal on the power steer box was leaking but masked by the line on top leaking, so still got stuff to do...
New fuel pump, lines, fuel filter bases, new power steering lines, pump, reservoir
And how i got her primed, gotta toss a check-valve on the supply line somewhere, pump simply wont pull from the tank to 1st filter no matter what i did
Gotta paint better but itll do for now, replaced oil supply line to air compressor, not sure if it was my big oil leak in the front yet, but it certainly was the time to do it
JoeyJunk, RubyEagle, Boondock and 1 other person Thank this. -
-

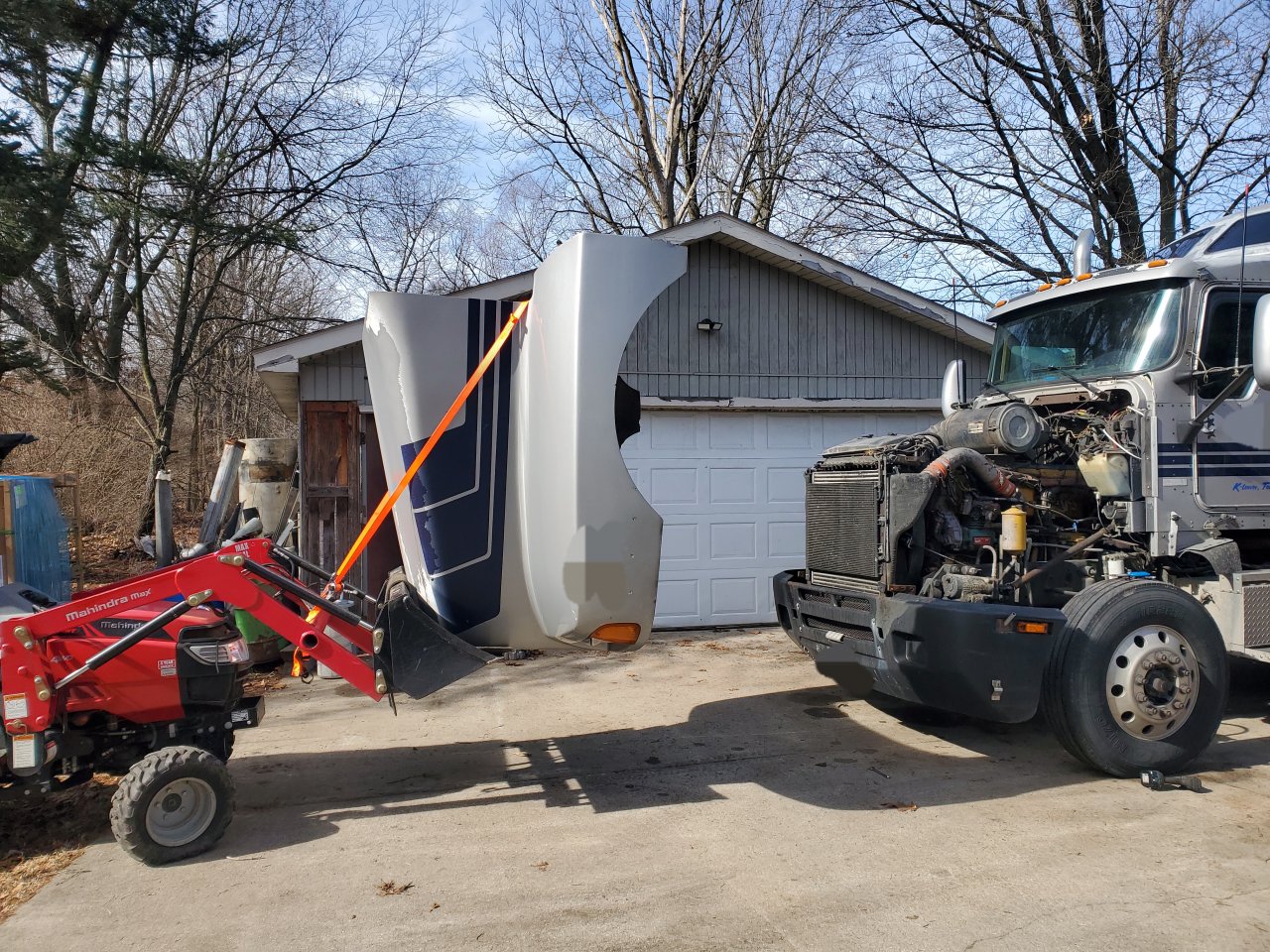

Remove hood
Set aside ac/cac
Remove radiator

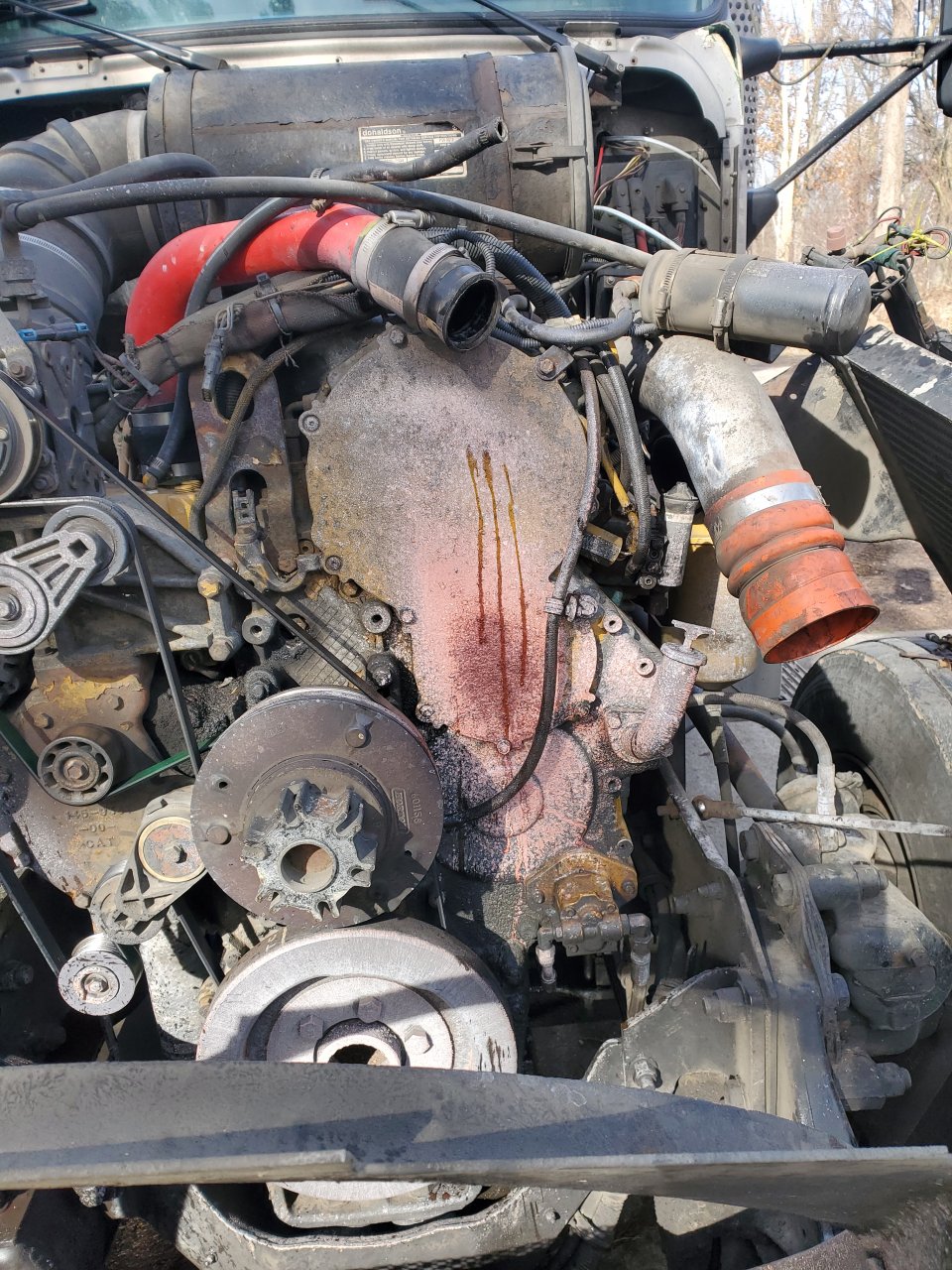

Seems as if i MAY have had a coolant leak

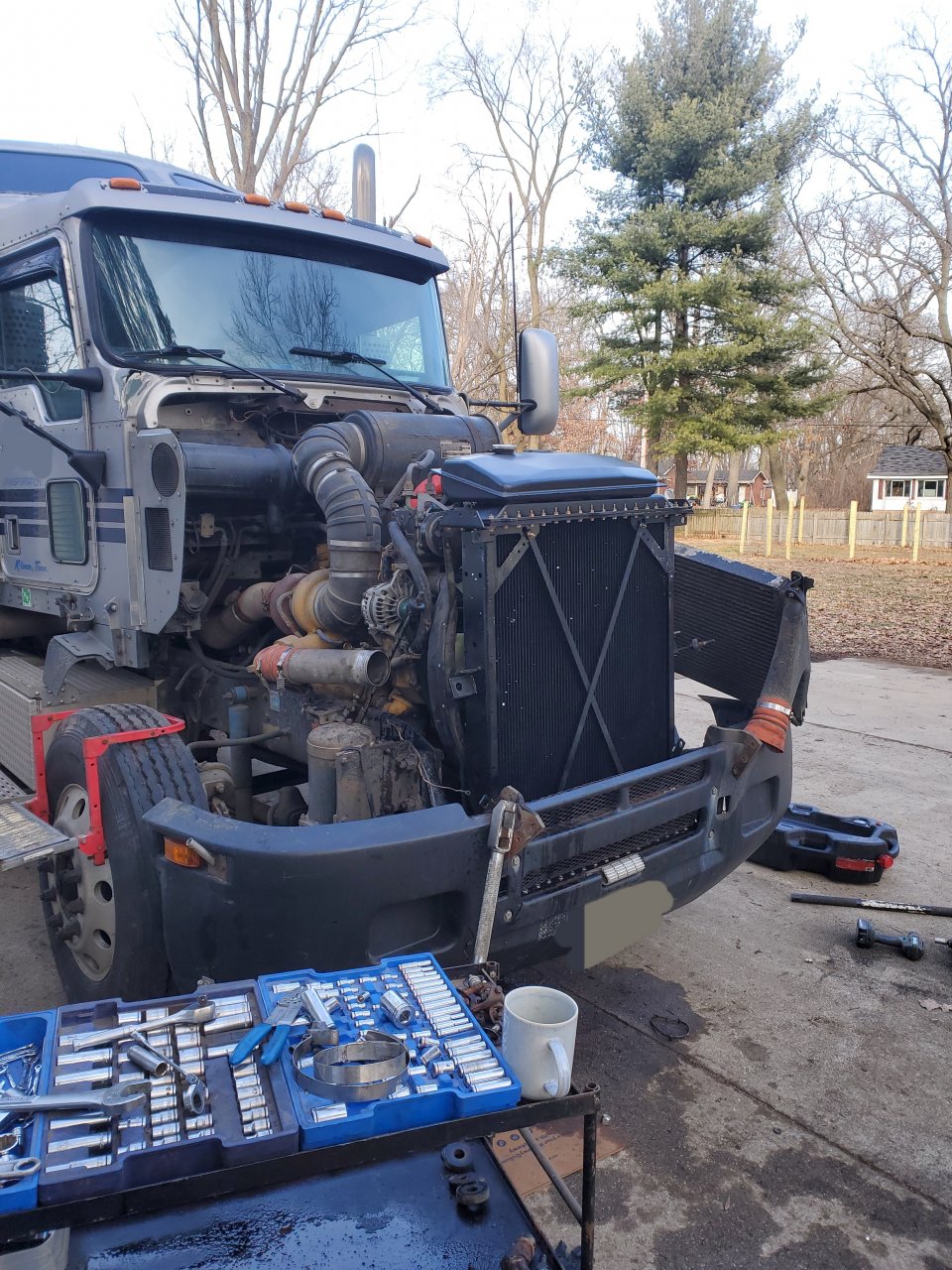

New radiator in place
Warmer tomorrow, getting to cold to be outside unless i HAVE TO, and i dont and get my brother as help tomorrowJoeyJunk, RedForeman, RubyEagle and 1 other person Thank this. -
