95 Fld120

Discussion in 'Freightliner Forum' started by Dro202, Nov 29, 2022.

  1. Dro202

    Dro202 Bobtail Member

    1
    0
    Nov 29, 2022
    Connecticut
    0
    Hello everyone, I have a 95 freightliner fld120 with a 12.7 Detroit series 60 in it. I notice my rmp guage isn't working but sometimes works for short periods of time. Where should I start looking to see if it's a faulty sensor or faulty guage? Also I have a vacuum guage as well that isn't working at all. Thanks in advance!

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. JoeyJunk

    JoeyJunk Road Train Member

    5,593
    34,355
    Dec 31, 2010
    Washington, PA
    0
    I have a 98. My tach didn’t work either. It ended up being the harness that plugs into gauge and goes to truck wiring.

    I’m not sure if it’s available separately. I bought the gauge and only needed the harness. Available at Freightliner.

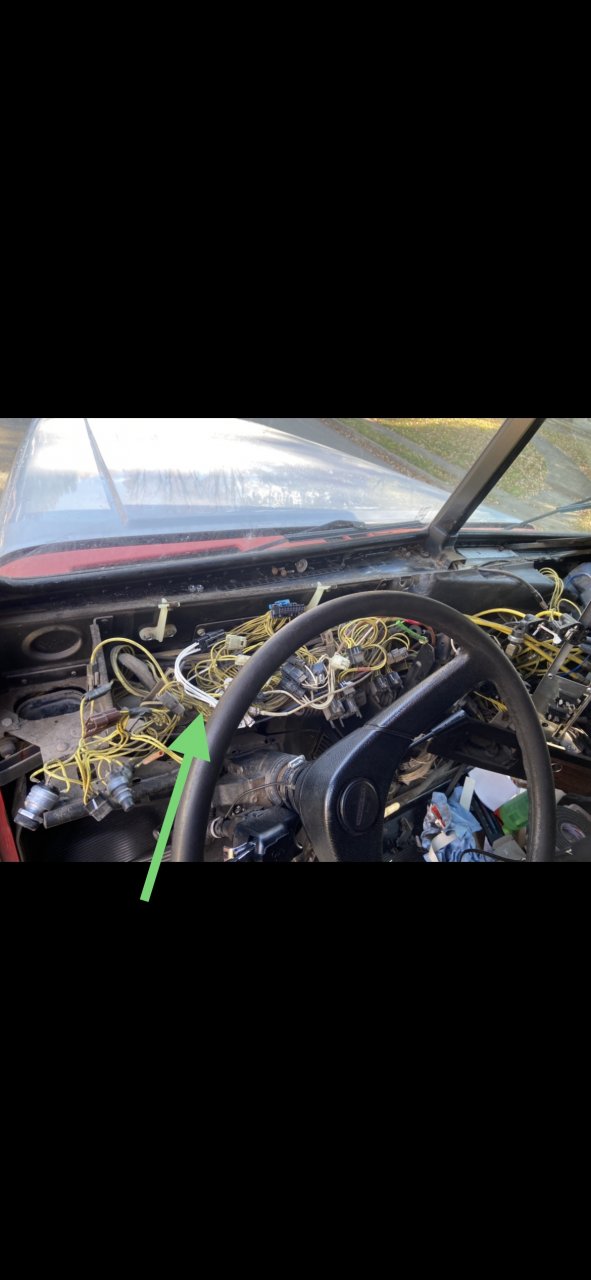

    The white harness in this pic.

    Last edited: Nov 29, 2022
  4. singlescrewshaker

    singlescrewshaker Road Train Member

    3,996
    33,971
    Dec 31, 2017
    Little Havana, FL
    0
    Hot dang that's alot a work to pull the whole dash Joey!!
    Did you replace the skeleton or something.?

    Good too know about that harness. Maybe I'll try one of them.?

    My tach works when it feels like it. Figured I have a bad ground wire or something, but there is no rhyme or reason to it. Can be perfect still idling at 900rpm, & just drops to reading only 4-500rpm. Then goes back to 900 when it feels like it. Also jumps around roll'n down the super slab. But sometimes stays steady on bumpy i80 around Gary, IN.. lol Exhaust note tends to get me by just fine, but be nice if it worked..

    D.Tibbitt, Rideandrepair and JoeyJunk Thank this.
  5. JoeyJunk

    JoeyJunk Road Train Member

    5,593
    34,355
    Dec 31, 2010
    Washington, PA
    0
    Sorry I missed this. Yes I replaced the dash skeleton and fixed some air leaks.

  6. singlescrewshaker

    singlescrewshaker Road Train Member

    3,996
    33,971
    Dec 31, 2017
    Little Havana, FL
    0
    No sweat brother, we all got a life to live.. lol

    Rideandrepair Thanks this.
  7. Rideandrepair

    Rideandrepair Road Train Member

    14,941
    49,606
    Aug 8, 2015
    0
    Where’d you buy the skeleton? Dealer, online? How much was it? Got a part #? I see some online, picture looks right, but not sure. Might be for a Columbia.

    singlescrewshaker and JoeyJunk Thank this.
  8. JoeyJunk

    JoeyJunk Road Train Member

    5,593
    34,355
    Dec 31, 2010
    Washington, PA
    0
    Prices went up since I bought them.

    Dashboard Trims and Accessories

  9. JoeyJunk

    JoeyJunk Road Train Member

    5,593
    34,355
    Dec 31, 2010
    Washington, PA
    0
    Here are the part numbers. If you google the first number a lot of suppliers have it pictured upside down which can be confusing.

    A18-22127-004- right side
    A18-22178-017- middle

  10. F4T6UY

    F4T6UY Medium Load Member

    570
    1,799
    Oct 24, 2017
    Very South Texas
    0
    I got the skeletons from Miami Star as well. Fit was excellent. They are OEM.

    Texture seemed off, like it was “too” textured. But then just realized mine were 20 years old. Everything lined up great and very pleased. Hard to say if price was justified, but I had many broken tabs that were diving my OCD nuts.

    And I took my dash apart just to change the skeletons, so it was a job. Ended up addressing some other issues while I was in there, but left some unaddressed as well…procrastination for the win!

  11. F4T6UY

    F4T6UY Medium Load Member

    570
    1,799
    Oct 24, 2017
    Very South Texas
    0
    Oh yeah, one skeleton (can’t remember which) came with new clips for the tabs, and one didn’t. Just fyi.
