A antenna issue that has me stumped

Discussion in 'CB Radio Forum' started by craig_sez, Jul 14, 2022.

  1. craig_sez

    craig_sez Road Train Member

    Joined:
    Sep 5, 2013
    Messages:
    5,569
    Thanks Received:
    2,711
    Location:
    novascotia,Canada
    0
    Well its new coax and has basically same as old coax and some junk coax i have....

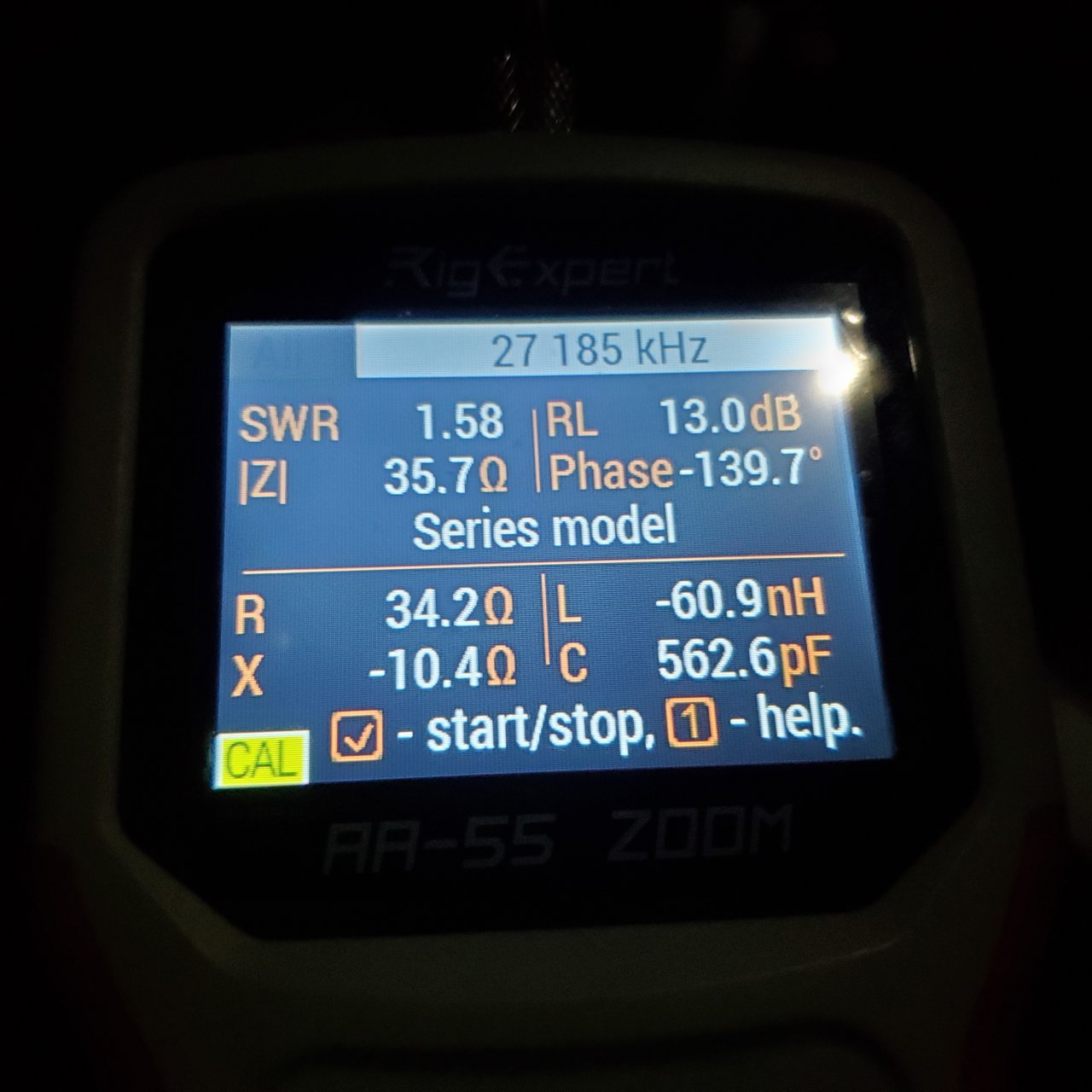

    Two pics i just took with stub cal on and off..It basically supposed to eliminate the coax from the equastion..

    Found my dbl male but just cant get the angle for my analyzer to fit on bottom of stud...To late to re adjust ant bracket now so ill have to try another day...

    Ill have to bone up on common mode cause im not exactually shure what it is and how to spot it..


    Attached Files:

  2. craig_sez

    craig_sez Road Train Member

    Joined:
    Sep 5, 2013
    Messages:
    5,569
    Thanks Received:
    2,711
    Location:
    novascotia,Canada
    0

    Just thinkin..Could cmc be caused by running coax and radios pwr/gnd sife by side?
    Pics from my aa55 zoom while on the move....Freakin horrible...


    Attached Files:

  3. craig_sez

    craig_sez Road Train Member

    Joined:
    Sep 5, 2013
    Messages:
    5,569
    Thanks Received:
    2,711
    Location:
    novascotia,Canada
    0
    Last few....With it flexing it goes to hell..I gotta get back to a 10k or a skip shooter...


    Attached Files:

  4. Night Stalker10

    Night Stalker10 Road Train Member

    Joined:
    Jun 26, 2017
    Messages:
    1,674
    Thanks Received:
    1,248
    0
    That's quite a difference. It would be interesting to see the numbers with the other antennas. Especially while traveling down the highway.

  5. craig_sez

    craig_sez Road Train Member

    Joined:
    Sep 5, 2013
    Messages:
    5,569
    Thanks Received:
    2,711
    Location:
    novascotia,Canada
    0
    Well it flexed so much and changes the tune way more than i expected..
    That pvc i do have on it is to wimpy..

  6. Coyote 451

    Coyote 451 Bobtail Member

    Joined:
    Aug 10, 2022
    Messages:
    3
    Thanks Received:
    1
    0
    Those 102" stainless steel whips are designed to be used with a 6" coil spring to equal 108" with either a ball mount or a through the roof solid mount, personally i would not use a riser.

  7. craig_sez

    craig_sez Road Train Member

    Joined:
    Sep 5, 2013
    Messages:
    5,569
    Thanks Received:
    2,711
    Location:
    novascotia,Canada
    0
    Whats a spring if its not a riser??
    A spring just makes kt flip flop even more which in turn affect signal even more so that a solid riser..

    There is no place for a ball mount,and it cant go through the roof of a big trk..

  8. mike5511

    mike5511 Road Train Member

    Joined:
    May 15, 2011
    Messages:
    3,141
    Thanks Received:
    1,523
    Location:
    NW Arkansas
    0
    I tried to read all of this quickly, and I didn't see anyone mention this; but I would start with going back and cleaning up your ground points on the antenna mount and your bonding straps. Simple but can be very effective. (knowing you from reading your posts, you have probably already done this, but I throw it out there anyway FWIW)

  9. craig_sez

    craig_sez Road Train Member

    Joined:
    Sep 5, 2013
    Messages:
    5,569
    Thanks Received:
    2,711
    Location:
    novascotia,Canada
    0
    Well mike...Today i said frig it and im gonna slap on my old 102 vs the 7ft skipshooter. I did so and only difference was the bottom part of ant stud and i took off one of the 3 gnd straps(it was a bit rusty under it)....Mind you it had rained earljer in the day but was dry when i left home....Guess what..Its a bit better but im parked around alot of metal fenceing and a big ole aircraft hanger but earlier it was really good....So i have a gnd issue or all the fenceing n such now is messin with my stuff..Ill have to wait till rain stops n see again..

  10. mike5511

    mike5511 Road Train Member

    Joined:
    May 15, 2011
    Messages:
    3,141
    Thanks Received:
    1,523
    Location:
    NW Arkansas
    0
    I have no doubt you will figure it out......keep us posted!
