ABS dash light and red lights on Bendix Brain

Discussion in 'Volvo Forum' started by jayfarmlaw, Feb 7, 2024.

  1. jayfarmlaw

    jayfarmlaw Bobtail Member

    30
    11
    Dec 12, 2020
    0

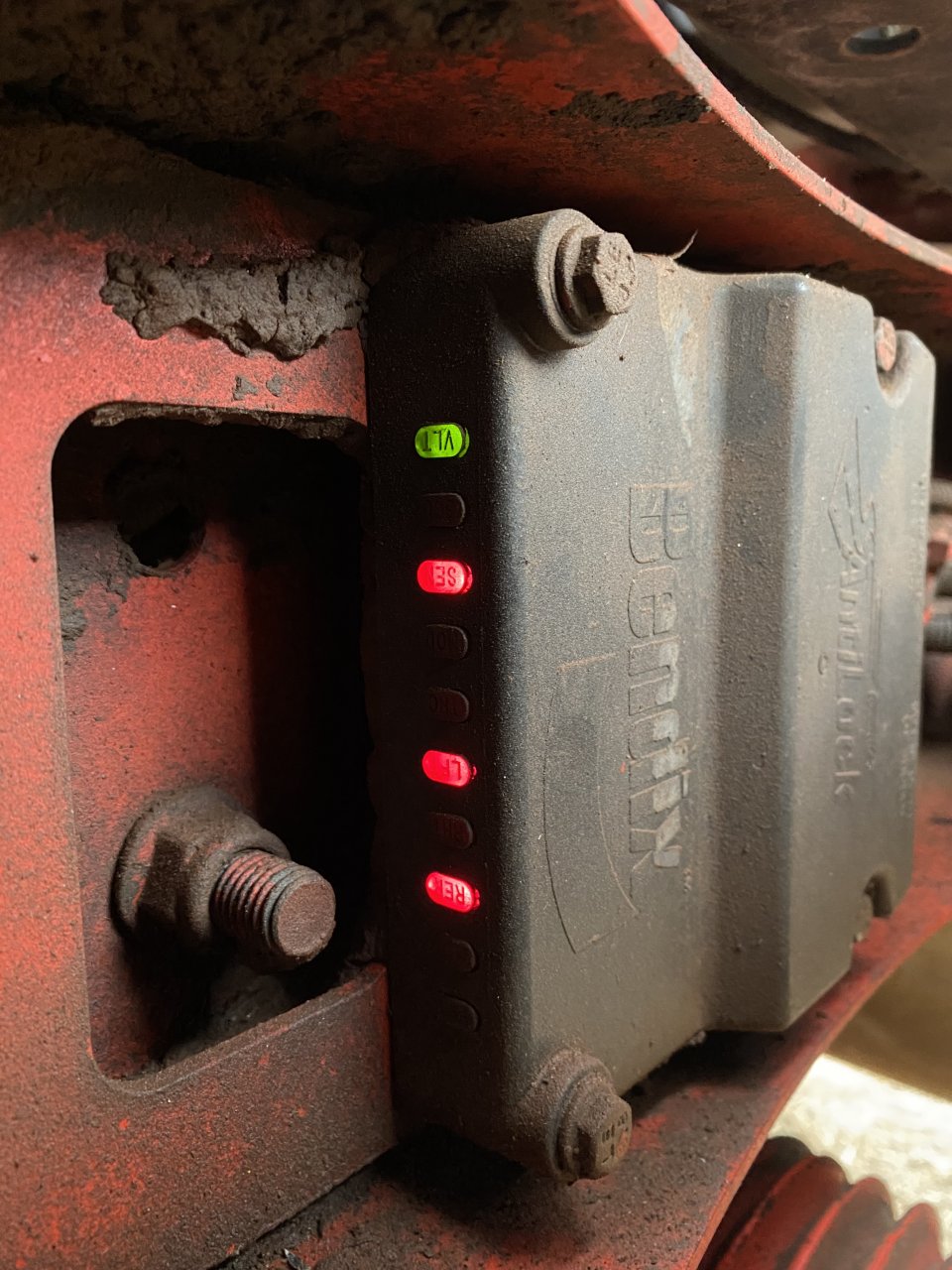

    IMG_1900.jpeg 99 VNL single axle, Cummins M11, Super 10, former Fed-Ex truck now farm cattle and hay hauler. Truck runs and drives fine other than the perpetual electrical gremlins and air leaks. Any idea of where to start to chase this down?
    thanks in advance for the response.

    jay


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. jayfarmlaw

    jayfarmlaw Bobtail Member

    30
    11
    Dec 12, 2020
    0
  4. H3R3T1C

    H3R3T1C "Question Everything"

    144
    47,959
    Oct 4, 2013
    0

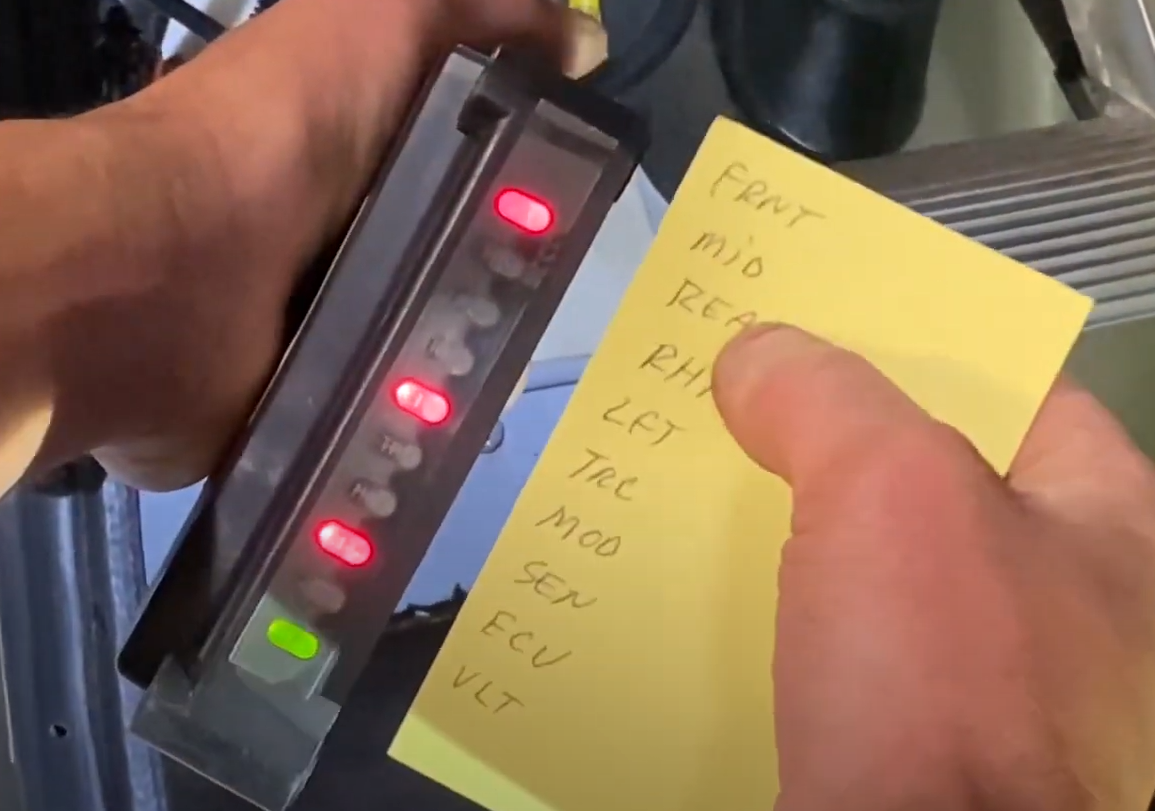

    Well from the video posted above its the Left Rear Sensor If I am reading this right.


  5. Snailexpress

    Snailexpress Road Train Member

    2,654
    6,034
    Apr 28, 2014
    Rocky
    0
    Yes it's right.

  6. Snailexpress

    Snailexpress Road Train Member

    2,654
    6,034
    Apr 28, 2014
    Rocky
    0
    Bendix manual Abs Partial Shutdown; Controller Diagnostic Display - BENDIX EC-30 ABS-ATC CONTROLLER Manual [Page 9]
    Could be sensor displaced too far away from tone ring or bad sensor or sensor wire. Or bad wheel hub bearing.

  7. jayfarmlaw

    jayfarmlaw Bobtail Member

    30
    11
    Dec 12, 2020
    0
    Refrigerator magnet for the win!!! Ran the magnet down the front of the lights, they blinked a few times, and never came back on. I rant a couple of hundred miles weighing right at 60K last Saturday with no issues. Throw a magnet in your truck guys! Drive safe and thanks again for the responses.

    Jay
