ABS valve leaking

Discussion in 'Freightliner Forum' started by thecubantrucker, Aug 12, 2019.

Page 1 of 2
  1. Aug 12, 2019 #1
    thecubantrucker

    thecubantrucker Light Load Member

    140
    85
    Jun 2, 2019
    0
    ok guys 2002 freightliner century my abs modulator under 5th wheel is leaking from bottom and when my yellow valve inside the truck is pushed in it is leaking as well if I apply service breaks leak stops or if I pop the valve off it stops completely any ideas would he appreciated I'm looking my head also what is a maxi pot

    thecubantrucker, Aug 12, 2019
    thecubantrucker, Aug 12, 2019
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Aug 12, 2019 #2
    Lysdexis

    Lysdexis Road Train Member

    4,483
    47,940
    Oct 25, 2018
    Arkansas
    0
    You'll need a new valve. They arent rebuildable. The front one on my international was just over 600 bucks.

    Lysdexis, Aug 12, 2019
    Lysdexis, Aug 12, 2019
    #2
  4. Aug 12, 2019 #3
    Lysdexis

    Lysdexis Road Train Member

    4,483
    47,940
    Oct 25, 2018
    Arkansas
    0
    Actually ignore what I said. Check your brake chambers. It seems that one might be leaking internally and that's pushing air back through the abs valve

    Lysdexis, Aug 12, 2019
    Lysdexis, Aug 12, 2019
    #3
    gentleroger Thanks this.
  5. Aug 13, 2019 #4
    JohnnyC

    JohnnyC Light Load Member

    172
    64
    Feb 17, 2009
    virginia beach, virginia
    0
    Mine was a bad valve. It was @ $100.00 from Freightliner. It’s called a relay valve if its the same one.

    JohnnyC, Aug 13, 2019
    JohnnyC, Aug 13, 2019
    #4
  7. Aug 13, 2019 #5
    stayinback

    stayinback Road Train Member

    3,911
    8,254
    Jan 24, 2014
    chicago,il
    0
    Nope- Its not the same one-
    The one he's talking about is a MONSTER.....About 6 inches by 6 inches by 5 inches thick...Plus it has the Modulator on top.....About 7-8 lines go to it.

    Relay valves are on the Frame generally,or hiding under crossmembers....

    The Valve he's talking about is the biggest one the truck,next to the TPV.

    stayinback, Aug 13, 2019
    stayinback, Aug 13, 2019
    #5
  8. Aug 13, 2019 #6
    JohnnyC

    JohnnyC Light Load Member

    172
    64
    Feb 17, 2009
    virginia beach, virginia
    0
    Got it

    JohnnyC, Aug 13, 2019
    JohnnyC, Aug 13, 2019
    #6
  9. Aug 13, 2019 #8
    thecubantrucker

    thecubantrucker Light Load Member

    140
    85
    Jun 2, 2019
    0

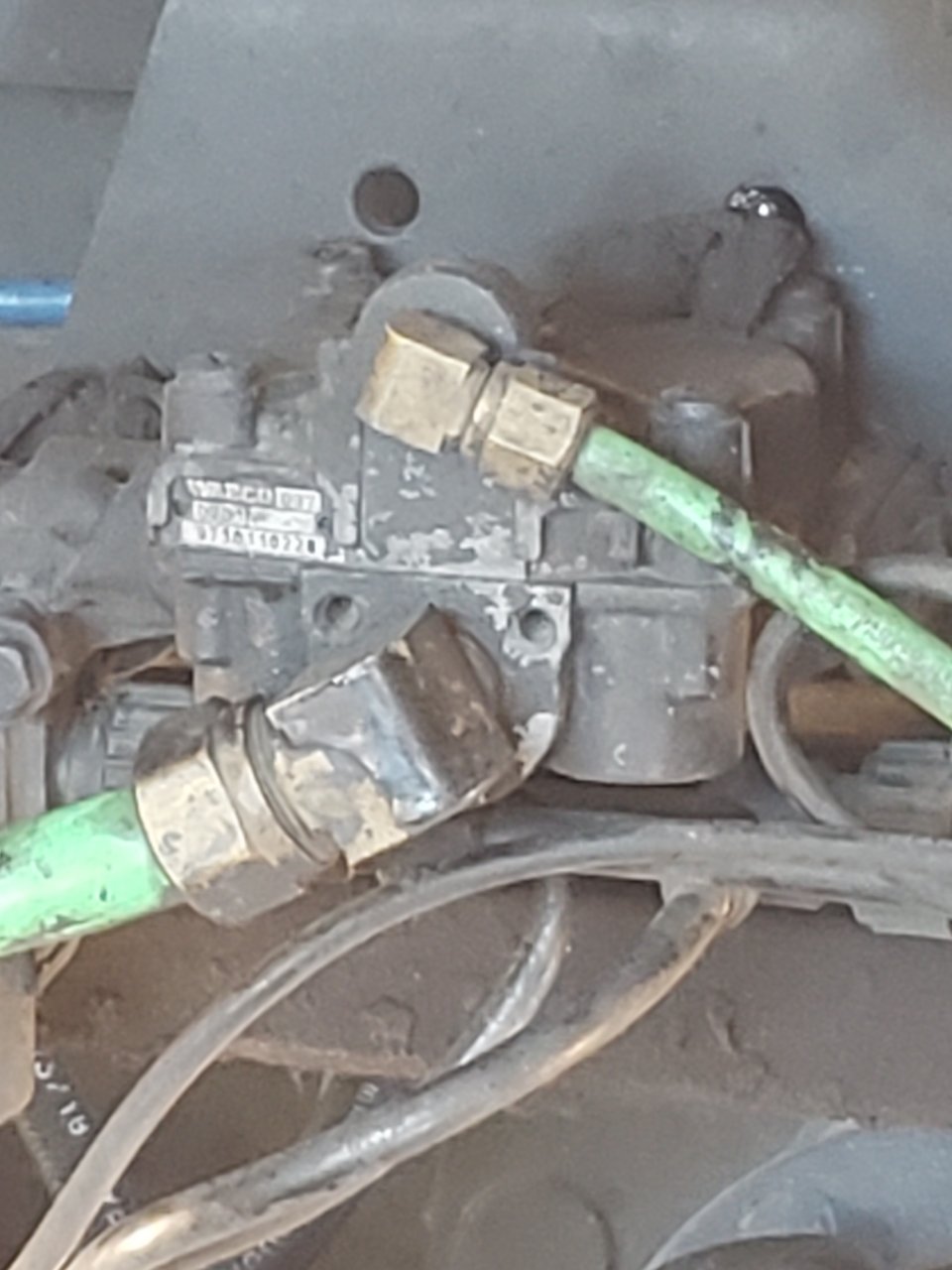

    I miss quoted it is the relay valve that is under the fifth wheel big center valve and 2 smaller ones att ched to it

    thecubantrucker, Aug 13, 2019
    thecubantrucker, Aug 13, 2019
    #8
  10. Aug 13, 2019 #8
    thecubantrucker

    thecubantrucker Light Load Member

    140
    85
    Jun 2, 2019
    0
    two little ones are attached to that one


    Attached Files:

    thecubantrucker, Aug 13, 2019
    thecubantrucker, Aug 13, 2019
    #8
  11. Aug 13, 2019 #9
    JohnnyC

    JohnnyC Light Load Member

    172
    64
    Feb 17, 2009
    virginia beach, virginia
    0
    The two little ones unbolt from the big one. The big one is about $100.00 at Freightliner. I replaced mine about a month ago. Take the fifth wheel off it makes it much easier. Couple hours at most.

    JohnnyC, Aug 13, 2019
    JohnnyC, Aug 13, 2019
    #9
  12. Aug 16, 2019 #10
    gentleroger

    gentleroger Road Train Member

    6,638
    17,350
    Jun 1, 2010
    0
    If it's leaking from the purge valve then you probably have a bad brake chamber

    gentleroger, Aug 16, 2019
    gentleroger, Aug 16, 2019
    #10
