Adding adjustable ride height to older Fontaine RGN

Discussion in 'Heavy Haul Trucking Forum' started by Pilotdriver, Apr 8, 2020.

  1. kylefitzy

    kylefitzy Road Train Member

    3,963
    16,351
    Aug 12, 2007
    Kansas city,Mo
    0
    I would think the neck setting would have a lot more to do with the boggie setting level then the suspension setting.

    cke Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Superhauler

    Superhauler TEACHER OF MEN

    12,209
    100,723
    Jan 30, 2010
    keep stroking.
    0
    Depends on how the camber is set in the trailer than neck setting. Neck setting can only do so much. My trailer I strapped all four beams a few yrs back. Didnt re-arch. Since arch was still spot on. Strapping changed the settings alot. Since I can't flatten out the deck like it use too. I wished I had a module deck.

    SAR, old iron, cke and 1 other person Thank this.
  4. Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    Xl trailers have the back deck higher at the front than the back so you need a heavy load to level it out, run the suspension low with a light load and back axle won’t air up.
    My next trailer will have a shimable back deck.

  5. old iron

    old iron Road Train Member

    1,125
    19,698
    Feb 19, 2011
    Northern Wi
    0
    Not a lot of heavier rated trailers have fenders over the rear bogie so it's kind of deceiving how much arch they have when empty.
    These fenders are dead level with the rear frame. The air is dumped in the trailer, and they are just about setting on top the last axle. To run 4 in a row empty I have to jack the ride height up. The air bags on axle #1 will be just about over extended and #4 will be almost bottomed out.
    The joys of a non modular trailer... Loaded light you easily gain 3-5" of deck height in the back half of the well. And empty they want to twist on that back axle taking 40 acres to turn a corner. IMG_20180808_152508611.jpg

    Stray_Dog, SAR, Cat sdp and 2 others Thank this.
  6. Pilotdriver

    Pilotdriver Bobtail Member

    13
    9
    Oct 16, 2011
    Rochester, MN
    0
    Lots of great ideas gentlemen, thank you!

    cke and old iron Thank this.
  7. Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0

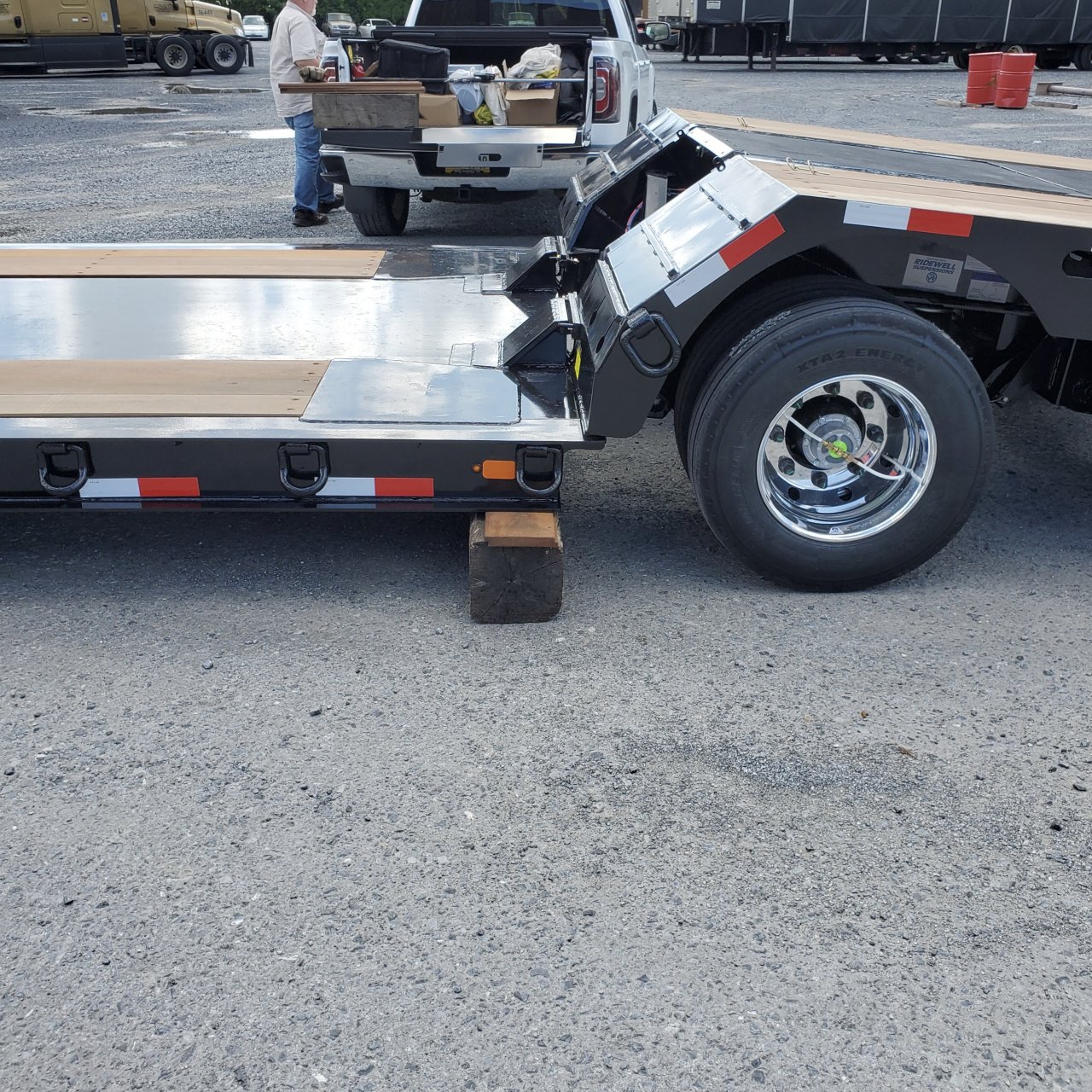

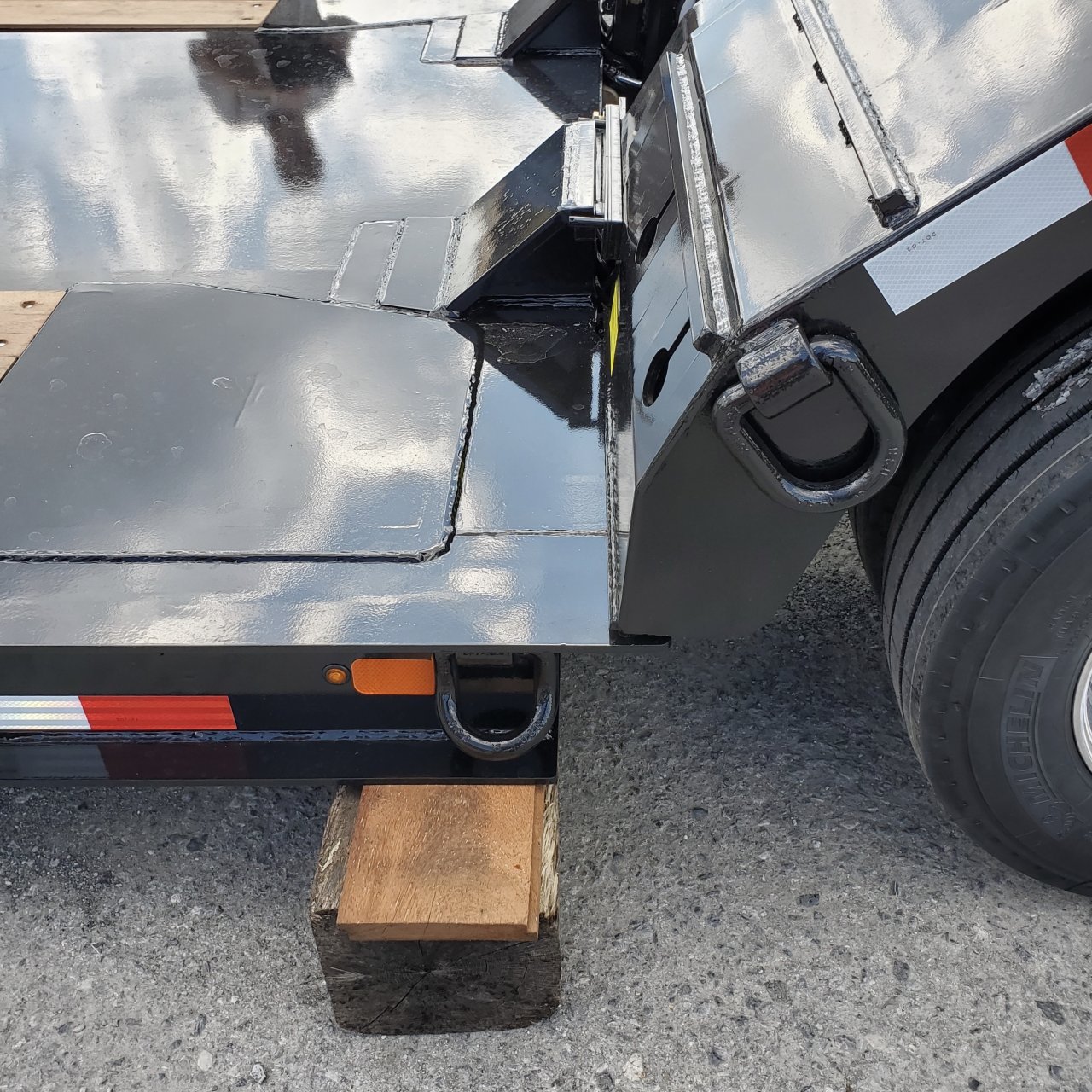

    This is how you get the back level for light loads. This is how my new trailer will be setup.
    99BAE1C7-F358-43DF-BB96-92024FB3B8CA.jpeg 440D4912-0768-4E42-8ED3-83E229B22BA3.jpeg

  8. Kawinige01

    Kawinige01 Heavy Load Member

    850
    1,116
    May 30, 2016
    South Fla
    0
    cke Thanks this.
  9. Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    No, pic is a 12” Transmaster, 8” thick deck, they have engendered a 6” thick deck for me.with 1 3/4 inch of camber.
    I want a real 10” deck height, xl 10” is closer to 16” with all the camber the put in it.

    kylefitzy and cke Thank this.
  10. Rontonio

    Rontonio Road Train Member

    6,054
    43,519
    Aug 9, 2009
    0
    Just put something heavy on it and you can make it a 6” deck height ....

    cke, SAR, Landincoldfire and 4 others Thank this.
  11. Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    Aren’t you the smart one, never loaded over 20k last year, I could get the 14 tall pieces down to 15 ft high, the guys that bought a standard xl mini deck were 15’4 and taller. No big deal till you get to Indiana and Ohio. No bucket truck in Indiana and no police escort in Ohio at 15 tall, I kept their money.

    Stray_Dog, brianv31, cke and 1 other person Thank this.
