Best thing to do is try to find another cabover of 84-90 vintage for parts. They mostly were all power steering by then. My ‘85 parts truck has everything on it but I might be using it on my ‘73 Pete.
Also if you can’t get a pump bolted to the back of the oil pump you can mount one on a bracket and use a v-belt off of the accesory drive to run it. My Nh 250 in my ‘72 White 4000 was set up from factory this way. It has Sheperd box and pump sits up above the fan hub and water pump. The belt runs from the fan hub pulley. The 250’s had the oil filter horizontally mounted on the back of oil pump so no way to mount a hydro pump to it.
Adding power steering
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Isxrookie, Jun 4, 2020.
Page 5 of 5
-
Bean Jr., BoxCarKidd and 650cat425 Thank this.
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
-
-

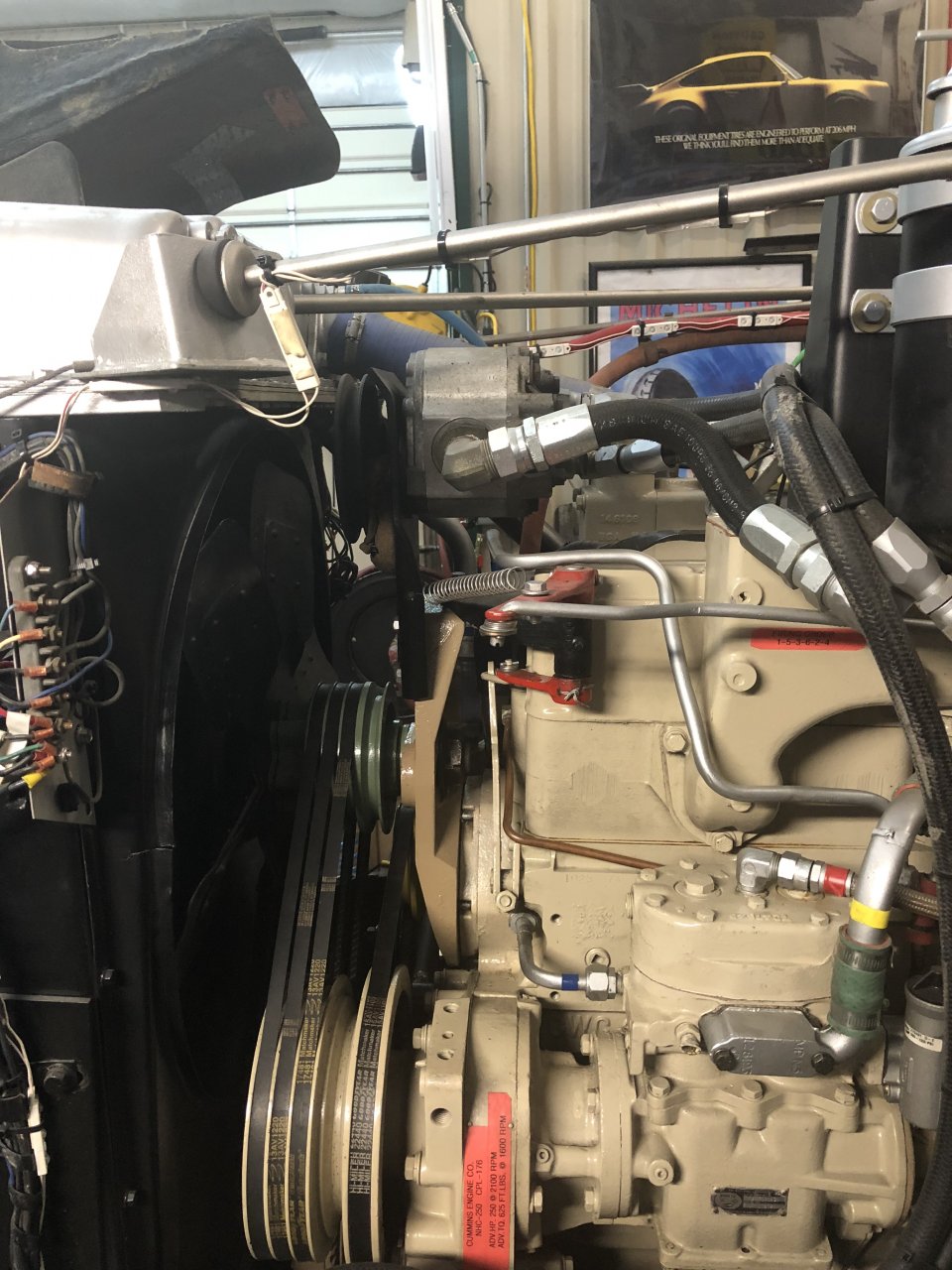

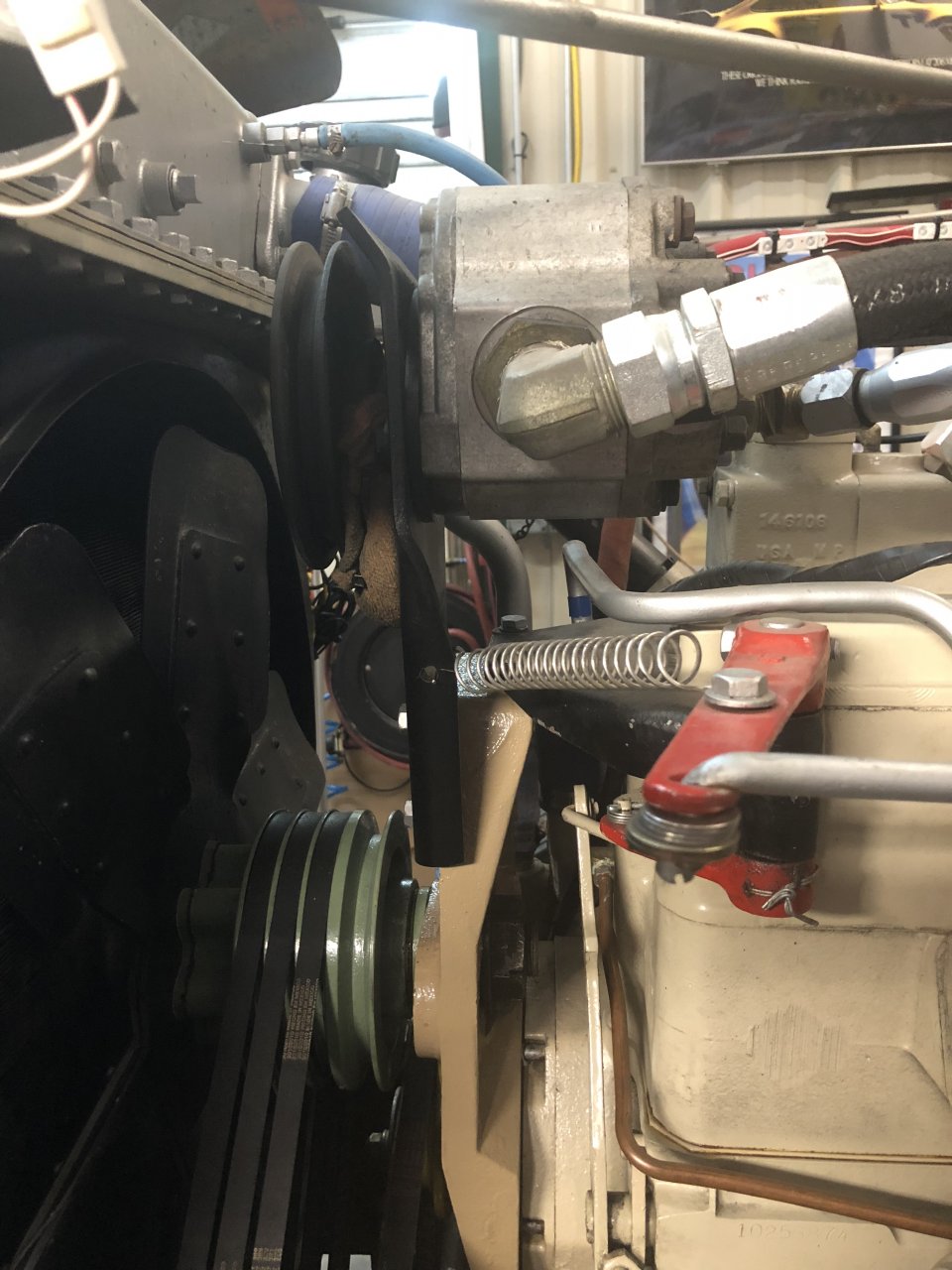

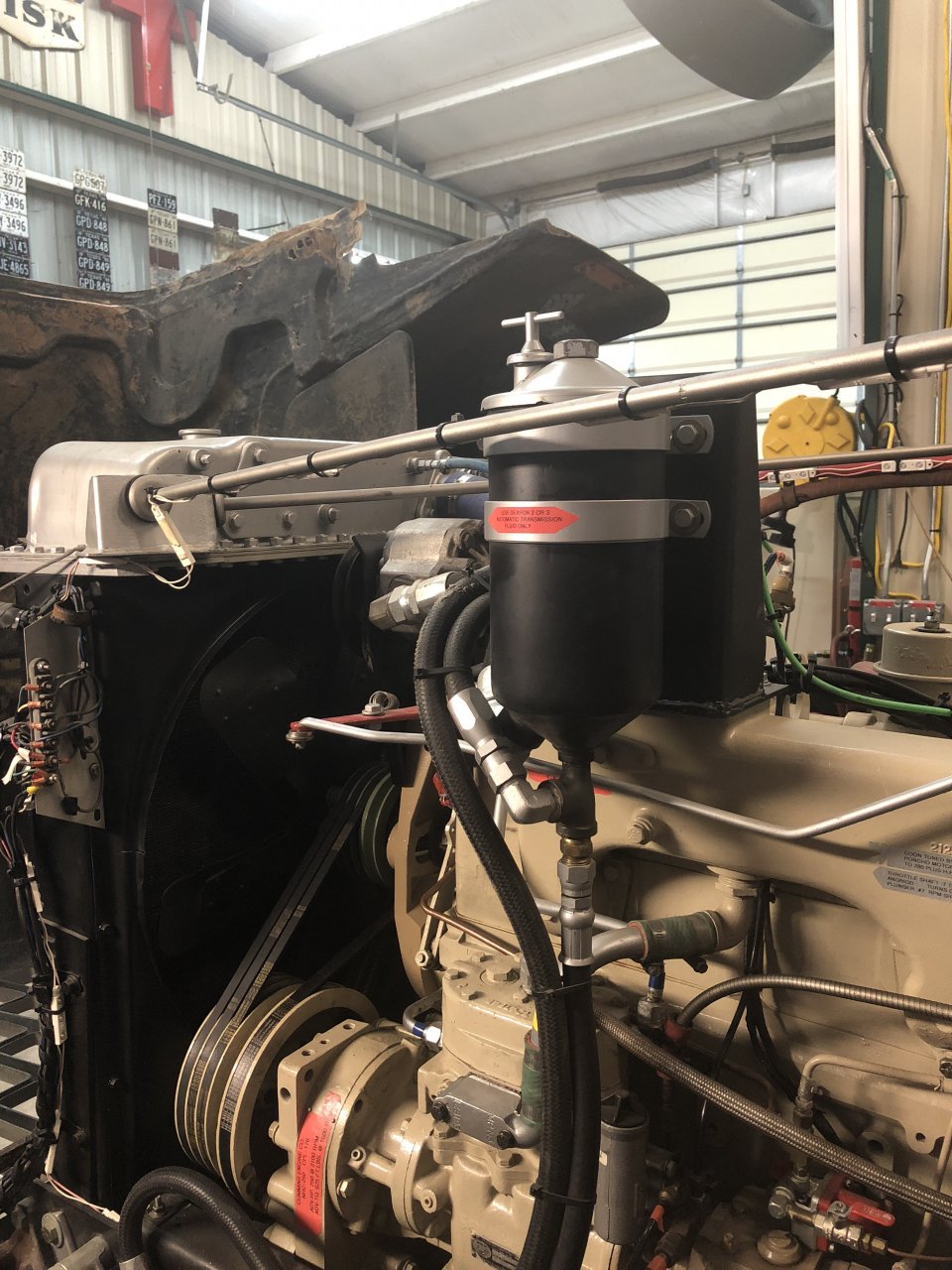

This is how it is mounted. The belt is off right know because the gear box is leaking and obsolete so in the mesn time I put a Gemmer manual box in its place. Most likely it is gonna be there to stay.
650cat425, AModelCat and BoxCarKidd Thank this. -
-
Now the new guys will want to know what the red lever is on the side of the engine. That is warp drive right? Twin sticks to the dash! Switch to the tank with jet fuel!! Then flip the lever that changes the compression ratio!!! -
I found you one in my shop if you p/m me your address I will send it your way if want it, its been in plastic bag for a long time but was working when i took it off a cumm. eng that vented the block when the Auto/car alum frame truck pulling a big 2 story house rolled to fast down a big hill a few mi. from my home, i will look for the steering box off coe but i am not sure where it is but pump is on shelf
650cat425 Thanks this. -
