All Aluminum Step Deck

Discussion in 'Flatbed Trucking Forum' started by RJ Lopez, Feb 29, 2016.

  1. ColoradoGreen

    ColoradoGreen Heavy Load Member

    755
    875
    Mar 1, 2010
    0
    The biggest issue I see with a lot of the common aluminum steps (Benson, Chapparal, East) is the deck isn't gusseted. Your combo, @Hurst, along with most steel steps I've see, have gusseting from the main-rail to the outer-rails, and that makes a world of difference on how the trailer handles heavier spot-loads. I loaded a 46,000lb. man-lift out of Moses Lake one time on a Benson 53-foot all aluminum. I stood at the back of the trailer and looked down the outer-rails, and the deck was warping and deforming under the tires. A 46,000lb. machine is a light piece of equipment, and any trailer warping underneath that was a junk trailer in my opinion. I didn't bother about the potential damage to the trailer because it was owned by the company I was pulling for. If they wanted me to smoke the trailer loading what they found, so be it, but, I'd never do that to my own trailer, and because I prefer flexible loading options, that's why I wouldn't run an all aluminum. Always said he would start finding cracks in the main-rail and warped decks if he kept loading his trailers like that.
    I always thought the design on the Benson neck was absolutely horrendous. It didn't matter whether it was spot-loaded or across the entire deck, but, any time I put more than 42,000lbs on the trailer, the neck would crane downwards, at 42,000lbs of freight. That's a common, even on the light side, full load for a stepdeck, and it was warping and torqueing the neck.

    I pulled a combo flatbed quite a bit when I ran local more handling crane moves. It was our last-resort trailer for crane moves, only used when we needed every open deck we could get our hands on. That thing was a joke compared to the others for loading large crane counterweights and boom sections. Hated using it and grabbed anything but it if I could.

    I understand needing to keep weight down on the combination. Even though running lowboys you get used to 40-50,000lb empty weights, it's still a consideration for us. But, as my opinion goes, I'll give up a little payload (make it up on the tractor, you don't need a condo bunk, or a 15L to pull a step doing legal freight) so I know that the trailer is going to last and handle pretty heavy loads.

    Orangees and Hurst Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 1951 ford

    1951 ford Road Train Member

    2,839
    59,099
    Feb 23, 2016
    South Hutchinson, KS
    0
    I'm a Ford guy, and I wouldn't by a new ford pickup.


    Attached Files:

  4. Fast1

    Fast1 Bobtail Member

    21
    28
    Oct 2, 2011
    Hutchinson,Ks
    0

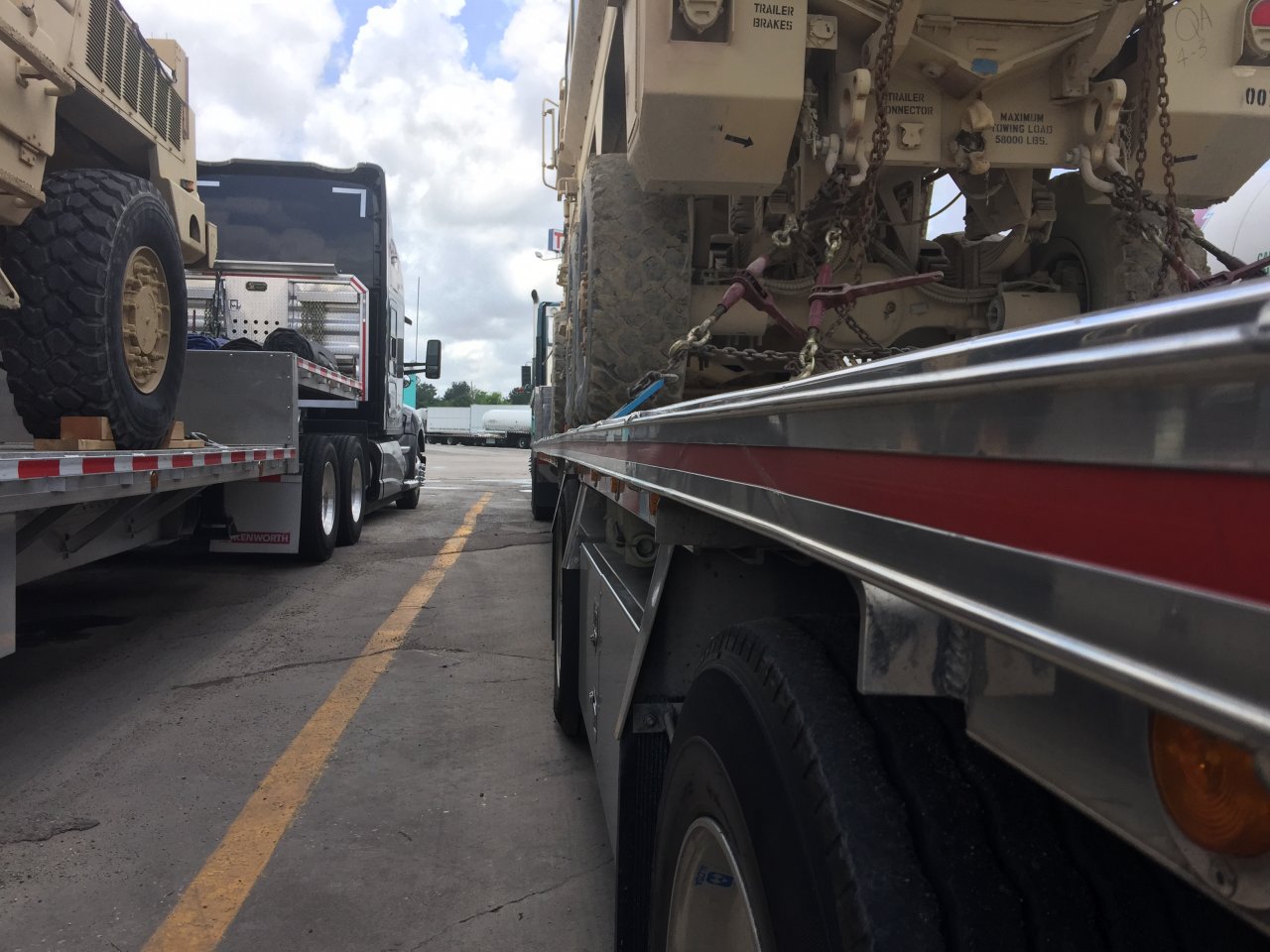

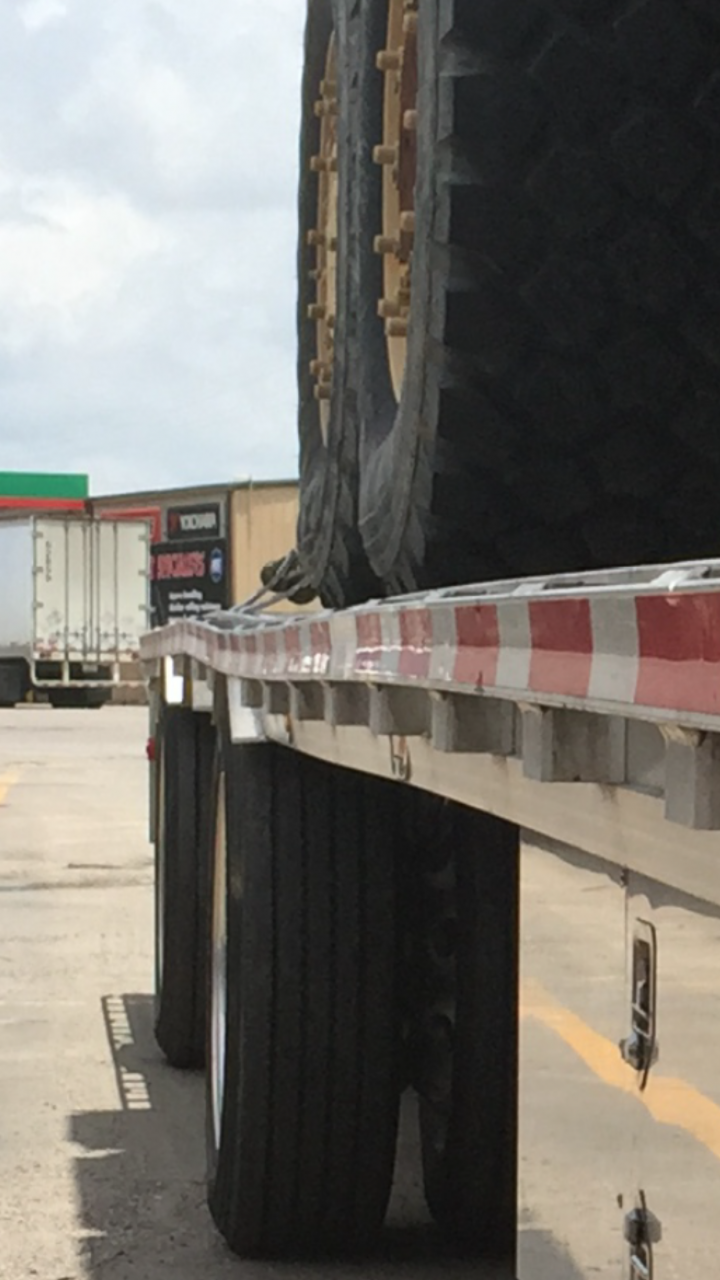

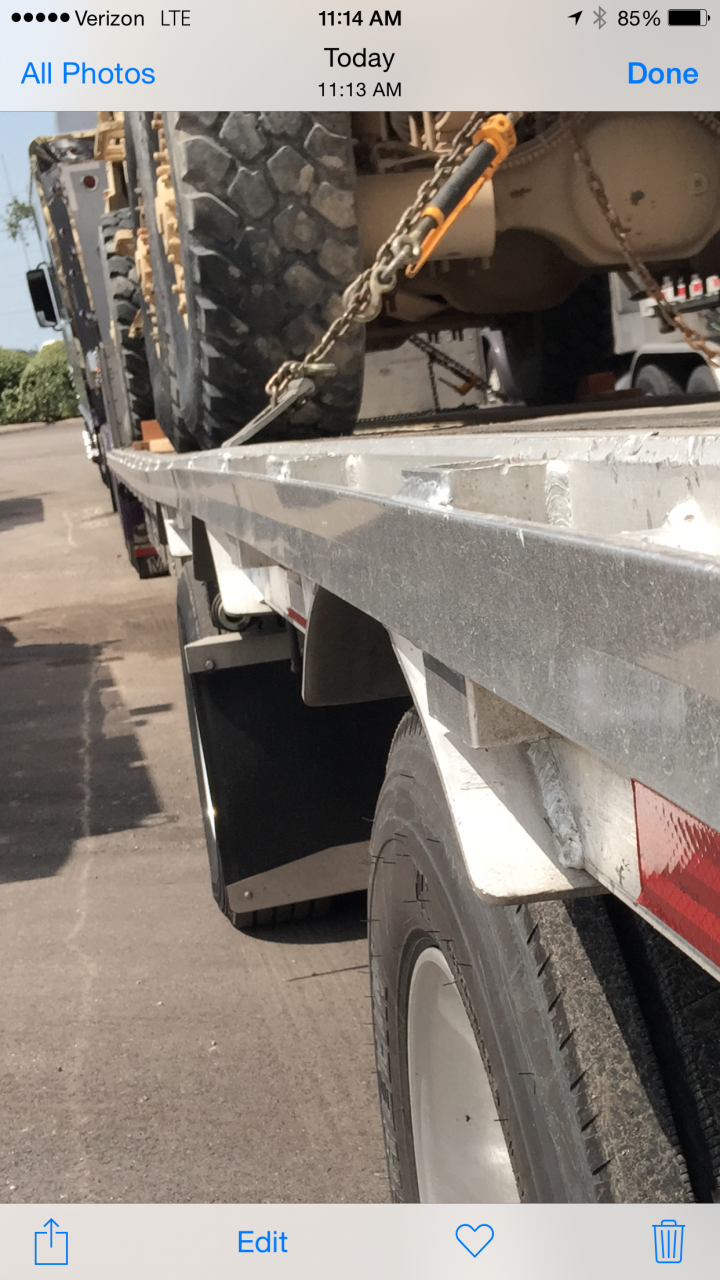

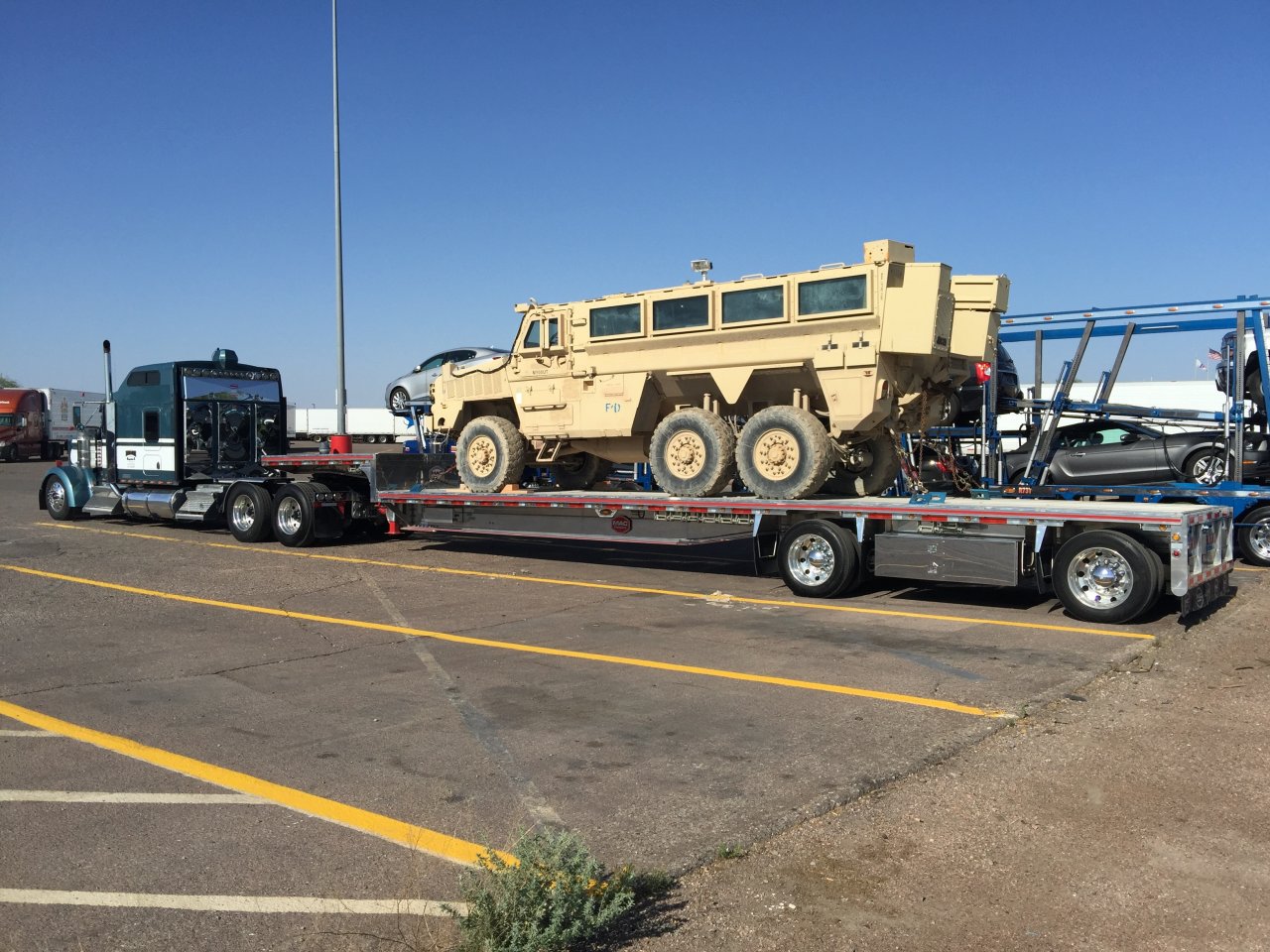

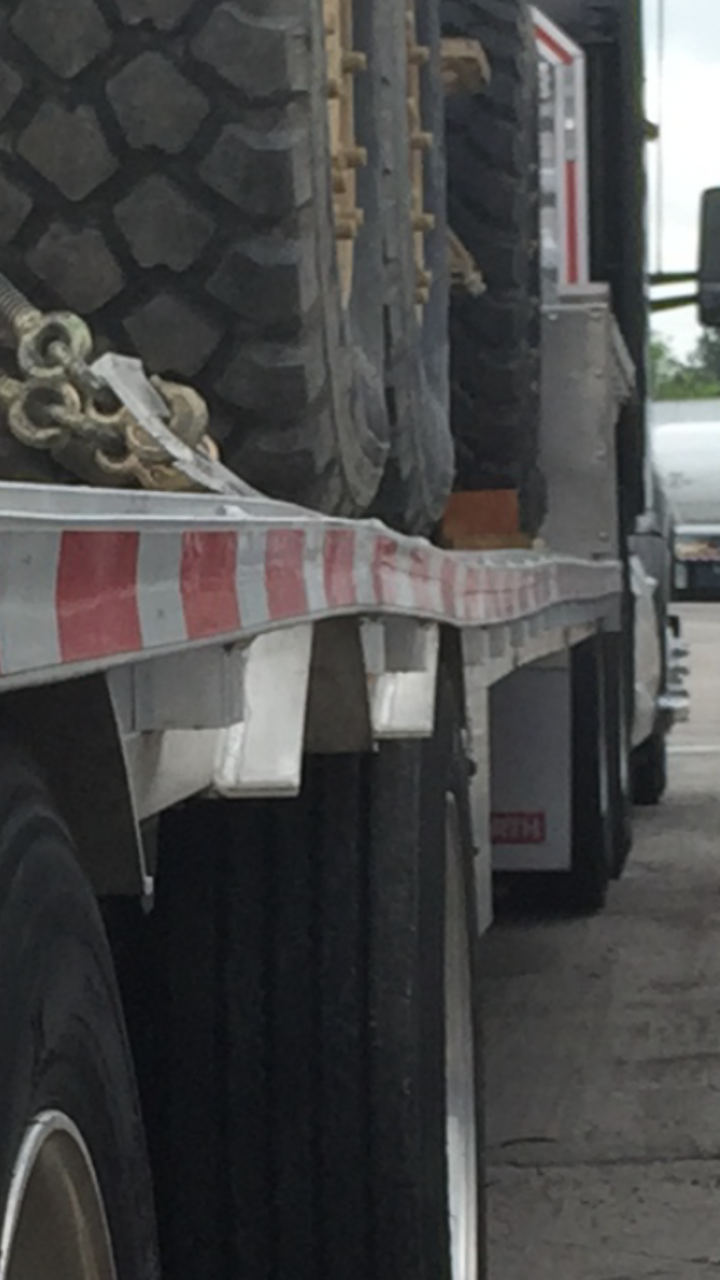

    View attachment 134086 Here is my Mac with no supports from the frame to the rub rail & 53,000#'s of truck on it. The pics are of a Reitnouer and a Chaparral. The Reitnouer and Chaparral both have the supports from the frame to rub rail.


    Attached Files:

    SoDel, BigCam9670, GarretMc23 and 2 others Thank this.
  5. rank

    rank Road Train Member

    9,795
    109,409
    Feb 11, 2010
    50 miles north of Rochester, NY
    0
    I didn't think anyone made a deck without knee braces. That's crazy. We have Lode King, reitnouer and Wilson. All have them.

    Last edited: Apr 2, 2016
    Fast1 Thanks this.
  6. Fast1

    Fast1 Bobtail Member

    21
    28
    Oct 2, 2011
    Hutchinson,Ks
    0
    Mac will, when I ordered this trailer I had seen other Macs with out the braces & told my rep I liked the clean look with out them, he told me that's no prob they can build it with out them- not sure what they do to get around it but I seem to think they have it figured out.

    rank Thanks this.
  7. Ruthless

    Ruthless Road Train Member

    7,355
    71,688
    Aug 28, 2010
    The City.
    0
    Those pictures are impressive. Really shows what's what

    rank and Fast1 Thank this.
  8. Fast1

    Fast1 Bobtail Member

    21
    28
    Oct 2, 2011
    Hutchinson,Ks
    0
    Thanks- The Mac rep liked the pics also.

  9. Cat sdp

    Cat sdp . .

    15,110
    38,805
    Apr 8, 2012
    Orion's Belt
    0
    So you don't want a mac without the braces to the outside of the deck?

    Second thought who makes the best all around step..? Hauling a little palletized , some bld supply's and a machine or two.....

    Last edited: Apr 2, 2016
  10. Ruthless

    Ruthless Road Train Member

    7,355
    71,688
    Aug 28, 2010
    The City.
    0
    When did you start that?

    I've always thought highly of Mac, the pictures @Fast1 put up are pretty powerful examples.

    For occassional use as you described, I wouldn't be rushing out to get something that fancy.

    Orangees Thanks this.
  11. Cat sdp

    Cat sdp . .

    15,110
    38,805
    Apr 8, 2012
    Orion's Belt
    0
    I could not tell the make of trailers in the photos . I thought the mac had the bow ....

    I'm just trying to learn ....(just in case )
