Alternative options for Old Loadstar Master Cylinder

Discussion in 'International Forum' started by OldLoadstar, Jul 27, 2021.

  1. OldLoadstar

    OldLoadstar Bobtail Member

    3
    1
    Jul 27, 2021
    0
    Good morning,

    I am having a heck of a time trying to find a brake master cylinder with a 1 3/4" bore and triangle 3 bolt pattern, for my old 1969 International Loadstar 1700 series. I have tried looking just about everywhere I can think of and no one has any. Does anyone here have any suggestions for possible alternatives in the event one cannot be located? The truck is only used as a farm truck on a primarily flat piece of property, so the brakes don't have to be "perfect", would just like to be able to slow down without yanking the e-brake.

    Any insight into possible solutions is much appreciated!

    bzinger Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. jason6541

    jason6541 Road Train Member

    1,878
    3,517
    Mar 5, 2012
    Omaha, NE
    0
    What about building an adapter plate and adapting a more modern master cylinder
    Piece of 1/4 steel or smaller and drill holes mount it and tack weld 2 bolts to plate steel. Mount new cylinder to that.
    Drill center hole big enough for rod.
    I am assuming it is a dual circuit, or a single circuit?.

  4. OldLoadstar

    OldLoadstar Bobtail Member

    3
    1
    Jul 27, 2021
    0
    Thanks for the response! This ones a single circuit.

  5. jason6541

    jason6541 Road Train Member

    1,878
    3,517
    Mar 5, 2012
    Omaha, NE
    0
    I believe the first generation of Camaro used single non power assist master cyl
    Not sure about stroke though.

  6. jason6541

    jason6541 Road Train Member

    1,878
    3,517
    Mar 5, 2012
    Omaha, NE
    0

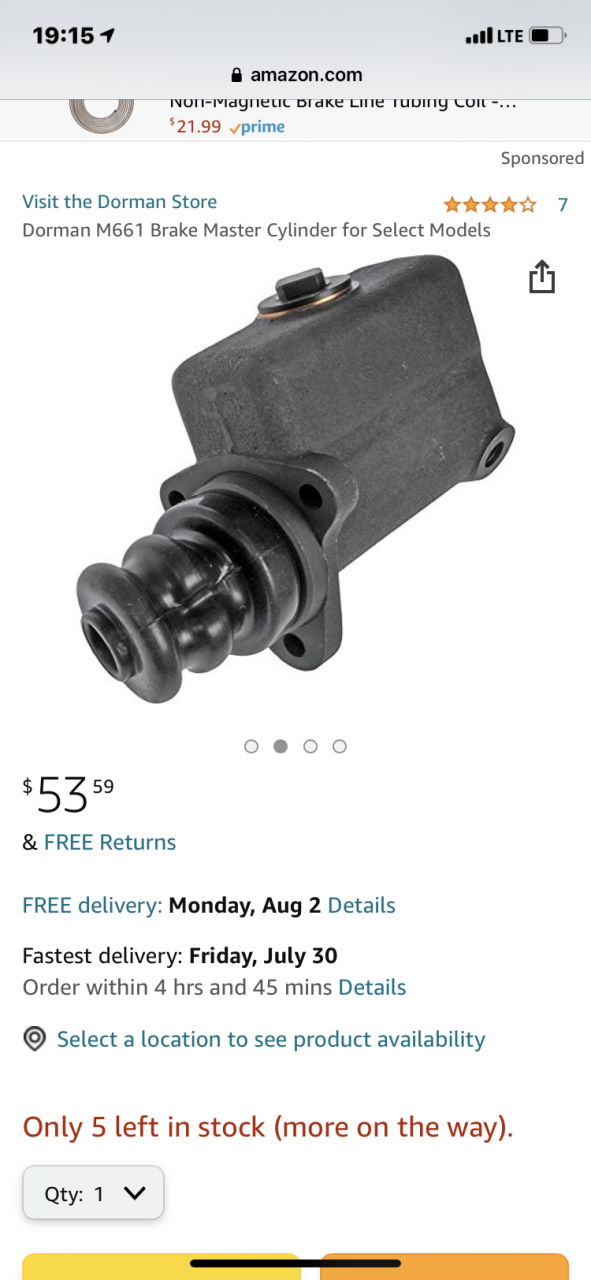

    I think this is what your looking for D92BBB80-4E01-4492-B588-5AB42469C695.png

    QUALITYTRUCK and AModelCat Thank this.
  7. OldLoadstar

    OldLoadstar Bobtail Member

    3
    1
    Jul 27, 2021
    0
    Saw that one, it’s a 1.5 inch bore, mines the 1.75. I’ve ordered one, hoping it can be made to work.
