Apu stop working

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by 7seriestv, May 26, 2019.

  1. 7seriestv

    7seriestv Light Load Member

    Joined:
    Jan 28, 2016
    Messages:
    230
    Thanks Received:
    144
    0

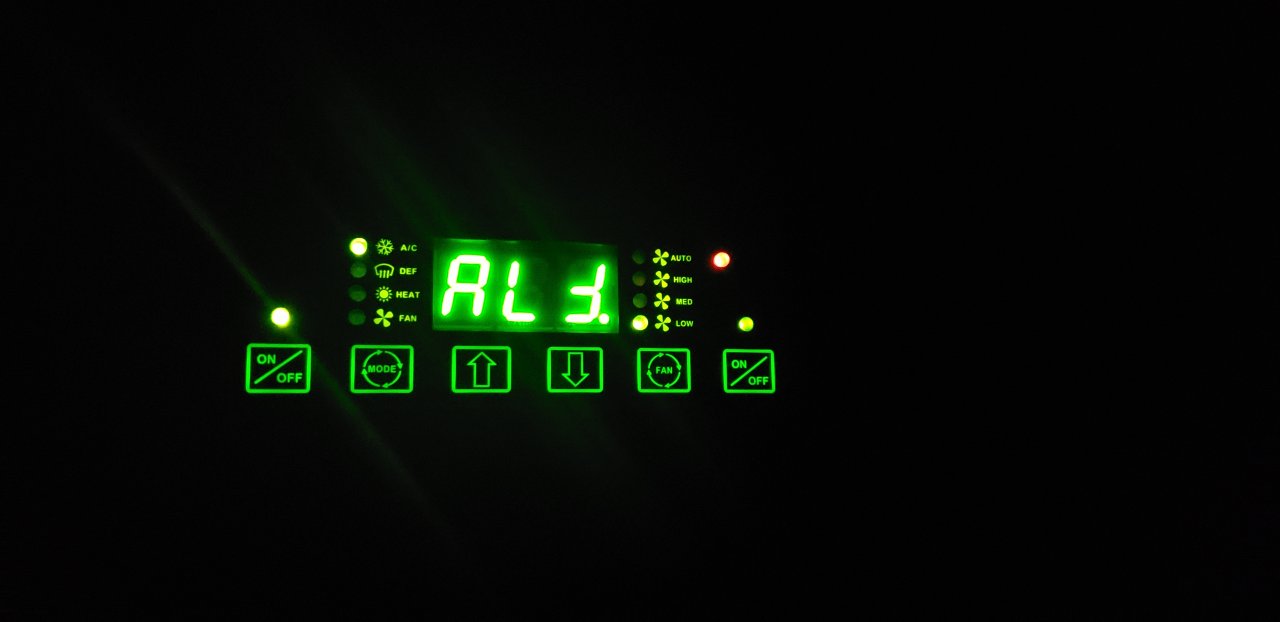

    I just got this truck Monday with a tripac apu. It work fine until Thursday, it was running then the red system fault light come and it shut down. The code is AL and a symbol look like an upside down F. 20190524_140736.jpg

    The oil level is good,I check the ground on the alternator, it was slack and I tightened it, then I press the reset switch and it still doing the samething. It will run for about 5 mins then the code come up and it shut down.

  2. bzinger

    bzinger Road Train Member

    Joined:
    Dec 10, 2014
    Messages:
    16,611
    Thanks Received:
    65,901
    Location:
    omaha , ne
    0
    Was the cooling system recently opened up for a repair ?
    If so this can introduce an air pocket which needs to be bled at the apu .

  3. mhyn

    mhyn Road Train Member

    Joined:
    Dec 29, 2008
    Messages:
    4,255
    Thanks Received:
    4,513
    Location:
    Northridge, CA
    0
    you need new alternator.

    7seriestv Thanks this.
  4. 062

    062 Road Train Member

    Joined:
    Oct 20, 2013
    Messages:
    6,201
    Thanks Received:
    33,404
    0
    Actually there are a few things that can cause this.
    You need to check the voltage at the alternator first. If that’s good, then go to the box under the bunk and check the voltage on the sense wire. It should be labeled Sen. this was the problem with my apu. The sense wire was broken. You can run a new wire or make a jumper and tap off the lug beside the sen lug.

    7seriestv, PE_T and mhyn Thank this.
  5. Rholl

    Rholl Bobtail Member

    Joined:
    May 28, 2019
    Messages:
    7
    Thanks Received:
    3
    0
    Need to read the codes

    7seriestv Thanks this.
  6. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,471
    Location:
    Possum Booger, Alabama
    0

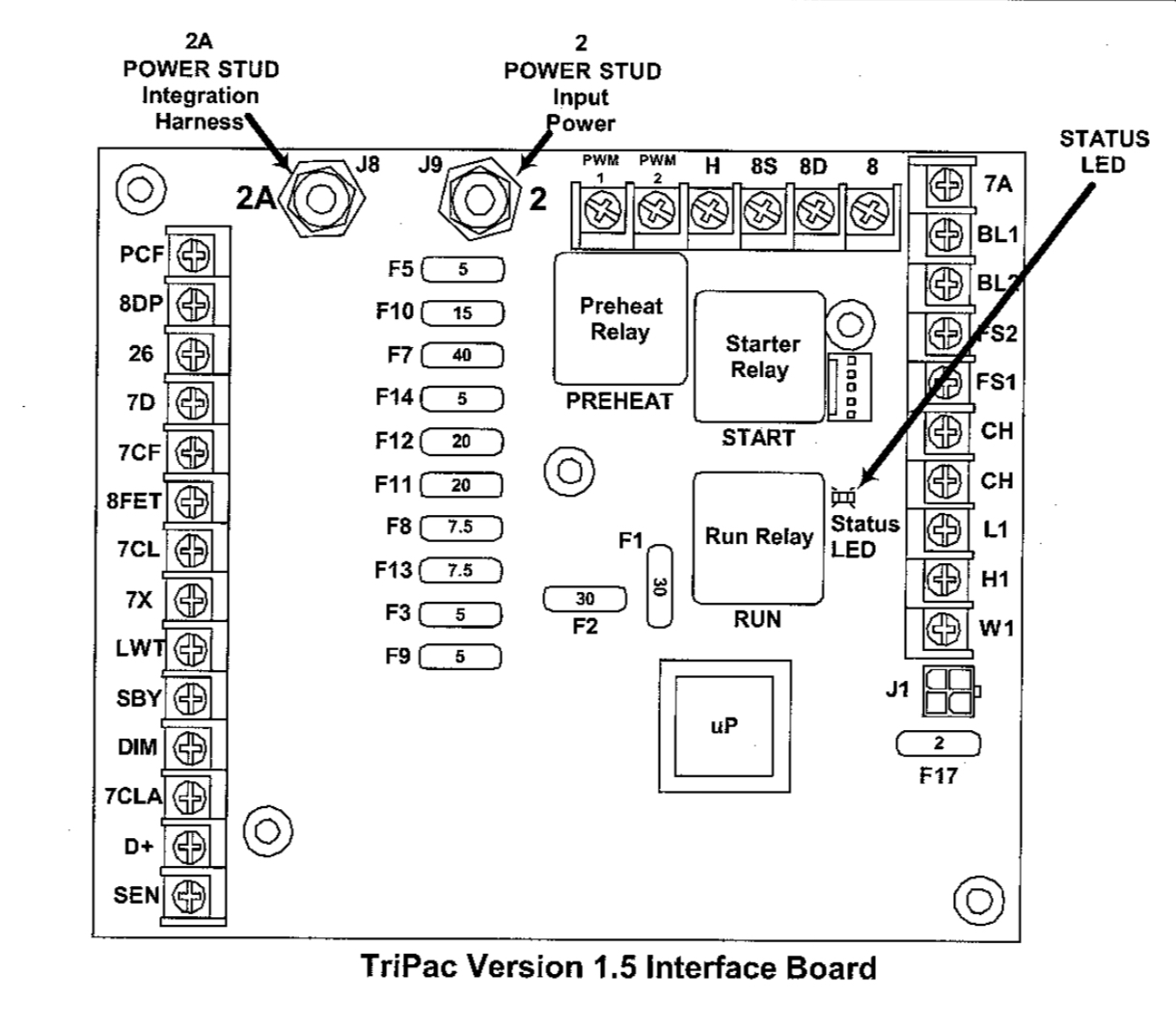

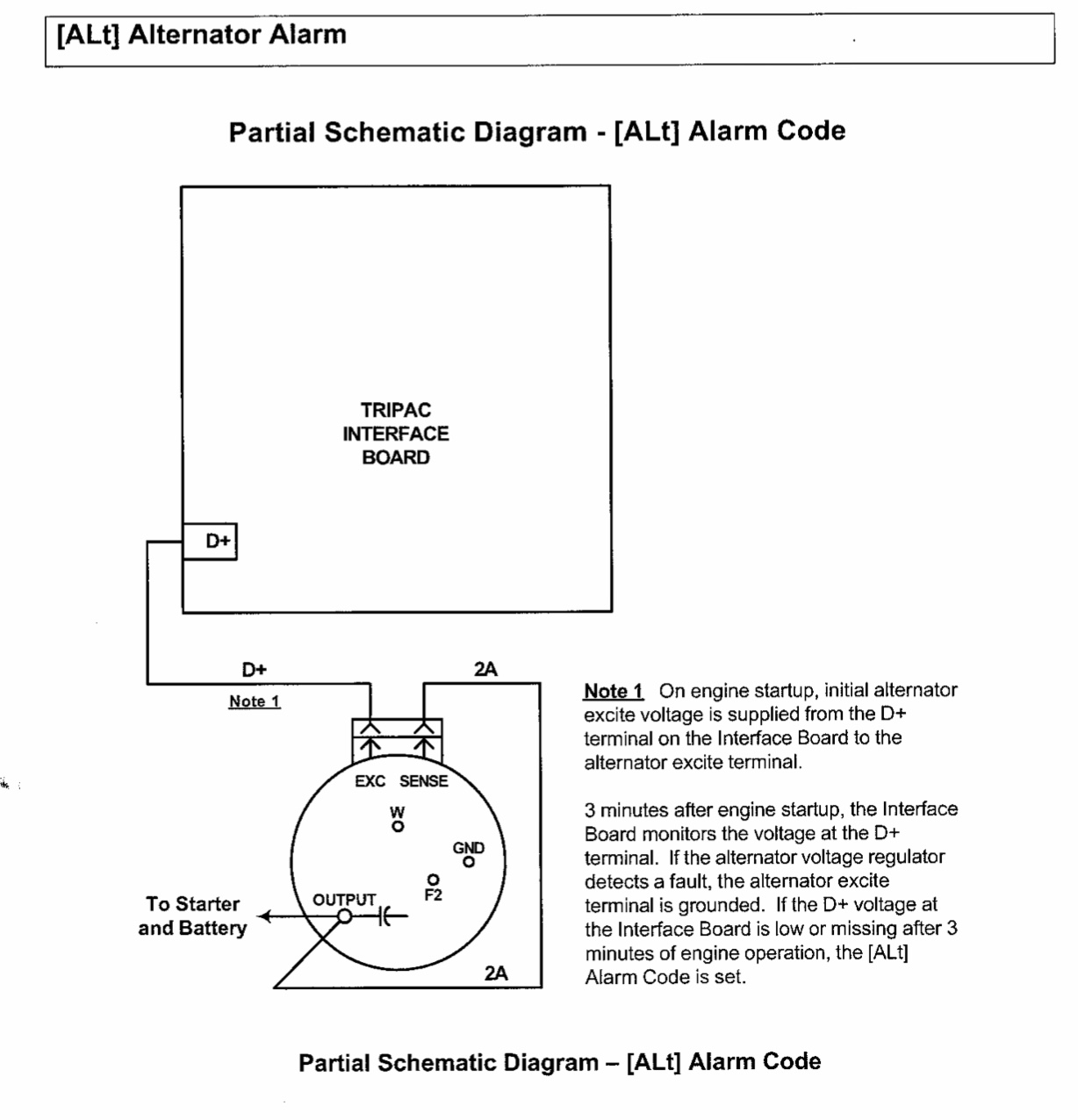

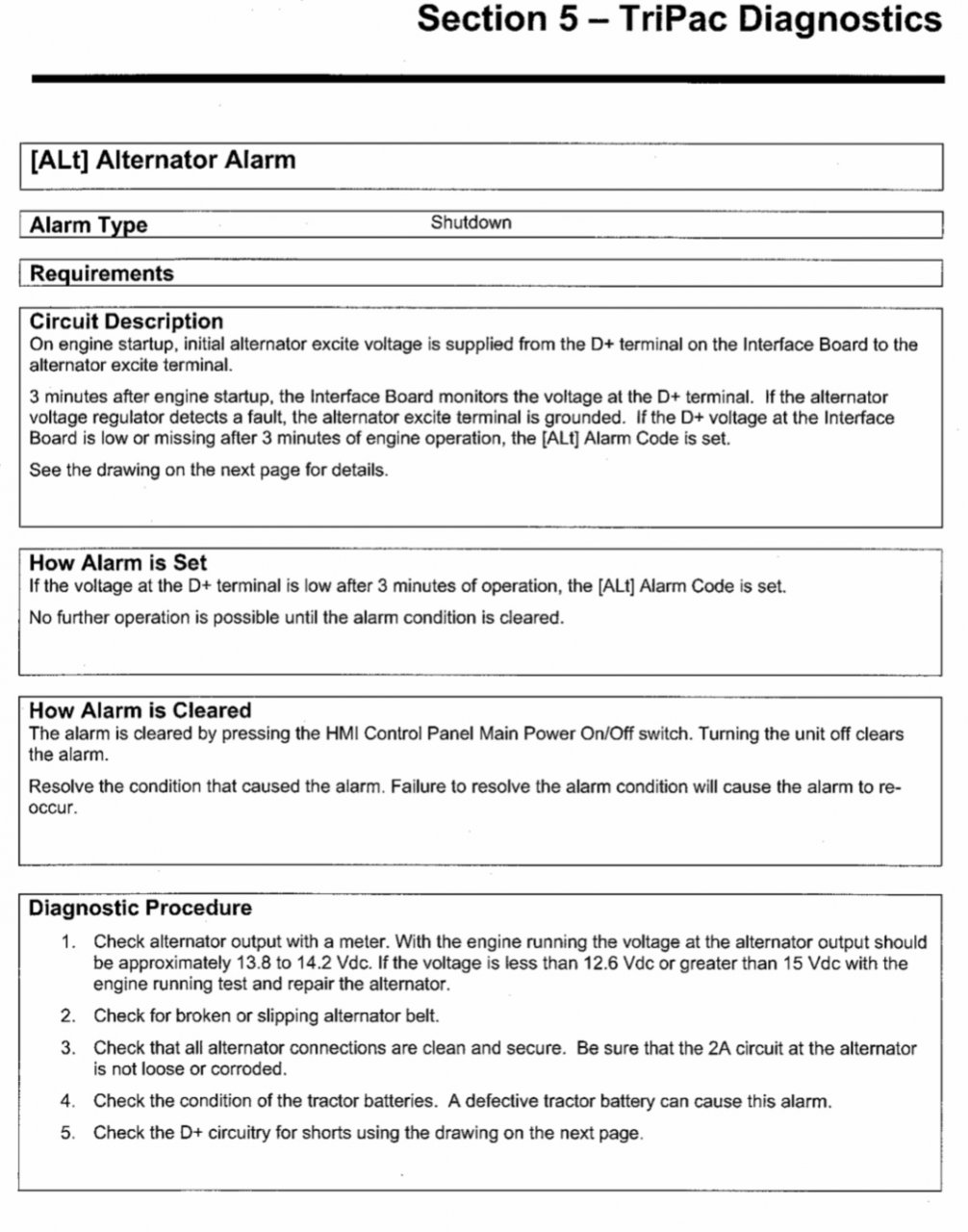

    A1AB6BC5-83FC-428B-B50E-886CD9775D7C.jpeg 13CB9013-A756-4C14-A8D2-DDBC75CC88D1.jpeg BC04F1EC-79D4-40E6-A902-1E66A1D79B12.jpeg

    7seriestv, mhyn and 062 Thank this.
  7. 7seriestv

    7seriestv Light Load Member

    Joined:
    Jan 28, 2016
    Messages:
    230
    Thanks Received:
    144
    0
    I will check that out, thanks for the information

  8. 7seriestv

    7seriestv Light Load Member

    Joined:
    Jan 28, 2016
    Messages:
    230
    Thanks Received:
    144
    0
  9. Devonbrett

    Devonbrett Bobtail Member

    Joined:
    Sep 2, 2019
    Messages:
    1
    Thanks Received:
    0
    0
    My comfort pro keeps saying main engine interlock and refuses to even try to start. Like my engine is running when it's not. Help!
