The butterfly hood gives enough access for maintenance like changing belts and filters when opened, but there are only 4 screws that hold the whole hood on. 2 in the front by the radiator and 2 in the back by the shroud. Its much easier to lift the hood off if you were running the overhead or something. The fenders themselves also are held on I believe by 2 bolts in the front and 3 in the back, but these were not made to be readily removed and I'm sure you would have to cut the bolts. Many of these trucks were made with a belly pan to protect the oil pan. Also not made to be easily removed, but can be if needed to drop the pan. The belly pan, depending on the motor, may go far enough back to be below the oil drain plug.
Autocar
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Dino soar, Dec 28, 2017.
Page 2 of 3
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
The tilt hood Autocars were a completely different design and the inner frame rails extended farther than the outer rails. The radiator stayed in place when they were tilted. I don't think there would be any way to modify a butterfly hood to tilt because of the radiator.
Last edited: Feb 17, 2018
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
We have several autocars in west little rock not too many years ago. I drove two of them. 12 yard concrete mixers. Always heavy.
I don't recall doing a #### thing to these things other than checking oil and wadder (Sorry Jersey...) every morning. Everything worked on them. Until one idiot rolled one of the two years later.
We had our own shop. But these trucks simply don't break. Much. Not like some of the newer ones that have to have a tow when a toggle or something snaps off. //sarcasm. -
OLDSKOOLERnWV and Dino soar Thank this.
-
Dino soar and visualphixation Thank this.
-
OLDSKOOLERnWV, Rideandrepair, spsauerland and 1 other person Thank this.
-

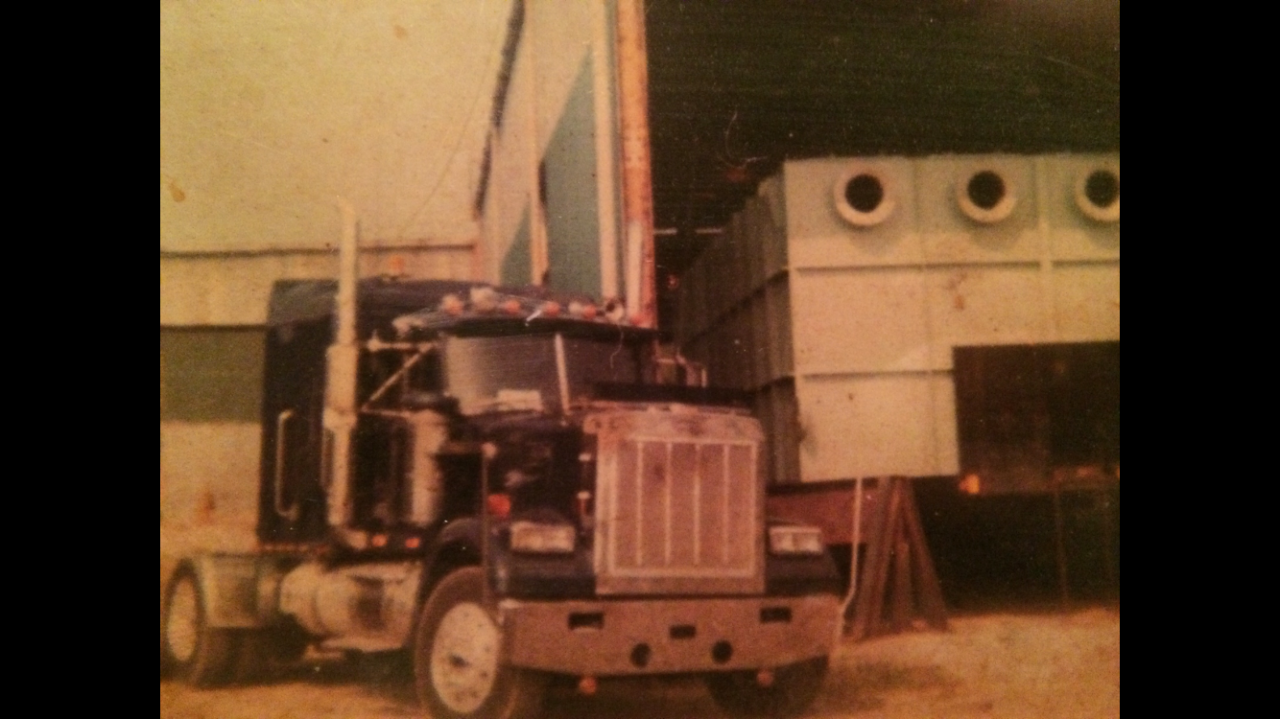

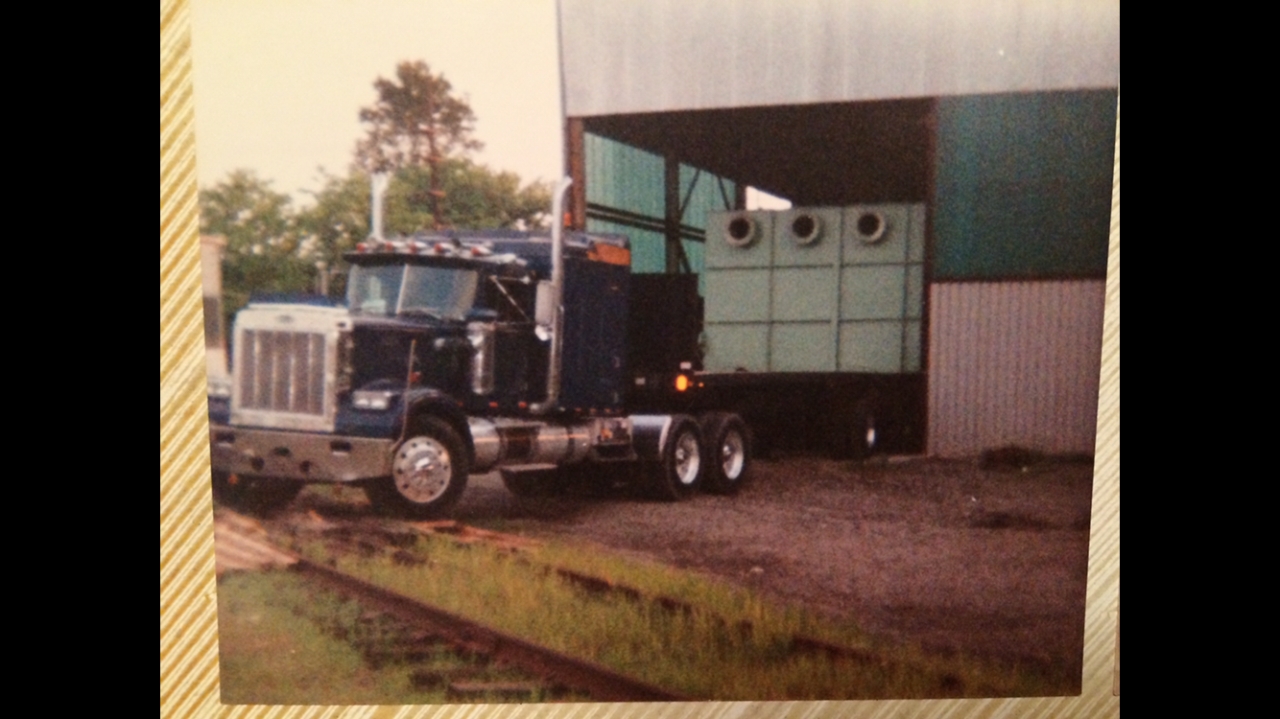

What model is it? One very desirable is the AT64F like this one I drove back in the 90’s. There is a FB page for Autocar trucks, as well as Vintage semi trucks, both good resources.....
BoxCarKidd, Dino soar and 062 Thank this. -
I wouldn't buy any Truck that's been setting for years...it will have a very long list of things wrong with it..I think Mack's are the Best Dump Truck..
BoxCarKidd Thanks this. -
-
-
